12-Pin Heavy-Duty Electrical Bulkhead Connector

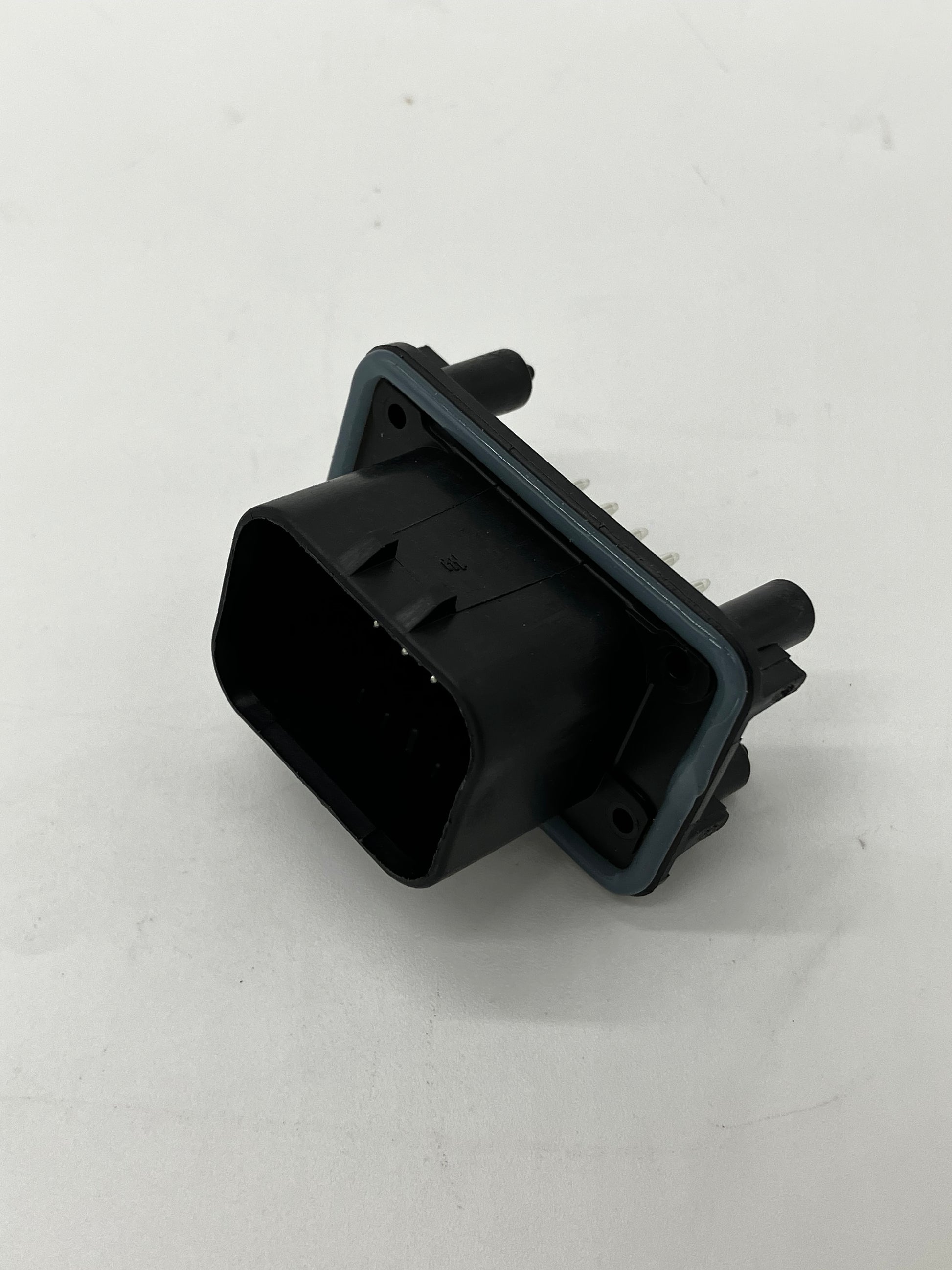

This is a robust 12-pin Electrical Bulkhead Connector, designed for securely routing wiring harnesses through bulkheads, firewalls, or equipment housings while maintaining a weather-tight seal. This heavy-duty plastic and metal assembly features a 12-pin male configuration with an integrated mounting flange, structural standoffs, and a perimeter rubber sealing gasket for environmental protection.

Key Specifications:

• Category: Automotive & Industrial Parts / Electrical Components / Connectors & Wiring

• Product Type: Electrical Bulkhead Connector / Wiring Harness Plug

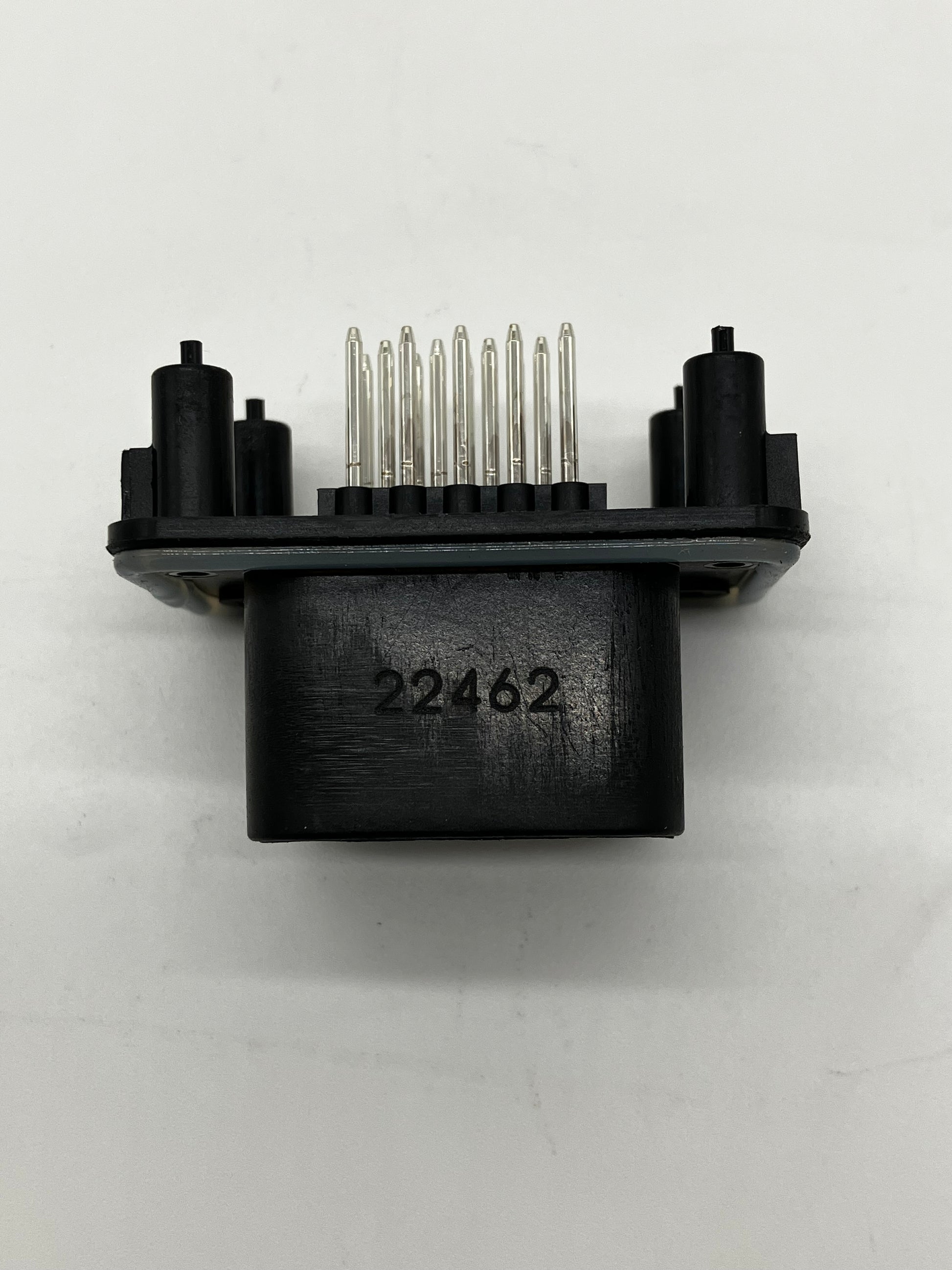

• Part Number Reference: Stamped "22462"

• Material: Heavy-Duty Heat-Resistant Plastic (Black) with Metal Pins

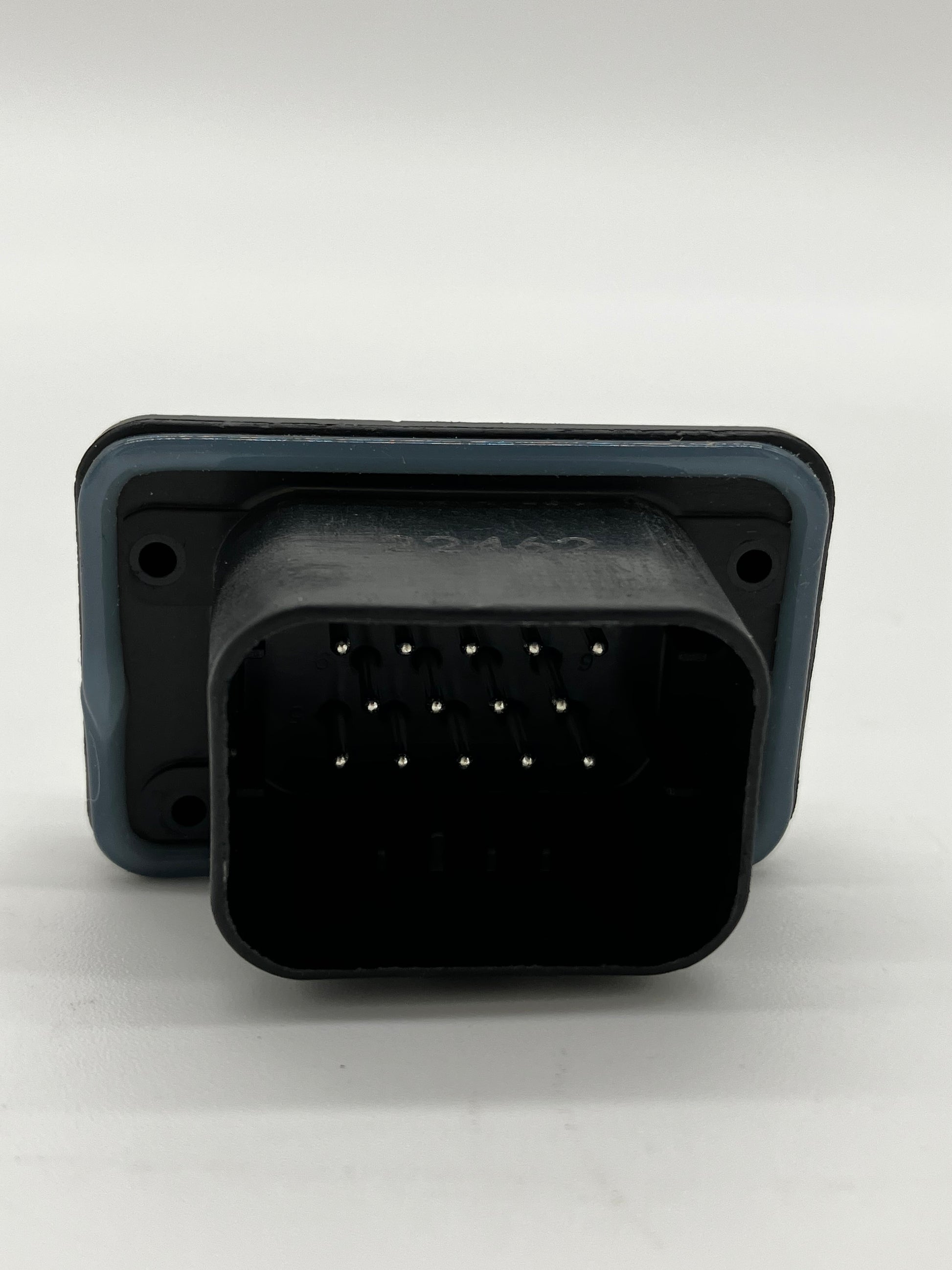

• Pin Configuration: 12-Pin (2 rows of 6 male terminals)

• Hardware Included: Main connector body, 12 pre-installed metal male pins, four integrated mounting standoffs, and a perimeter rubber sealing gasket (Wiring harness pigtails and female terminal receptacles are not included).

Key Features:

• Durable Construction – Molded from thick, heat-resistant plastic designed to withstand high temperatures, harsh fluids, and heavy vibrations without cracking or degrading over time.

• Environmental Sealing – Equipped with a thick perimeter rubber gasket to prevent moisture, dirt, and debris from penetrating the electrical connections at the mounting surface.

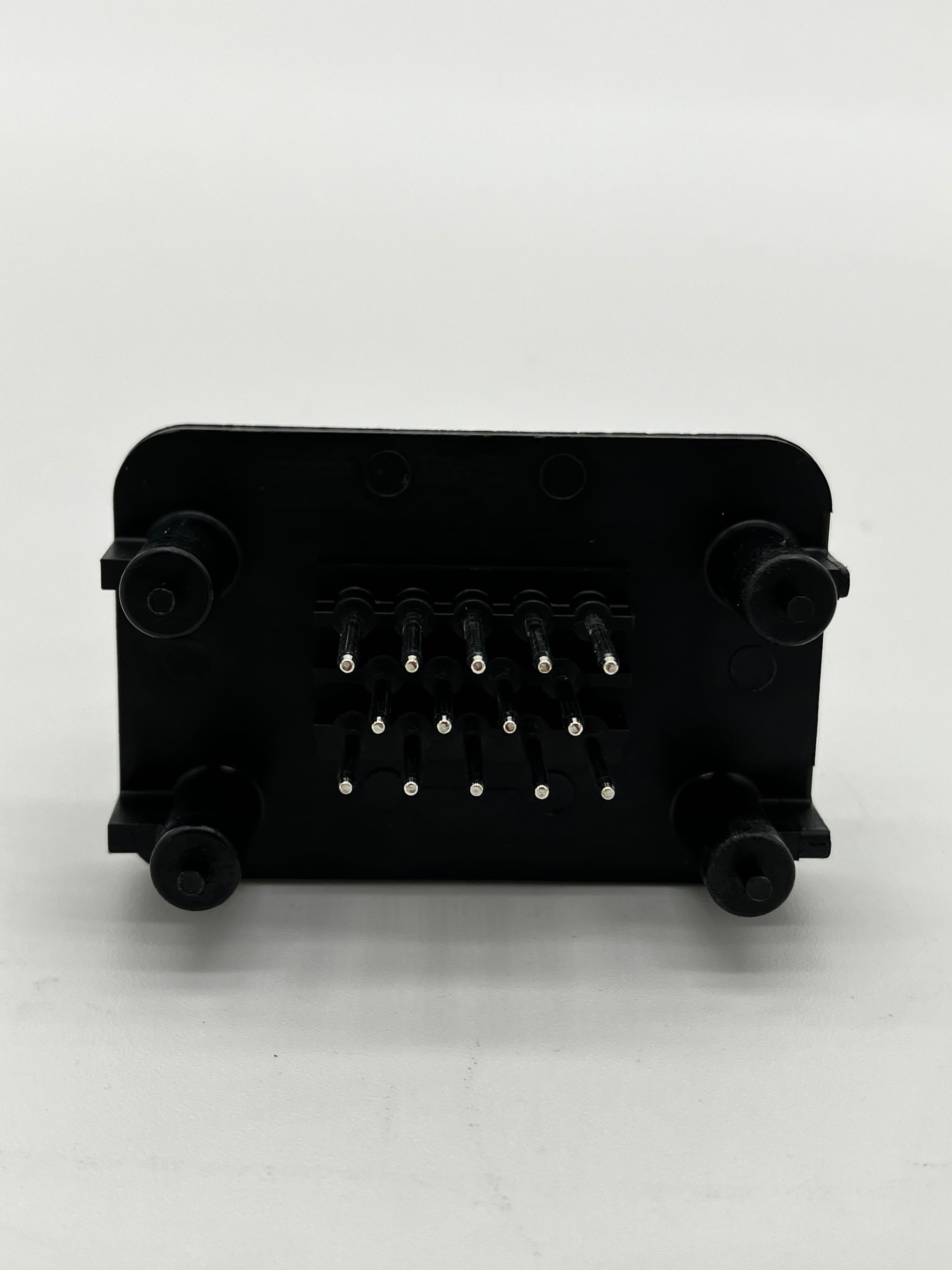

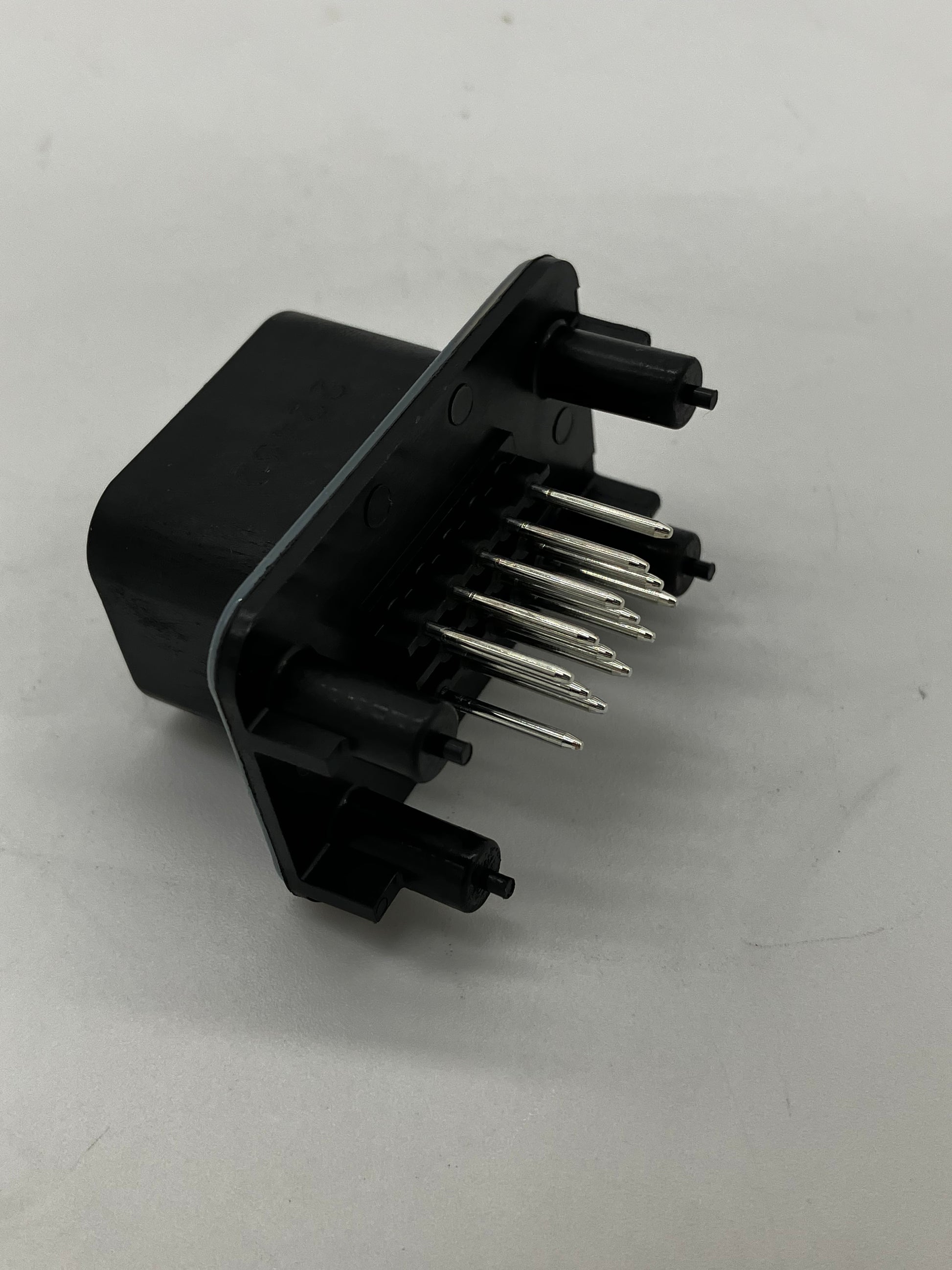

• Integrated Mounting Design – Features four structurally reinforced molded standoffs on the rear with integrated locating pins to ensure perfect alignment and stability when secured to a flat surface or housing.

• High-Density Layout – The compact 2x6 pin configuration allows for passing multiple electrical signals through a single, clean passthrough point.

Ideal For:

• Custom automotive and marine wiring harness builds

• Industrial control units and machinery requiring sealed bulkhead passthroughs

• Engine bay firewall wiring consolidation

• Restorations or repairs needing a heavy-duty 12-pin flange connector

Note: Shipping charges are not included and will be calculated separately based on the quantity, weight, and destination of the selected product(s).
