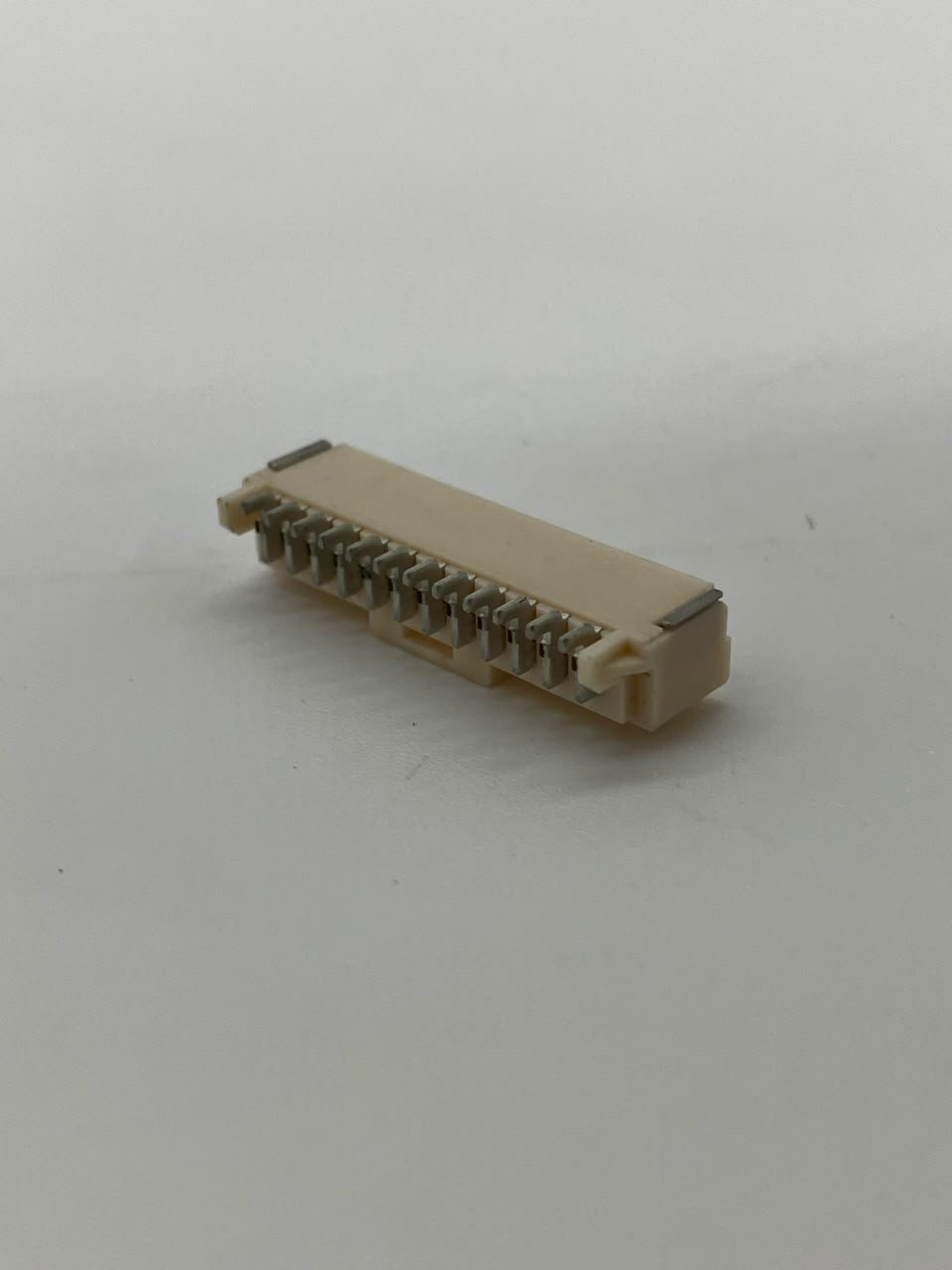

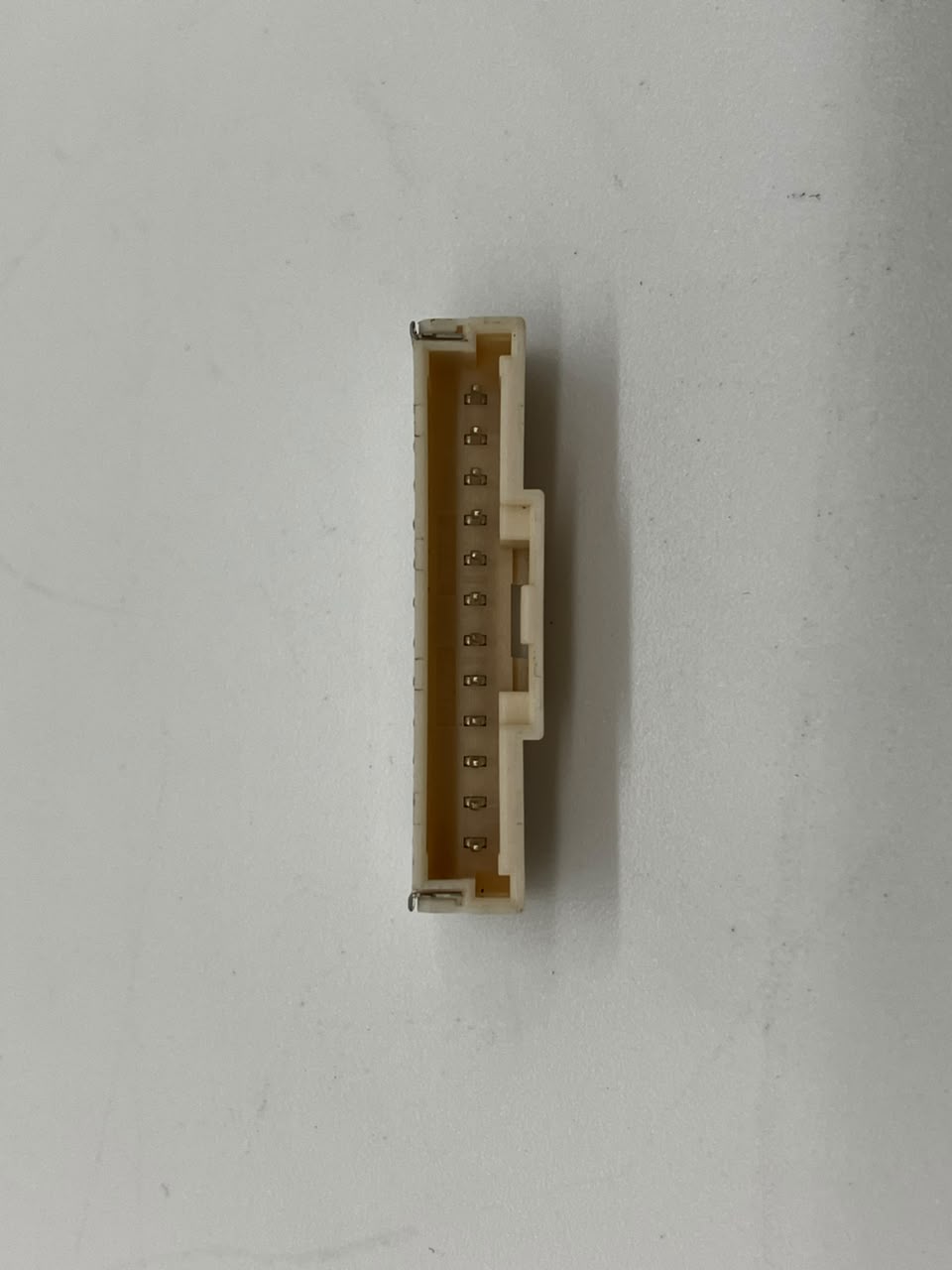

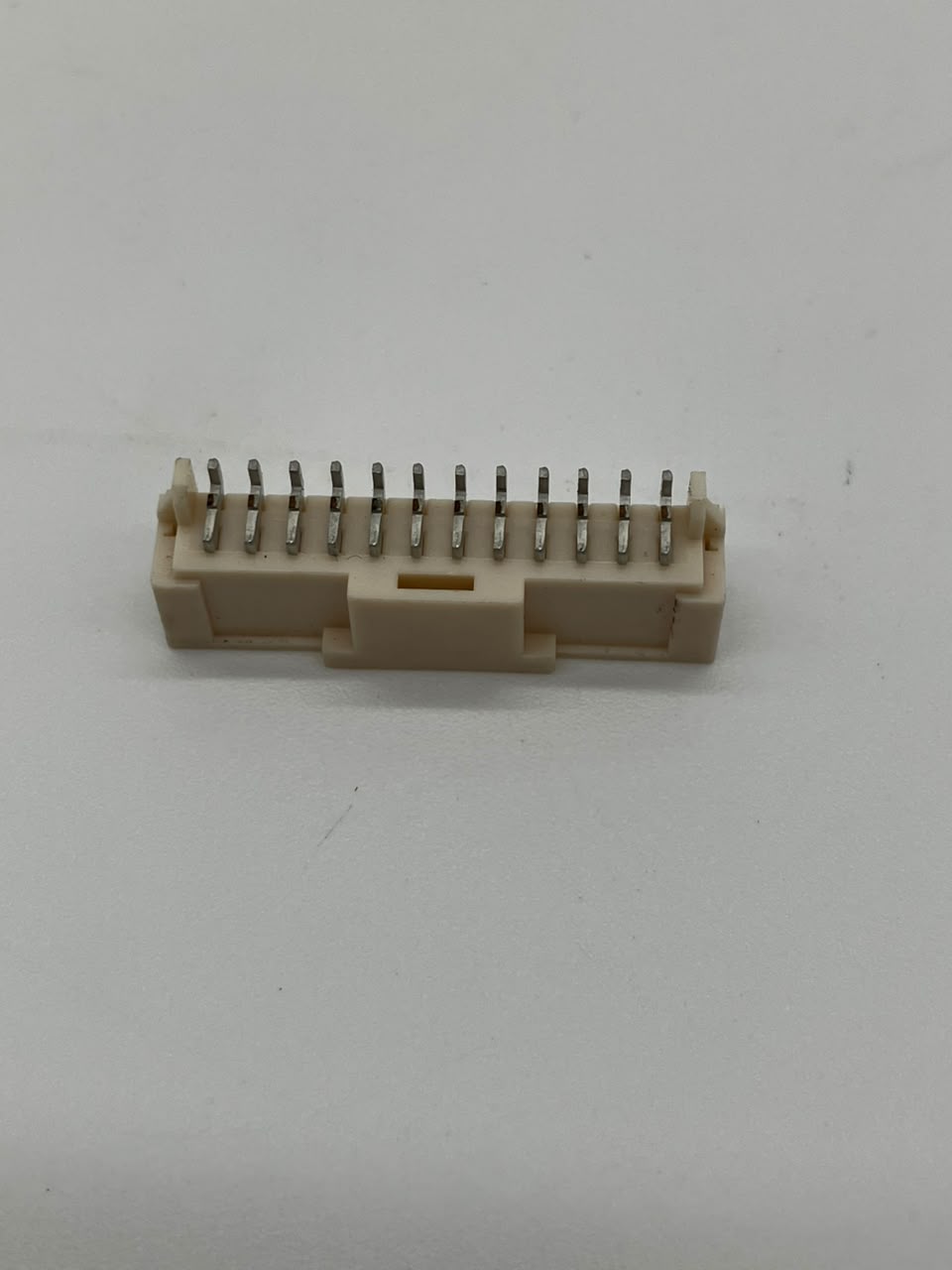

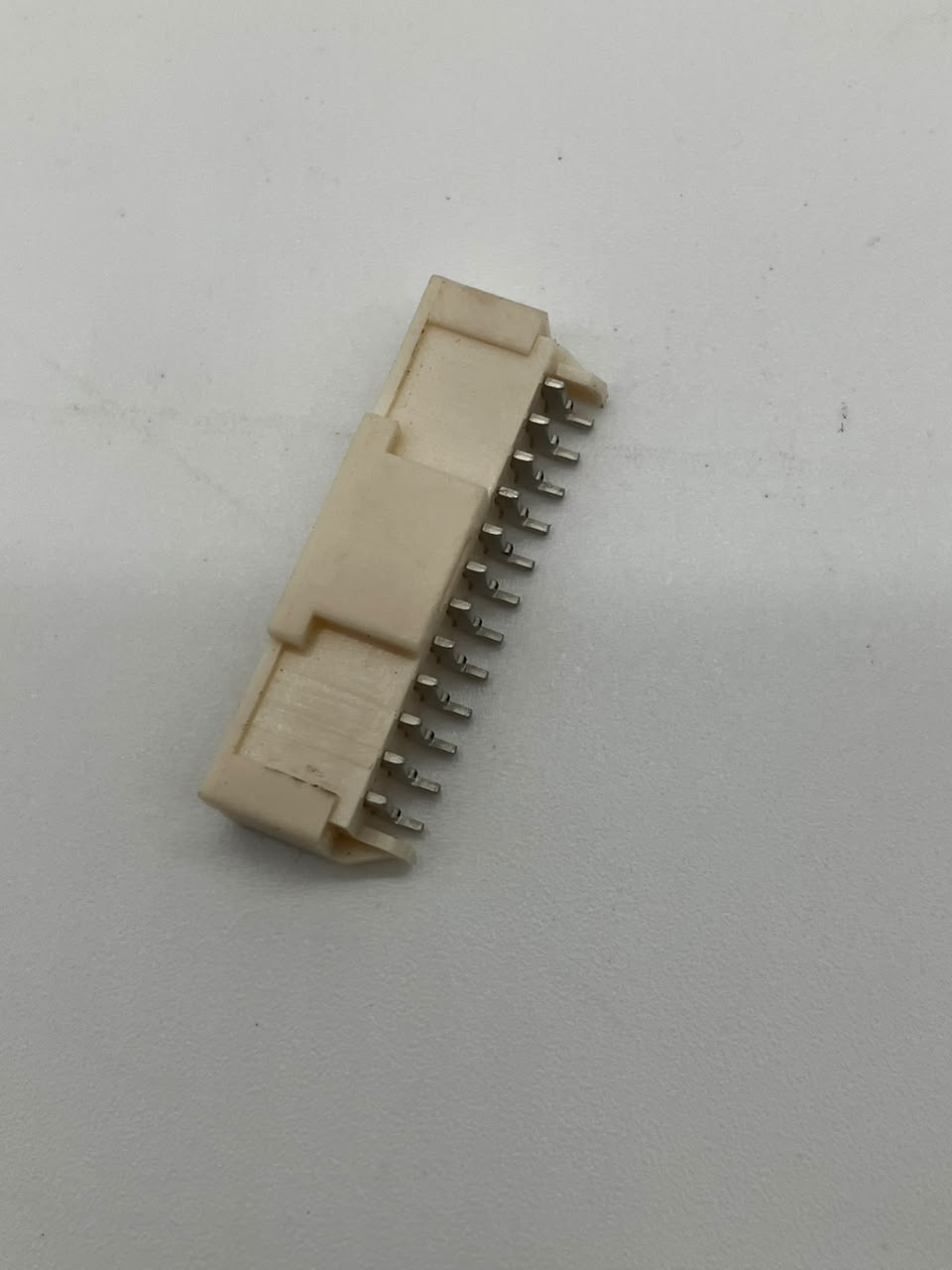

Molex 502352-1200 | DuraClik 12-Position 2.0mm Pitch Wire-to-Board Header (Right-Angle, SMD)

Product Description

Ensure unparalleled connection reliability in high-vibration environments with the Molex 502352-1200 DuraClik Wire-to-Board Header. Originally developed for demanding automotive applications, this 12-position, 2.0mm pitch surface mount header features an advanced inner positive locking mechanism. This design provides an audible "click" upon mating and prevents the latch from being snagged or broken during wire routing.

Designed with a right-angle (90-degree) orientation, it allows cables to run flush against the printed circuit board, saving valuable vertical space in tight enclosures. The fully shrouded natural-colored housing protects the contact pins from bending, while robust metal solder tabs on the sides provide exceptional retention force against the PCB, preventing the connector from tearing off under mechanical stress.

Key Features

• DuraClik Positive Lock: Features a robust inner locking system that provides secure mating and tactile feedback, preventing accidental pull-outs in high-vibration settings.

• Low-Profile Routing: The right-angle design directs mated cables parallel to the board, making it ideal for low-clearance housings and sleek product designs.

• Secure PCB Retention: Integrated metal solder tabs (fitting nails) anchor the connector firmly to the board, absorbing physical stress and protecting the delicate solder joints.

• Fully Shrouded Housing: Protects the internal male pins from damage during handling and prevents reversed or misaligned mating.

• Automotive-Grade Reliability: Engineered to withstand extreme conditions, making it perfect for automotive modules, industrial automation, and consumer electronics.

Technical Specifications

• Manufacturer: Molex

• Series: DuraClik 502352

• Part Number: 502352-1200

• Connector Type: PCB Header (Male Pin)

• Number of Positions (Circuits): 12 (Single Row)

• Pitch: 2.00mm (0.079")

• Mounting Style: Surface Mount (SMD/SMT), Right Angle

• Housing Material: Polyamide (PA), Natural / Beige

• Contact Material: Copper Alloy with Tin (Sn) Plating

• Current Rating: 3A (per contact)

• Voltage Rating: 125V

• Operating Temperature: -40°C to +105°C

• Flammability Rating: UL 94 V-0
