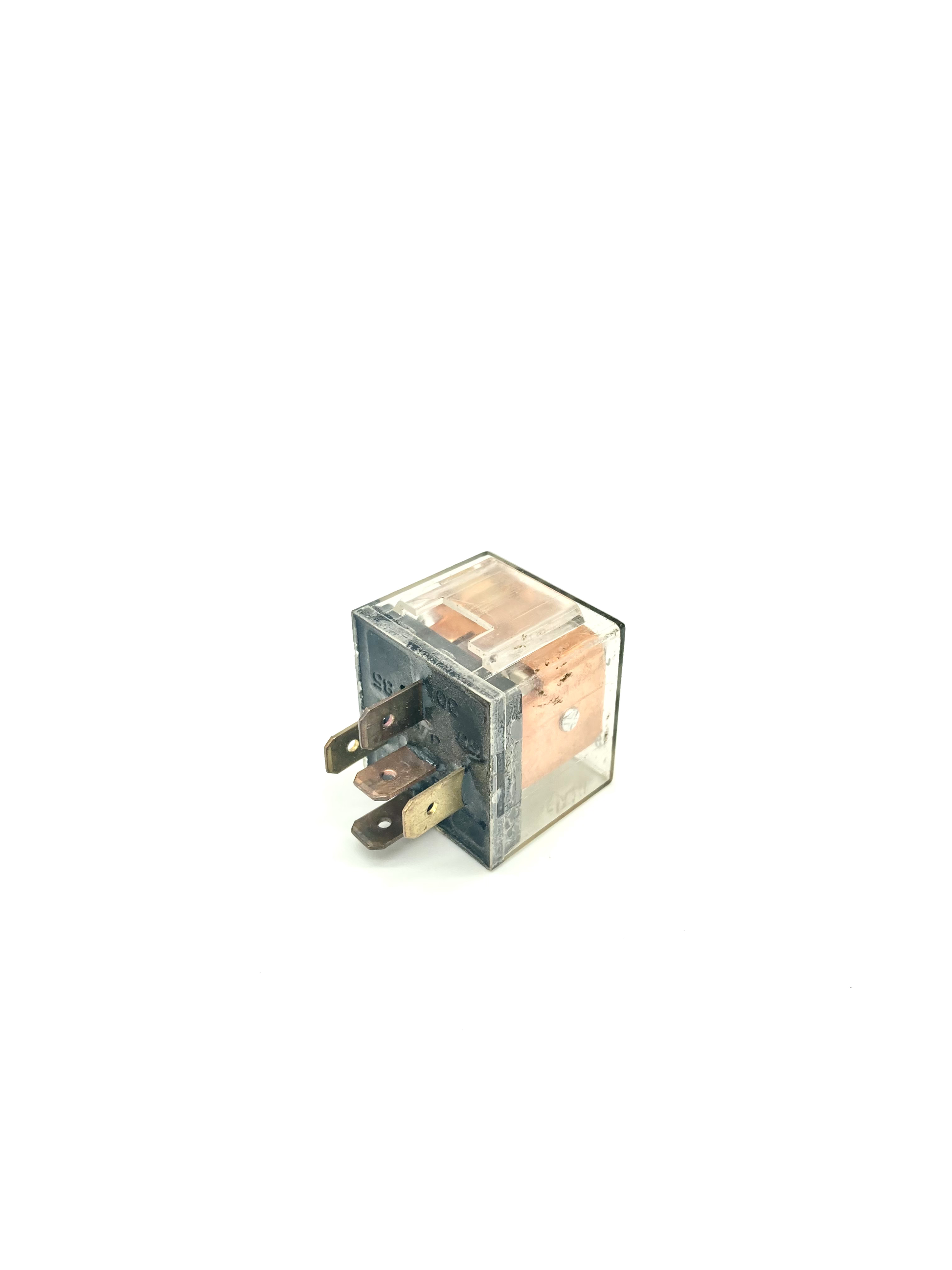

12V 80A Relay

12V 80A Relay

Regular price Dhs. 30.00 AED
Regular price Sale price Dhs. 30.00 AED
Sale Sold out
Shipping calculated at checkout.

The 12V 80A Relay is a heavy-duty power relay designed for high-current switching applications in automotive, marine, and industrial systems. With its robust 80A capacity and durable construction, this relay reliably controls demanding electrical loads while maintaining stable performance under continuous use.

Key Specifications:

  • Type: SPDT (Single Pole Double Throw)

  • Coil Voltage: 12V DC

  • Contact Rating: 80A @ 12V DC (resistive)

  • Max Surge Current: 100A (short duration)

  • Contact Material: Silver-cadmium alloy

  • Operate Time: ≤20ms

  • Release Time: ≤15ms

  • Insulation Resistance: 500MΩ min

  • Dielectric Strength: 2500V AC (1min)

  • Operating Temperature: -40°C to +125°C

  • Vibration Resistance: 15-2000Hz, 30G

  • Mounting: Bolt-on or bracket mounting

Key Features:

  • Extreme Current Handling - 80A continuous rating for heavy loads

  • Military-Grade Contacts - Silver-cadmium alloy resists welding and pitting

  • Sealed Construction - IP67-rated against dust and water ingress

  • Thermal Protection - Built-in arc suppression for safe operation

  • Universal Terminals - 6.3mm quick-connect and M6 stud options

  • Visual Indicator - Operation status window (on select models)

  • Vibration Proof - Secure internal construction for mobile applications

Ideal For:

  • Winches and plow systems

  • High-power audio amplifiers

  • Truck and RV power distribution

  • Marine battery switches

  • Industrial equipment controls

  • EV conversion projects

  • Heavy-duty lighting systems
