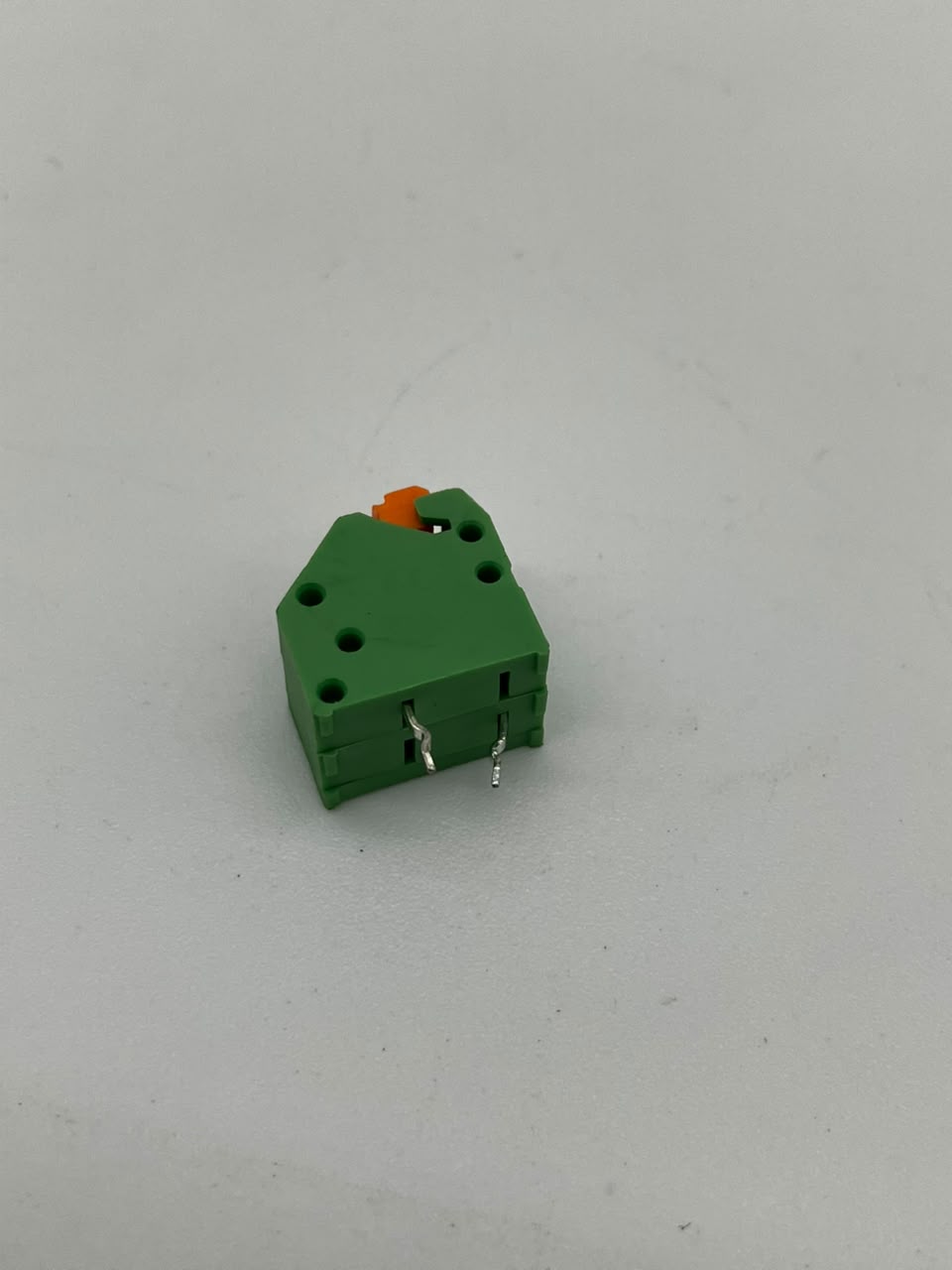

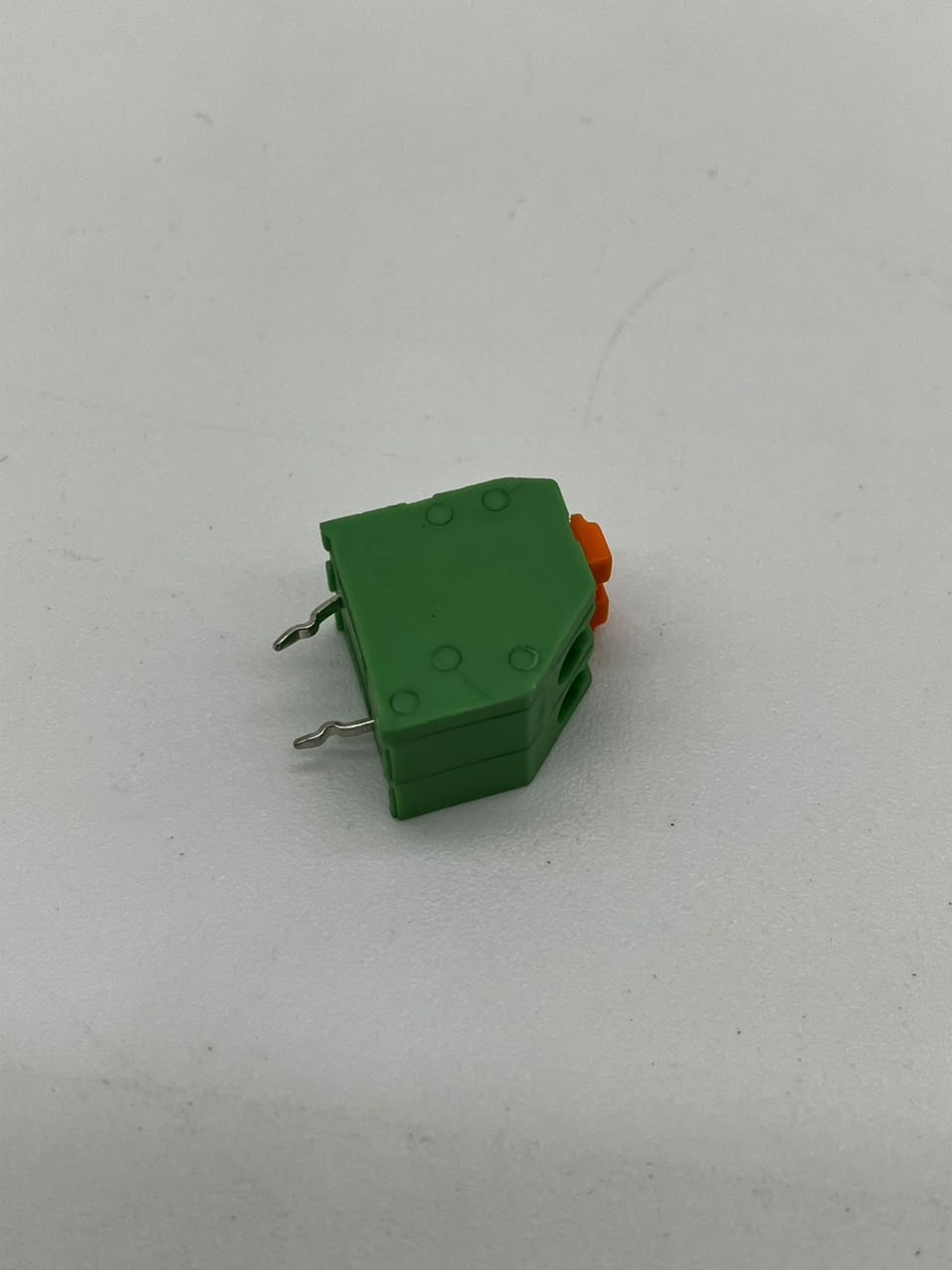

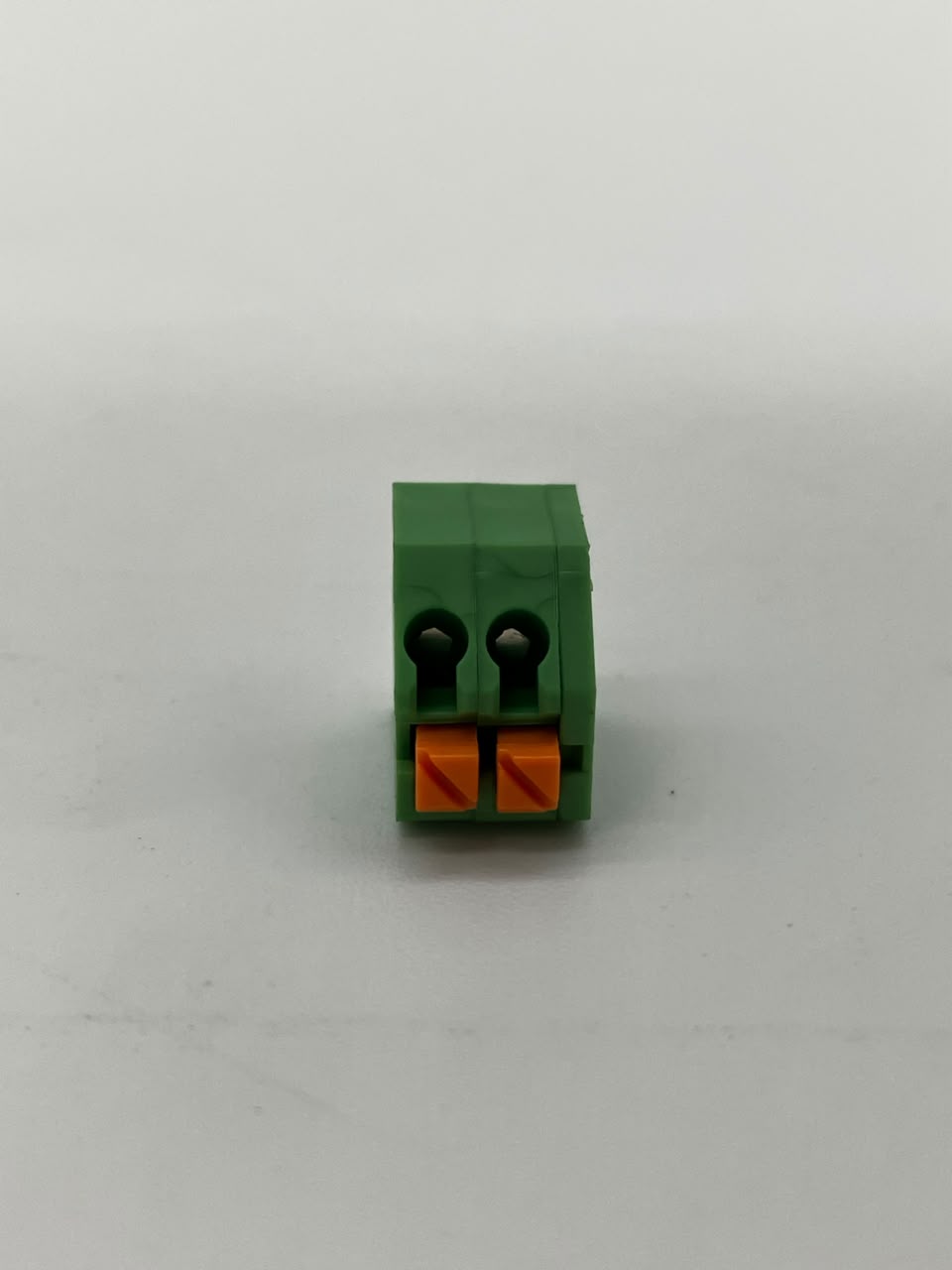

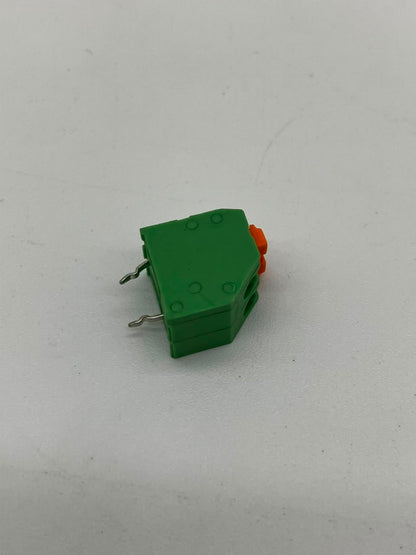

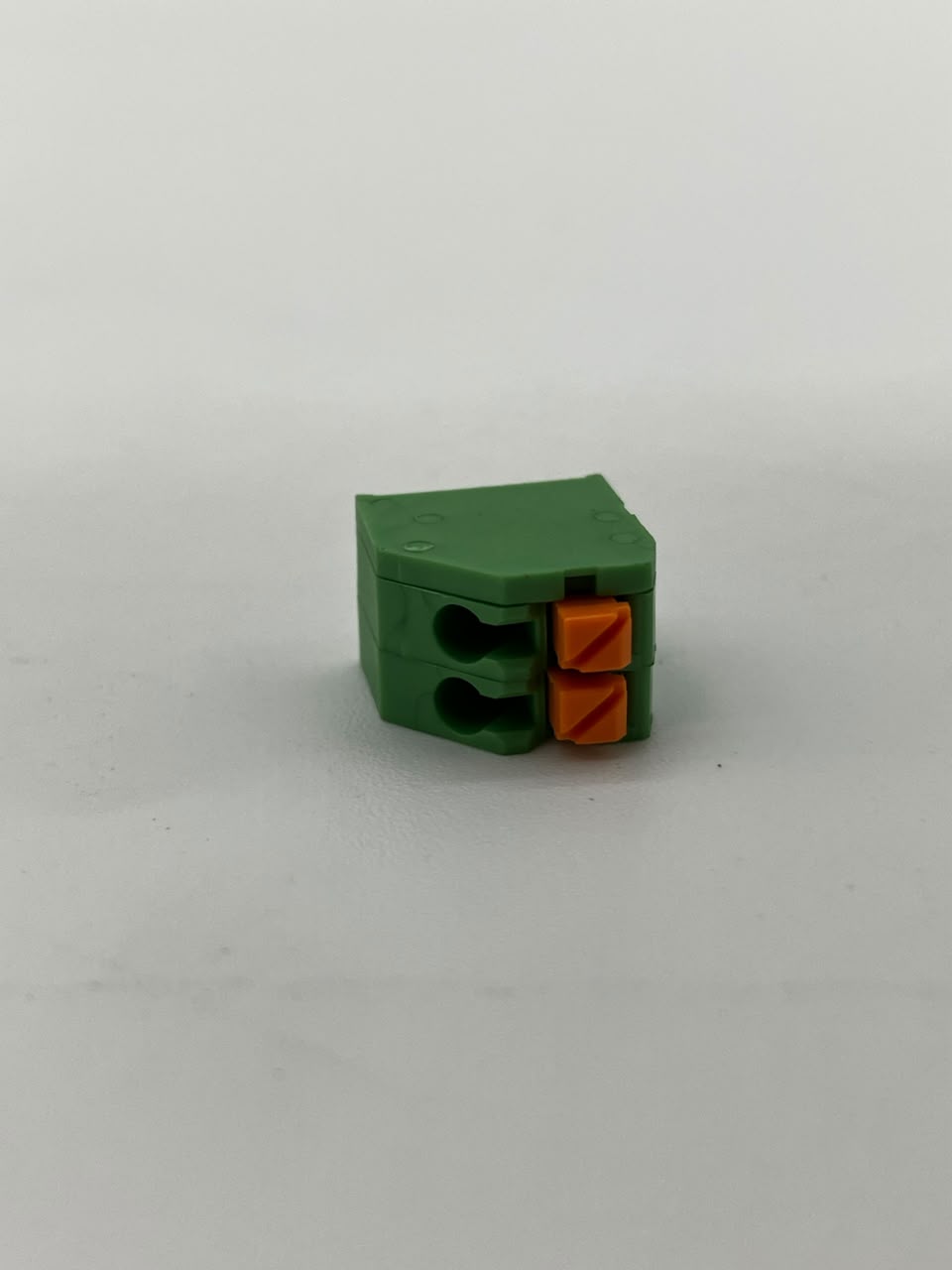

CUI Devices (Same Sky) TBL002A-350-02GR-2OR | 2-Position Screwless PCB Terminal Block (3.50mm Pitch)

Product Description

Looking for a fast, reliable, and tool-free wire termination solution for your custom PCBs? The CUI Devices (now Same Sky) TBL002A-350-02GR-2OR is a premium 2-position screwless terminal block designed to streamline your assembly process.

Featuring an ergonomic push-button clamp system with high-visibility orange tabs, this terminal block allows for quick wire insertion and release—completely eliminating the need for screwdrivers. The 45° angled wire entry provides optimal accessibility in tight enclosures, reducing cable strain and making wiring a breeze. Ideal for power management systems, IoT devices, and compact industrial controls, its space-saving 3.50mm pitch ensures maximum functionality without cluttering your board.

Key Features

• Tool-Free Assembly: Intuitive spring-clamp push-buttons allow for rapid wire insertion and removal, saving significant time during production and field maintenance.

• Ergonomic 45° Entry: The angled wire entry point minimizes bending stress on cables and makes routing much easier in confined spaces.

• Compact Footprint: The 3.50mm pitch provides a low-profile, space-saving design perfect for high-density printed circuit boards.

• High-Visibility Actuators: Bright orange push-buttons against the standard green housing ensure clear visibility and error-free operation for technicians.

• Rugged Construction: Built with durable, UL94 V-0 flame-retardant PA66 material, ensuring safe operation in extreme environments.

• Modular Interlocking: Side interlocking mechanisms allow multiple units to be securely joined side-by-side to create custom position lengths.

Technical Specifications

• Manufacturer: CUI Devices (Now operating as Same Sky)

• Part Number: TBL002A-350-02GR-2OR

• Product Type: PCB Terminal Block (Wire-to-Board)

• Number of Positions: 2

• Pitch: 3.50mm (0.138")

• Termination Method: Screwless (Push-Button Spring Clamp)

• Wire Gauge Compatibility: 20 AWG to 24 AWG

• Mating Orientation: 45° Angle with Board

• Mounting Type: PCB Through-Hole (THT), Kinked Pin

• Current Rating: 2A (UL) / 5A (IEC)

• Voltage Rating: 300V (UL) / 400V (IEC)

• Housing Color: Green base with Orange push-buttons

• Operating Temperature: -40°C to +105°C

• Safety Approvals: UL, CE, RoHS Compliant
