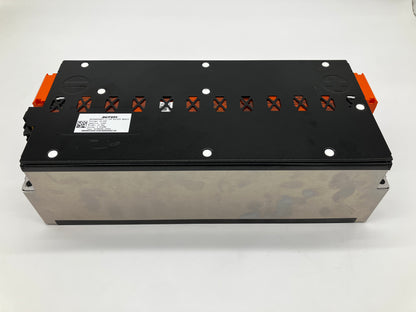

BETTERY 22.02V 116Ah Lithium-Ion EV Battery Module

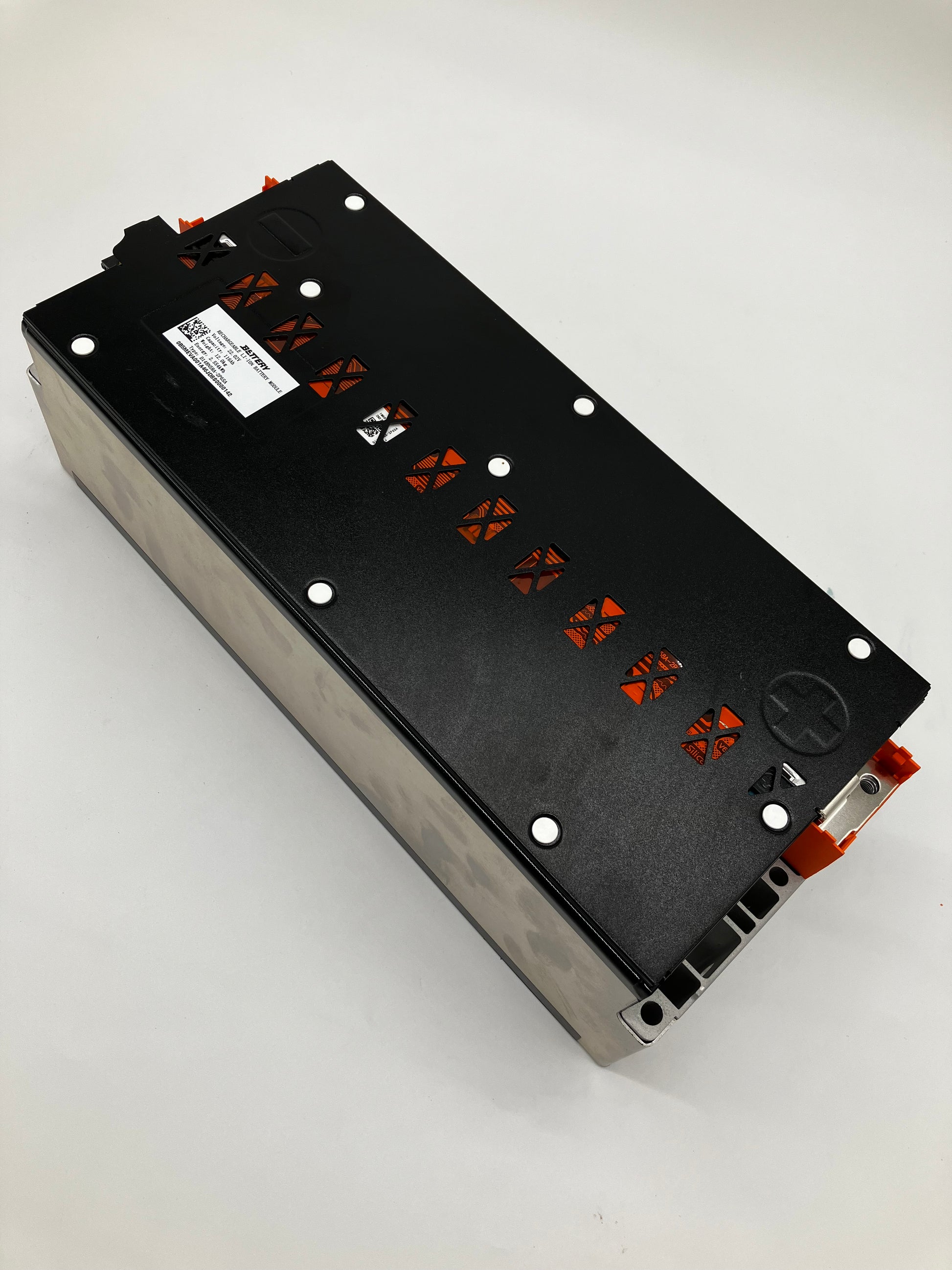

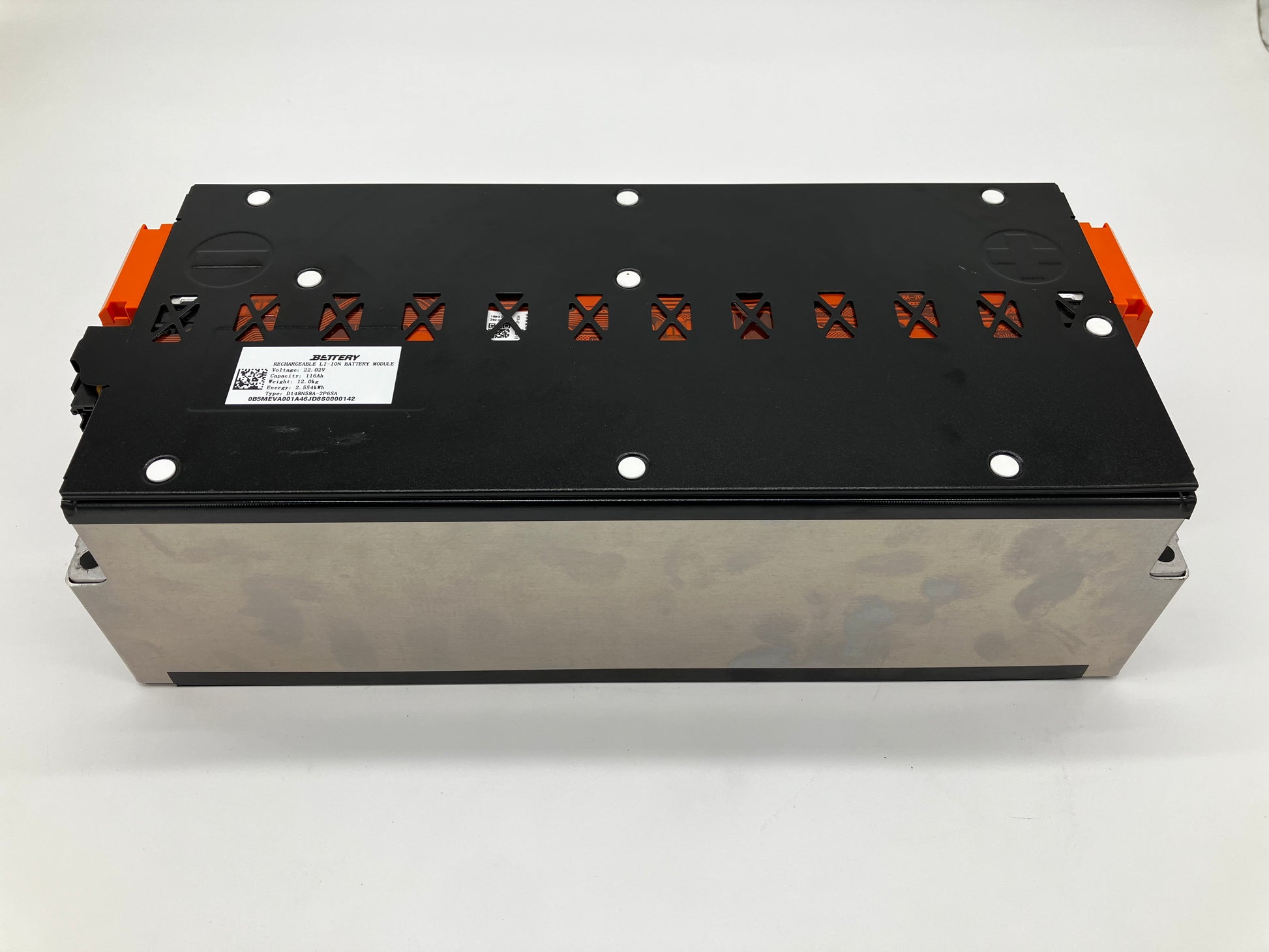

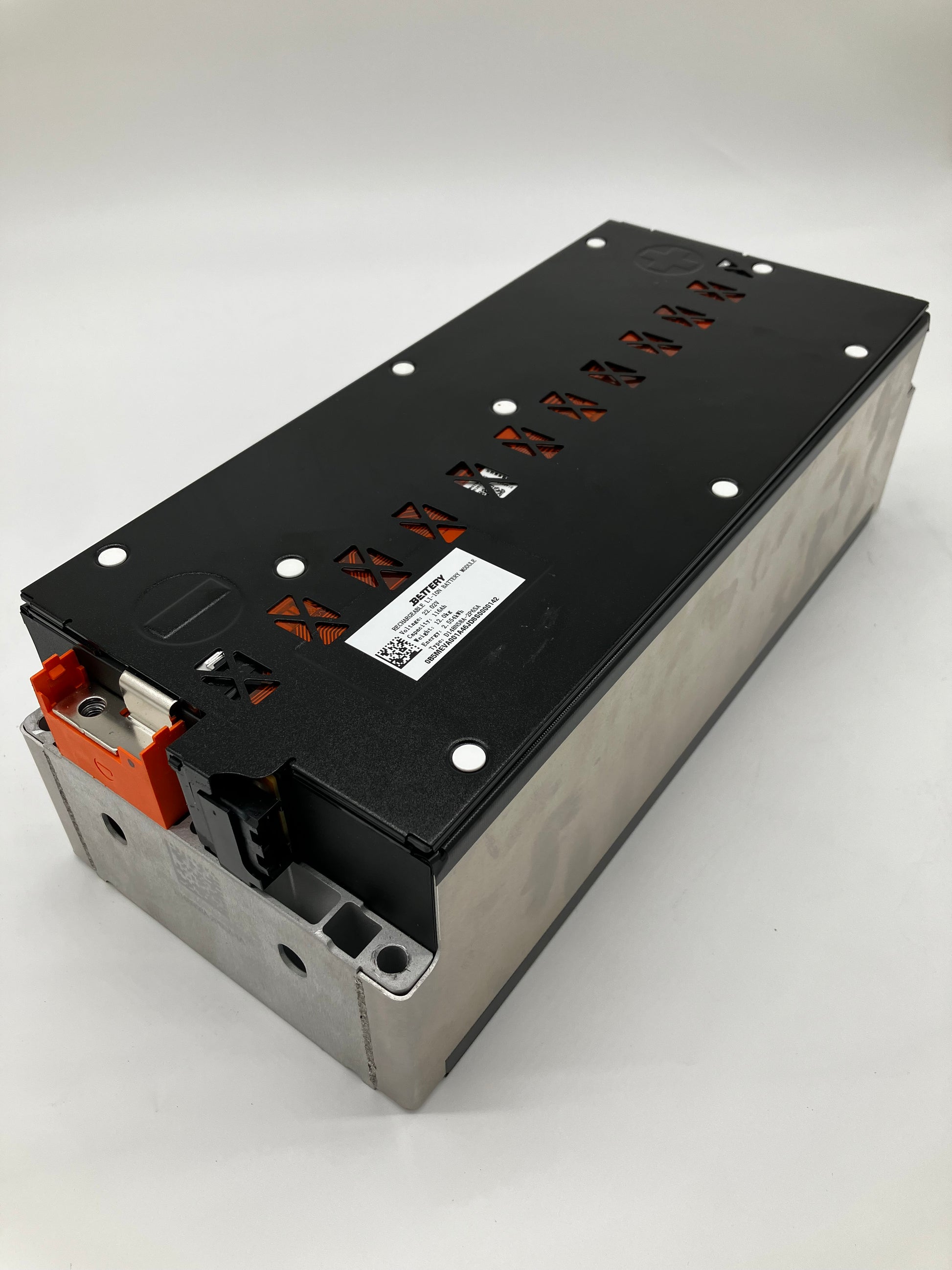

The BETTERY 22.02V 116Ah Lithium-Ion EV Battery Module is a high-capacity, OEM-grade energy storage component designed for electric vehicles and advanced stationary power applications. Based on the label and physical footprint, this module features a 2P6S (2 Parallel, 6 Series) internal cell configuration, delivering a robust 2.554 kWh of energy. It is housed in a structural aluminum base designed for active thermal management.

Key Specifications:

• Category: Automotive Parts & Accessories / EV High Voltage Components / Battery Modules & Cells

• Product Type: Prismatic Lithium-Ion Battery Module

• Manufacturer: BETTERY

• Model / Type: D148N58A-2P6SA

• Internal Configuration: 2P6S (2 Parallel, 6 Series)

• Nominal Voltage: 22.02V DC

• Capacity: 116Ah

• Total Energy: 2.554 kWh

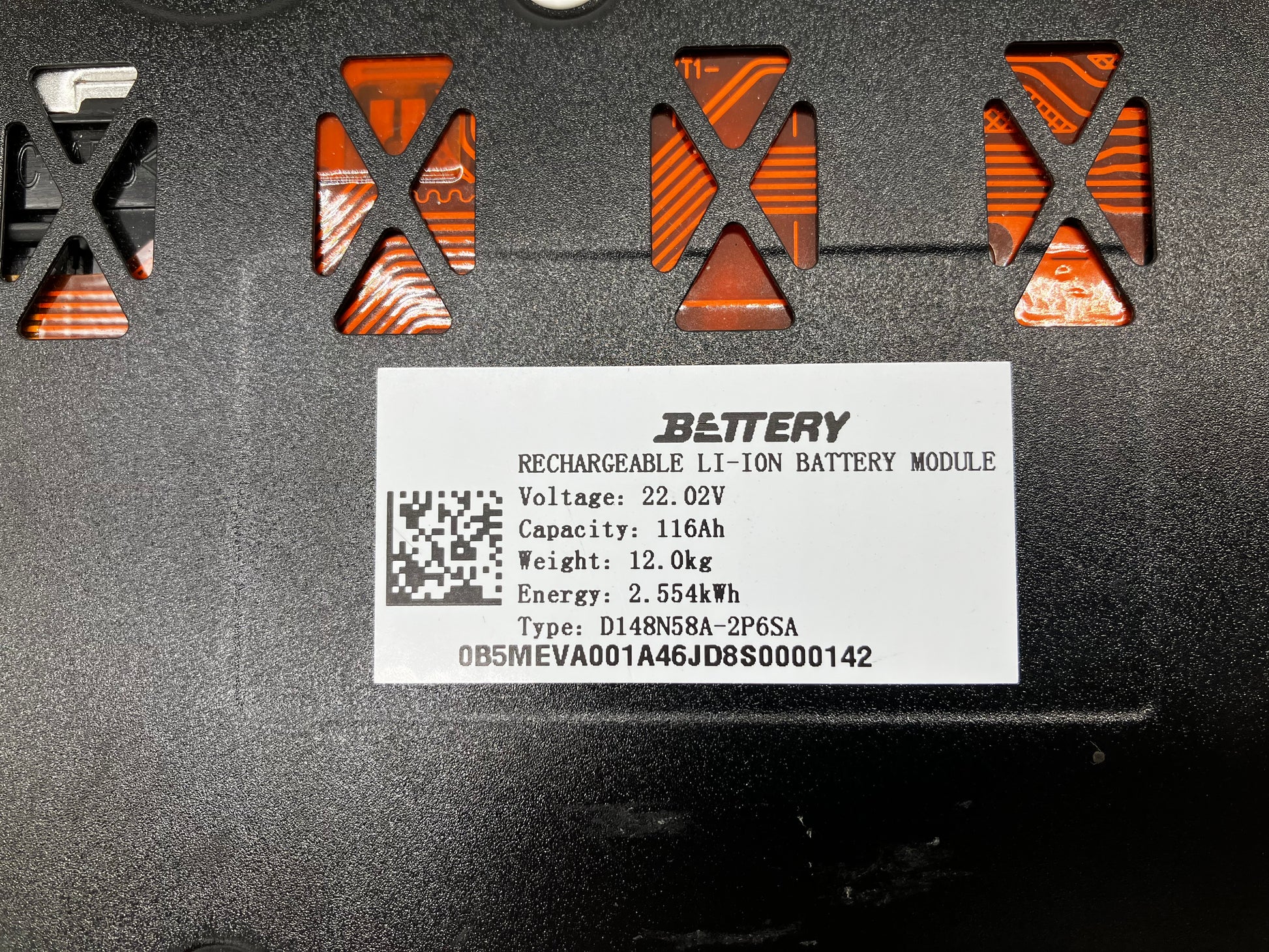

• Serial Number: 0B5MEVA001A46JD8S0000142 (as pictured)

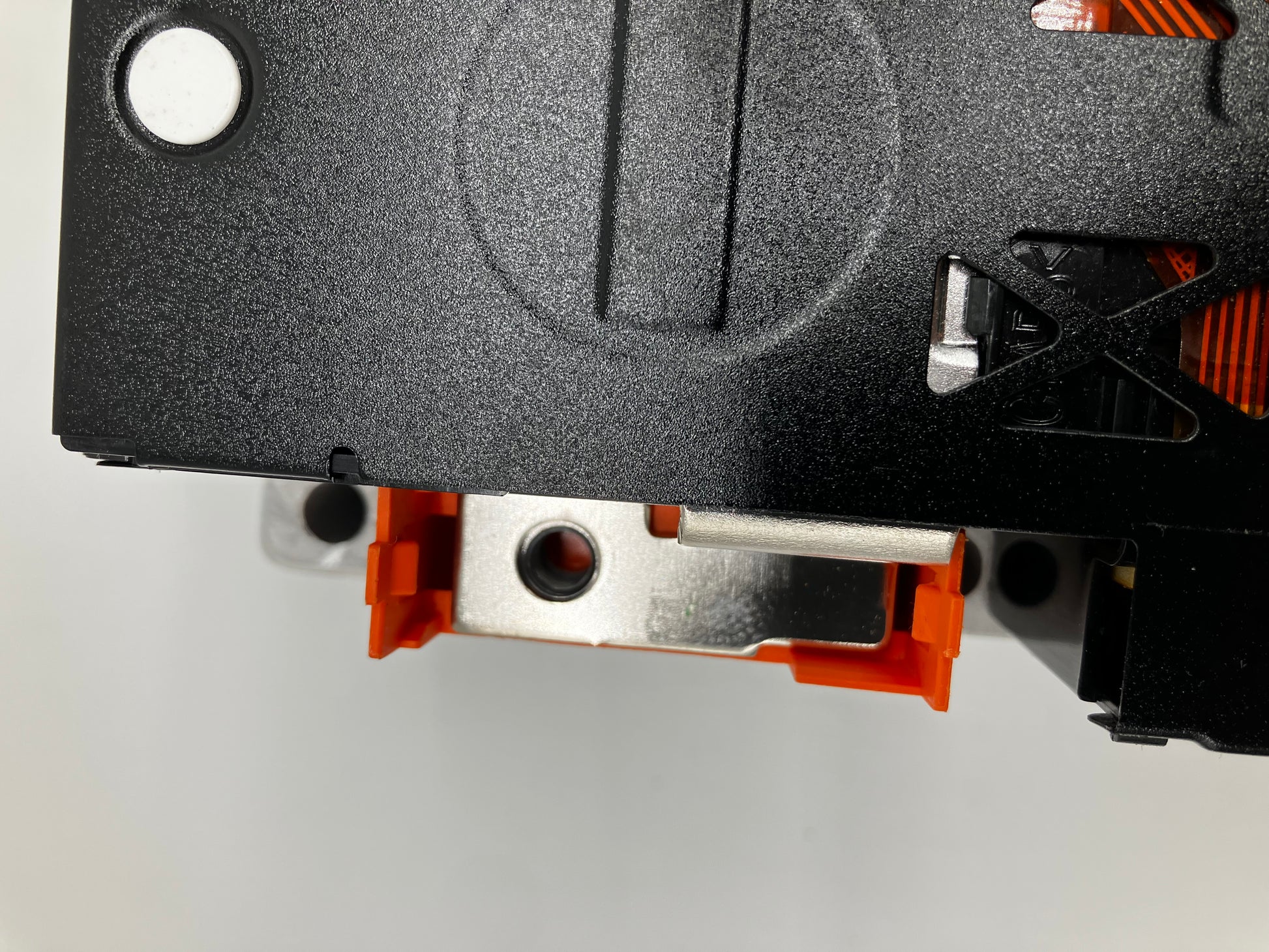

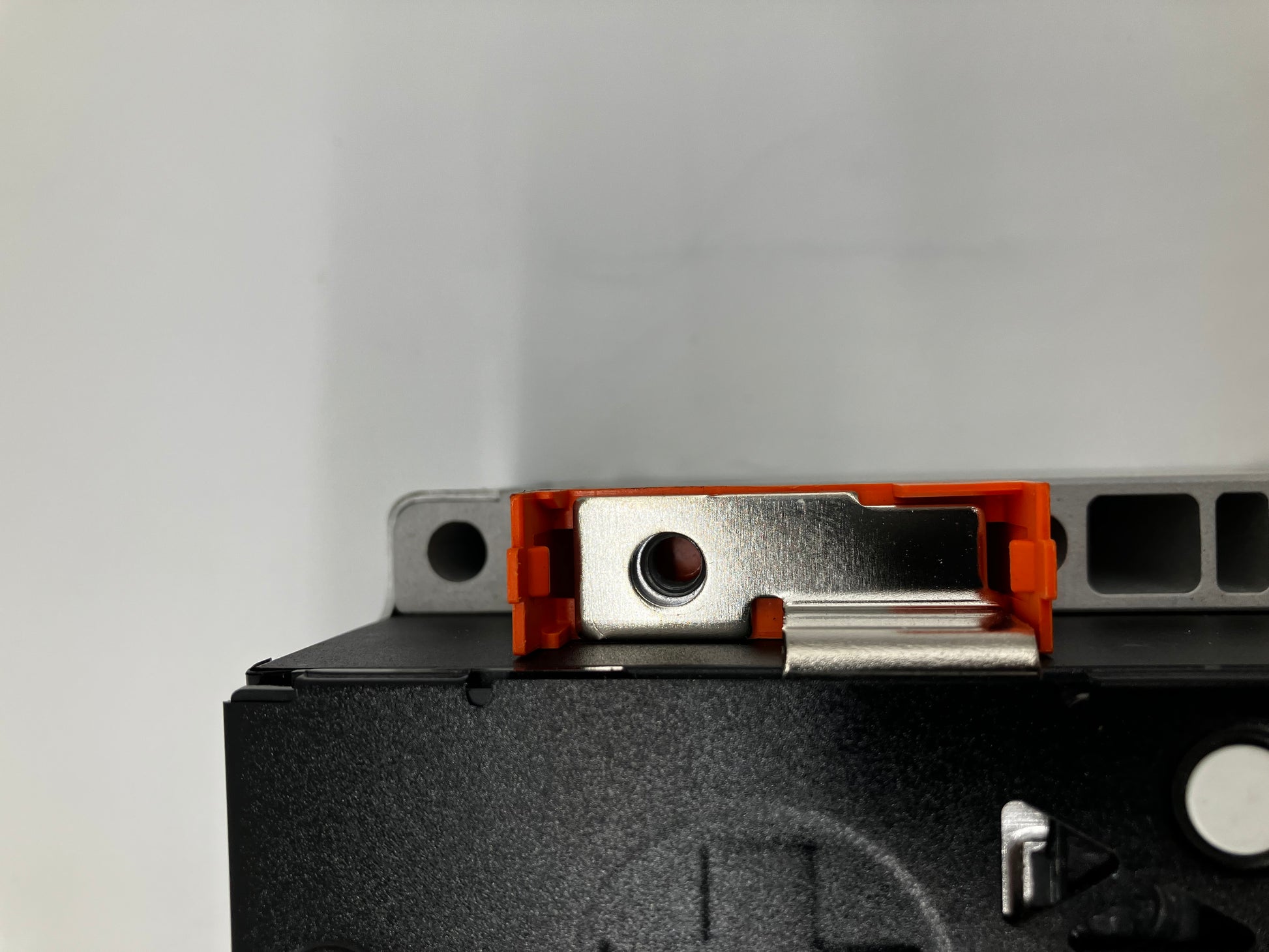

• Main Terminals: Female threaded inserts (likely M6) with orange plastic safety shrouds

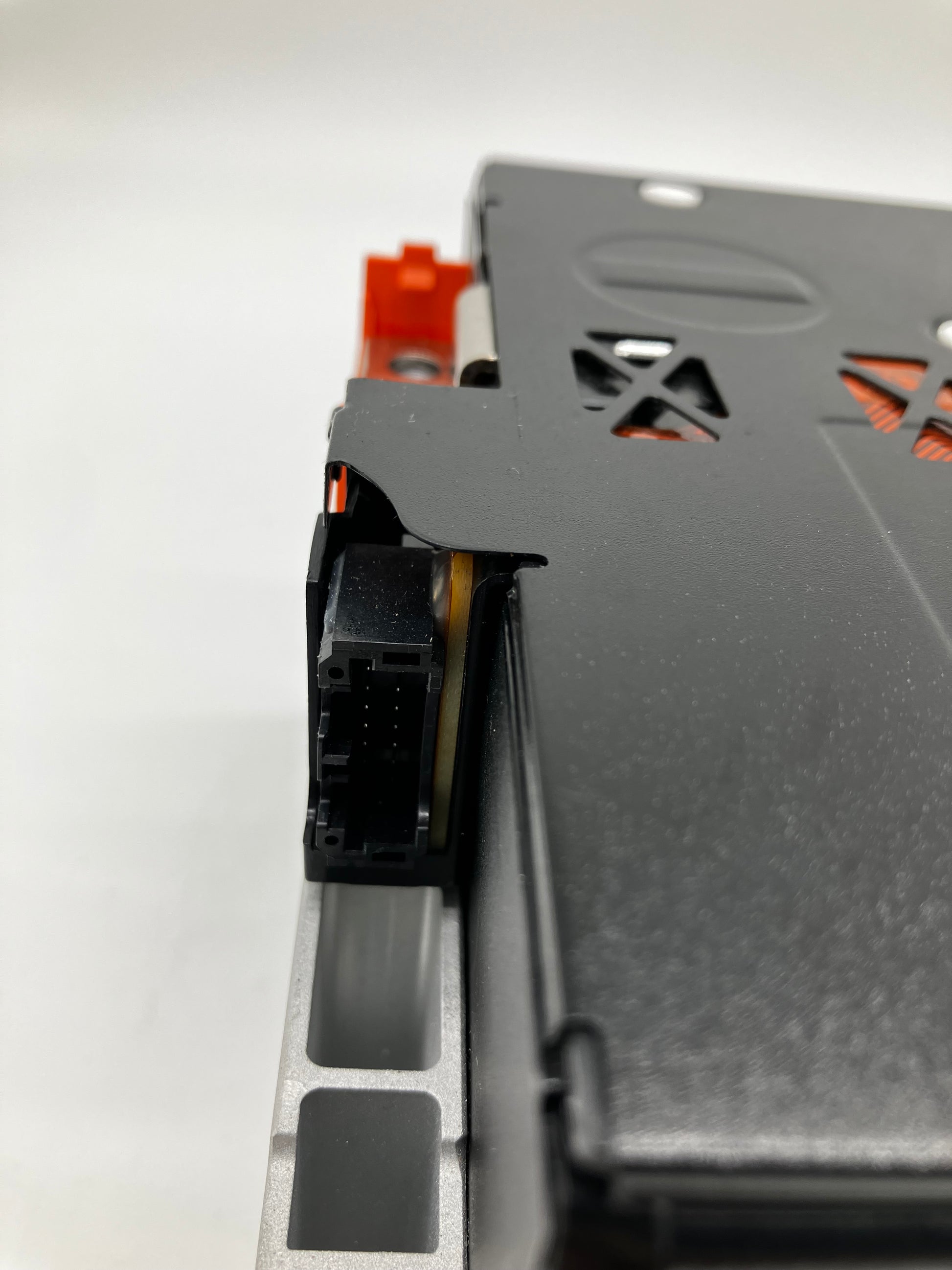

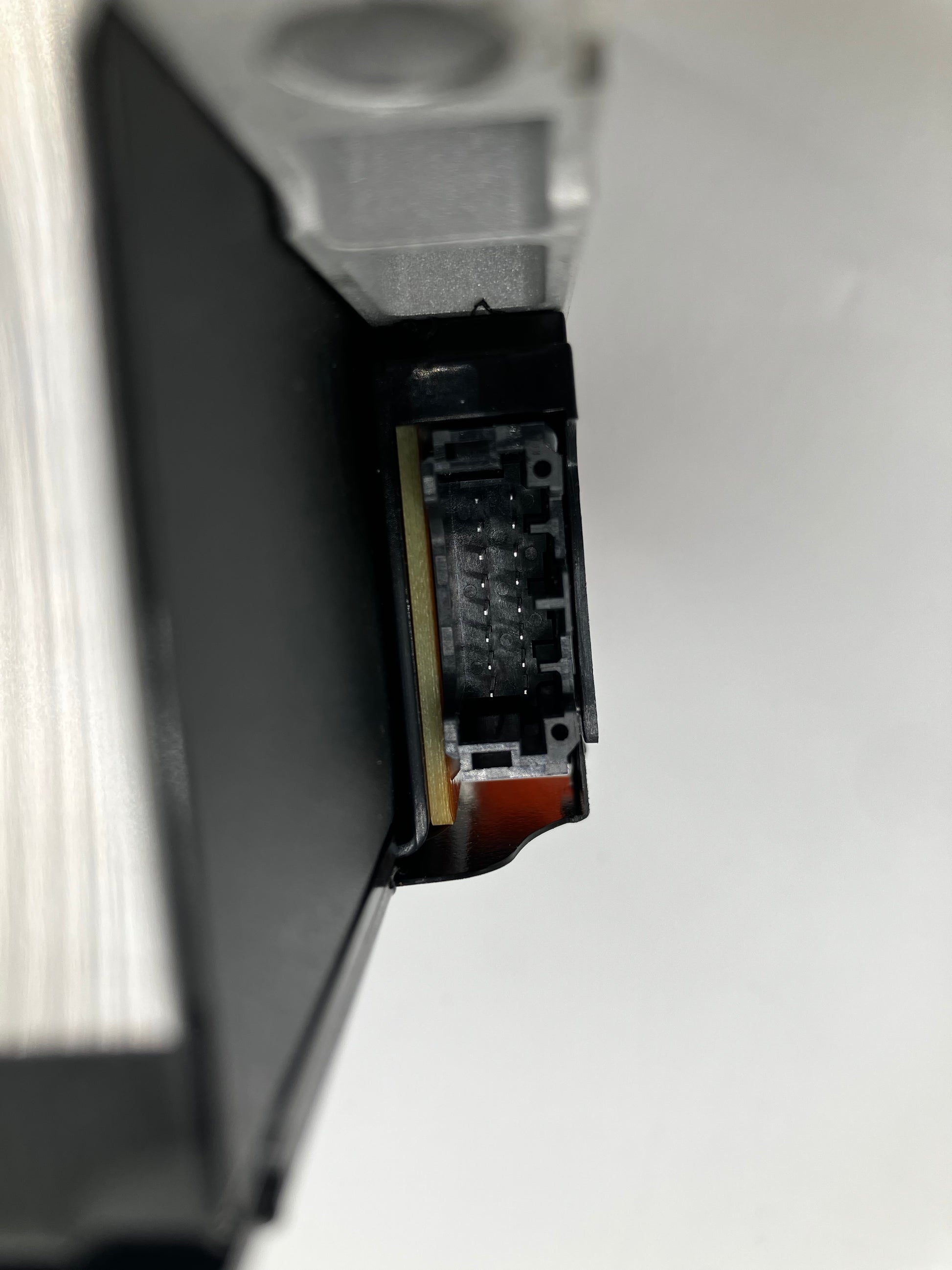

• BMS Connection: Integrated multi-pin connector socket for cell voltage and temperature sensing

• Body Material: Extruded aluminum base/heatsink with a black protective plastic top cover

Key Features:

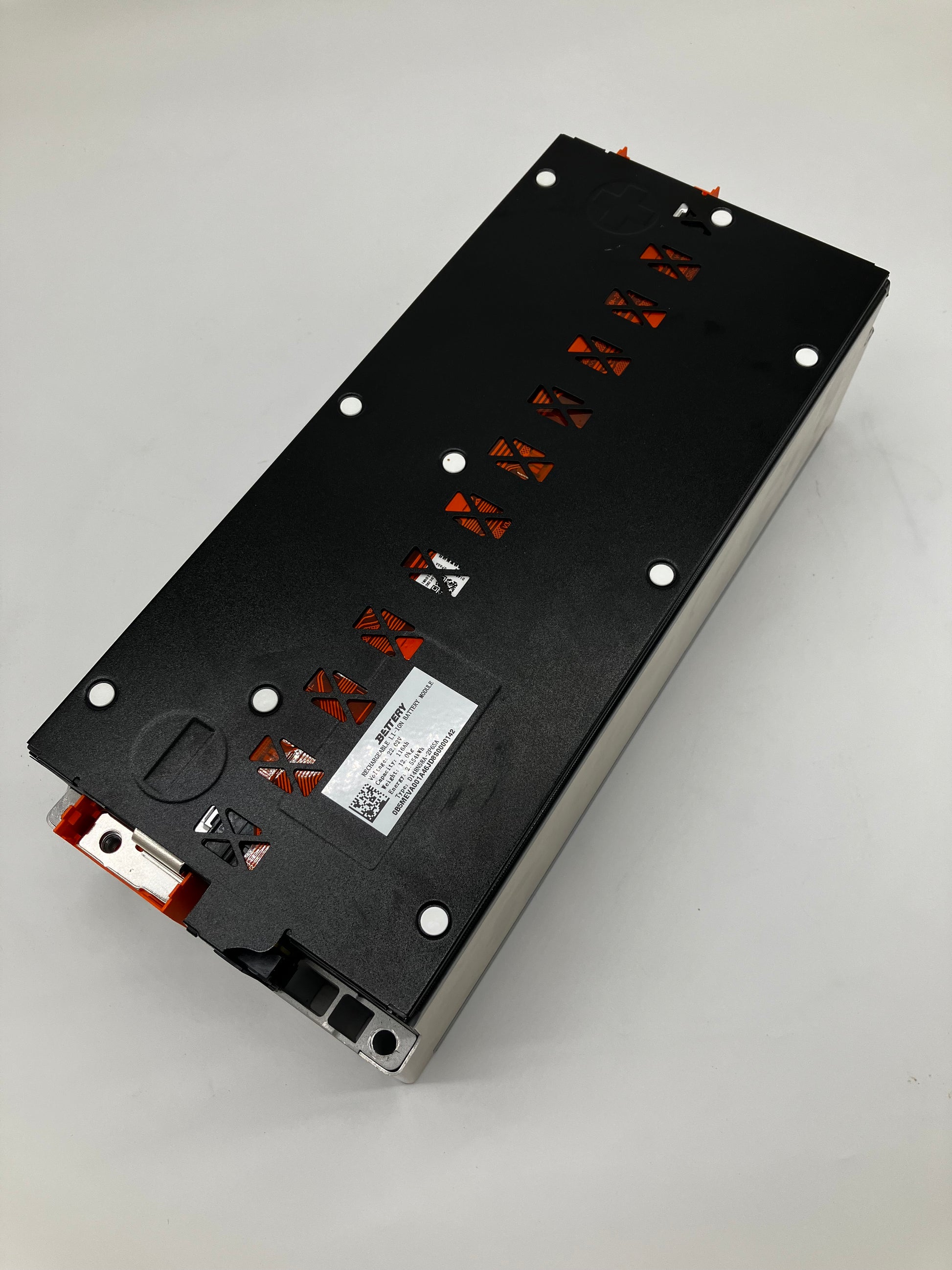

• Integrated Cell Monitoring – The top plastic cover features cutouts that reveal an integrated Flexible Printed Circuit (FPC) harness. This pre-wired harness connects directly to the external black multi-pin socket, allowing for easy plug-and-play integration with a Battery Management System (BMS) to monitor individual cell voltages and temperatures.

• Thermal Management Ready – The bottom and sides of the module are encased in a thick, flat aluminum extrusion. This acts as a highly efficient thermal transfer plate designed to sit flush against a liquid cooling or heating loop to maintain optimal cell temperatures.

• 2P6S Architecture – By running two 58Ah cells in parallel across six series groups, it achieves its 116Ah rating at 22V, offering an excellent balance of sustained current delivery and deep energy storage.

• Standardized Footprint – Built to a standardized global prismatic block format (similar to VDA355 specs), allowing multiple units to be easily stacked, racked, and bussed together in series to create high-voltage packs (e.g., 400V or 800V systems).

Ideal For:

• Custom EV (Electric Vehicle) and classic car powertrain conversions

• DIY residential Battery Energy Storage Systems (BESS) and Off-Grid Solar walls

• High-voltage marine electric propulsion systems

• Commercial heavy-duty robotics, RV power banks, and automated guided vehicles (AGVs)
