Blink Marine Interchangeable Button Inserts (91Z6382 Series)

The Blink Marine Interchangeable Button Inserts (91Z6382 Series) are premium, laser-etched plastic keycaps designed specifically for customization of Blink Marine's PowerKey Pro (PKP) series CAN bus keypads. Sold in packs of five, these snap-in inserts allow builders to completely customize the function and layout of their digital switch panels without needing to order a custom-printed keypad from the factory.

Key Specifications:

• Category: Automotive & Marine Electrical / Dash Panels & Switches / Keypad Accessories

• Product Type: Interchangeable Laser-Etched Button Inserts

• Manufacturer: Blink Marine (Blink Group)

• Model / Part Number Series: 91Z6382 (e.g., 91Z6382-B565 for "R", 91Z6382-177 for "6", 91Z6382-179 for "8")

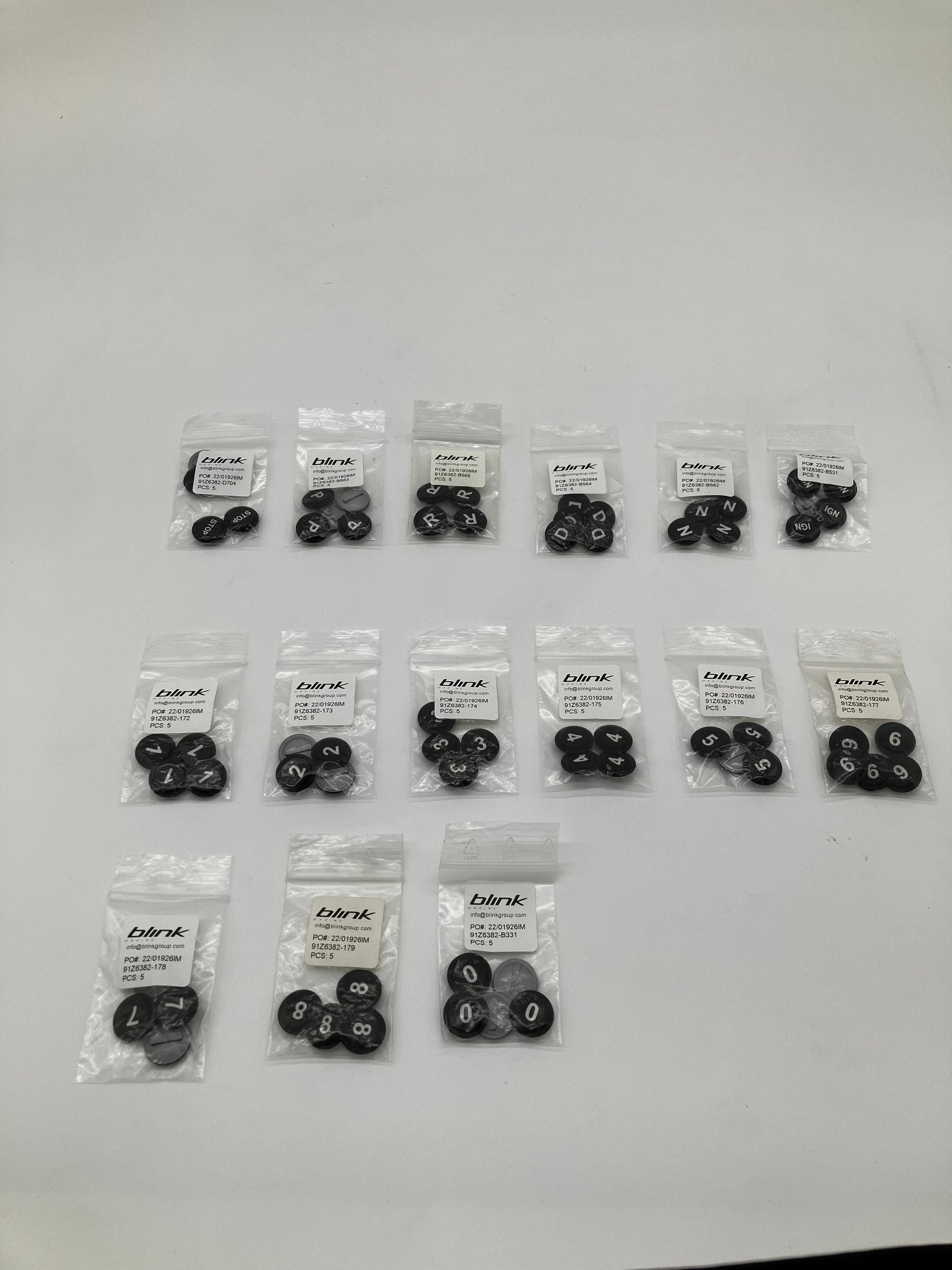

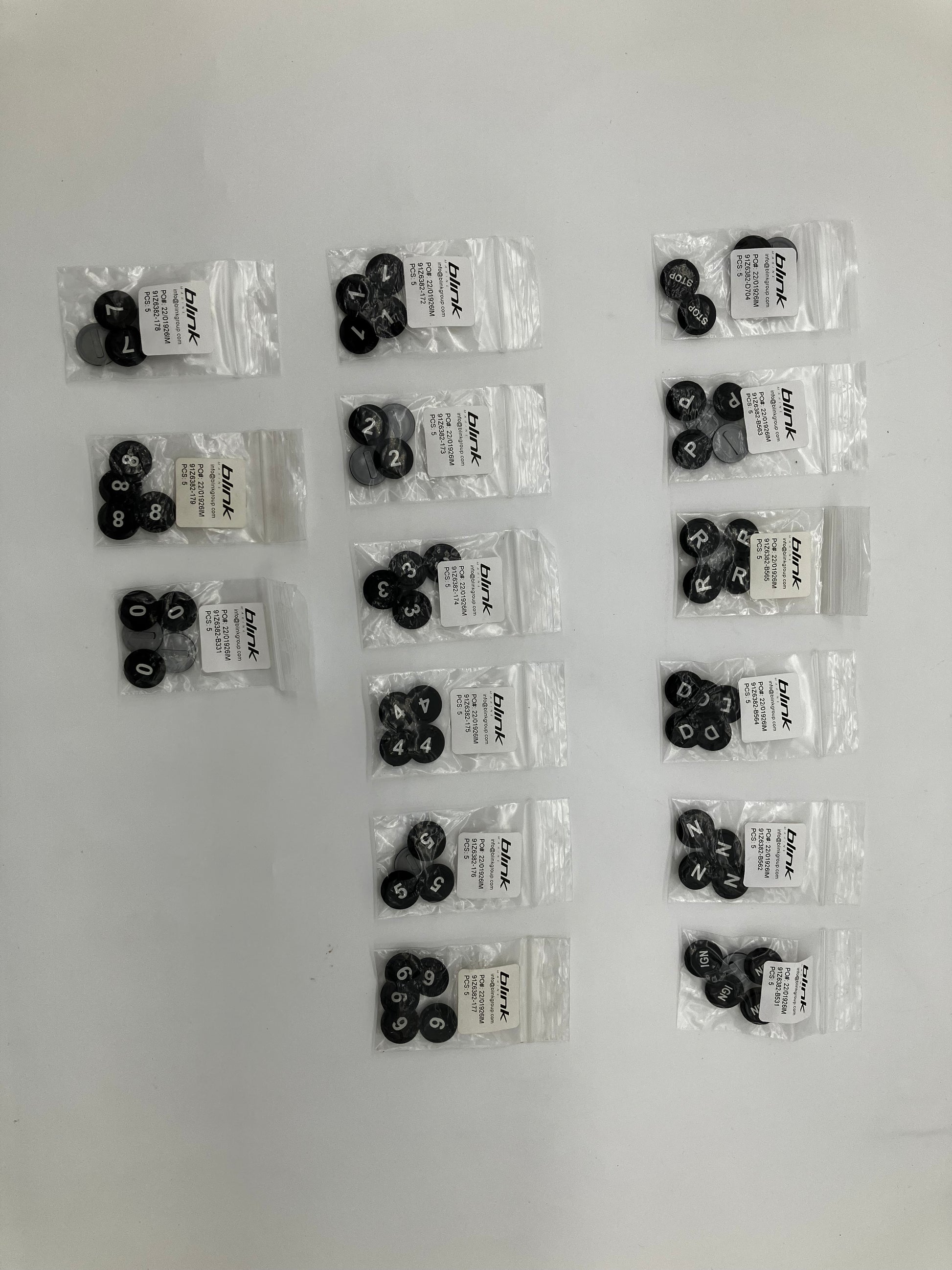

• Quantity: Sold in bags of 5 pieces (PCS: 5)

• Compatibility: Blink Marine PowerKey Pro (PKP) Series Keypads (e.g., PKP-2400, PKP-2600)

• Illumination Support: Translucent white lettering for LED backlighting

• Mounting Type: Press-fit / Snap-in with locking prongs

• Sealing: Integrated red silicone O-ring

Key Features:

• Ultimate Customization – Allows users to dynamically change the function of their CAN bus keypad. If a button's programmed function changes in the vehicle's Power Distribution Module (PDM), the physical button insert can simply be swapped to match.

• LED Backlight Ready – The symbols and letters are laser-etched into the black coating, leaving a translucent white core. This allows the keypad's internal RGB LEDs to brilliantly illuminate the symbol for night driving and status indication.

• Maintains Waterproof Integrity – As seen on the reverse side, each insert features a high-quality red silicone O-ring. When snapped into the keypad, this ensures the entire unit maintains its IP67/IP69K waterproof and dustproof rating.

• Tool-Less Installation – The inserts feature plastic retaining prongs that securely snap into the rubber keypad membrane. They can be pressed in by hand and carefully pried out if a layout change is needed.

Ideal For:

• Customizing Blink Marine PKP keypads for marine, off-road, and motorsport applications

• Creating electronic "Shift-by-Wire" transmission panels (using the P, R, N, D inserts)

• Setting up PIN-code security start pads or numerical data entry (using the 0-9 inserts)

• Designating critical engine controls (using the IGN and STOP inserts)
