Blink Marine PowerKey Pro 2400 (Model PKP-2400-SI)

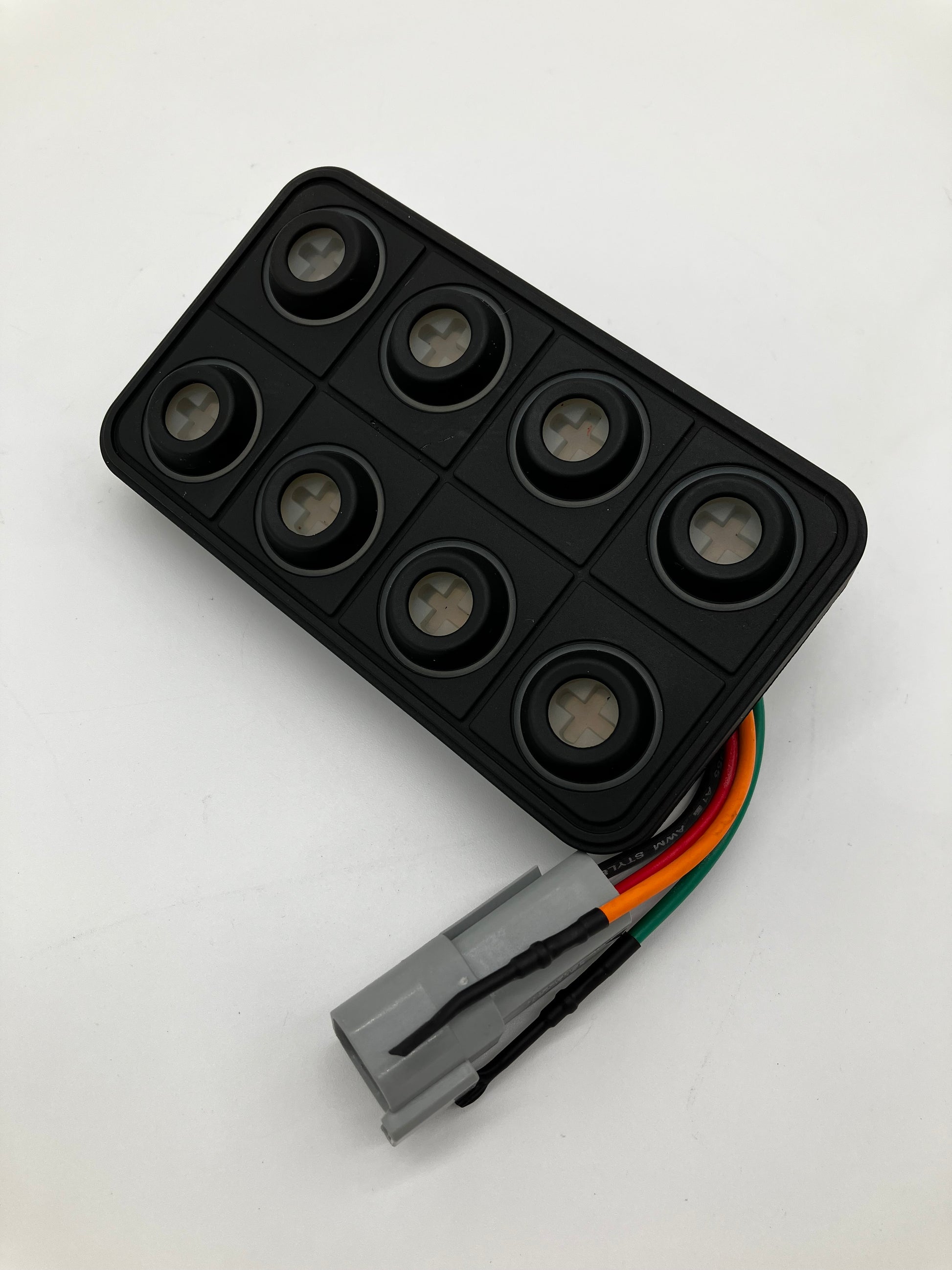

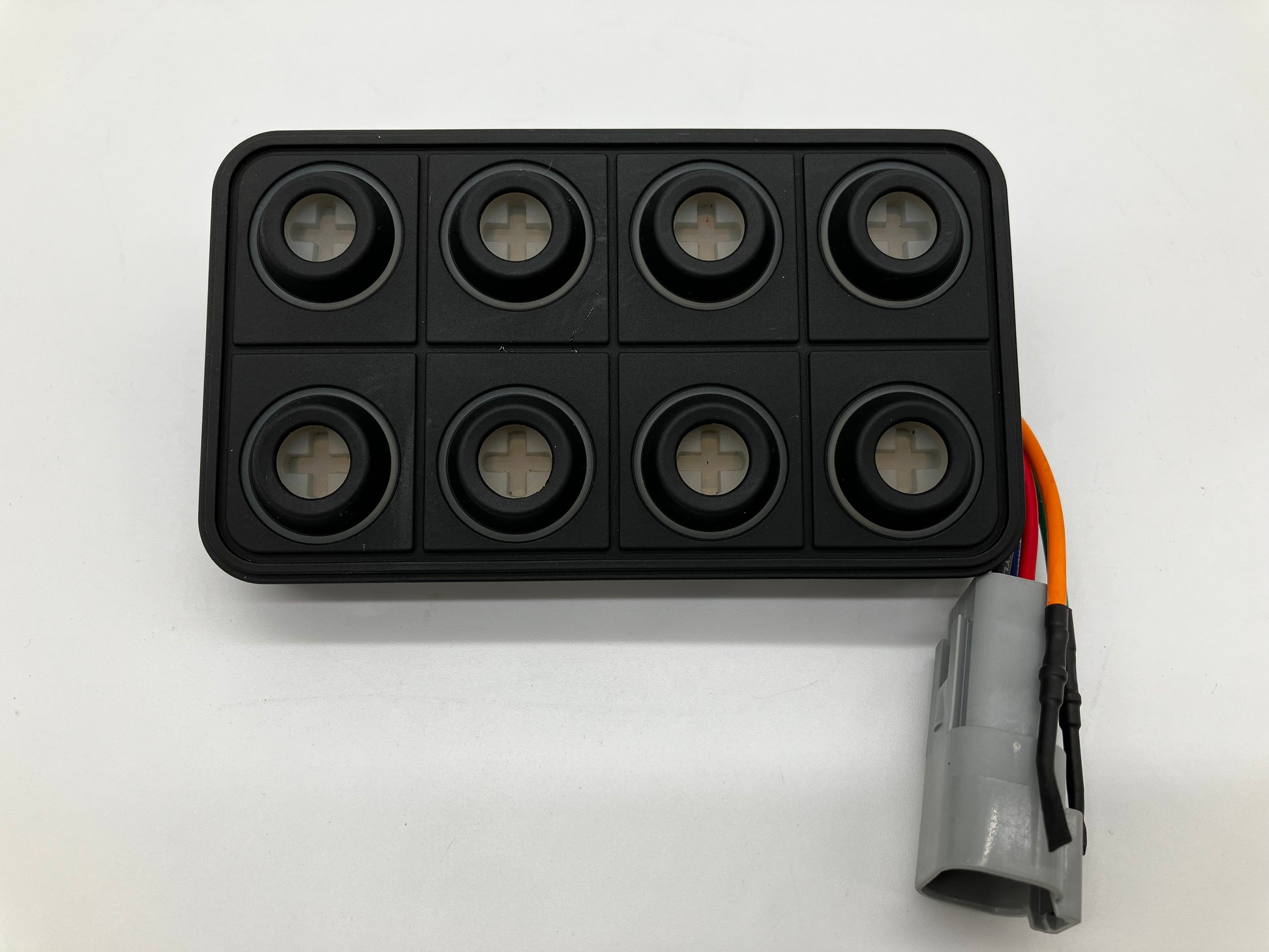

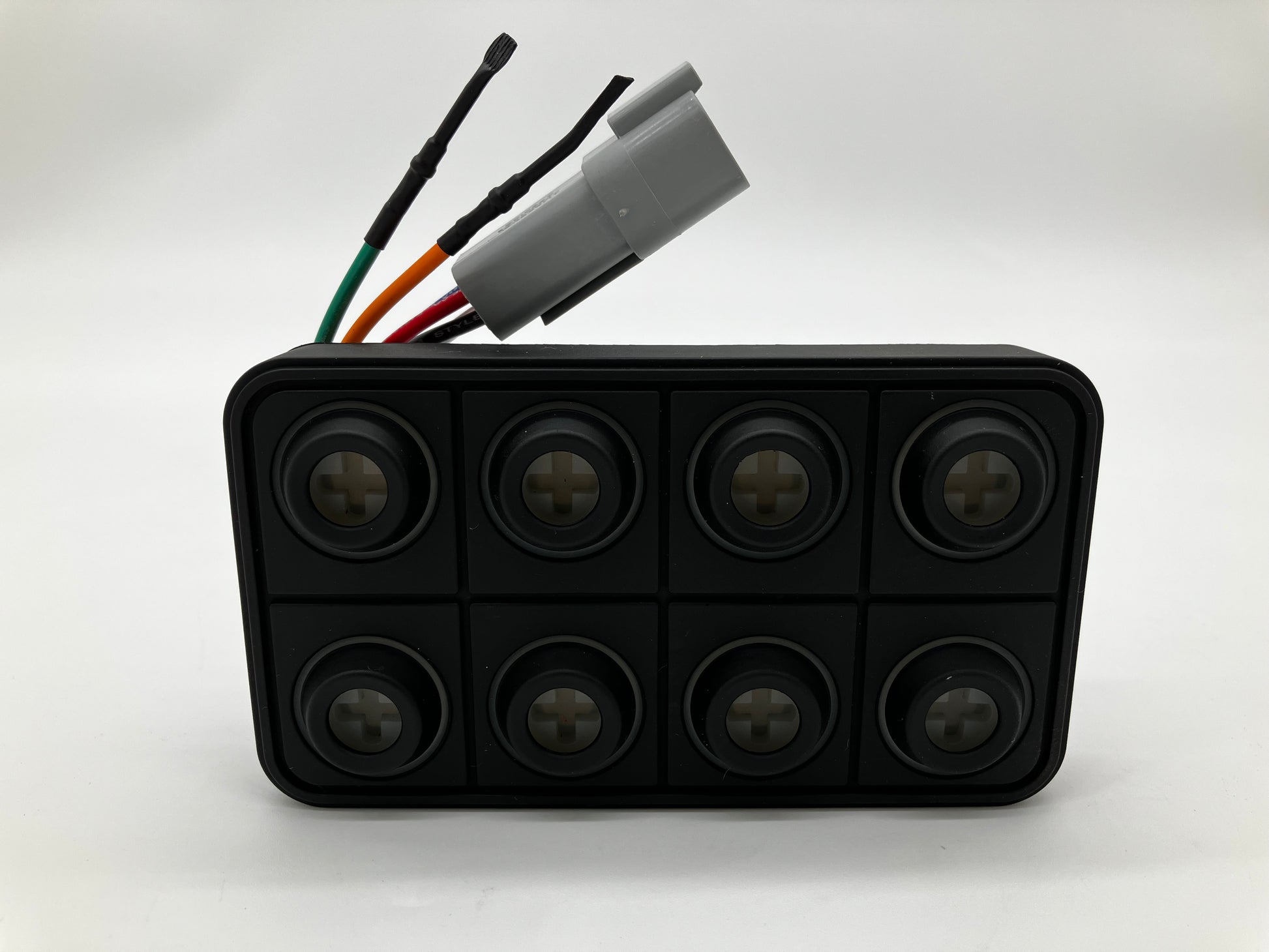

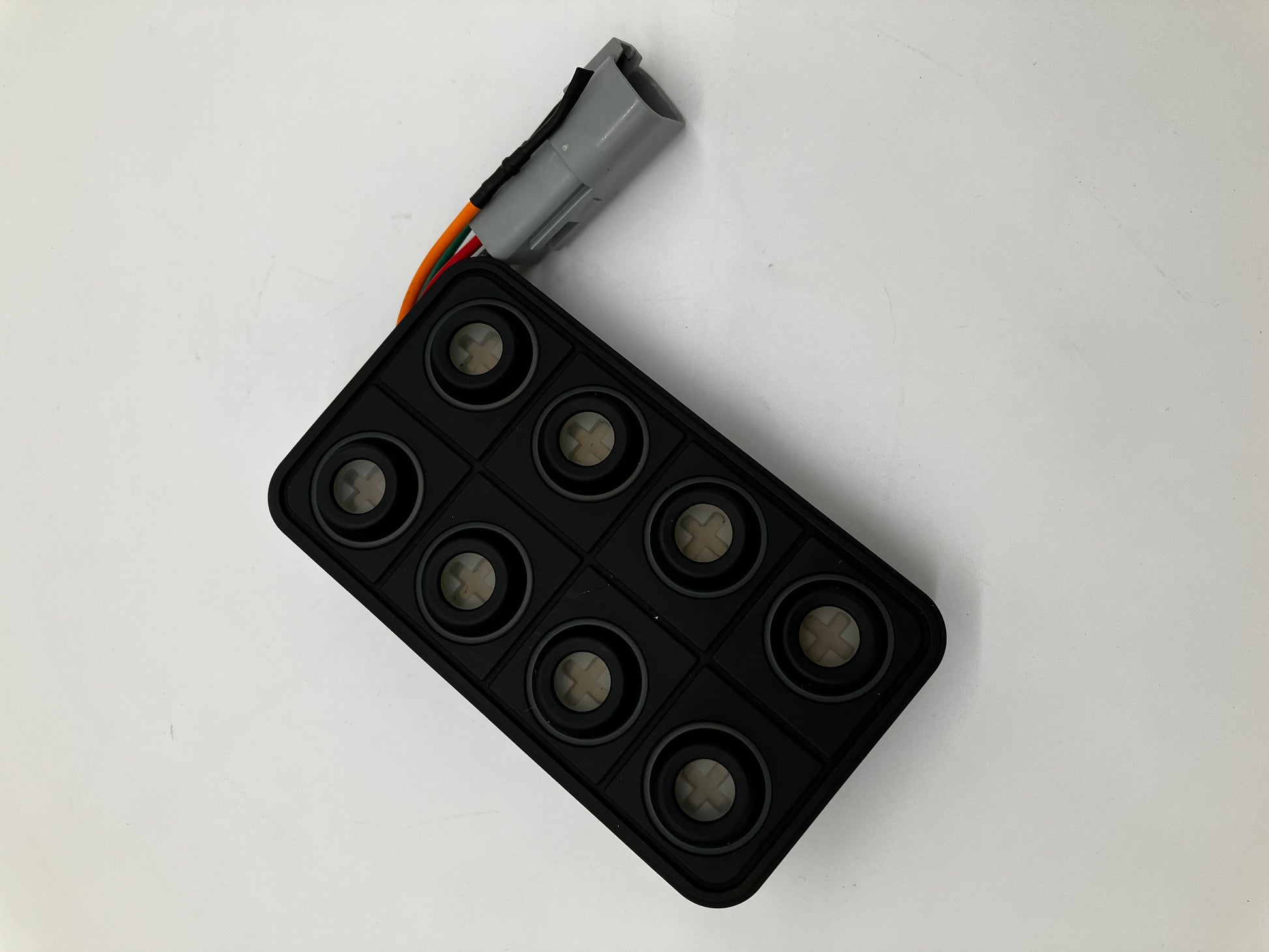

The Blink Marine PowerKey Pro 2400 (Model PKP-2400-SI) is a rugged, highly customizable 8-button CAN bus keypad designed for harsh marine, motorsport, and off-highway commercial vehicle environments. Manufactured in Italy, this smart switch panel eliminates complex discrete wiring by transmitting button states and receiving LED illumination commands over a standard 4-wire CAN bus network.

Key Specifications:

• Category: Automotive & Marine Electrical / Dash Panels & Switches / CAN Bus Keypads

• Product Type: 8-Button CAN Bus Digital Switchpad

• Manufacturer: Blink Marine (Blink Group)

• Model / Part Number: PKP-2400-SI

• Operating Voltage: 12V / 24V DC (12-24Vdc nominal)

• Power Consumption: 5W Max

• Communication Protocol: CAN bus (Typically ships with CANopen or SAE J1939 firmware)

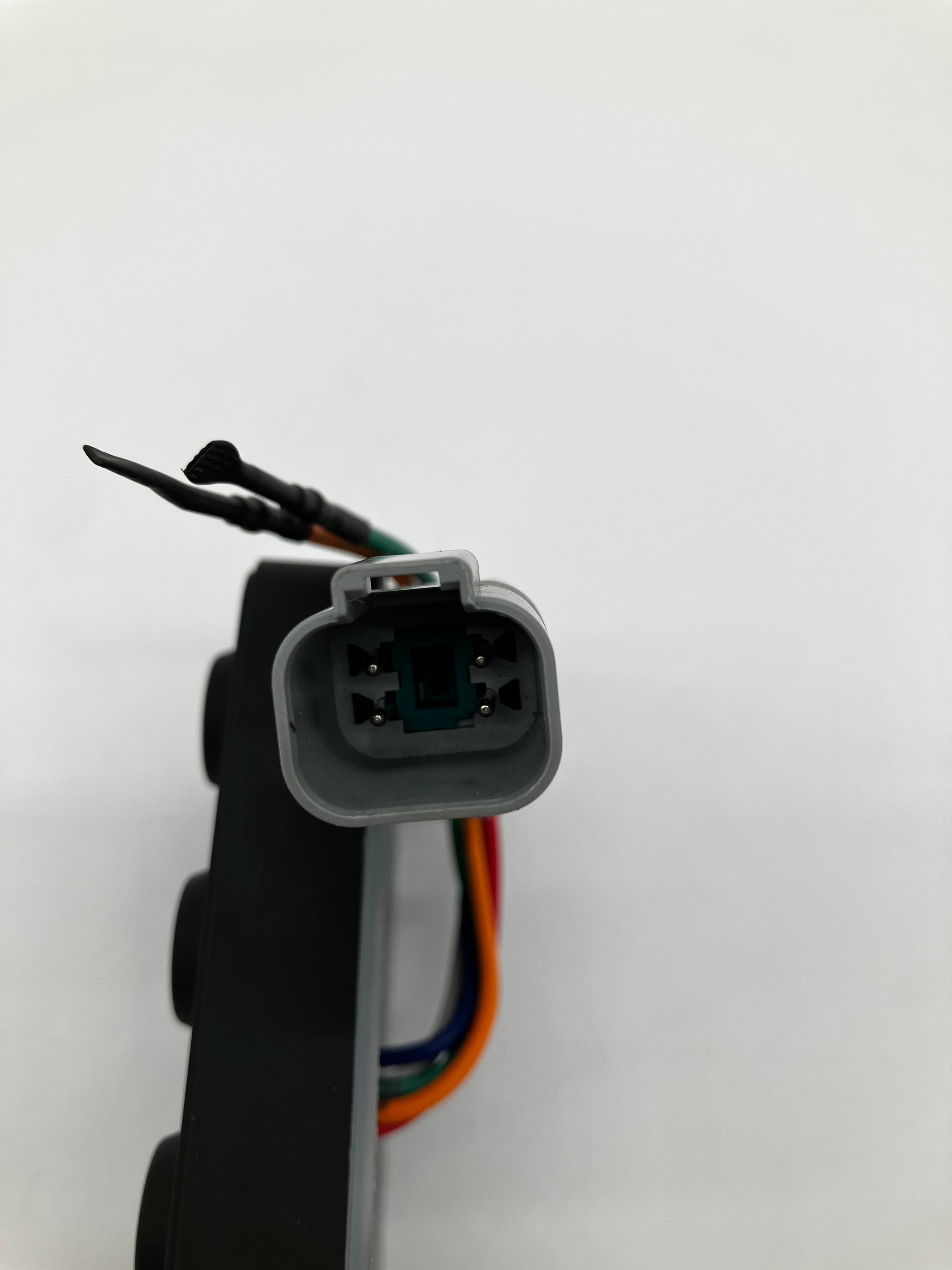

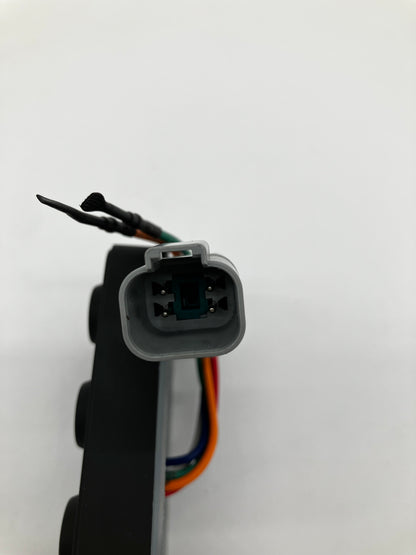

• Electrical Connection: 4-Pin Deutsch DT-Series Connector (DT04-4P) on a rear pigtail harness (Wires: Power, Ground, CAN High, CAN Low)

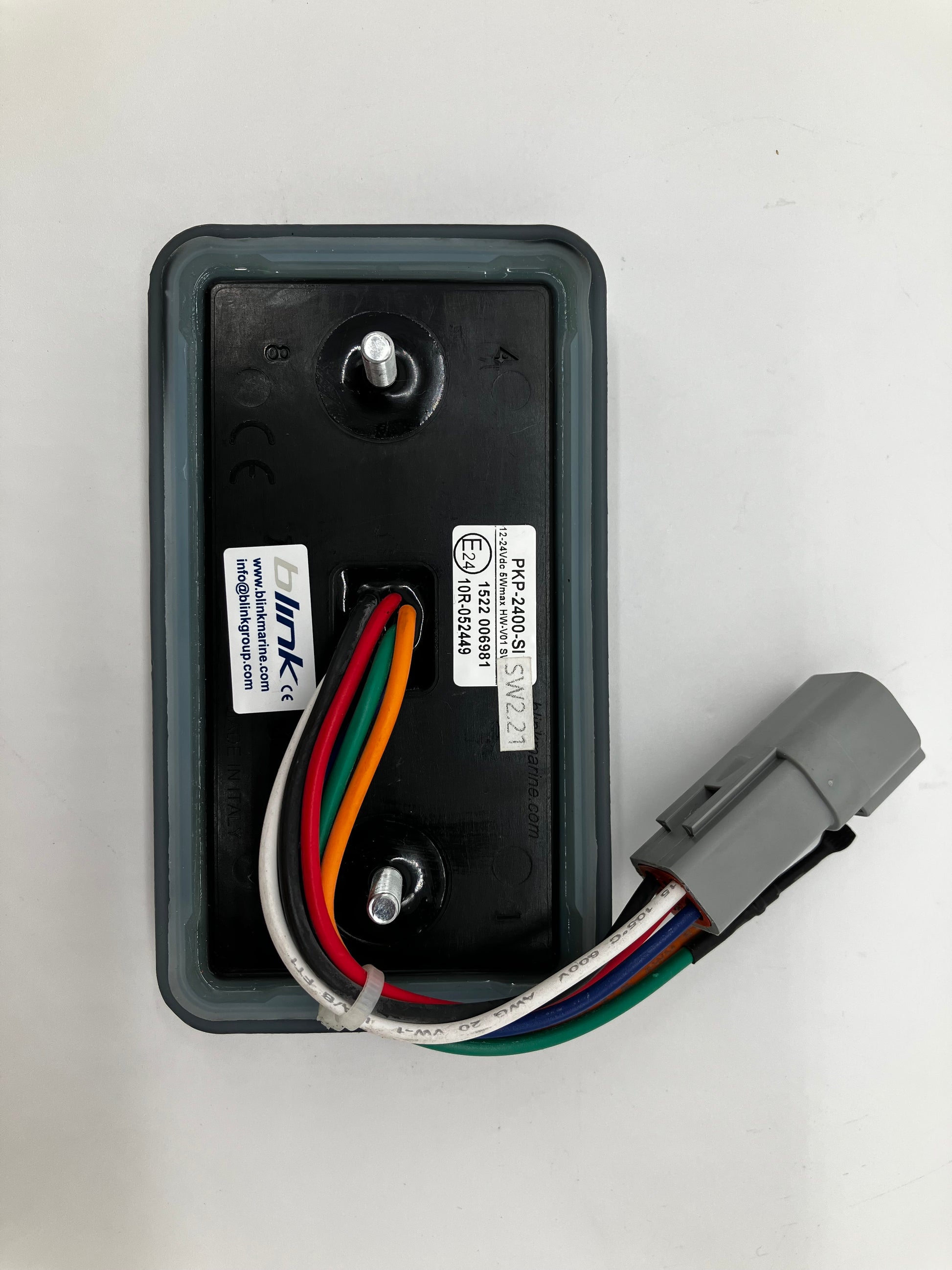

• Mounting Type: Rear flush mount via two (2) integrated threaded studs

• Certifications: CE Compliant, E24 E-Mark (10R-052449) for automotive electromagnetic compatibility

• Origin: Made in Italy

Key Features:

• Smart CAN Integration – Reduces wiring complexity by routing all 8 button signals and LED commands through a simple 4-wire CAN bus connection, making it highly favored in modern Power Distribution Module (PDM) setups (like MoTeC, Haltech, or Ecumaster).

• Extreme Durability – Fully potted and sealed from the elements, offering IP67/IP69K waterproof protection. It is built to withstand direct high-pressure washdowns, salt spray, and extreme UV exposure.

• Customizable Inserts – The cross-shaped translucent centers on the rubber buttons are designed to hold interchangeable, laser-etched plastic inserts (sold separately) so users can easily label their specific functions (e.g., Winch, Lights, Horn, Bilge).

• LED Status Illumination – Features internal LED rings for both backlighting (finding the buttons in the dark) and status indication (changing colors when a circuit is active).

Ideal For:

• Motorsport and race car dashboard control panels

• Marine vessels, center consoles, and yacht helm stations

• Off-road vehicles (UTVs, ATVs) and custom 4x4 overland builds

• Heavy-duty agricultural, construction, and municipal fleet vehicles

• Integration with intelligent Power Distribution Modules (PDMs)
