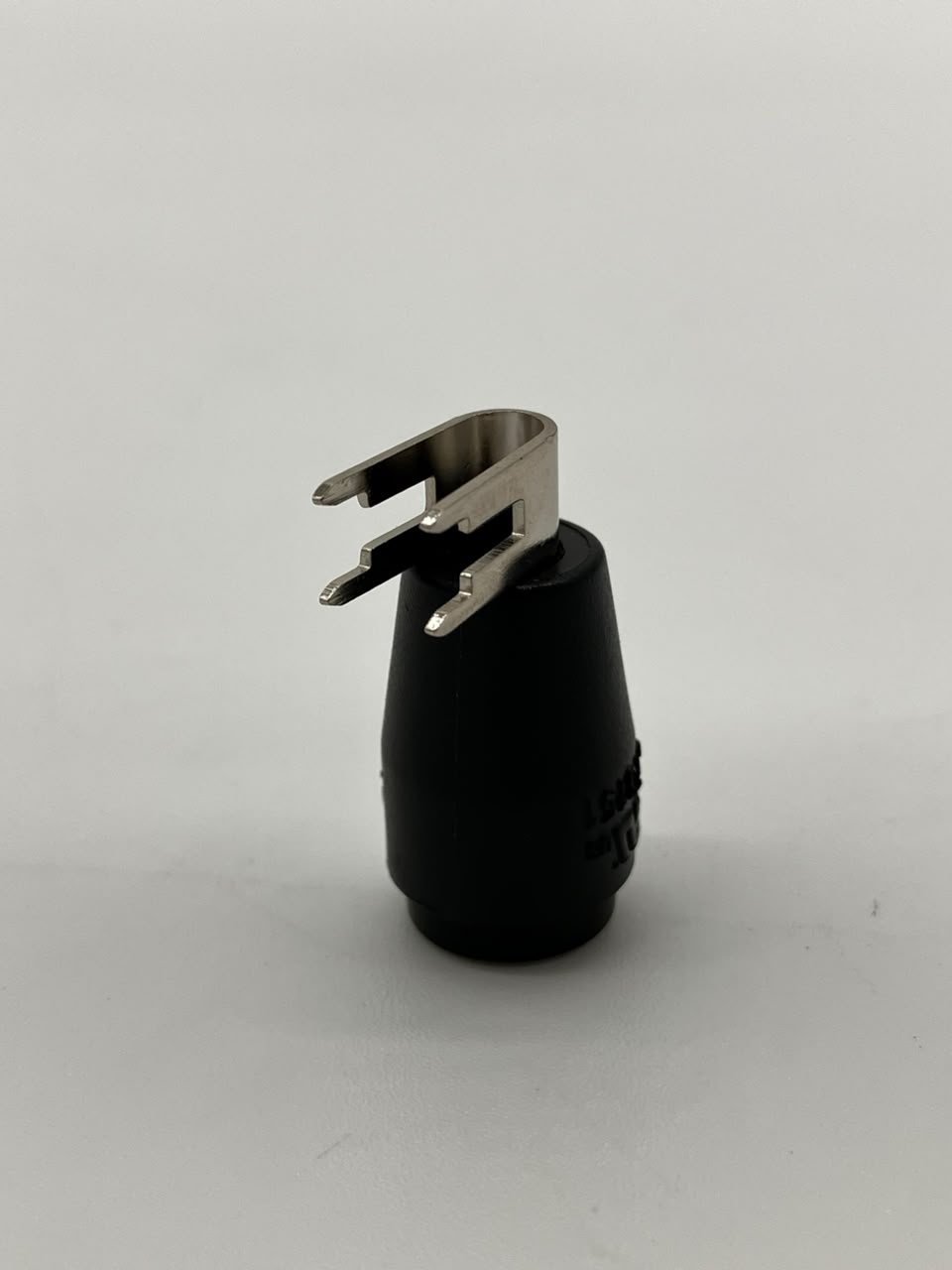

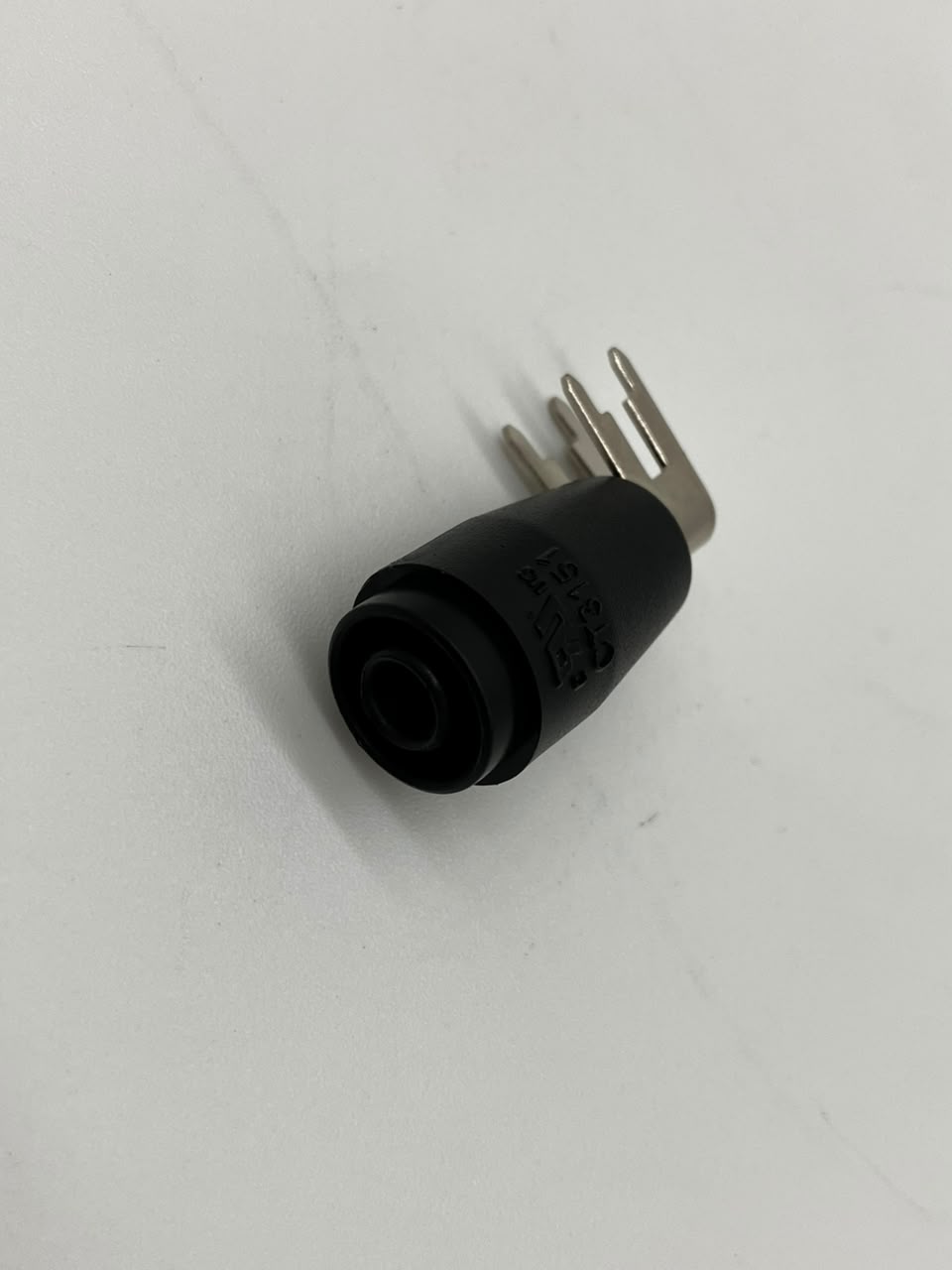

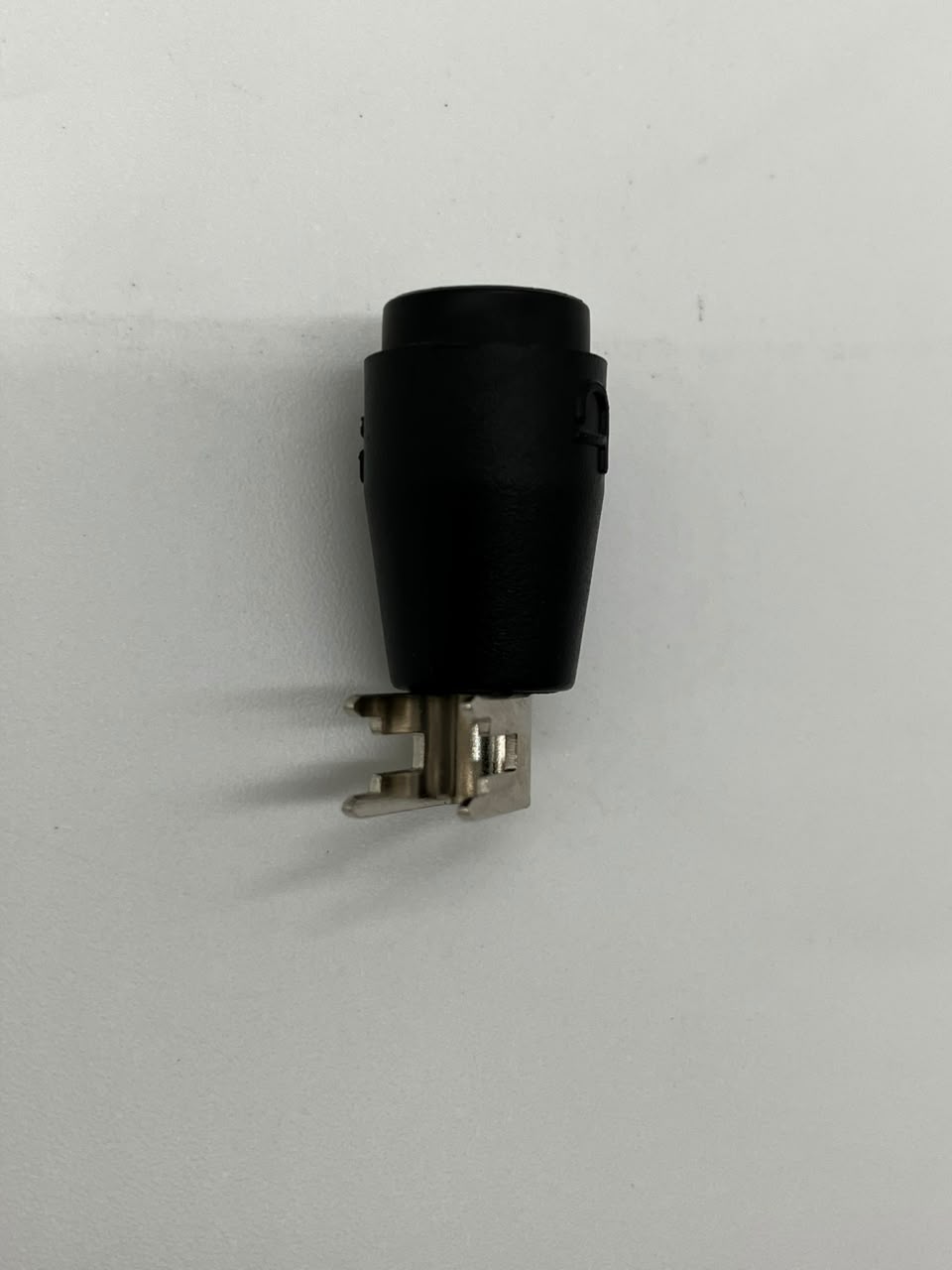

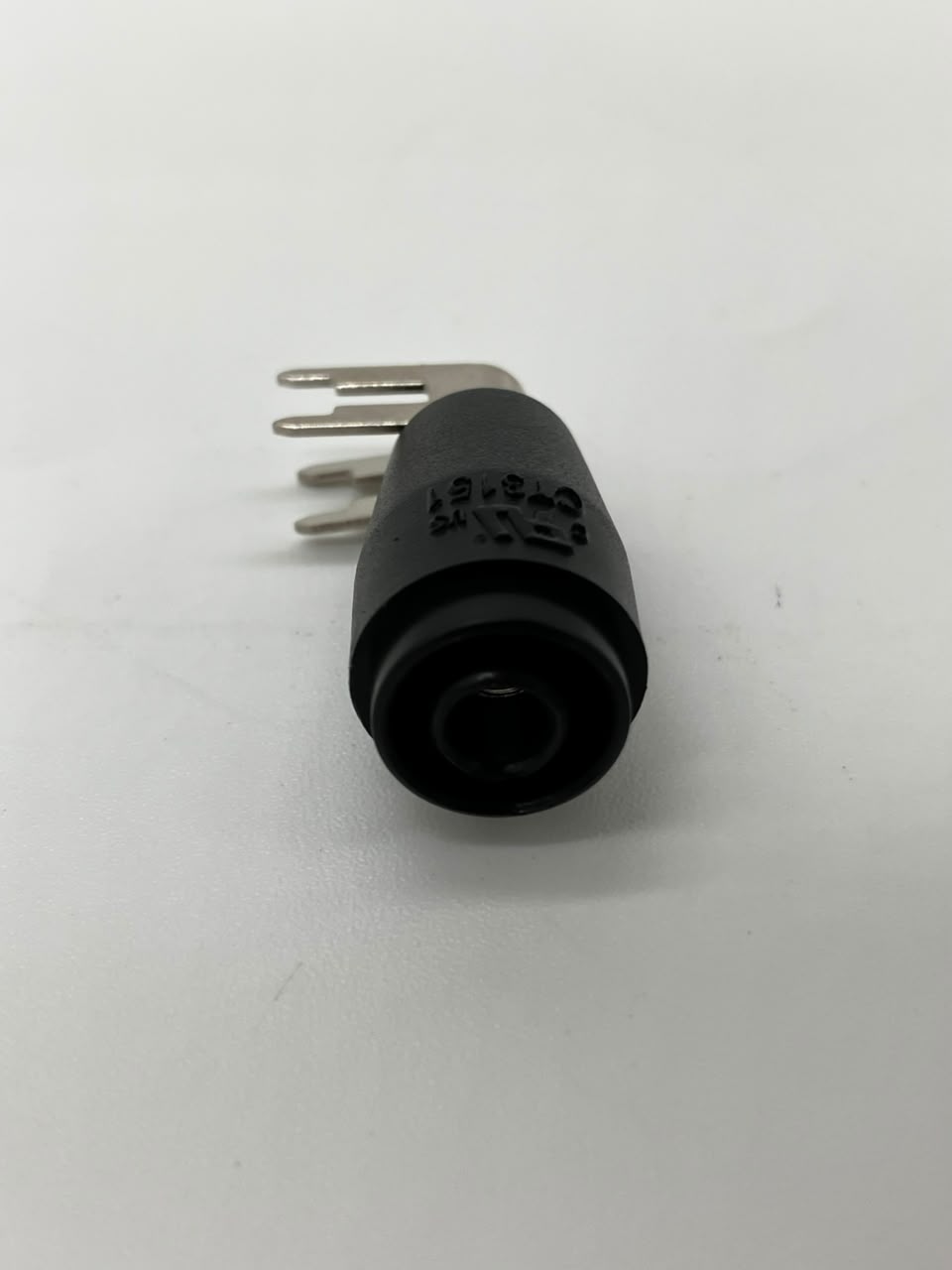

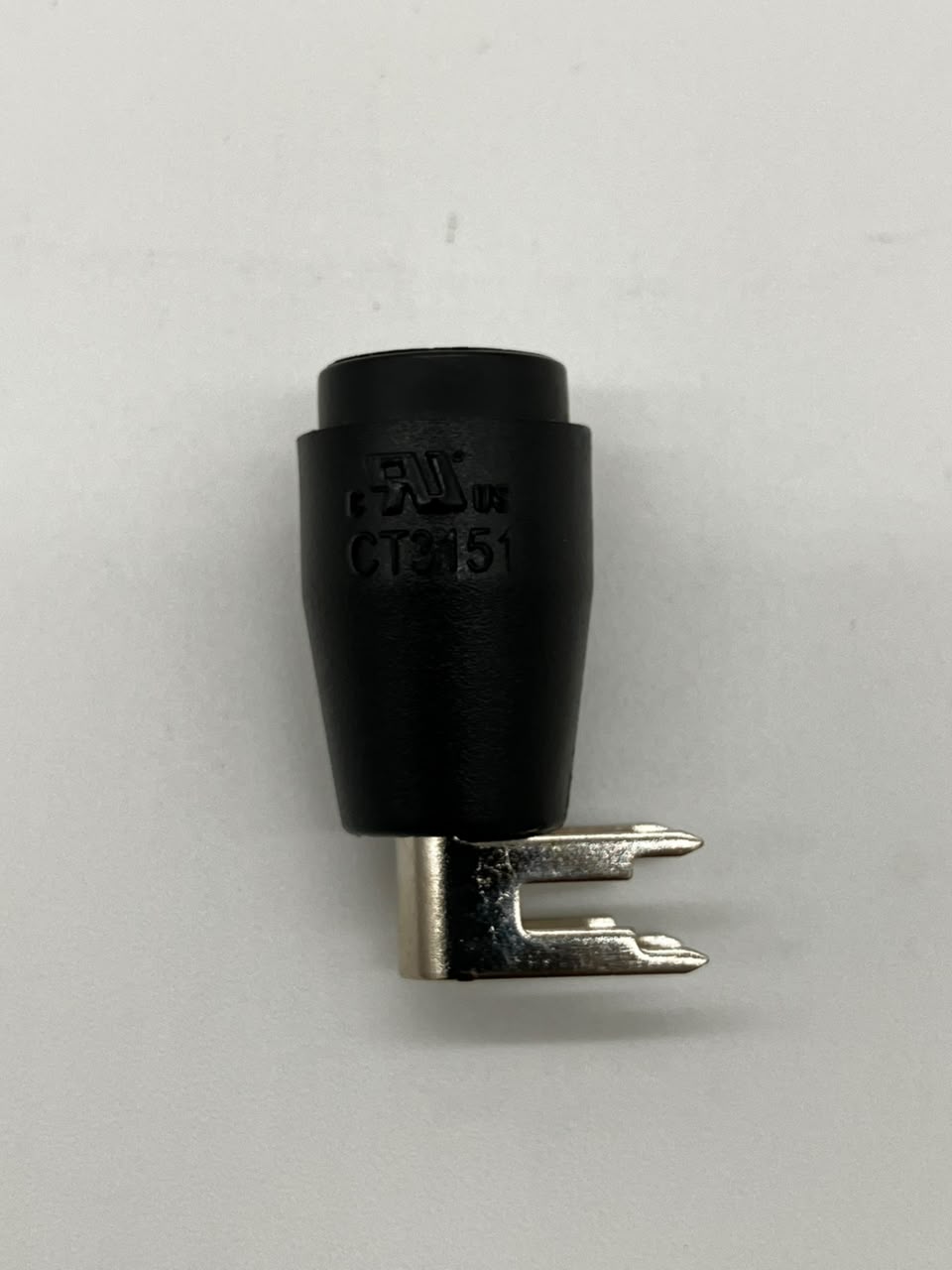

Cal Test Electronics CT3151-0 | 4mm Safety Banana Jack (Horizontal PCB Mount, Black)

Product Description

Ensure safe and reliable test connections on your custom circuit boards with the Cal Test Electronics CT3151-0 Safety Banana Jack. Designed for test and measurement equipment, power supplies, and industrial panels, this 4mm female jack features a right-angle (horizontal) orientation for seamless rear-panel and printed circuit board mounting.

The fully insulated polyamide (nylon) housing accepts standard sheathed or shrouded 4mm banana plugs, providing a touch-proof connection that meets stringent international safety standards. With its robust nickel-plated brass contacts, this connector ensures exceptionally low contact resistance and long-lasting durability, comfortably handling up to 1,000V and 25A.

Key Features

• Safety First Design: Fully insulated mating end designed to accept sheathed 4mm banana plugs, providing a touch-safe testing environment.

• Low-Profile PCB Mount: The right-angle, horizontal configuration allows for space-saving printed circuit board integration directly behind your equipment panel.

• High-Power Capacity: Rated for up to 1,000V CAT III and 25A, making it ideal for high-power test fixtures, multimeters, and power management applications.

• Durable Construction: Built with a high-impact polyamide (Nylon 6/6) body and premium nickel-plated brass contacts for optimal conductivity and corrosion resistance.

• Certified Reliability: UL recognized component (cURus), guaranteeing strict adherence to global safety and performance standards.

Technical Specifications

• Manufacturer: Cal Test Electronics

• Part Number: CT3151-0

• Connector Type: 4mm Safety Banana Jack (Female Socket)

• Mounting Style: Horizontal PCB Mount (Right Angle), Panel Mount

• Termination: Solder

• Voltage Rating: 1,000V CAT III

• Current Rating: 25A

• Contact Material: Brass with Nickel Plating

• Housing Material: Polyamide (PA66 / Nylon 6/6)

• Housing Color: Black (-0)

• Operating Temperature: -20°C to +80°C

• Safety Approvals: UL Recognized (UL 61010-1), CAN/CSA compliant
