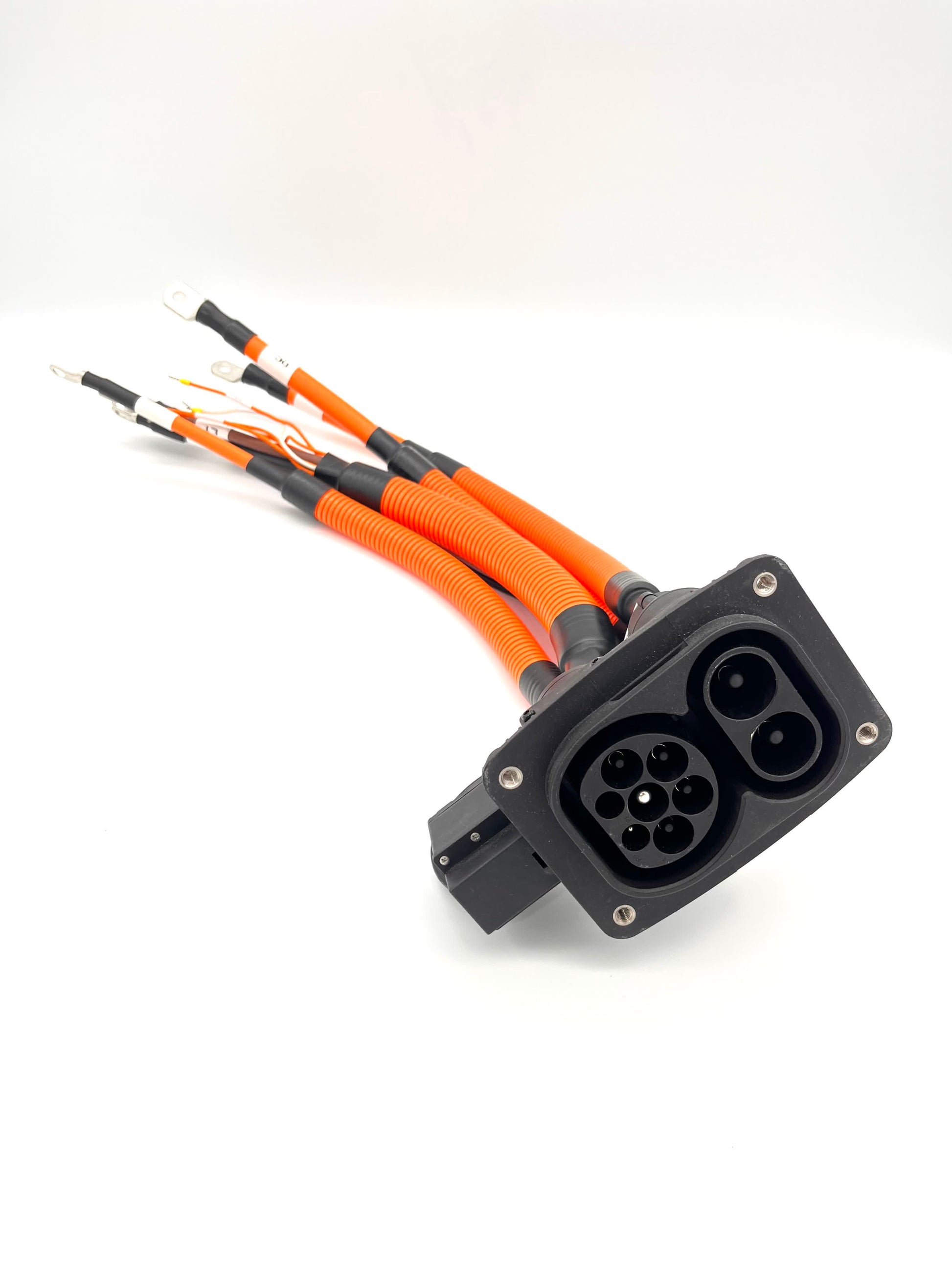

CCS2 Charge Port – DC Fast Charging Inlet (250A Rated)

CCS2 Charge Port – DC Fast Charging Inlet (250A Rated)

This CCS2 (Combined Charging System Type 2) charge port enables DC fast charging capability for electric vehicles and high-voltage battery systems. Designed to meet European and international charging standards, this port supports both AC (Type 2) and DC (CCS Combo) charging through a single integrated inlet.

Rated for up to 250A DC, it's ideal for EV conversions, prototype builds, or custom BMS-integrated charging setups.

Specifications:

Standard: CCS Combo 2 (IEC 62196-3)

Current Rating: Up to 250A DC / 63A AC

Voltage Rating: Up to 1000V DC

Mounting: Panel mount (rear-locking)

Connector Type: CCS2 (with AC Type 2 upper section)

Ingress Protection: IP55 (mated)

Thermistor & Proximity Pins: Integrated for handshake & safety

Communication: Supports PLC / ISO 15118 / DIN 70121 (depending on system)

Ideal For:

EV conversions with fast charging

High-voltage battery enclosures

Charging test rigs

CCS-enabled fleet or mobile EV builds

Note: Requires CCS charge controller (not included) for handshake and communication. Compatible with most EVSEs and charging infrastructure across Europe, the Middle East, and Asia
