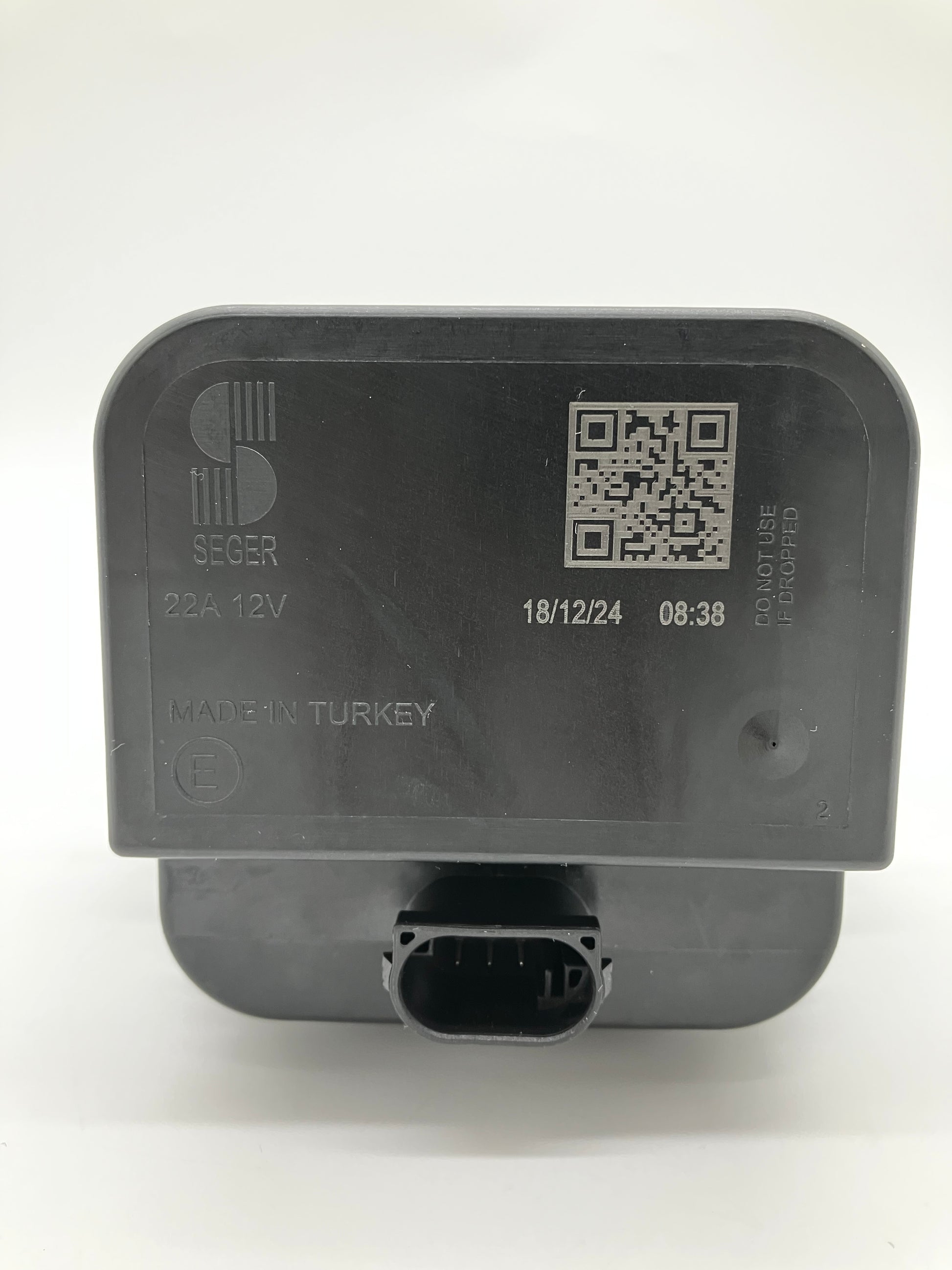

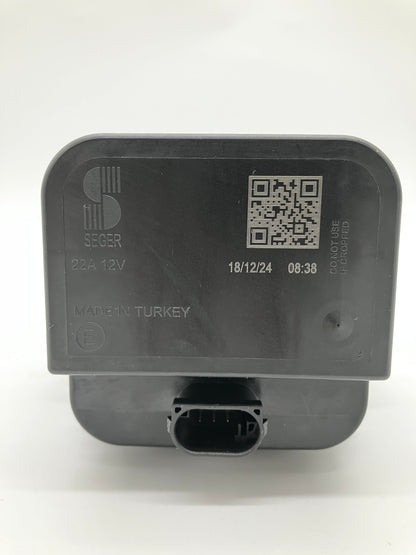

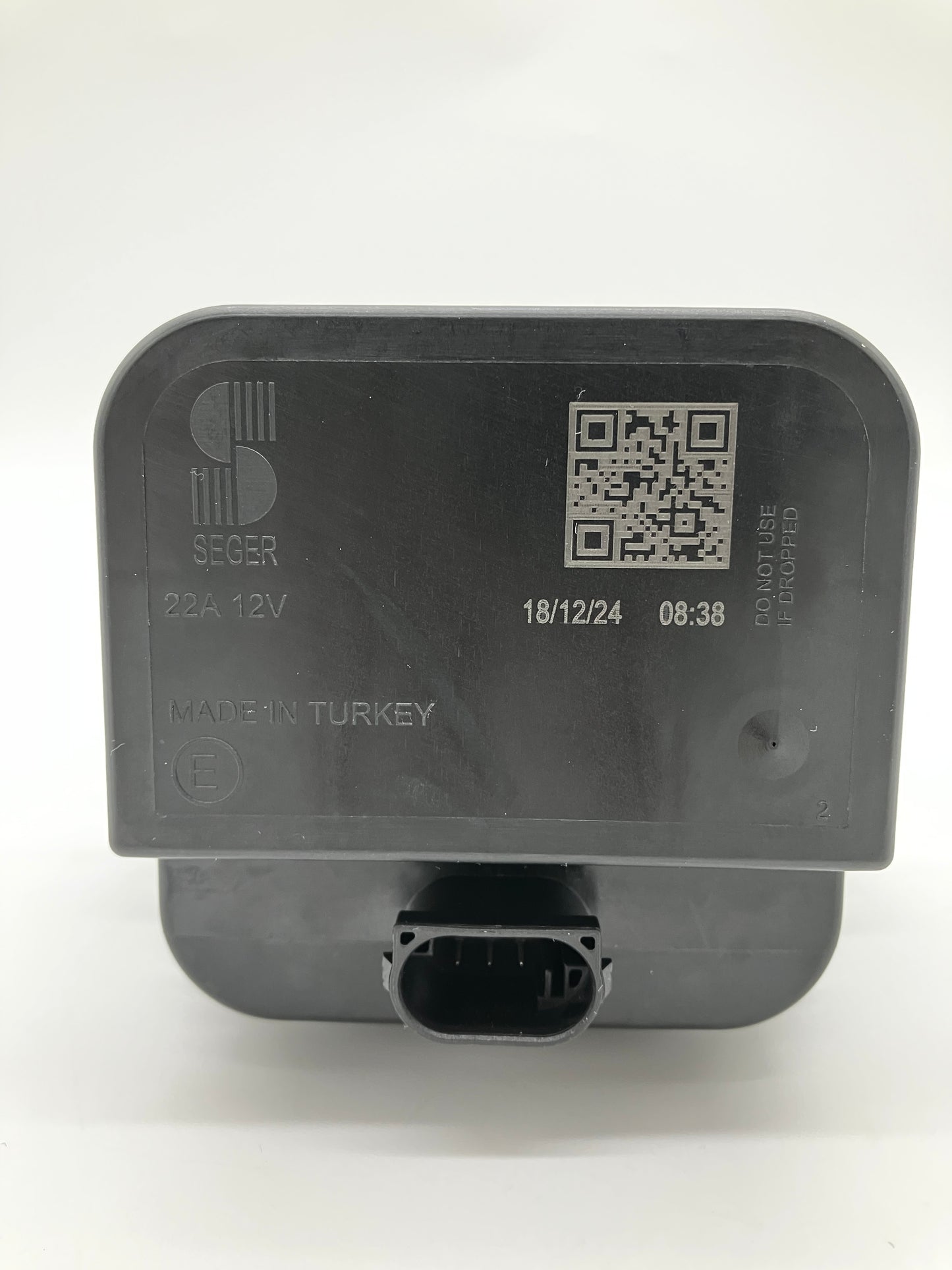

Electro Magnetic Horn (SEGER 22A Acoustic Vehicle Alerting System)

The SEGER 22A Acoustic Vehicle Alerting System (AVAS) Module is an essential, high-tech pedestrian safety device designed specifically for modern electric and hybrid vehicles. Manufactured in Turkey by SEGER (a globally recognized Tier 1 automotive acoustic supplier), this 12V electronic sound module generates an artificial engine noise when the vehicle is operating at low speeds, ensuring blind or distracted pedestrians can hear the otherwise silent vehicle approaching.

Key Specifications:

• Category: Automotive Parts & Accessories / Safety & Security / Acoustic Warning Devices

• Product Type: Acoustic Vehicle Alerting System (AVAS) / Pedestrian Warning Speaker

• Manufacturer: SEGER A.S.

• Model / Series: 22A

• Operating Voltage: 12V DC

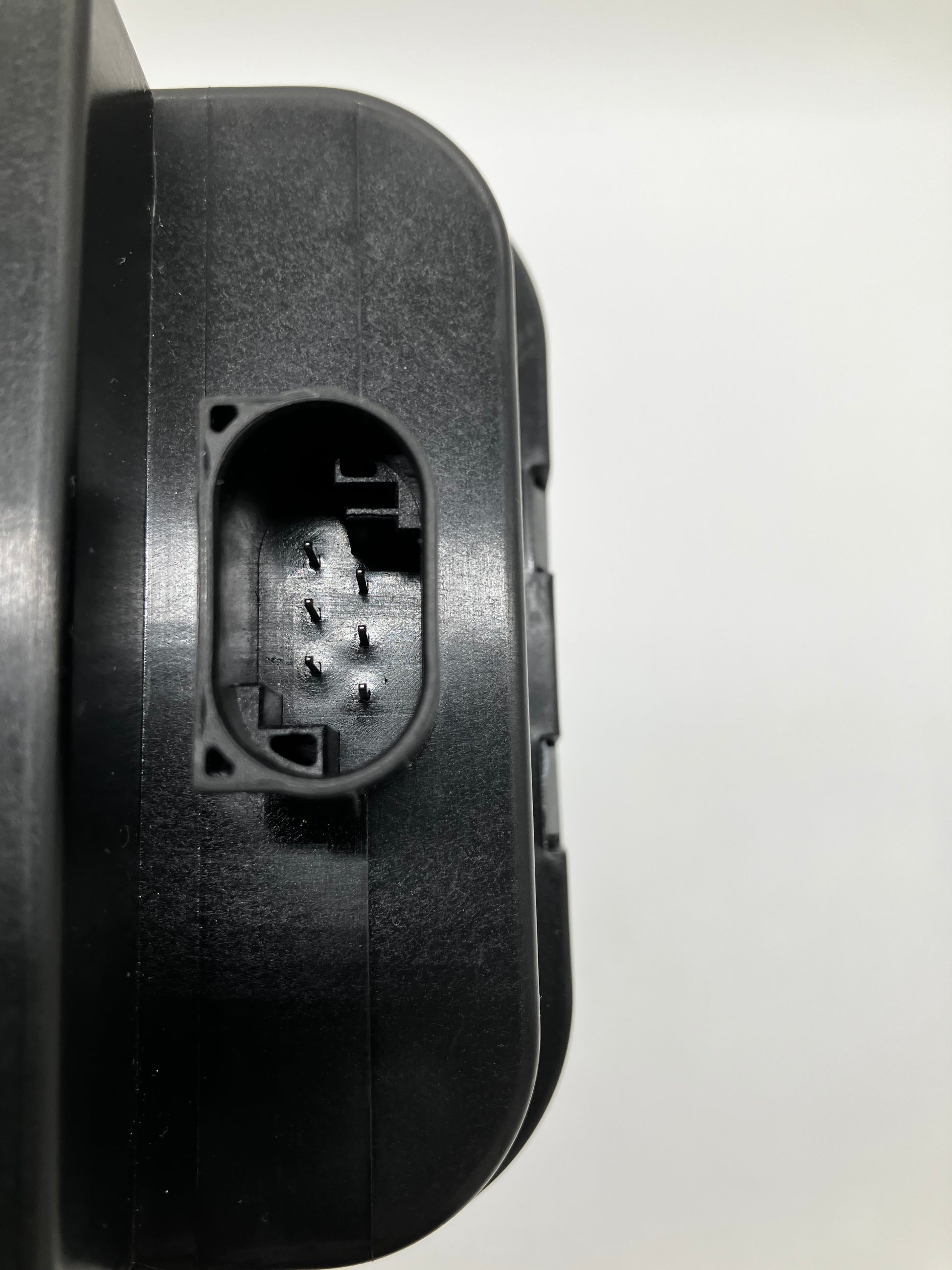

• Electrical Connection: 6-Pin sealed receptacle (For Power, Ground, and CAN-bus communication)

• Certification: E-Mark certified (Meets strict European automotive safety regulations)

• Origin: Made in Turkey

Key Features:

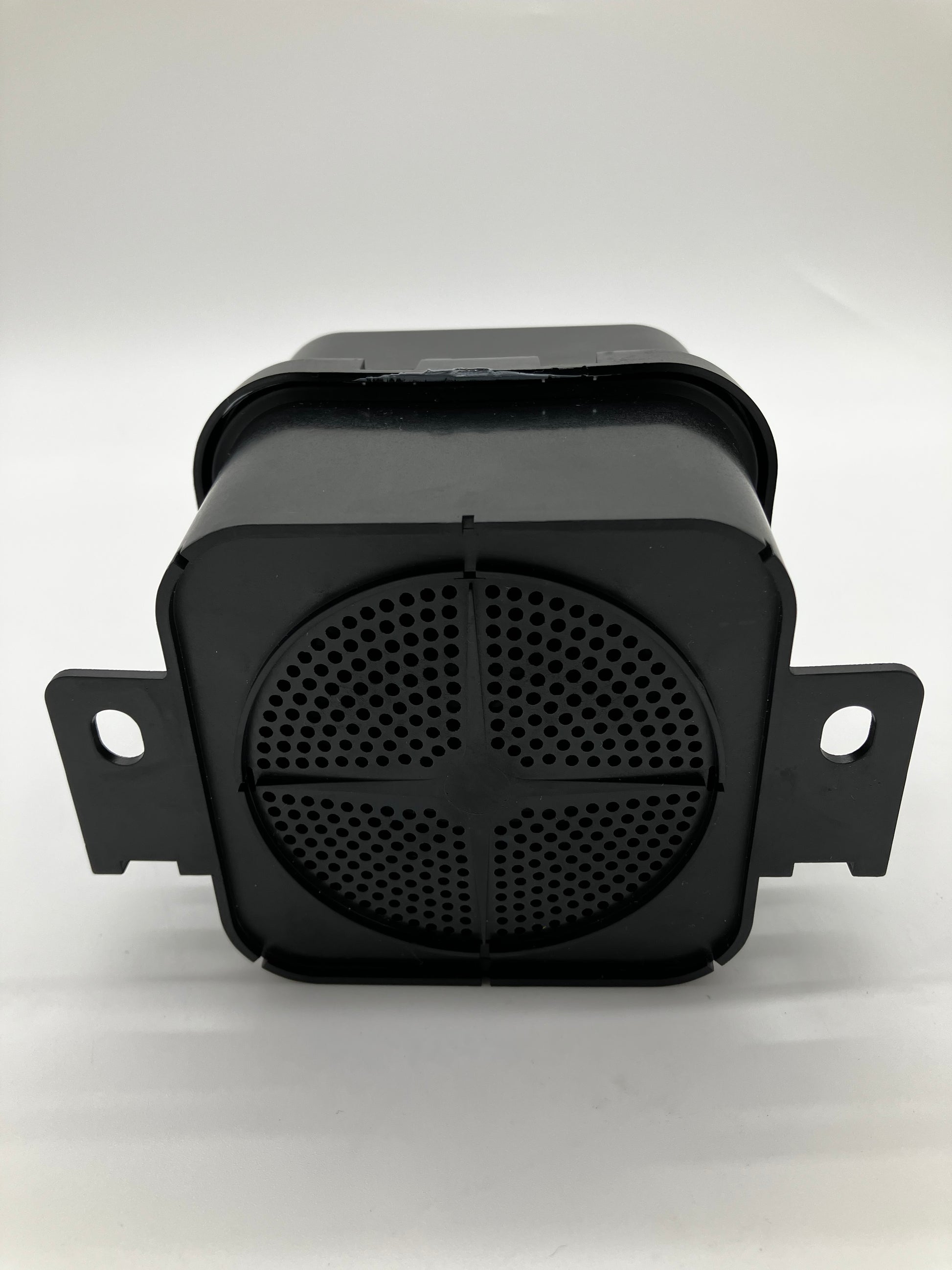

• Lifesaving Pedestrian Warning – Features a bottom-facing, perforated circular acoustic grille designed to project a specifically tuned, continuous driving sound that alerts pedestrians of an approaching EV at speeds below 20-30 km/h.

• Smart ECU Integration – The 6-pin connector links directly to the vehicle's electronic control unit or CAN-bus network, allowing the system to modulate the artificial engine sound's pitch and volume in real-time based on vehicle speed and acceleration.

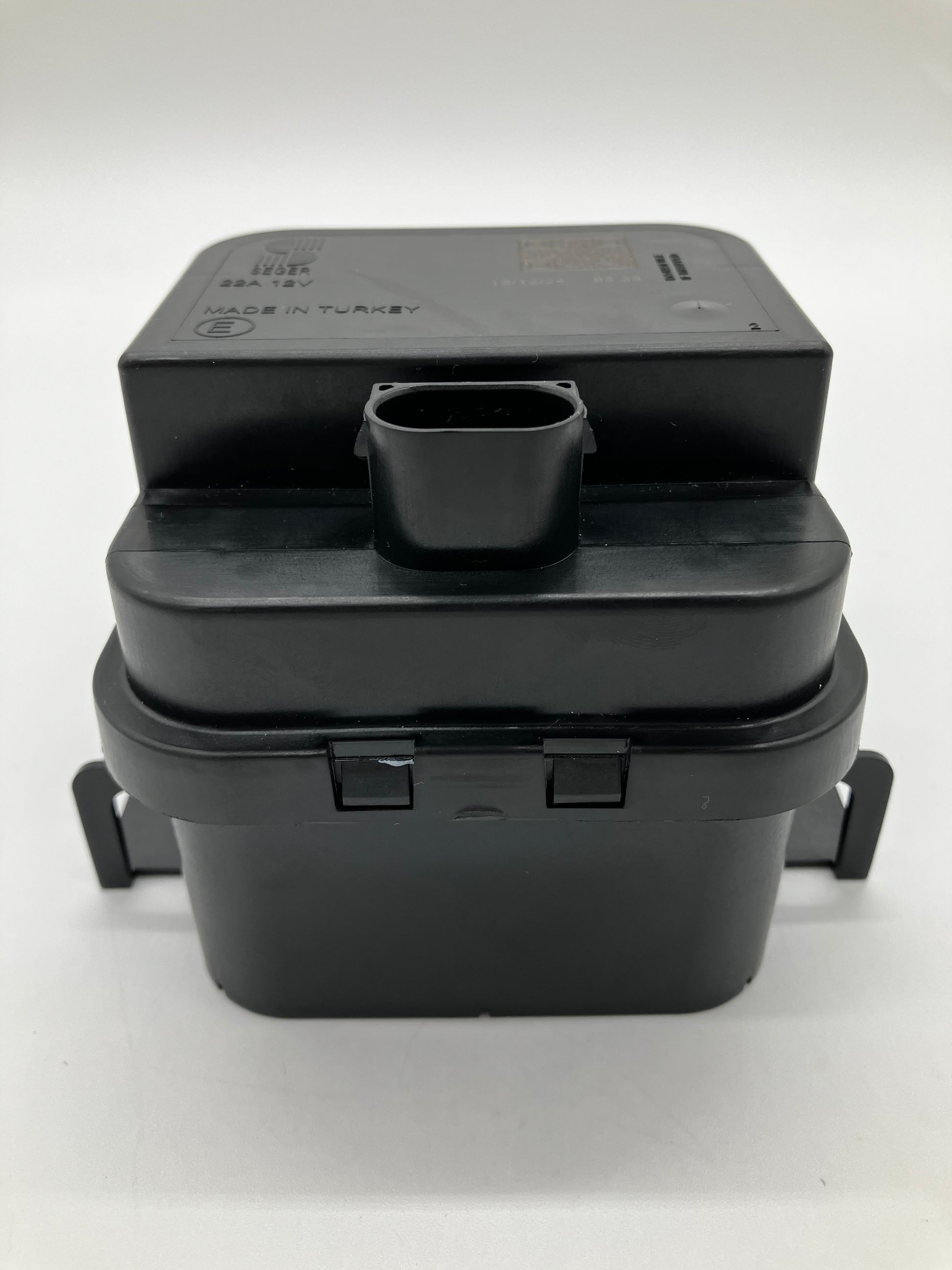

• Severe-Duty Enclosure – Fully enclosed in a durable, two-piece sealed black plastic housing designed to withstand harsh wheel-well or under-hood environments, protecting the internal speaker from water, road salt, and debris.

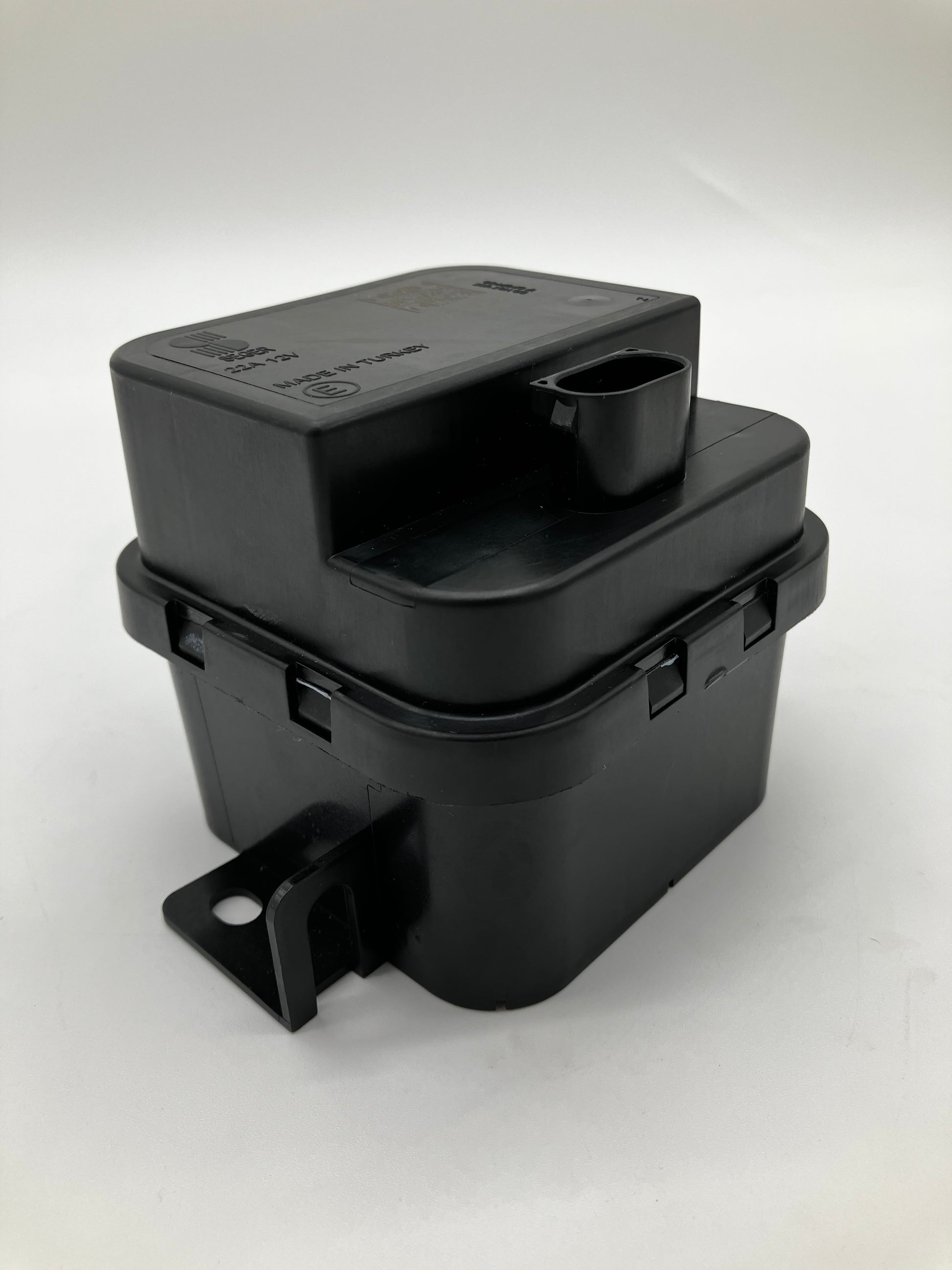

• Easy Chassis Mounting – The lower housing features two heavy-duty, integrated mounting flanges with pre-molded bolt holes for secure, vibration-free installation to the vehicle's chassis.

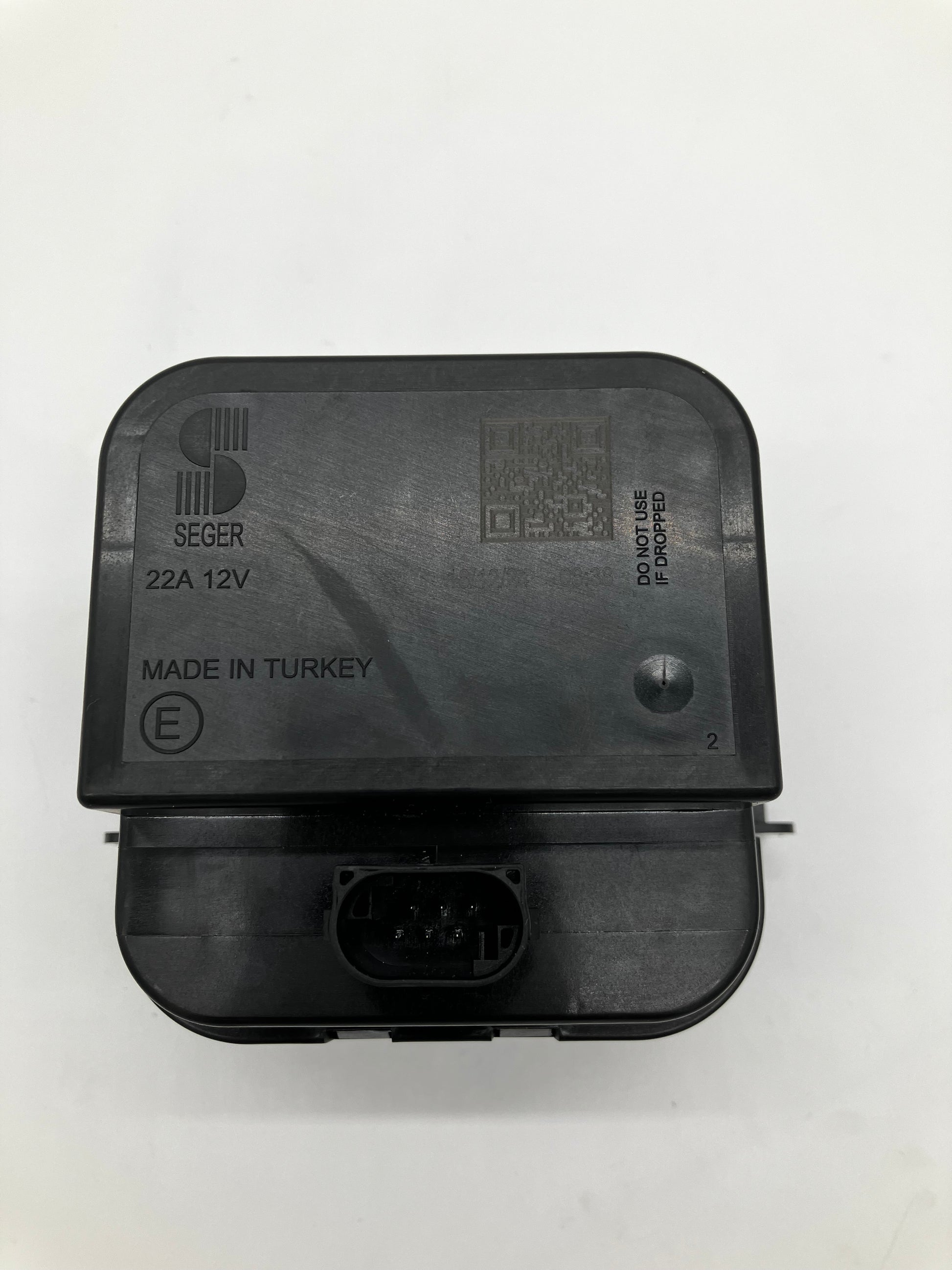

• Drop-Sensitive Calibration – Factory stamped with a strict "DO NOT USE IF DROPPED" warning, as the highly calibrated internal acoustic emitter and sensitive circuit board can be damaged by high-impact shock prior to installation.

Ideal For:

• Complete factory Electric Vehicle (EV) and Plug-in Hybrid (PHEV) manufacturing

• Custom EV conversions needing to pass strict road-legal safety and pedestrian warning inspections

• Golf carts, low-speed utility vehicles, and electric campus shuttles operating in crowded pedestrian areas

• Direct OEM replacement for damaged or failed factory AVAS modules
