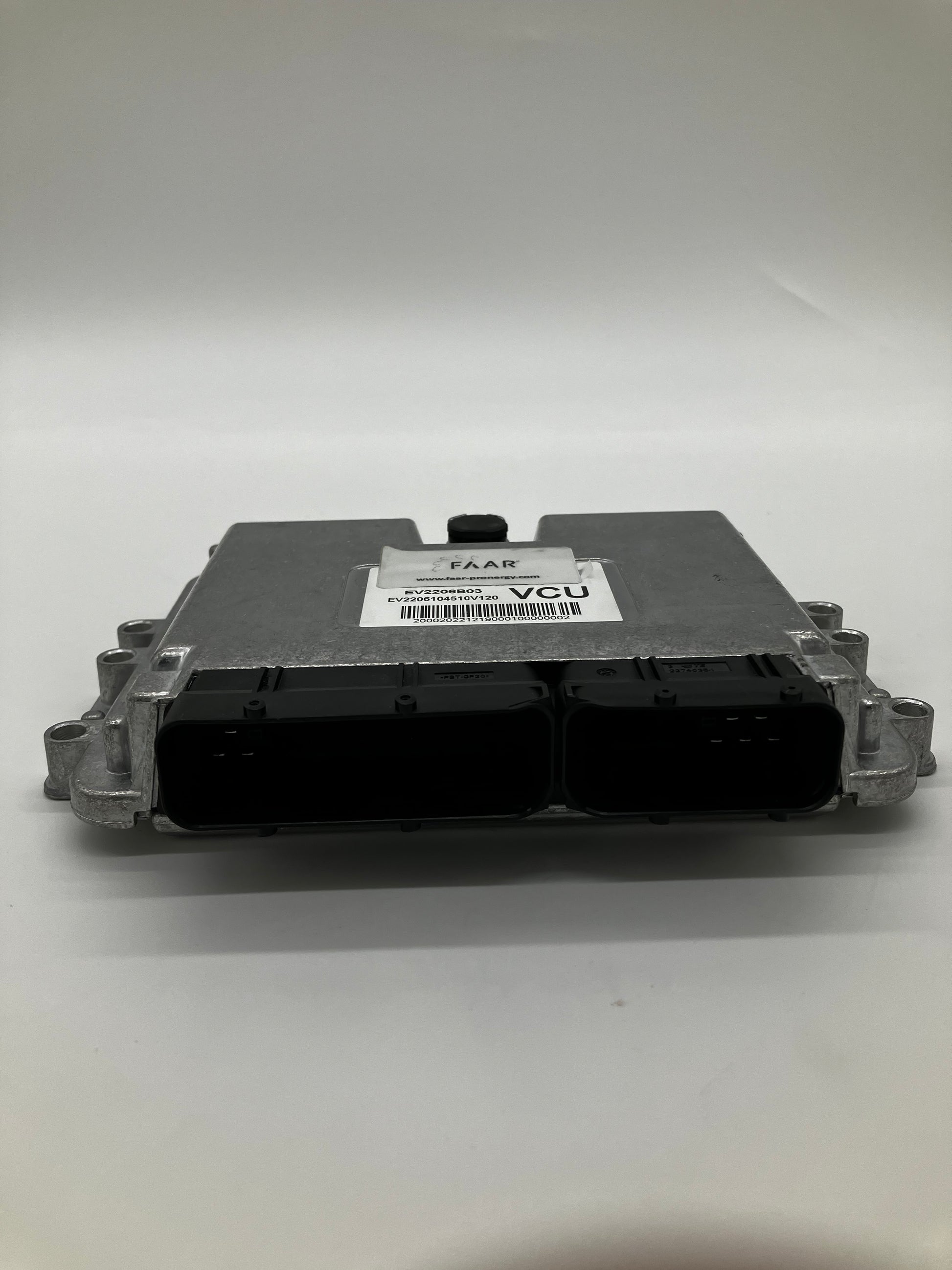

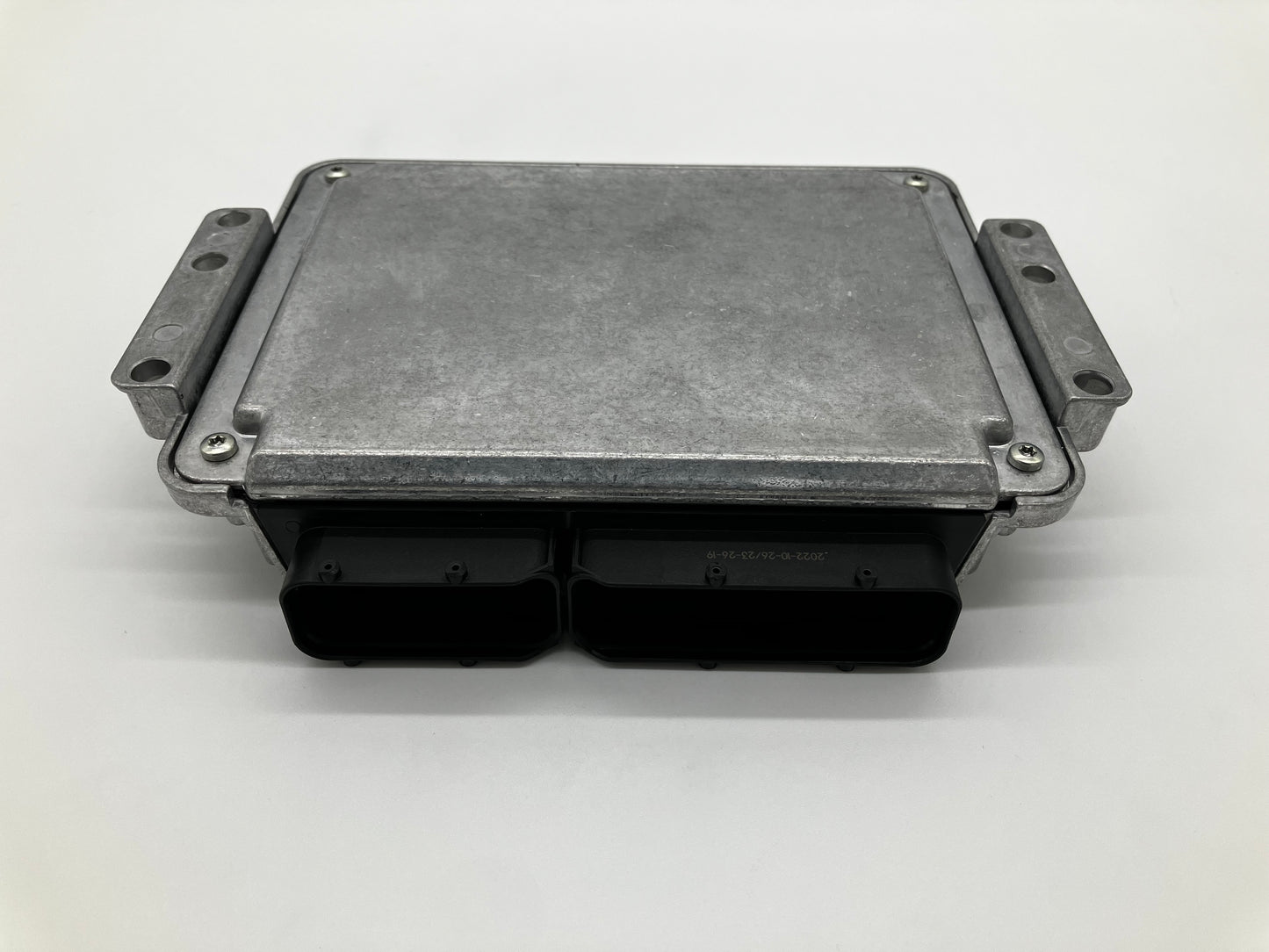

FAAR Pronergy Vehicle Control Unit (VCU)

The FAAR Pronergy Vehicle Control Unit (VCU) - Model EV2206B03 is an advanced, automotive-grade central processing module designed to act as the "brain" of electric (EV) and hybrid vehicle drivetrains. Manufactured by FAAR (a specialized engineering firm known for complex electronic control architectures), this robust VCU coordinates communication and operation between the vehicle's critical subsystems, including the Battery Management System (BMS), motor inverters, thermal management, and driver inputs.

Key Specifications:

• Category: Automotive Parts & Accessories / Engine & Vehicle Management / Control Modules

• Product Type: Vehicle Control Unit (VCU) / Central ECU

• Manufacturer: FAAR (FAAR-Pronergy)

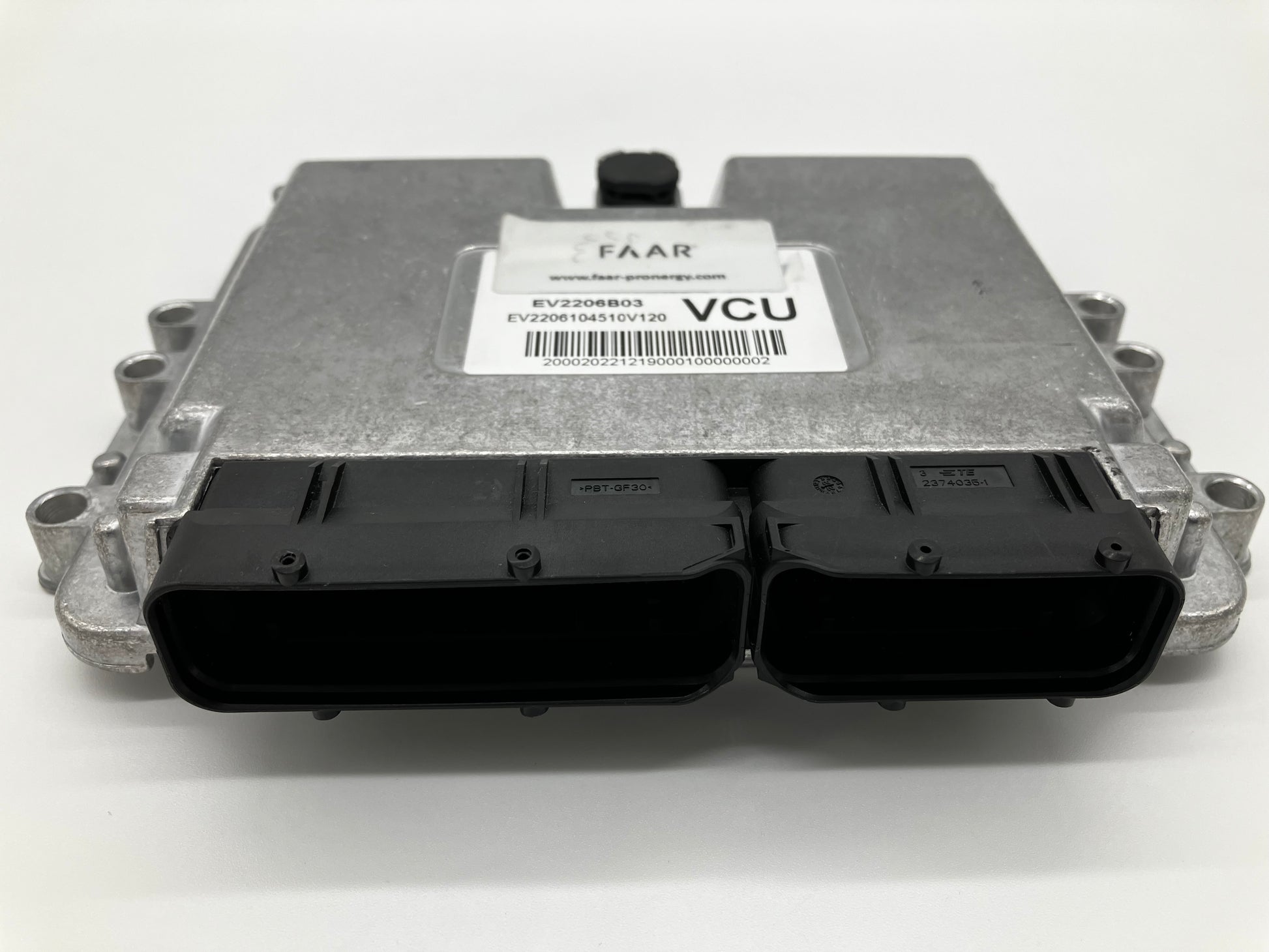

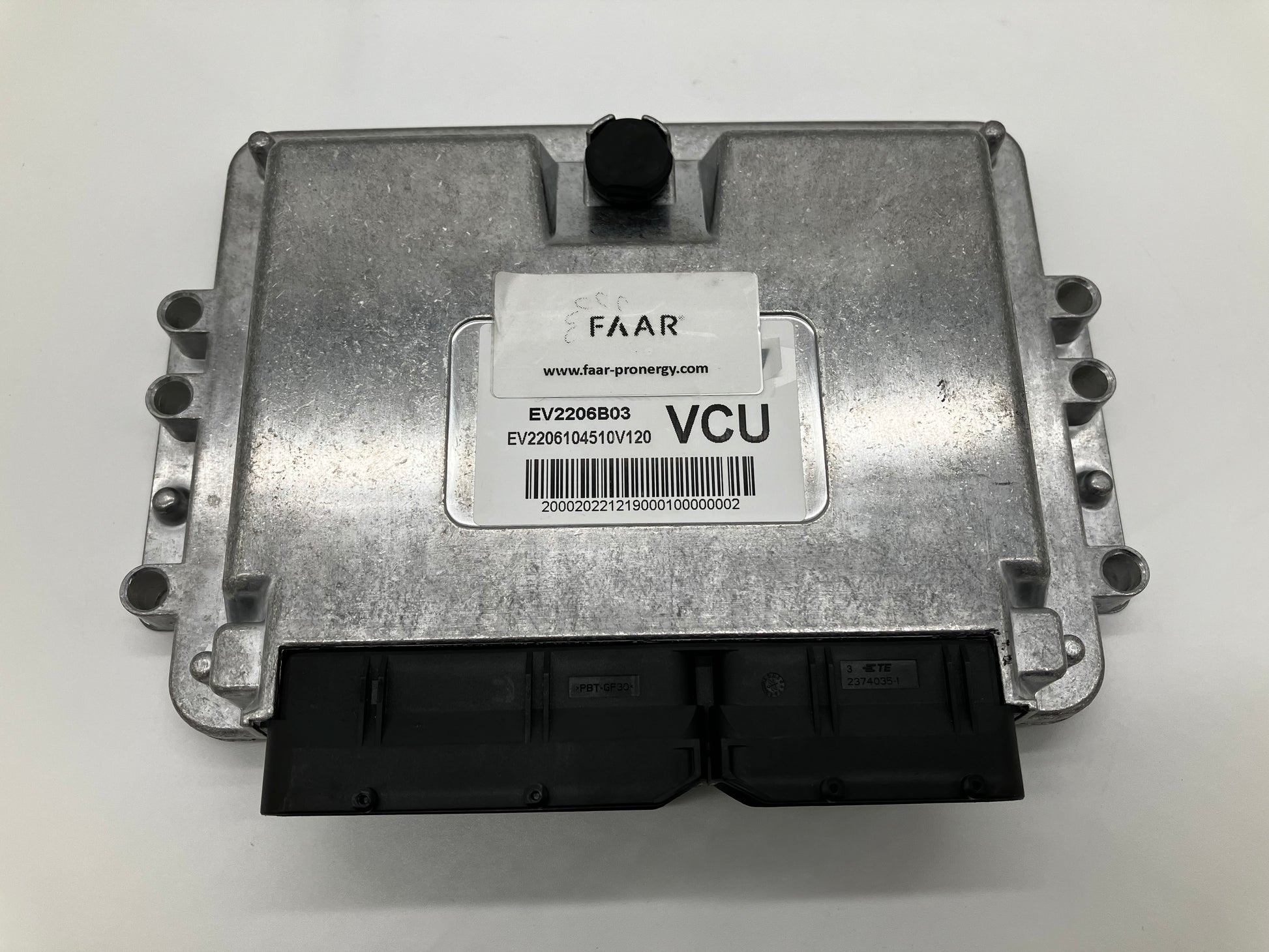

• Model / Part Number: EV2206B03 (Ref: EV2206104510V120)

• Operating Logic Voltage: 12V / 24V DC automotive standard

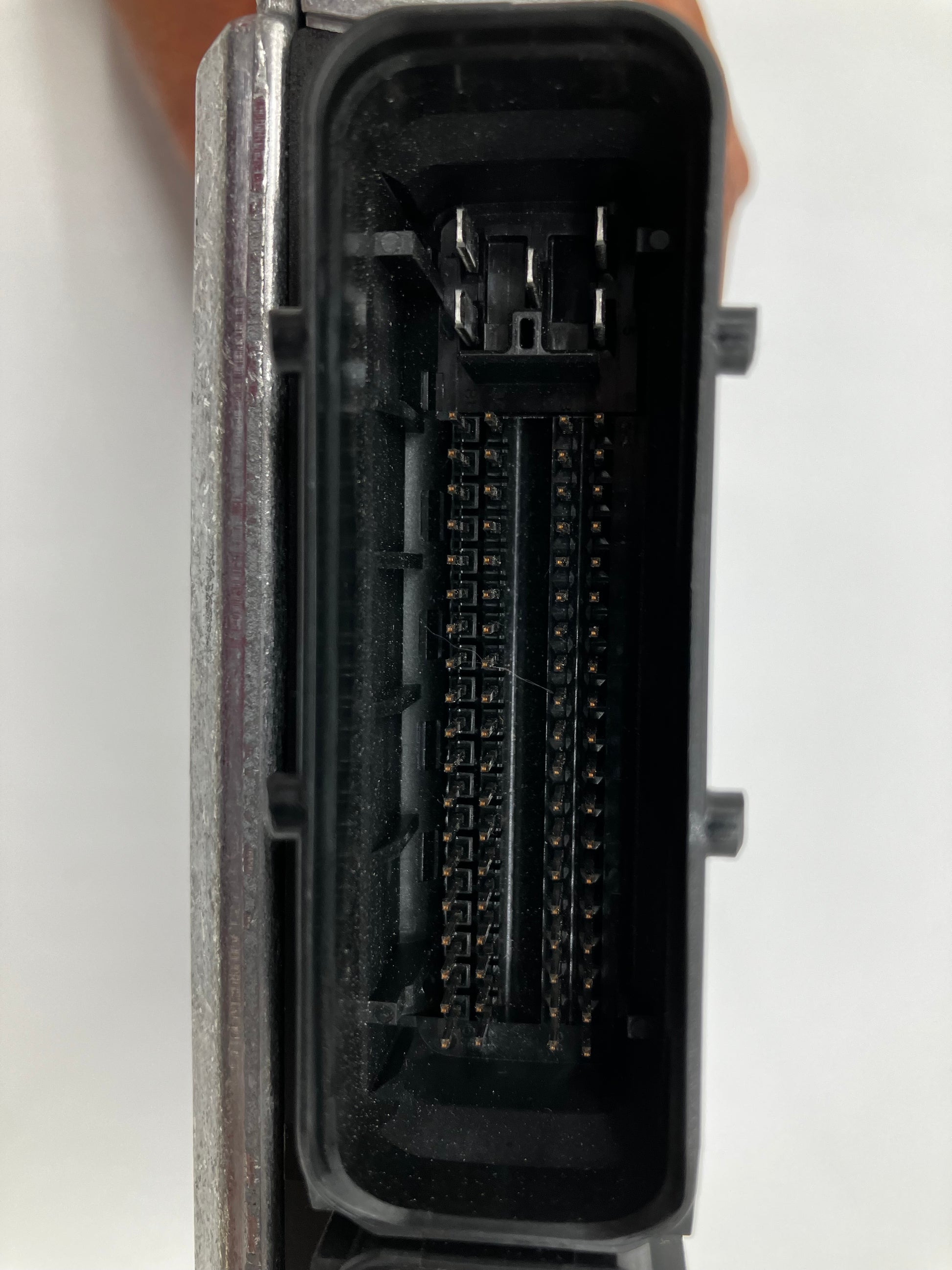

• Electrical Connection: Dual high-density, multi-pin automotive header receptacles (Mixed large power/ground pins and small signal pins)

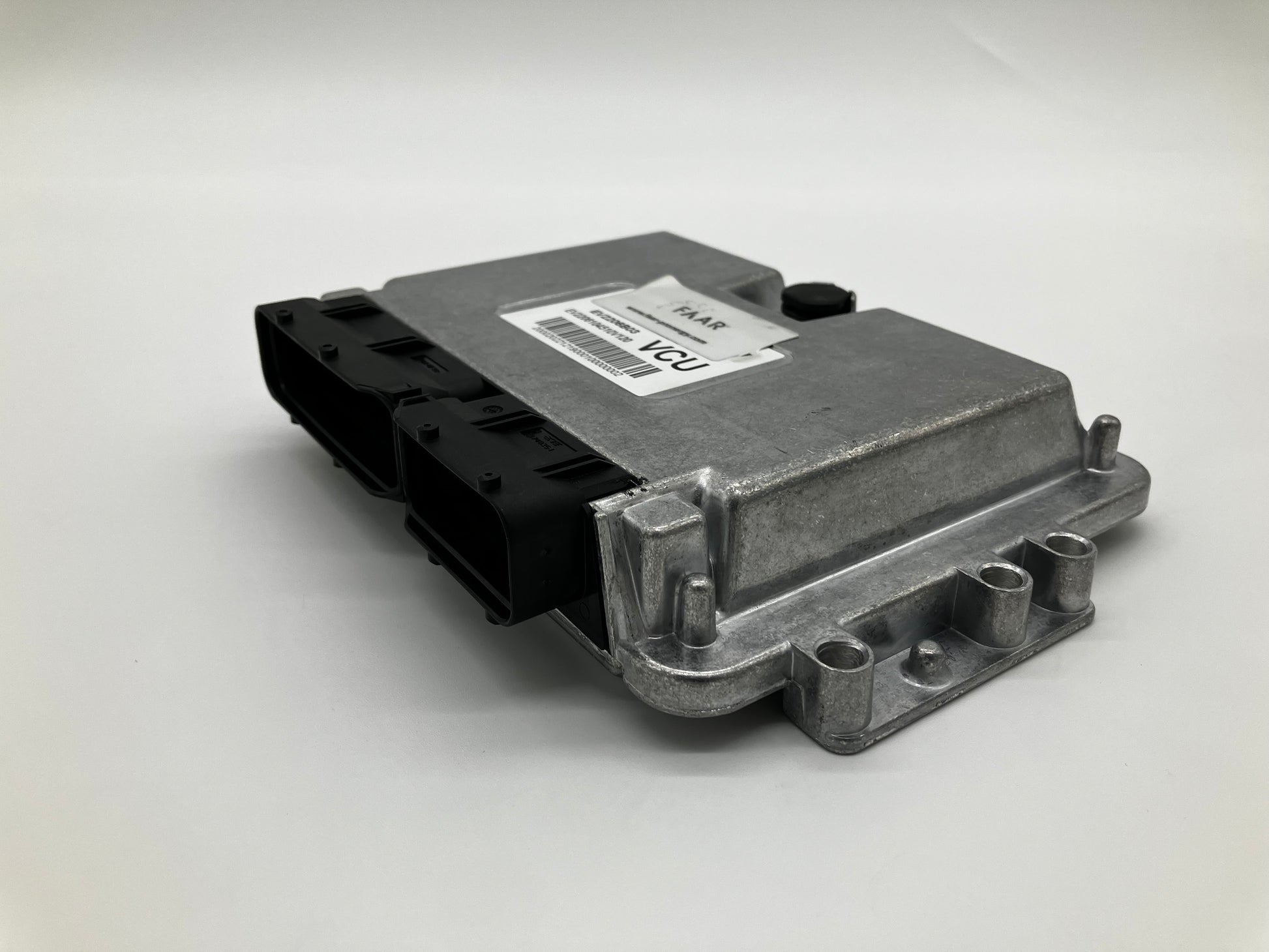

• Housing Material: Heavy-duty die-cast aluminum

• Protection Rating: IP67 / IP69K (Highly resistant to dust, water, and under-hood environments)

Key Features:

• Centralized EV Coordination – Acts as the master controller for the vehicle's CAN-bus network, translating driver throttle and brake inputs into precise torque commands for the motor inverter, while actively monitoring battery safety limits.

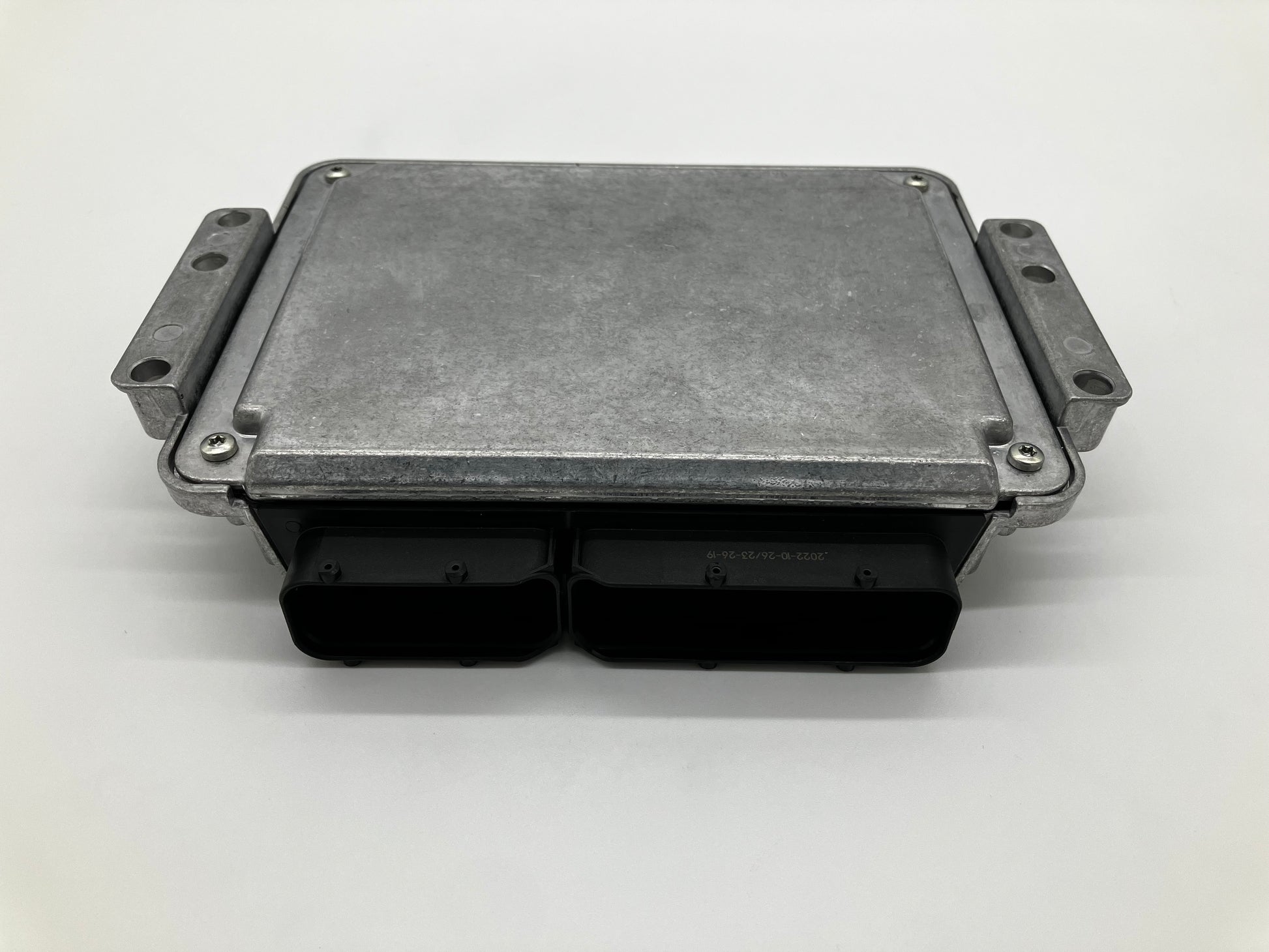

• Ruggedized Enclosure – The thick, die-cast aluminum housing acts as a massive heat sink to keep the internal processors cool. It features integrated mounting holes for secure, vibration-proof installation to the vehicle chassis.

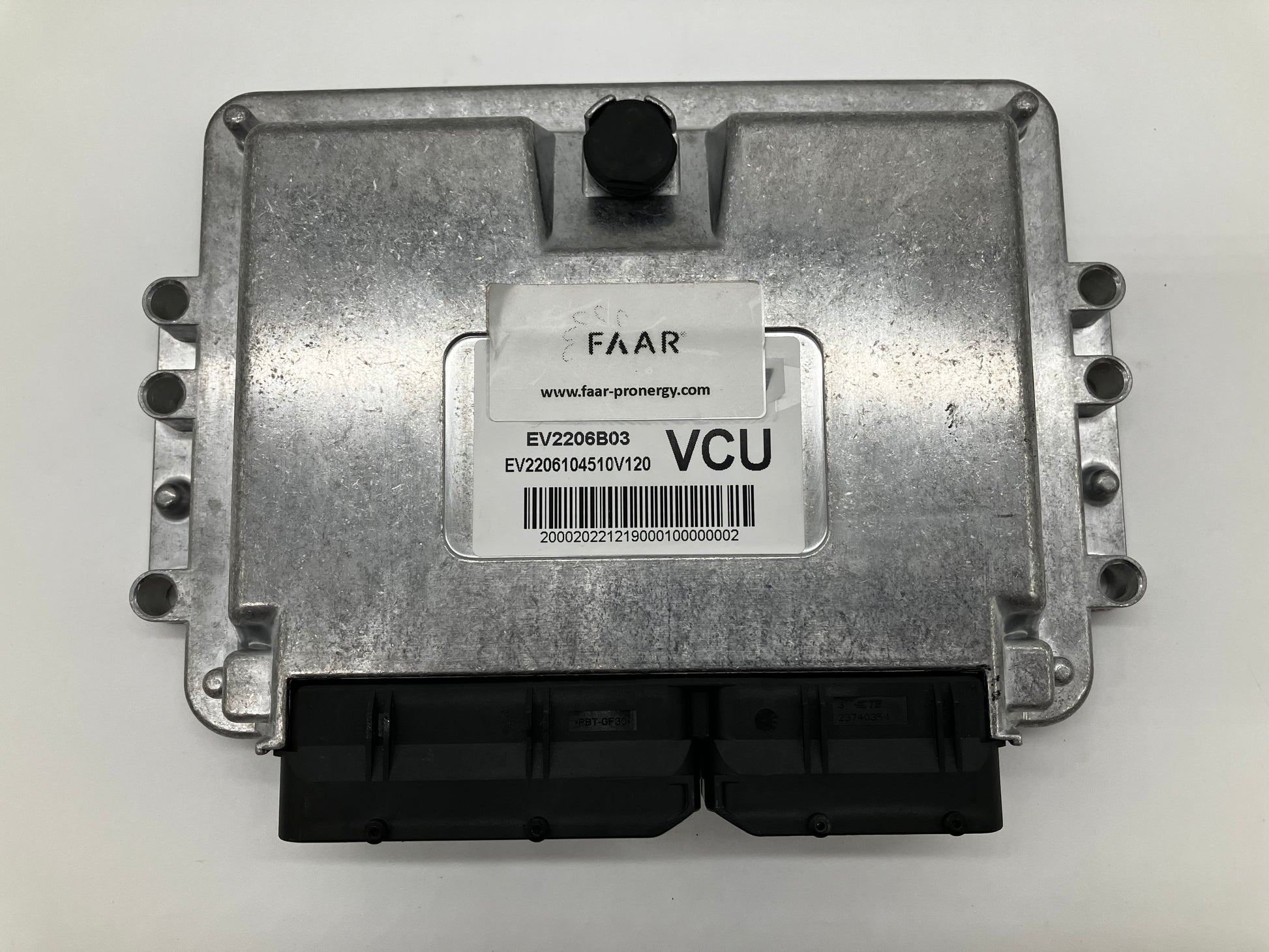

• Moisture Management – Equipped with a top-mounted Gore-Tex style breather vent valve. This allows the internal circuitry to "breathe" during extreme temperature fluctuations, preventing internal condensation while completely blocking liquid water entry.

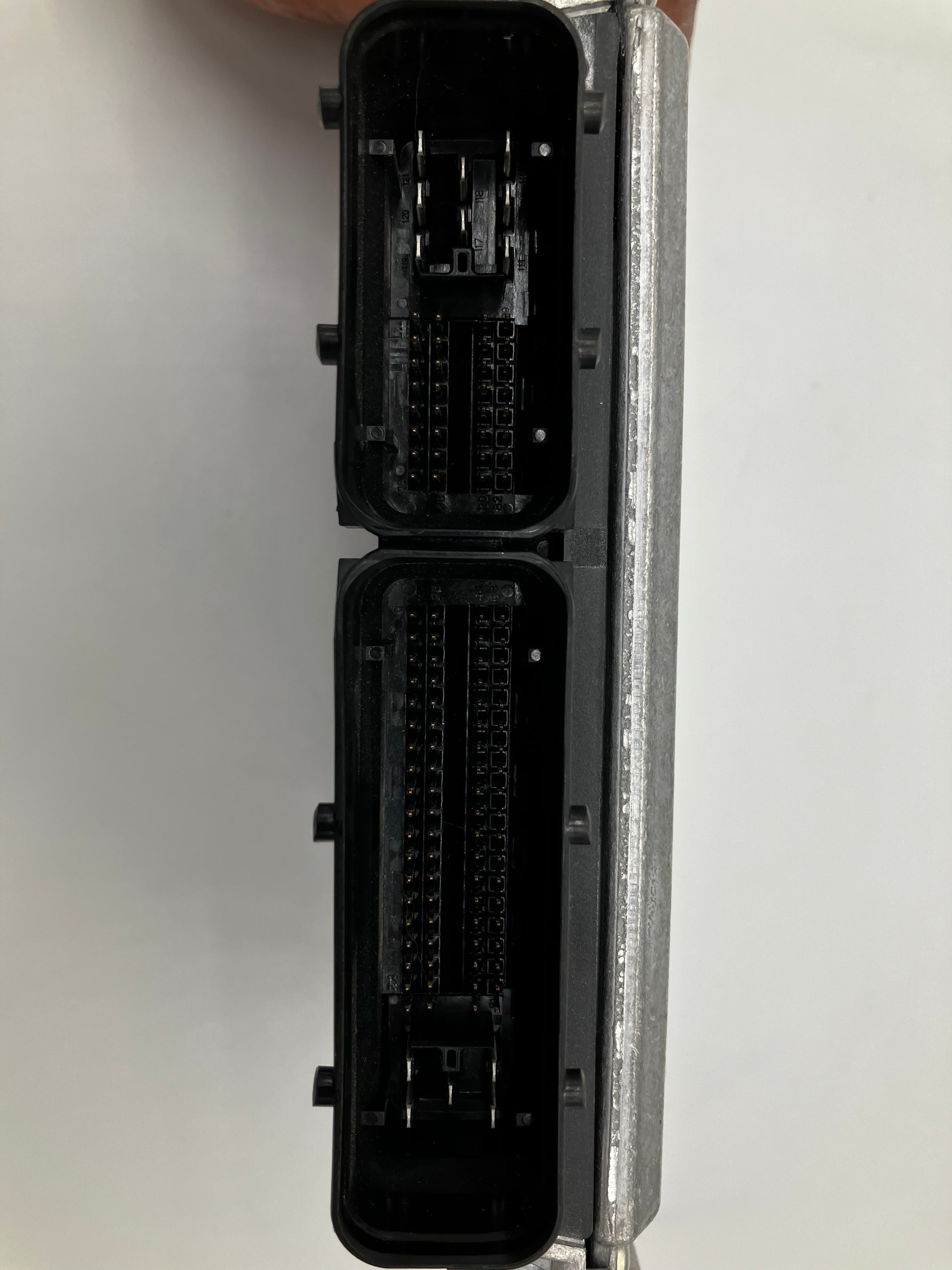

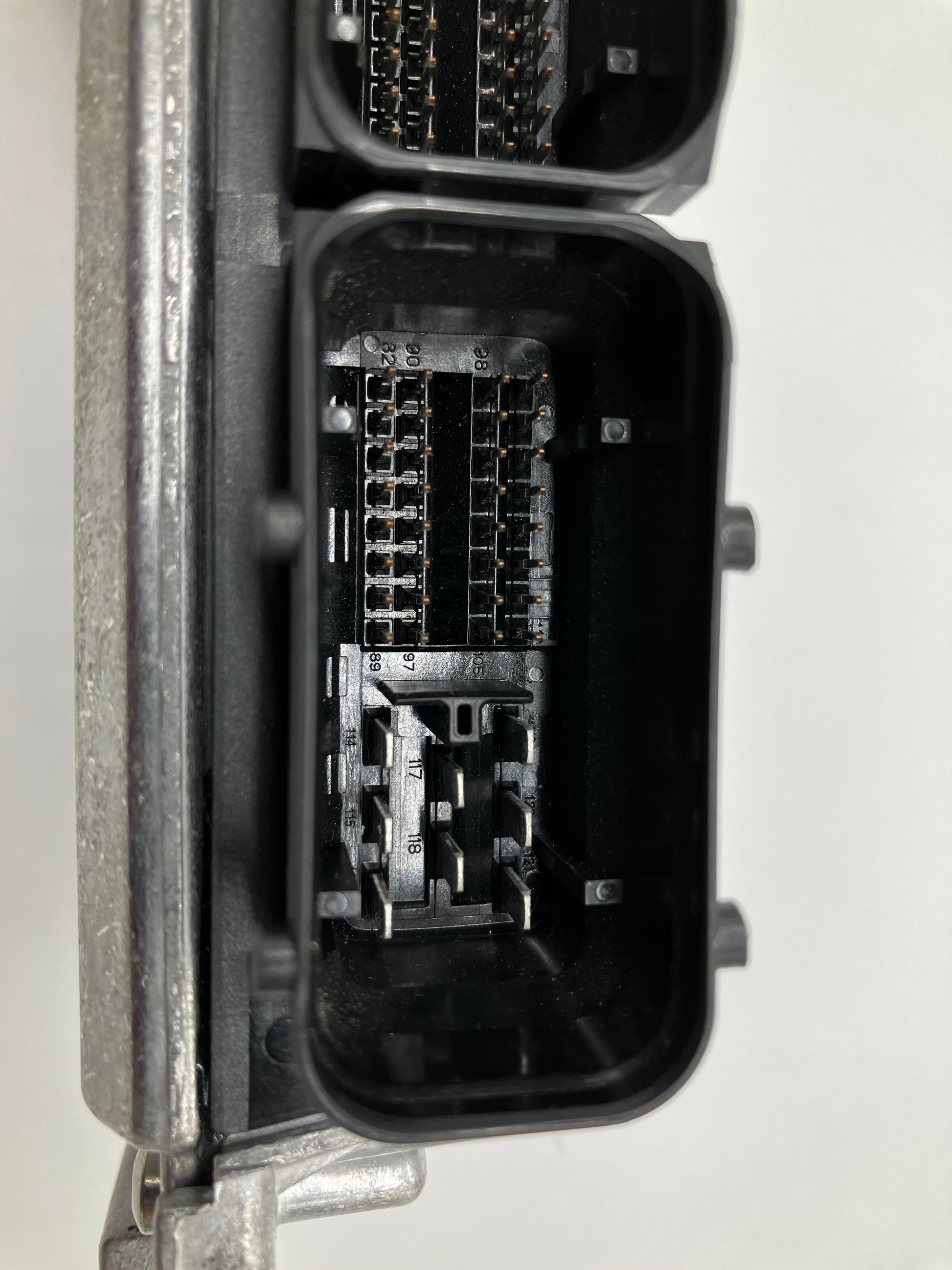

• Automotive-Grade Connectors – The dual black PBT-GF30 connector headers are designed to accept highly sealed, locking automotive harness plugs, ensuring foolproof connectivity even in extreme high-vibration off-road or commercial environments.

• Customizable Architecture – Designed for integration into complex architectures, allowing for bespoke software programming to manage unique drivetrain configurations, regenerative braking maps, and auxiliary thermal loops.

Ideal For:

• Complete factory Electric Vehicle (EV) and Plug-in Hybrid (PHEV) manufacturing

• High-performance EV conversions and custom drivetrain builds

• Autonomous vehicle platforms requiring a centralized drive-by-wire controller

• Commercial electric trucks, buses, and heavy-duty agricultural/mining equipment

• Research and development test benches for EV powertrains
