FSTHERMO High-Voltage Liquid Chiller Module Unit - DC 320V (FSCH120Z320B)

Product Description

The FSTHERMO Chiller Module Unit is an ultra-compact, high-voltage liquid cooling system engineered for demanding thermal management applications. Running on a native DC 320V architecture, this complete micro-refrigeration loop is the perfect core component for custom Electric Vehicle (EV) Battery Thermal Management Systems (BTMS) or high-power industrial electronics.

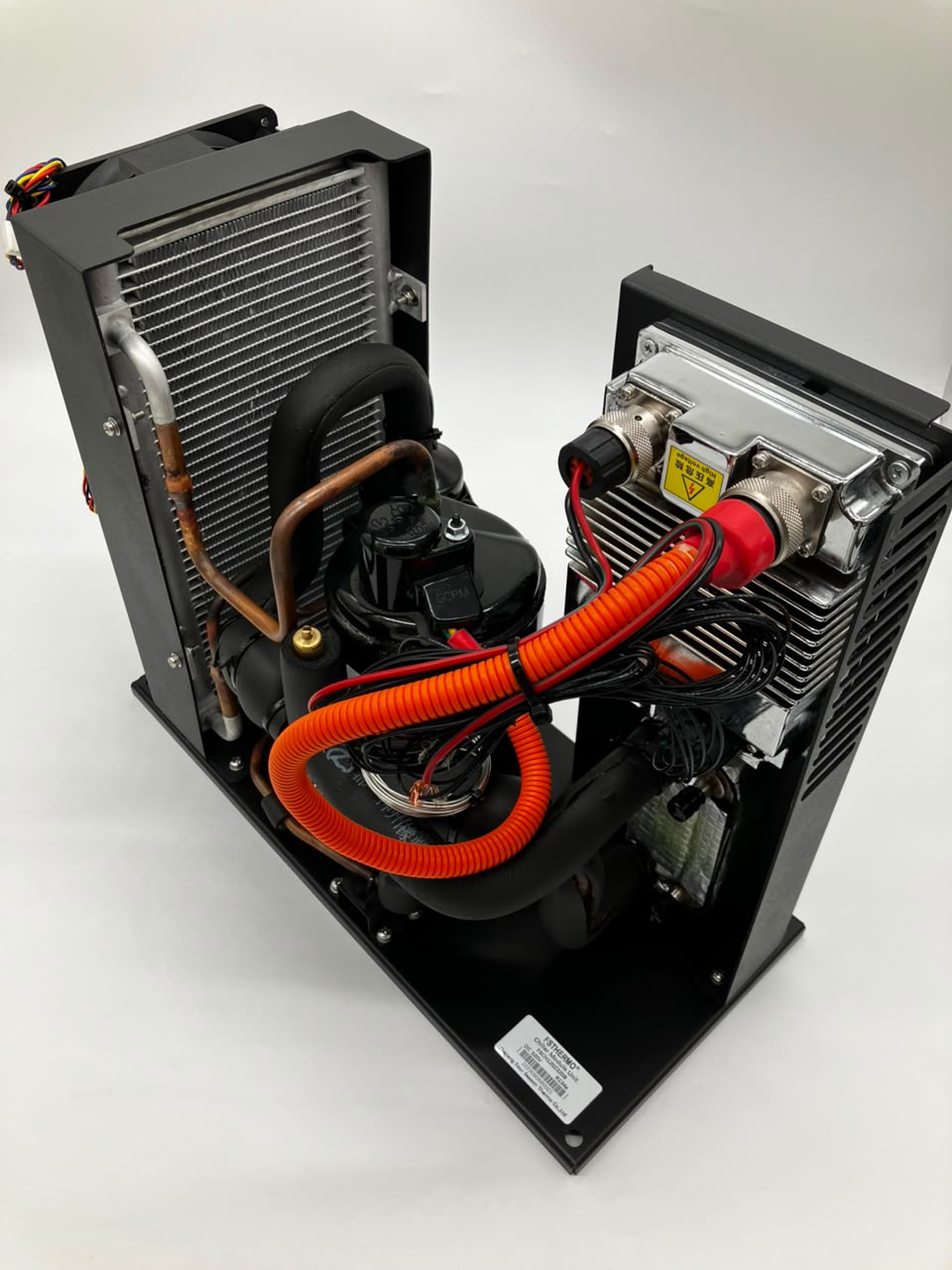

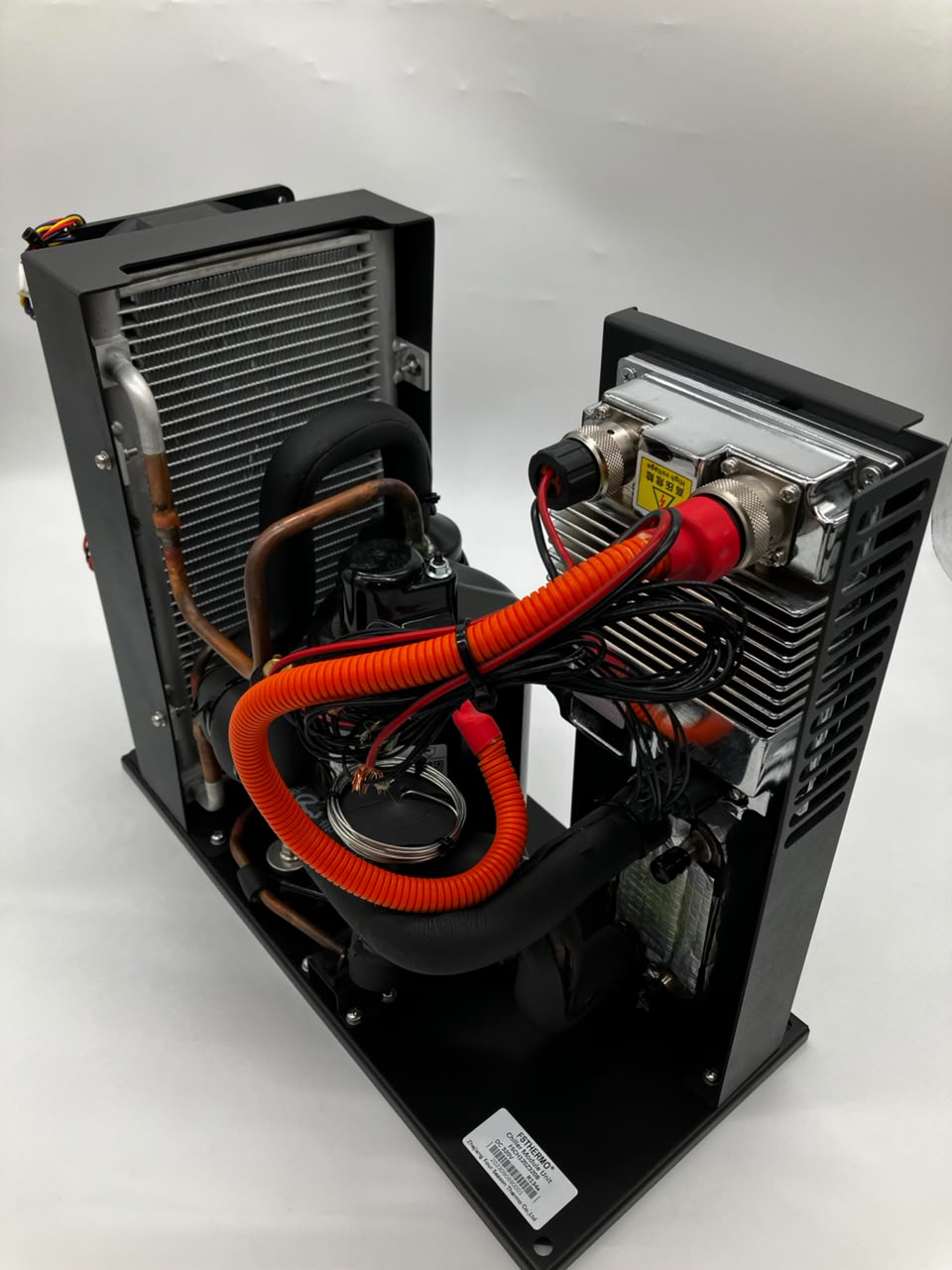

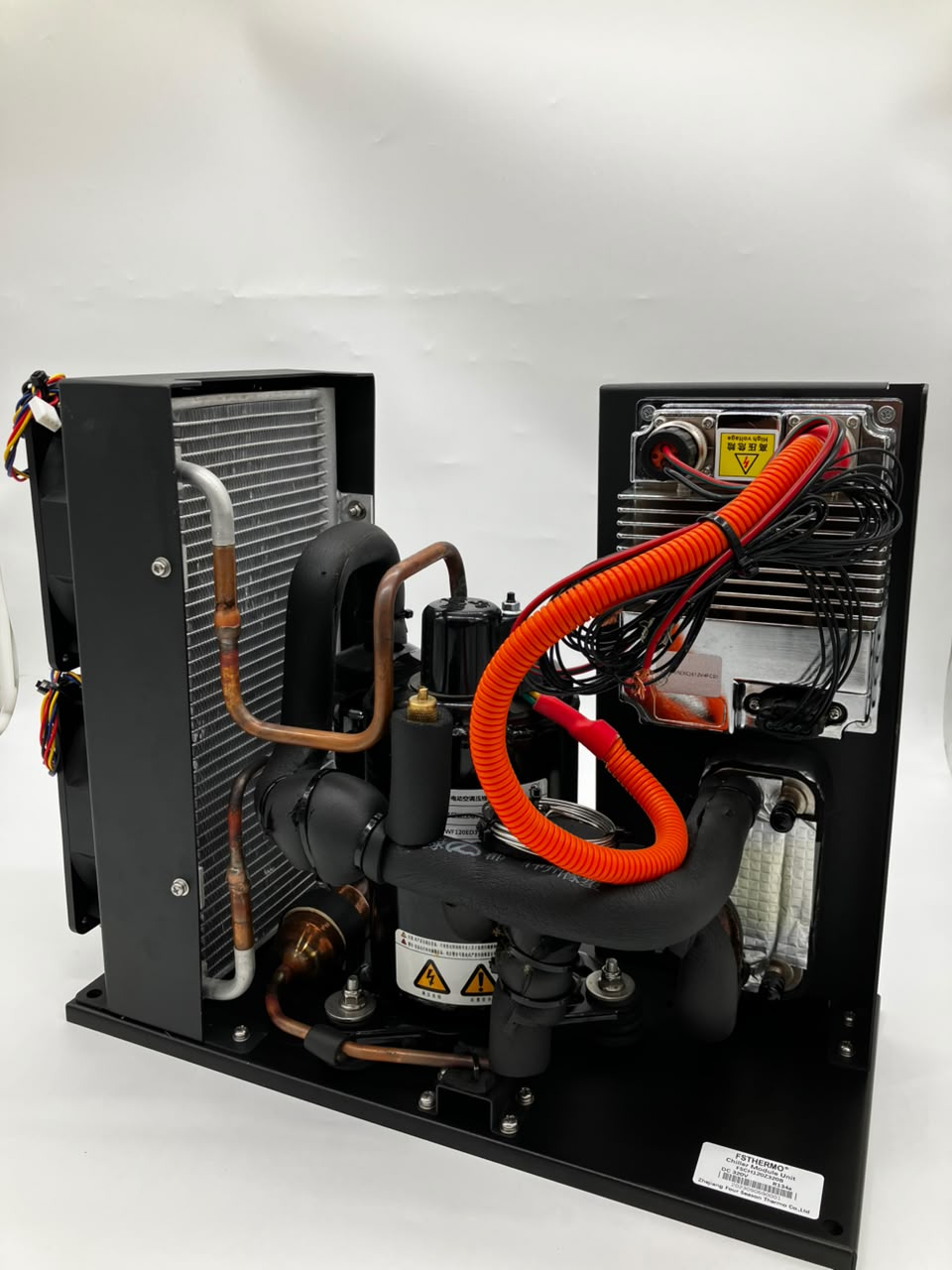

It features an integrated brazed plate heat exchanger, a high-efficiency DC inverter compressor, and a forced-air condenser with dual cooling fans—all mounted to a rugged, vibration-resistant baseplate. Fully pre-charged and utilizing standard R134a refrigerant, this module delivers robust, variable-speed chilling power right out of the box.

Key Specifications

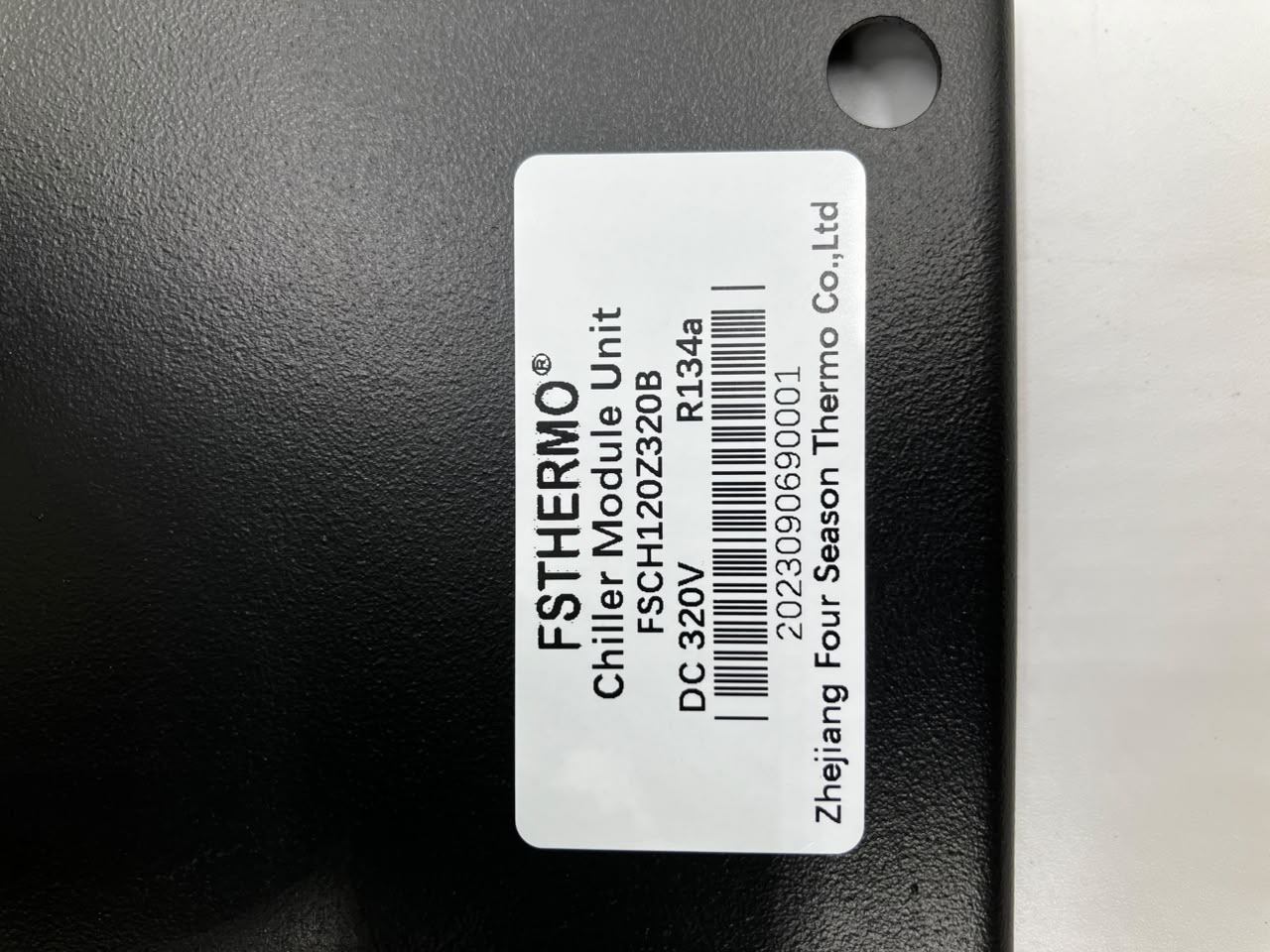

• Manufacturer: Zhejiang Four Season Thermo Co.,Ltd (FSTHERMO®)

• Product Type: Compact Liquid Chiller Module Unit

• Model Number: FSCH120Z320B

• Input Voltage: DC 320V (High Voltage)

• Refrigerant: R134a

• Cooling Mechanism: Liquid heat exchanger with fan-cooled condenser

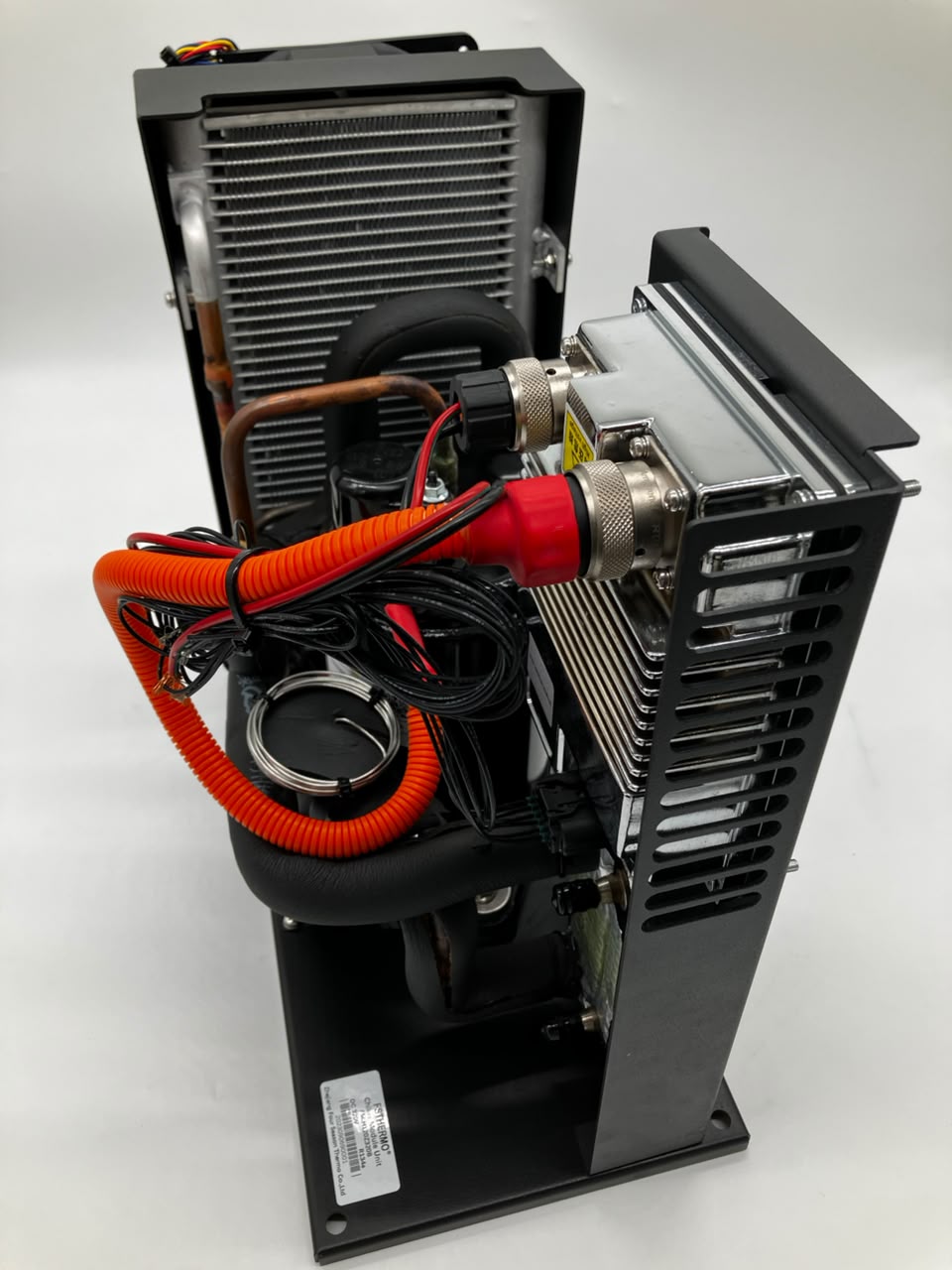

• High-Voltage Connections: Shielded orange EV-grade high-voltage wiring with secure aviation-style metal connectors

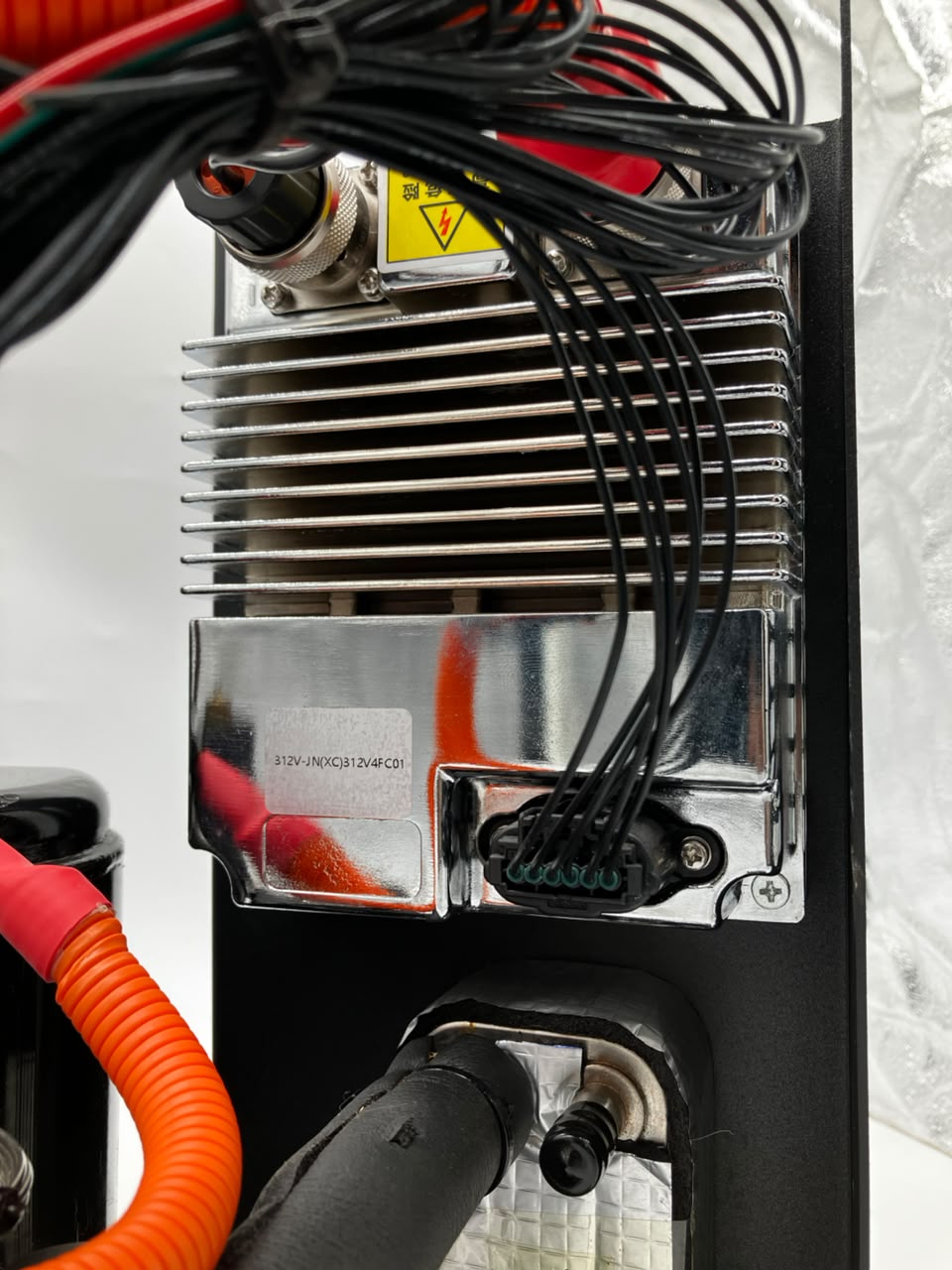

• Control Interface: Multi-pin low-voltage signal harness on the integrated inverter/controller module

Key Features

• EV-Ready 320V Architecture: Designed specifically to run off high-voltage traction battery packs, eliminating the need for inefficient step-down DC-DC converters to run your cooling loop.

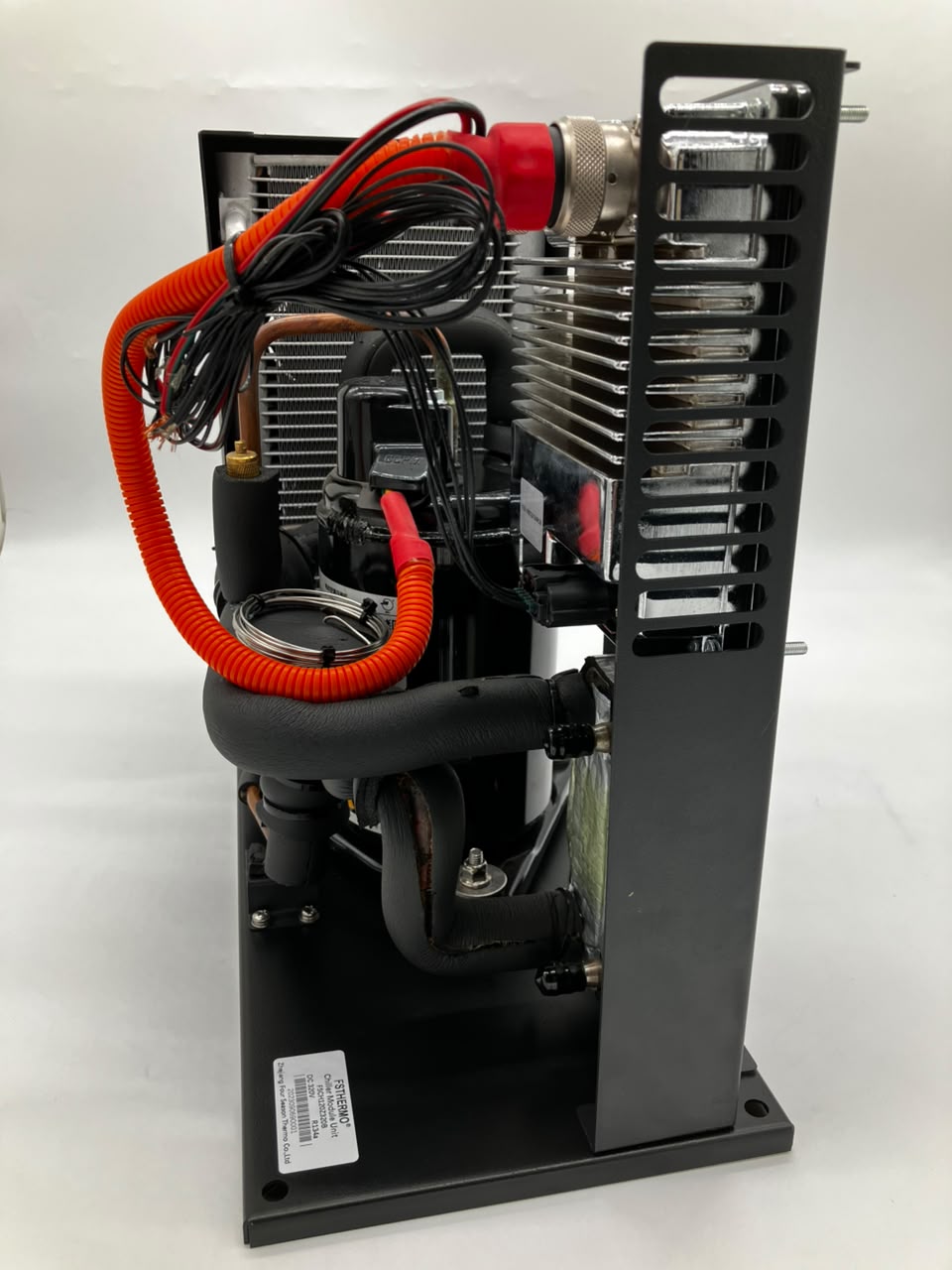

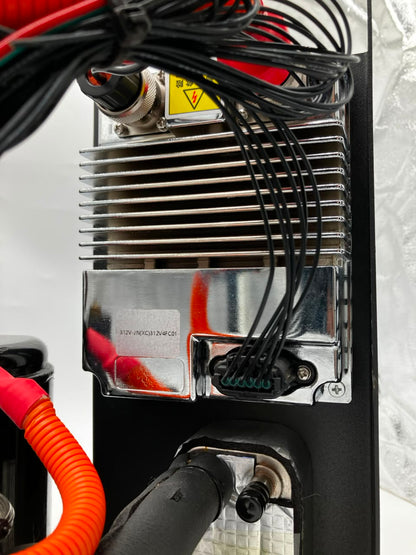

• Integrated Smart Inverter: Features a sleek, side-mounted metallic inverter/controller module that precisely regulates compressor speed to match thermal loads, saving energy while maximizing cooling.

• Complete Micro-System: Packs a compressor, condenser coil, dual high-flow axial fans, and a liquid-to-refrigerant heat exchanger into one incredibly compact, space-saving footprint.

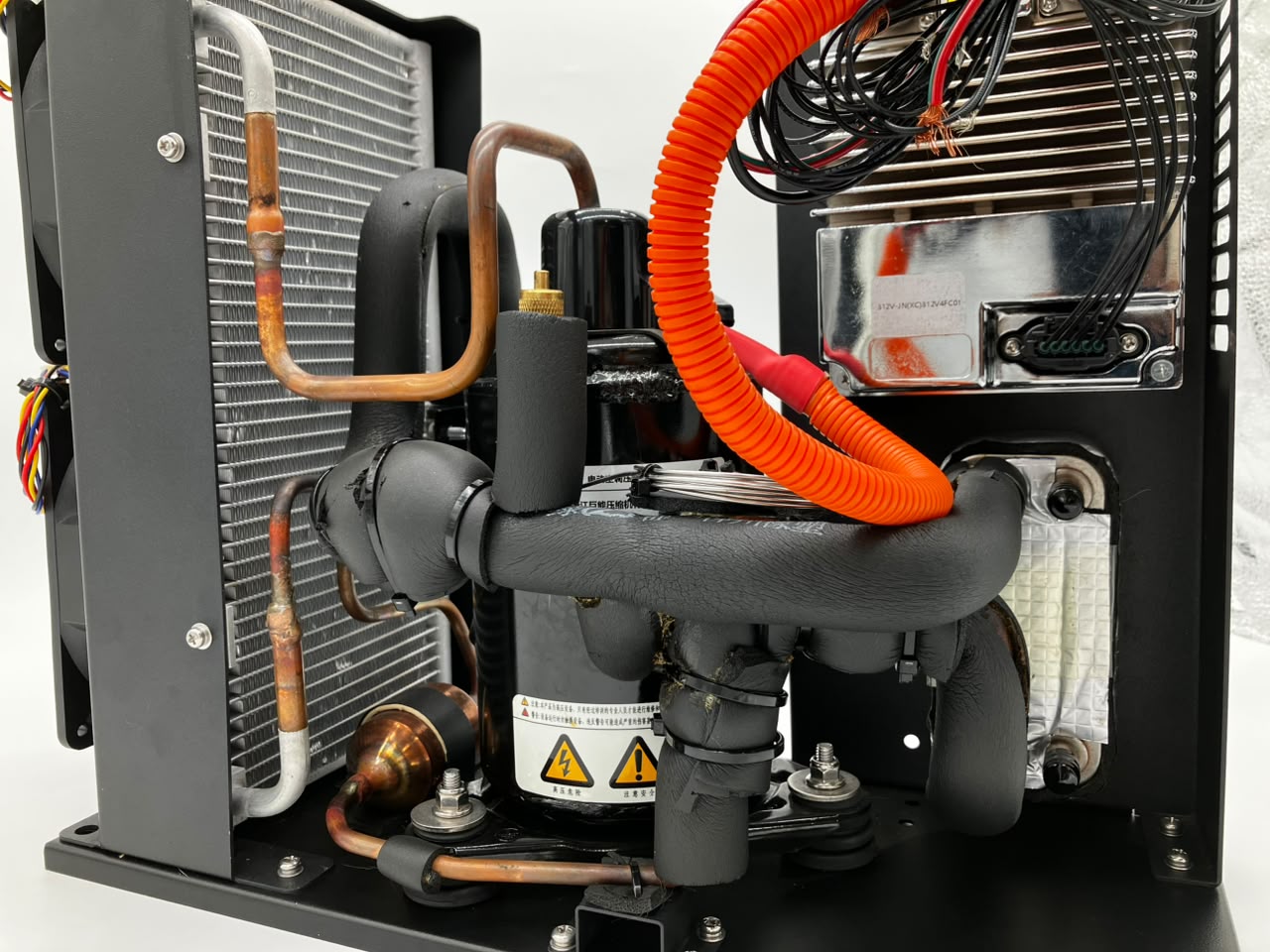

• Thermal Insulation: Critical refrigerant lines are wrapped in dense foam insulation to prevent performance loss and eliminate hazardous condensation drips around sensitive electronics.

• Rugged Mounting Base: The entire assembly is bolted to a heavy-duty metal baseplate featuring pre-drilled mounting holes, making custom chassis integration fast and secure.

Ideal For

• Battery Thermal Management Systems (BTMS) in custom EV conversions and high-performance electric vehicles.

• Active liquid cooling loops for high-output electric traction motors and DC-DC converters.

• Thermal regulation for high-power laser systems, medical equipment, and telecommunication base stations.

• Prototyping advanced liquid-cooled robotics and autonomous vehicle sensor arrays.

Note: Shipping charges are not included and will be calculated separately based on the quantity, weight, and destination of the selected product(s).
