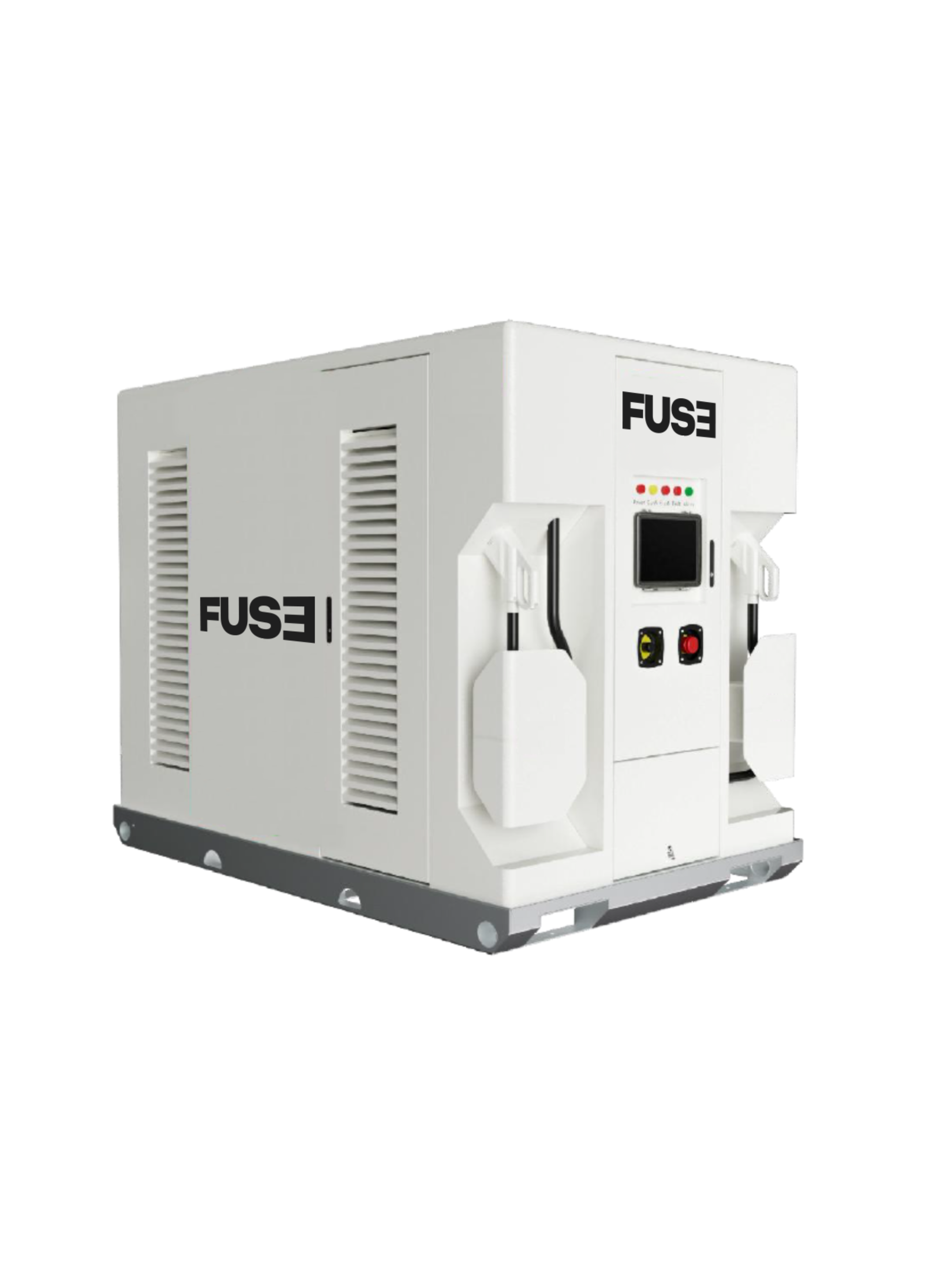

FUSE Mobile BESS Charger 200kWh / 150kW (Model: BESS200275)

The FUSE Mobile BESS Charger is a versatile, high-power mobile charging solution designed for electric vehicles, construction equipment, and remote sites. This integrated Battery Energy Storage System (BESS) combines a 200 kWh LiFePO4 battery with a 150 kW CCS2 fast charger, delivering rapid, off-grid charging anywhere it’s needed.

Built for mobility, it features a rugged, trailer-compatible design and simple plug-and-play operation, making it ideal for EV fleets, events, or energy infrastructure projects.

Key Specifications:

• Battery Capacity: 200 kWh LiFePO4 (up to 6000 cycles at 1C)

• Charging Power: 150 kW DC (CCS2, 2 charging guns)

• AC Output: Up to 125 kW (380–415V AC)

• Input Power:

  • AC Input: 80 kW (380–415V AC)

  • DC Input: 150 kW

• Efficiency: Up to 90%

• Protection: IP55

• Operating Temperature: -20°C to +55°C (derating >45°C)

• Max Altitude: 2000 m

• Dimensions (W×D×H): 2250 × 1450 × 1800 mm (without trailer)

• Net Weight: 2800 kg (without trailer)

• Transport Capacity:

  • 4 units per 20' GP container

  • 8 units per 40' HC container

Features:

• Plug-and-play ready for instant deployment

• Dual CCS2 fast charging ports

• Compact, integrated design for easy transport

• Modular AC/DC output extensions available via external socket boxes

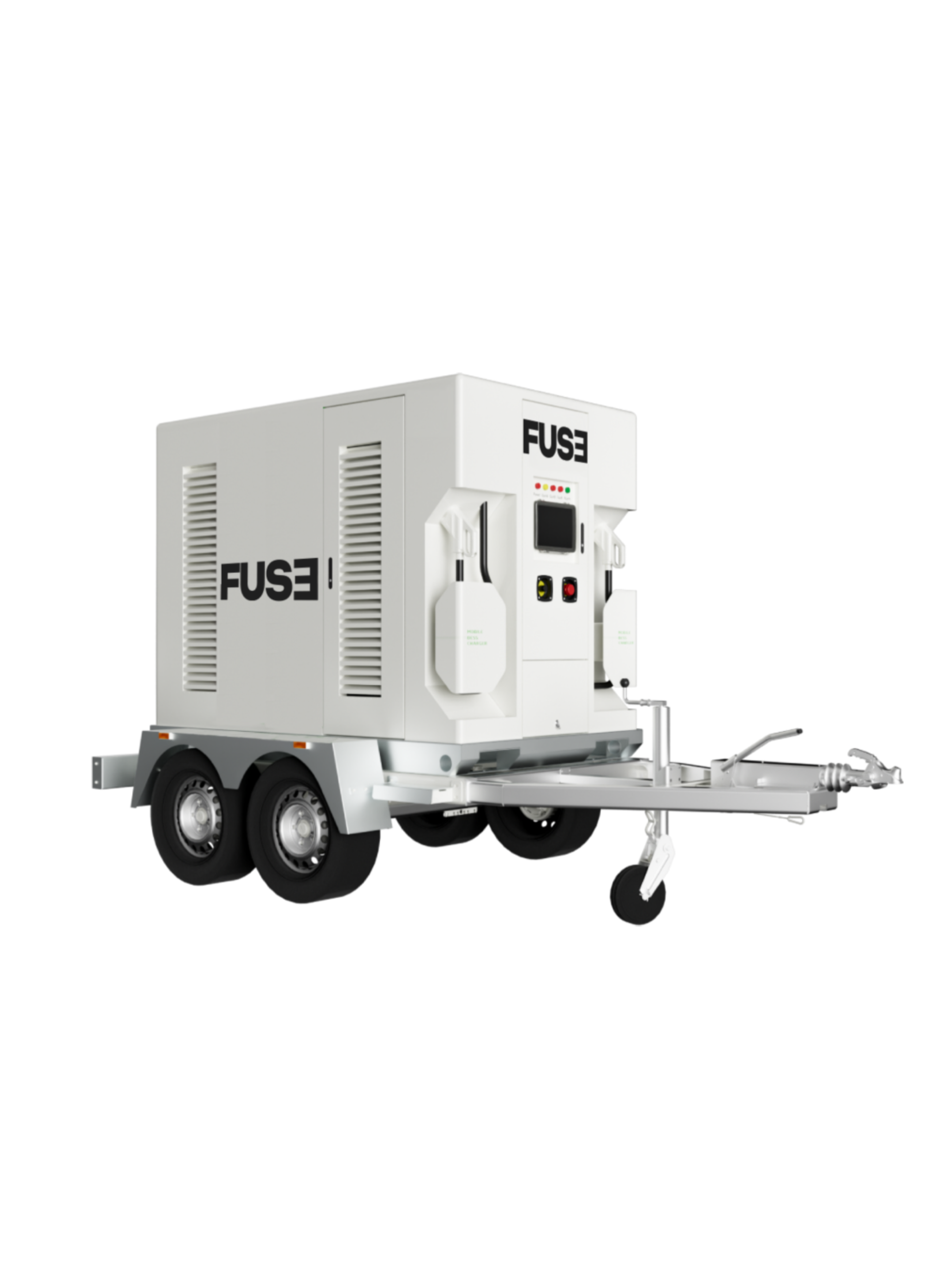

• Compatible with EU road trailers (up to 3.5T)

• Corrosion-resistant, heavy-duty enclosure

• User-friendly touchscreen interface

• Anti-corrosion, rugged construction for harsh environments

• Extremely high ROI with fast payback potential (location dependent)

Ideal For:

• EV fleet charging

• Construction & mining sites

• Remote energy storage

• Emergency & backup power supply

• Off-grid EV charging infrastructure

Warranty:

3 years or up to 4590 kWh throughput per kWh (whichever comes first).

NOTE: Delivery Lead time is 6 to 8 weeks from order
