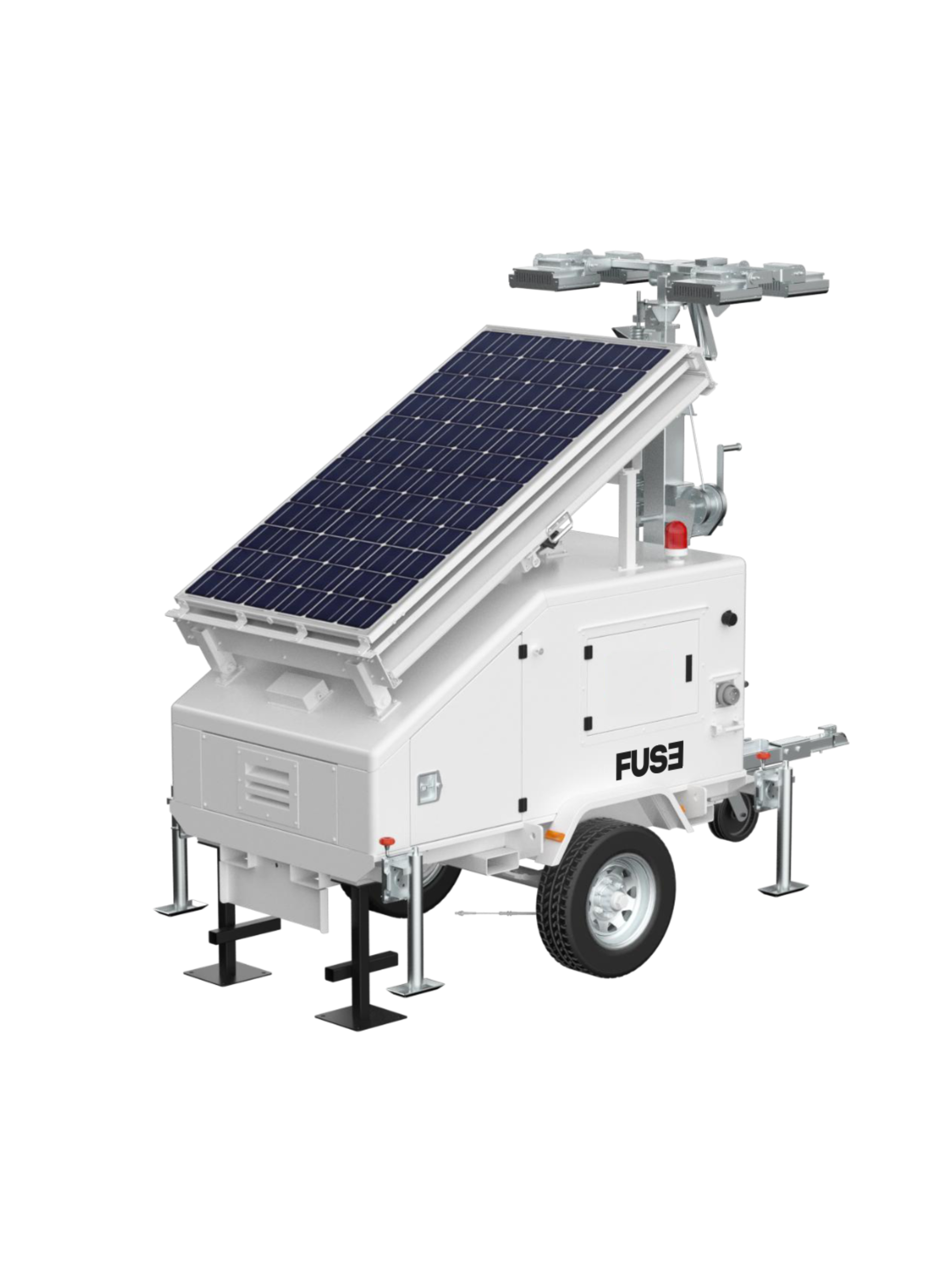

FUSE Solar LED Lighting Tower 600-16

=

The FUSE 600-16 Solar LED Lighting Tower offers zero-emission, high-efficiency lighting for construction sites, events, and remote operations. With extendable solar panels, this mobile unit powers 4 × 150W LEDs to cover up to 18,000 m² of area.

It features a 16 kWh LiFePO4 battery, delivering extended runtimes with manual mast lifting and flexible LED positioning for easy on-site use.

Key Specifications:

• Lighting Coverage: Up to 18,000 m²

• Light Source: 4 × 150W LED, 200 lm/W

• Battery: 16.07 kWh LiFePO4 (MF51314, 314Ah, 51.2V, 6000 cycles)

• Lighting Duration:

  • 106 hrs (low)

  • 53 hrs (medium)

  • 36 hrs (high)

  • 26 hrs (max)

• Charging Time:

  • Solar: 12 hrs (full sun)

  • AC: 100–240V, 12A

• Mast Height: 7.2 m (optionally up to 9 m)

• Mast Lifting: Manual (electric/hydraulic optional)

• Temperature Range: -5°C to +50°C

• Ingress Rating: IP54

• Solar Efficiency: 1 hour of sun = ~3.6 hours of lighting

• Mobility:

  • Off-road trailer with parking & overrun brake

  • Max tow speed: 100 km/h

• Construction: Galvanized steel canopy, powder-coated

• Dimensions:

  • Operating: 2267 × 1303 × 2558 mm

  • Transport: 3139 × 1632 × 2000 mm

• Weight: 1140 kg

Special Features:

• Zero fuel, zero emissions

• Extendable solar array

• Compact for transport — 8 units per 40'HC container

• Simple, rugged design for field use

Ideal For:

• Construction sites

• Emergency response

• Events & temporary facilities

• Off-grid projects

NOTE: Delivery Lead time is 6 to 8 weeks from order
