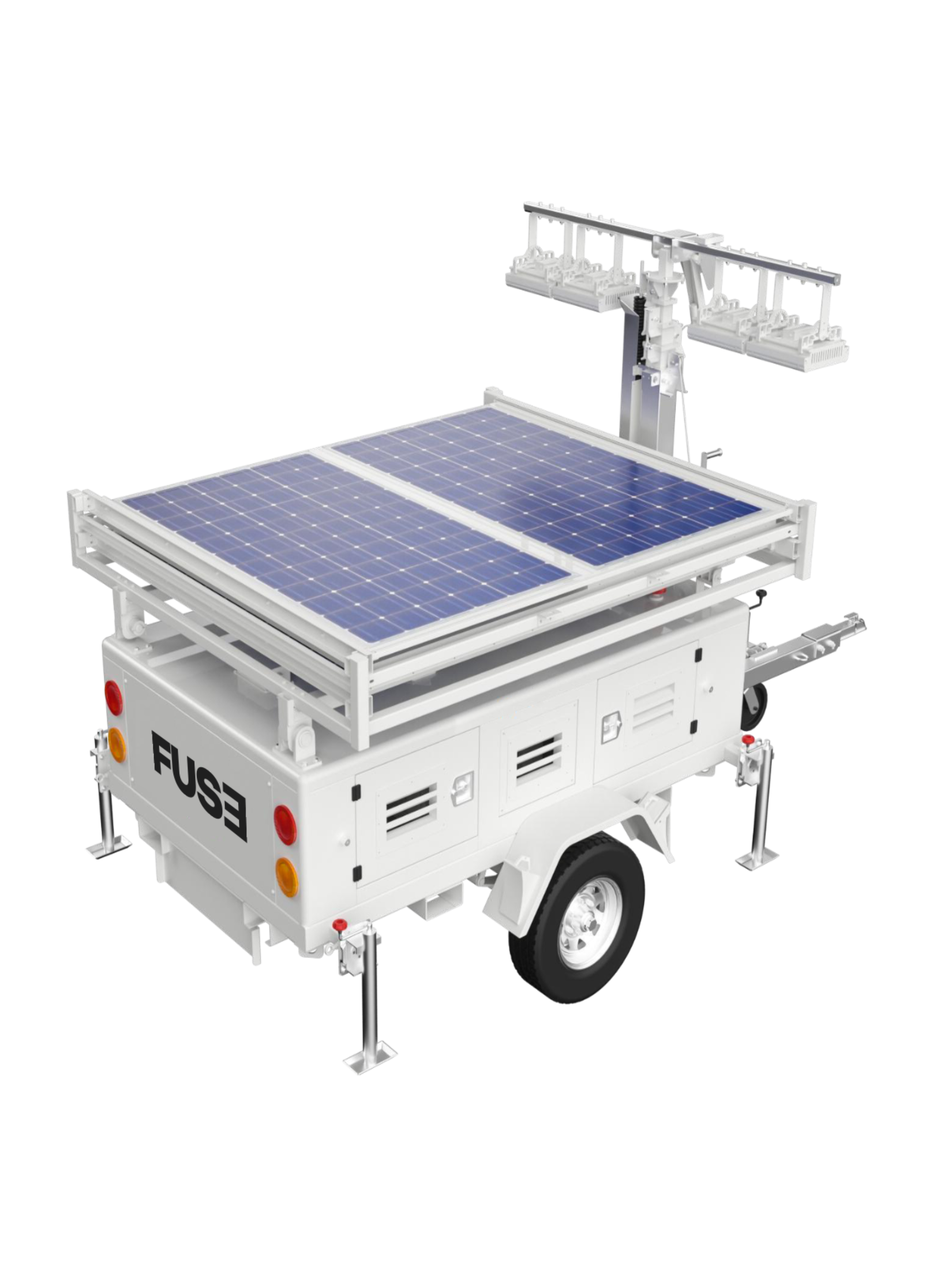

FUSE Solar LED Lighting Tower 800-32

The FUSE 800-32 Solar LED Lighting Tower is a high-capacity, zero-emission lighting solution ideal for mining, infrastructure, and large events. Powered by a 32 kWh LiFePO4 battery with hydraulic mast lifting, it operates 4 × 200W LEDs with an enormous 24,100 m² coverage.

With fast solar charging and ruggedized construction, it’s designed for the most demanding field conditions.

Key Specifications:

• Lighting Coverage: Up to 24,100 m²

• Light Source: 4 × 200W LED, 200 lm/W

• Battery: 32.14 kWh LiFePO4 (MF51314, 314Ah, 51.2V, 6000 cycles)

• Lighting Duration:

  • 160 hrs (low)

  • 80 hrs (medium)

  • 52 hrs (high)

  • 40 hrs (max)

• Charging Time:

  • Solar: ~9.5 hrs

  • AC: 200–240V, 15A

• Mast Height: 7.2 m (optionally up to 9 m)

• Mast Lifting: Hydraulic

• Temperature Range: -5°C to +50°C

• Ingress Rating: IP54

• Solar Efficiency: 1 hour of sun = ~4.8 hours of lighting

• Mobility:

  • Off-road trailer with parking & overrun brake

  • Max tow speed: 100 km/h

• Construction: Galvanized steel canopy, powder-coated

• Dimensions:

  • Operating: 2924 × 2150 × 4744 mm

  • Transport: 2840 × 1850 × 2900 mm

• Weight: 2088 kg

Special Features:

• Zero fuel, zero emissions

• Powerful LiFePO4 storage with rapid solar recharge

• Fast hydraulic mast adjustment

• 4 units per 40'HC container

Ideal For:

• Mining & construction

• Large-scale events

• Emergency & disaster relief

• Remote infrastructure

NOTE: Delivery Lead time is 6 to 8 weeks from order
