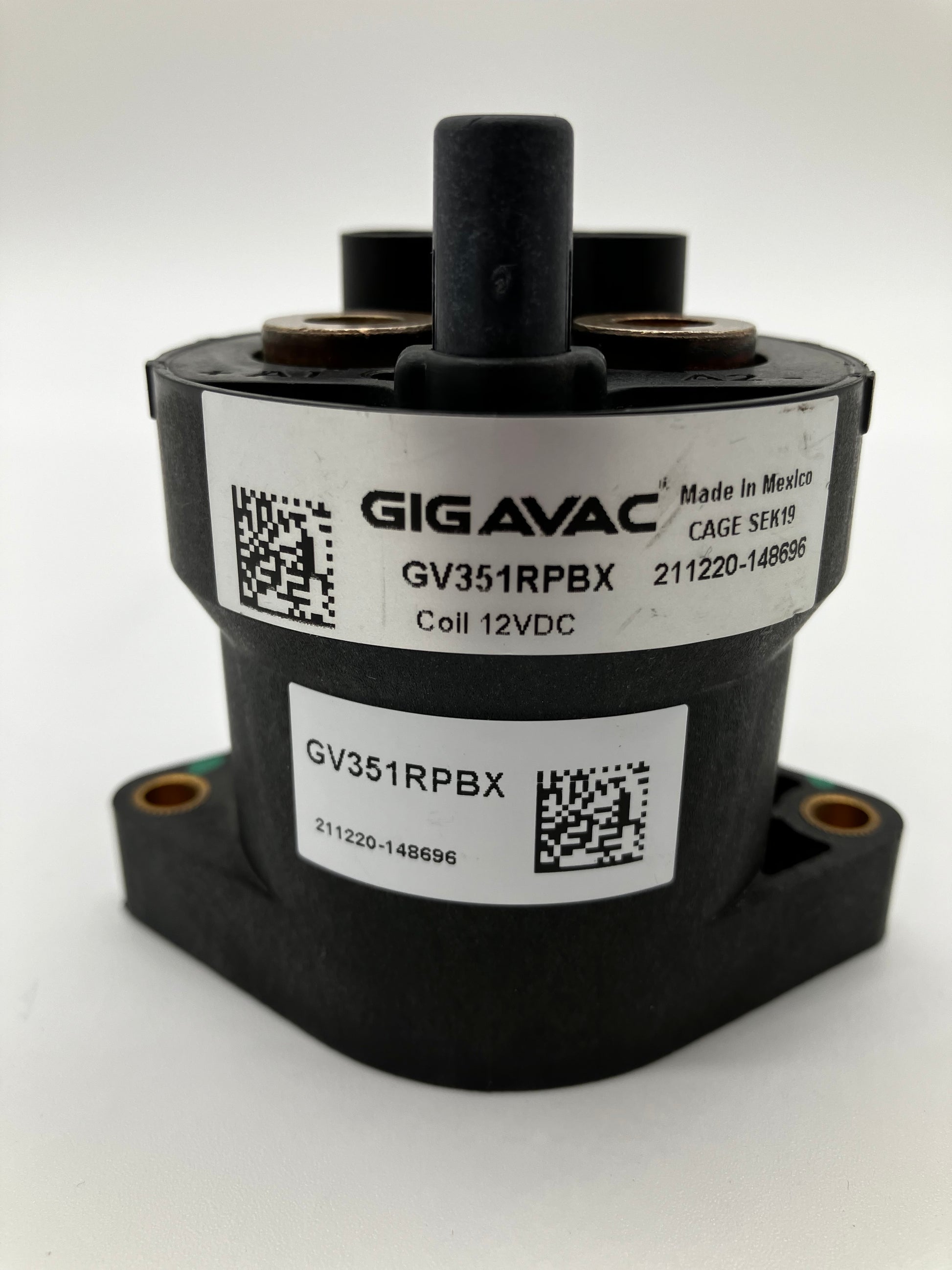

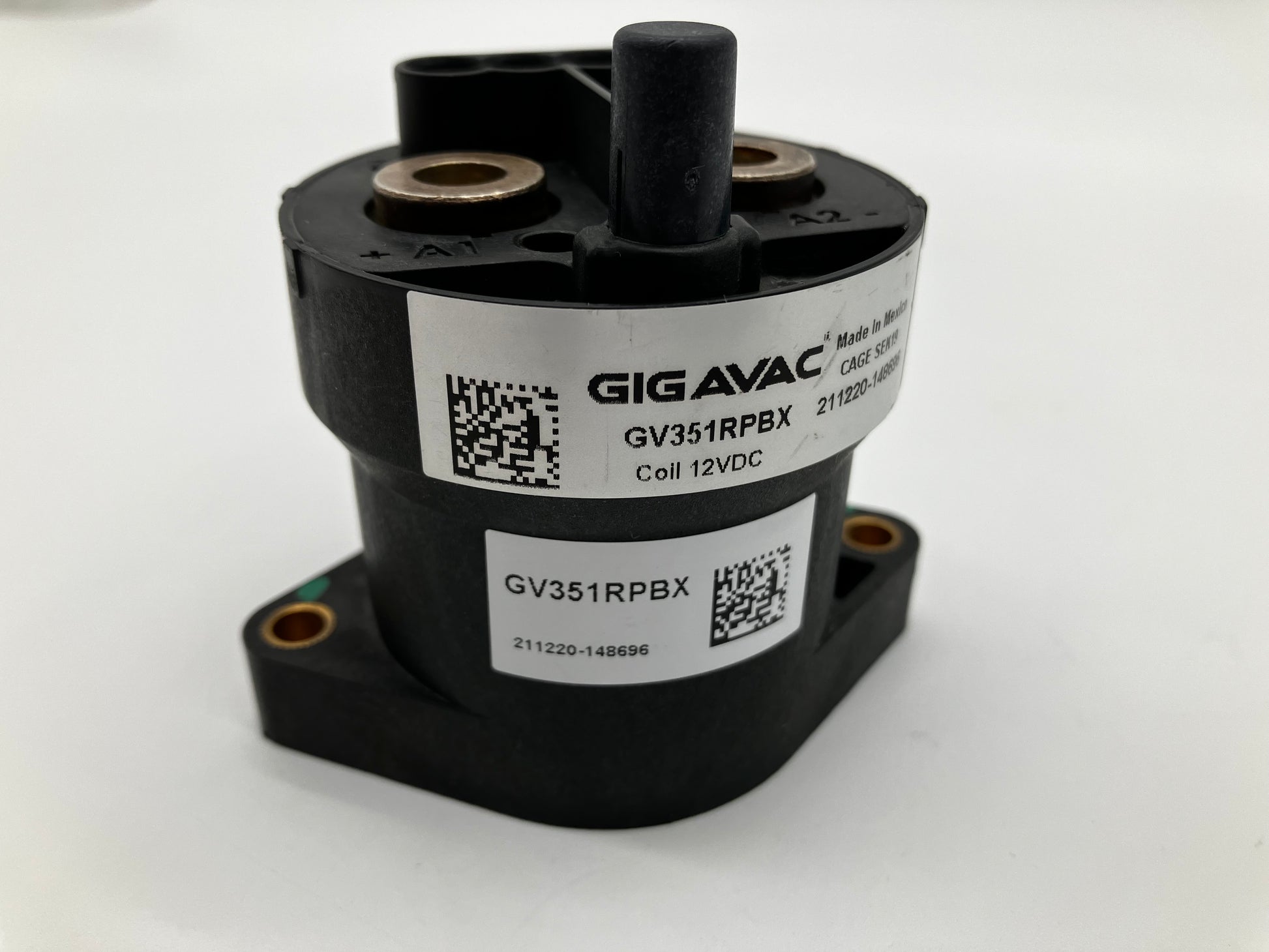

GIGAVAC GV351RPBX High-Voltage DC Contactor

The GIGAVAC GV351RPBX High-Voltage DC Contactor is a premium, ultra-reliable electrical switching device engineered for advanced electric vehicles (EVs), renewable energy systems, and heavy-duty industrial applications. Manufactured in Mexico by GIGAVAC (a Sensata Technologies brand), this gas-filled, hermetically sealed contactor is designed to safely handle a massive 500 Amps of continuous current at up to 1000V DC.

Key Specifications:

• Category: Automotive Parts & Accessories / EV High Voltage Components / DC Contactors & Relays

• Product Type: High-Voltage Main DC Contactor (Gas-Filled)

• Manufacturer: GIGAVAC (Sensata Technologies)

• Model / Part Number: GV351RPBX

• Maximum Rated Voltage: 1000V DC

• Rated Continuous Current: 500A

• Coil (Control) Voltage: 12V DC (Requires external PWM control)

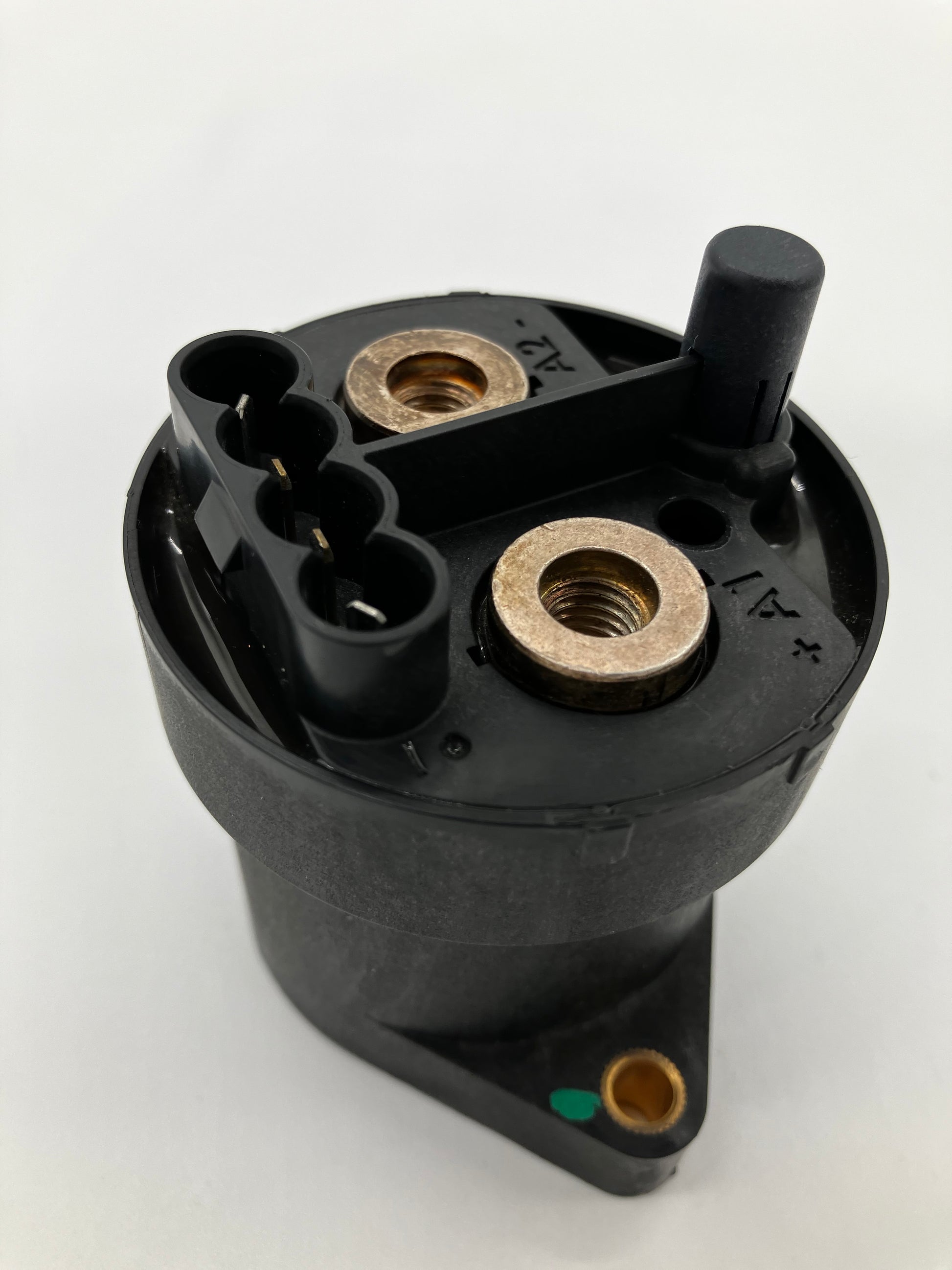

• Electrical Control Connection: 4-Pin integrated top-receptacle (Coil Power + Auxiliary Contacts)

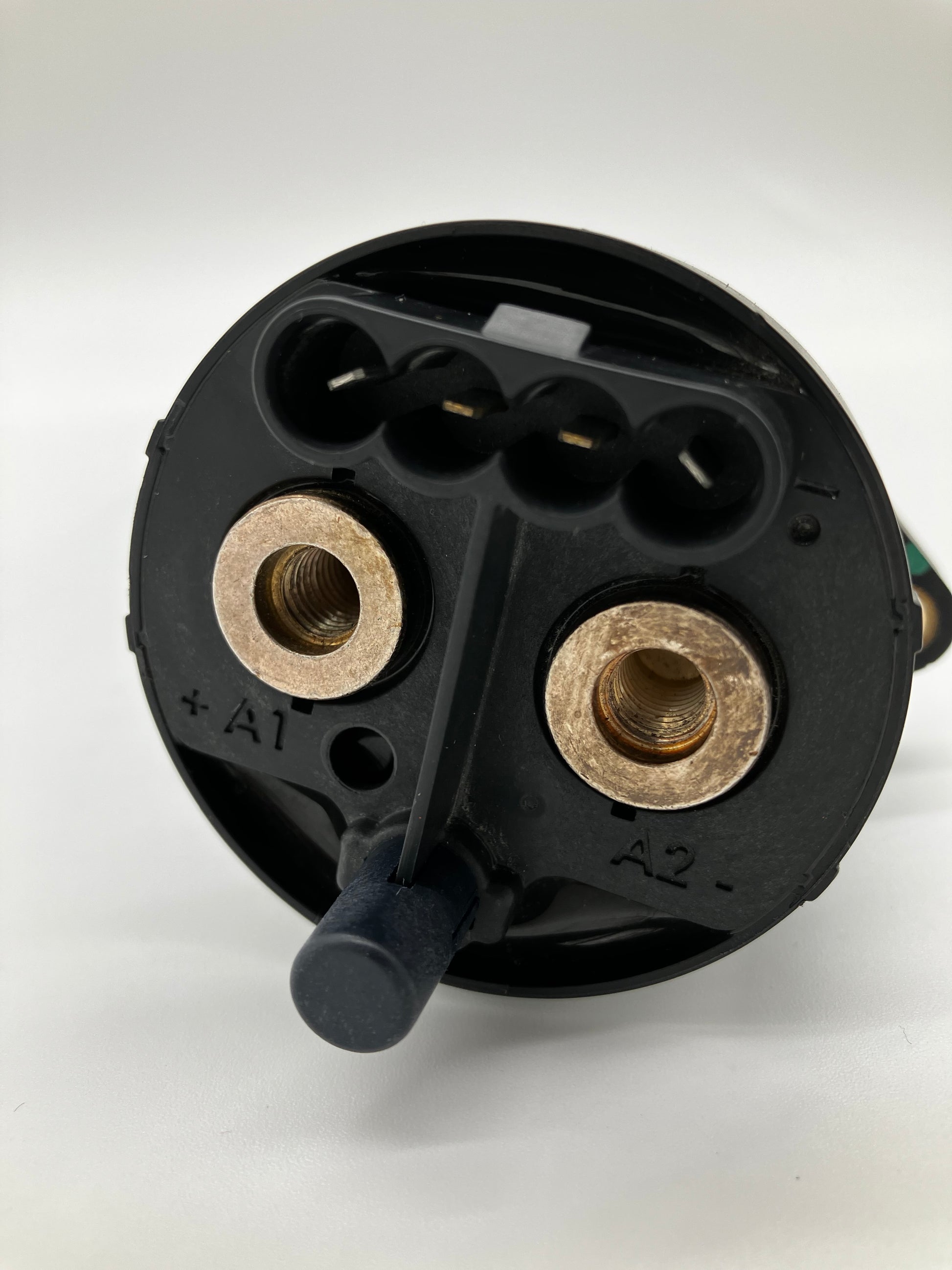

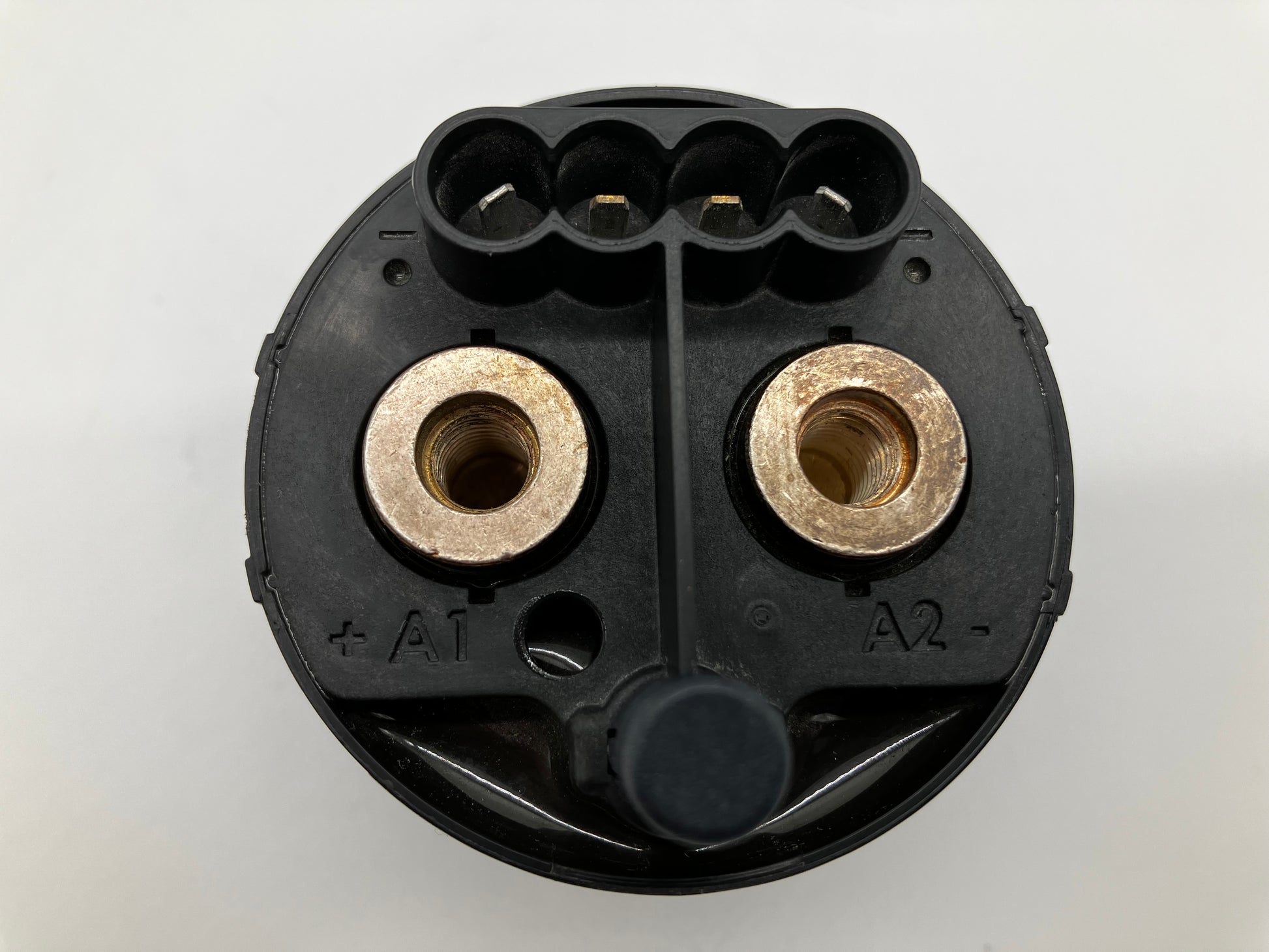

• Power Terminals: Top-mounted, M8 internally threaded copper contacts (Labeled +A1 / A2-)

• Protection Rating: Exceeds IP67 & IP69K (Fully submersible and pressure-wash proof)

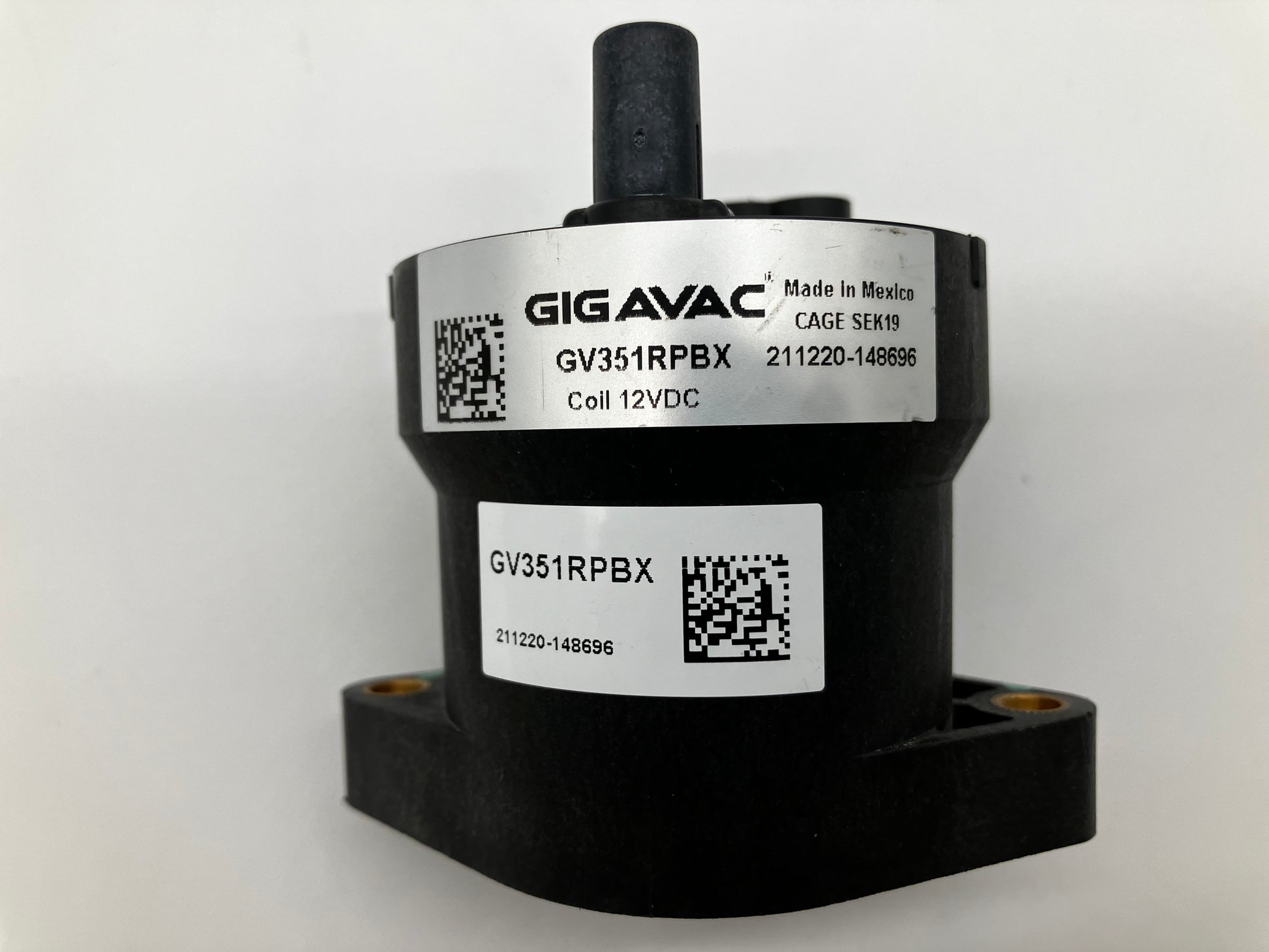

• Origin: Made in Mexico (CAGE Code: SEK19)

Key Features:

• Gas-Filled Hermetic Seal – The internal switching chamber is hermetically sealed and filled with a specialized suppression gas. This prevents contact oxidation, provides significantly lower contact resistance (less heat), and actively extinguishes the massive electrical arcs generated when breaking a 1000V DC circuit.

• Integrated Auxiliary Contacts – The 4-pin socket includes connections for an SPST-NO (Single Pole Single Throw - Normally Open) auxiliary circuit. This provides crucial physical feedback to the vehicle's Battery Management System (BMS), verifying exactly when the main high-voltage contacts have successfully opened or closed.

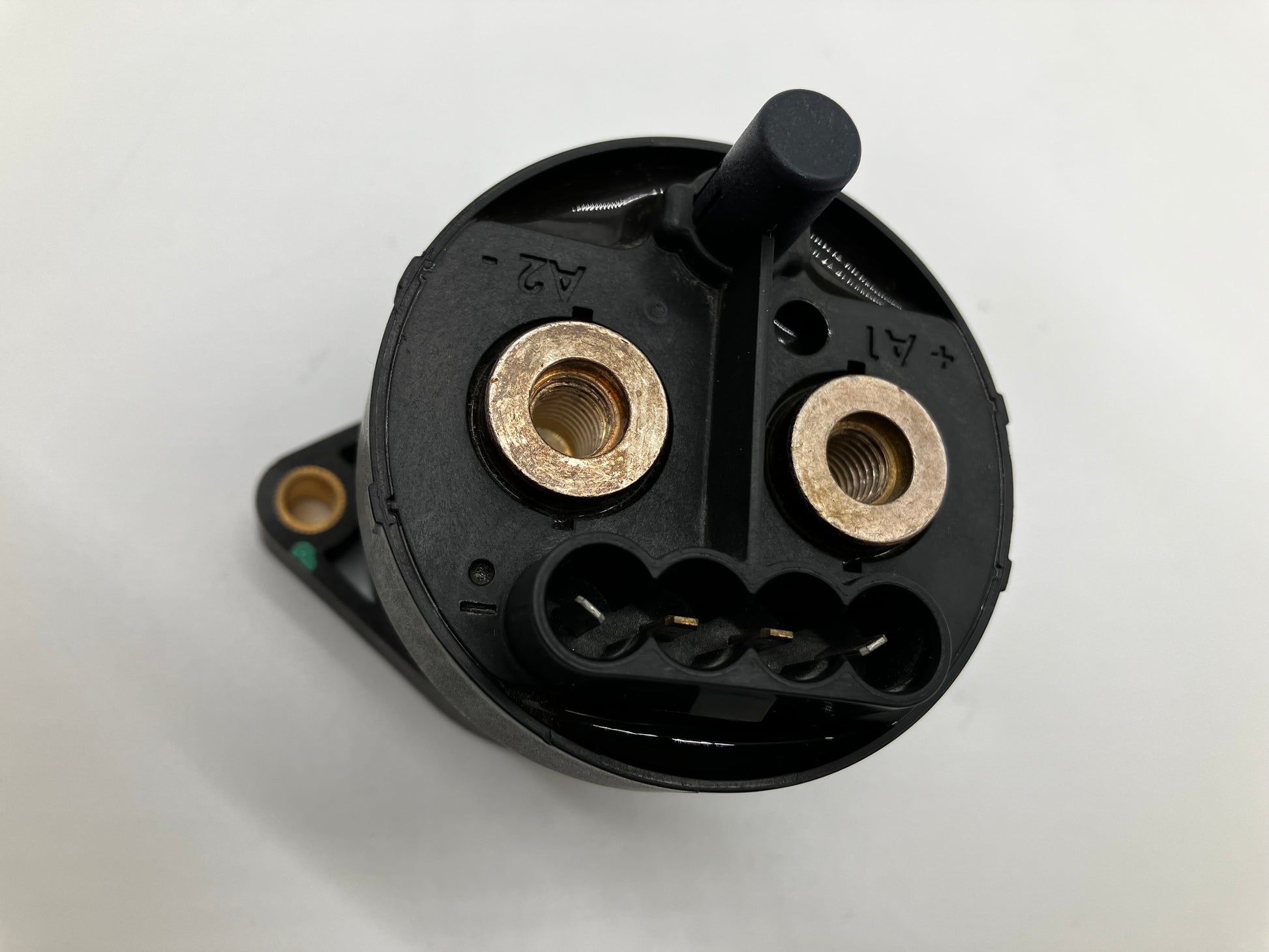

• Physical Arc Barrier – Features a molded plastic divider sitting directly between the main positive and negative high-voltage terminals to prevent high-voltage flashover or arcing across the top of the unit.

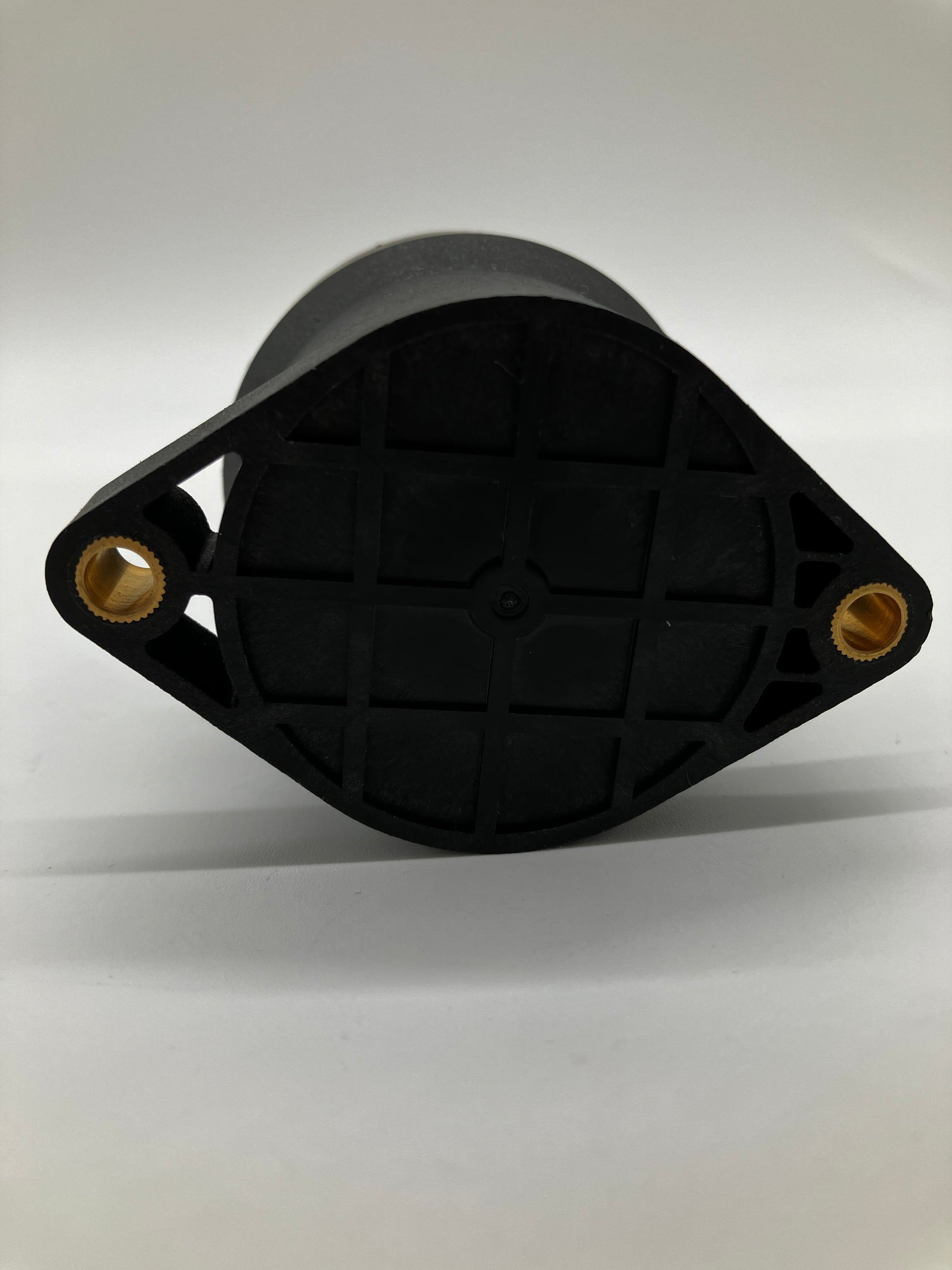

• Severe-Duty Mounting – Features a flanged "Upright Mount" base with pre-installed brass crush-sleeves, allowing the unit to be bolted tightly to a battery box or chassis without fracturing the plastic housing under heavy road vibrations.

Ideal For:

• Main battery pack isolation in commercial Electric Vehicles (EVs), buses, and high-performance racing EVs

• Grid-scale solar array (PV) inverters and high-capacity Battery Energy Storage Systems (BESS)

• Megawatt-scale DC Fast Charging stations and EVSE infrastructure

• Heavy-duty marine and aerospace high-voltage power distribution
