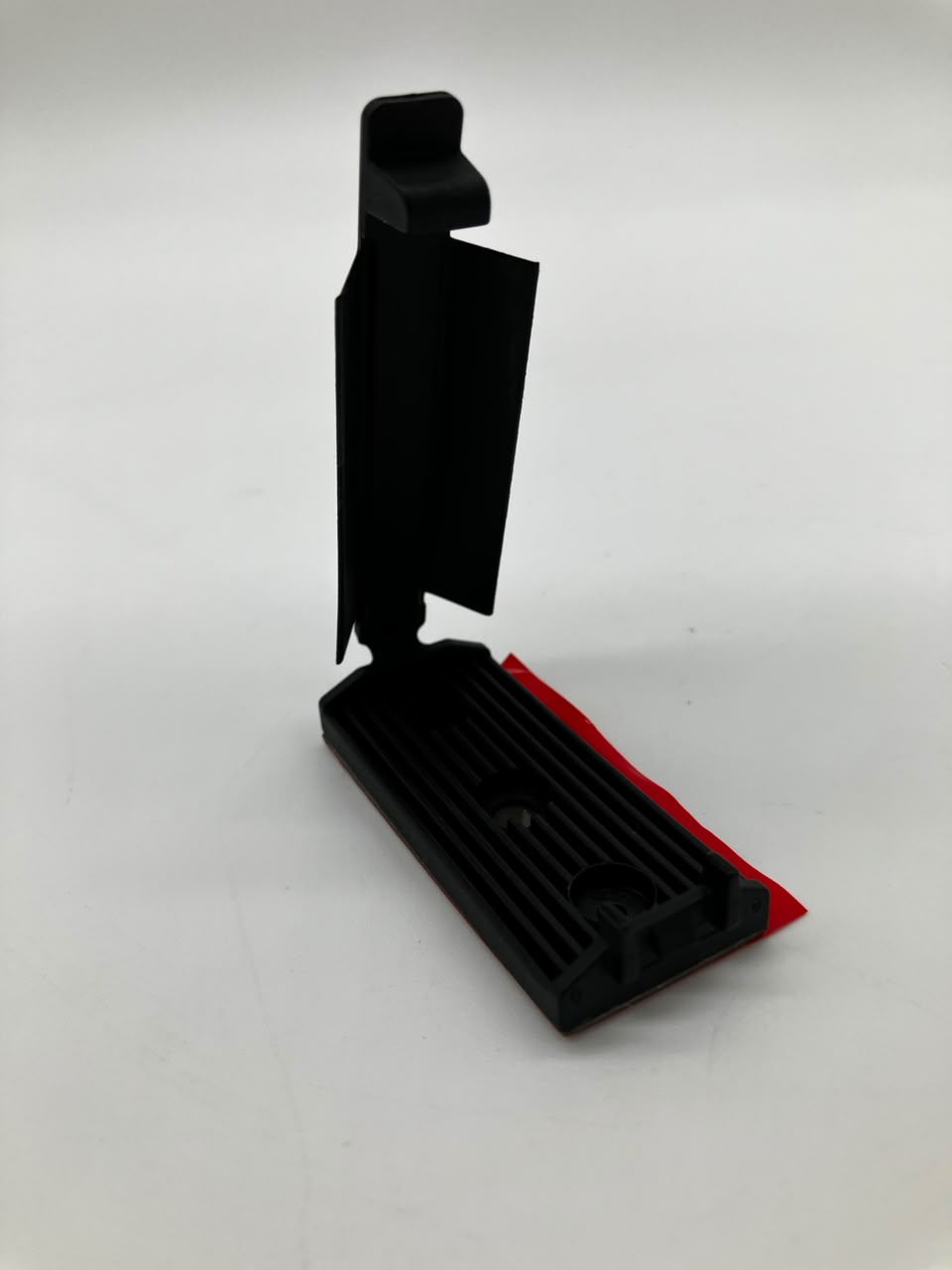

HellermannTyton FKH50APT-A-PA66HIR-BK | Adhesive Flat Ribbon Cable Clamp (Black)

Product Description

Achieve a clean, professional cable management layout with the HellermannTyton FKH50APT-A-PA66HIR-BK Adhesive Cable Mount. Specifically designed to route and secure flat ribbon cables or multi-conductor bundles, this low-profile clamp keeps your electronic enclosures, server racks, and automated machinery organized and free from wire clutter.

Featuring a high-performance acrylic adhesive backing (indicated by the red peel-off liner), this mount offers an aggressive initial tack and excellent long-term holding power on smooth surfaces like metal, glass, and plastics. For applications requiring extra security or high-vibration resistance, it also includes a built-in 3.1mm mounting hole for an optional screw or rivet. Manufactured from high-impact modified Polyamide 6.6 (PA66HIR), this rugged clip flexes without breaking and withstands harsh industrial environments.

Key Features

• High-Bond Adhesive Base: Equipped with a premium acrylic adhesive tape (red liner) for rapid, tool-free installation and a strong, permanent bond to most smooth surfaces.

• Dual-Mounting Capability: Primarily self-adhesive, but includes a ⌀3.1 mm center hole allowing for backup mechanical fastening (screw/rivet) in high-stress or vibrating environments.

• Impact Resistant Material: Constructed from PA66HIR (High Impact Modified Nylon), offering superior flexibility, durability, and resistance to cracking compared to standard plastics.

• Easy Access Design: The flexible retaining lip allows flat cables to be easily slipped in and securely held in place without pinching or damaging delicate conductors.

• Low-Profile Routing: Keeps flat ribbon cables flush against panels and chassis walls, maximizing space and airflow within tight electronic enclosures.

Technical Specifications

• Manufacturer: HellermannTyton

• Part Number: FKH50APT-A-PA66HIR-BK

• Product Type: Flat Ribbon Cable Clamp / Adhesive Mount

• Material: Polyamide 6.6, High Impact Resistant (PA66HIR)

• Color: Black

• Mounting Method: Self-Adhesive (Acrylic Tape) with optional screw hole

• Mounting Hole Diameter: 3.1 mm

• Flammability Rating: UL 94 HB

• Operating Temperature: -40°C to +80°C (Adhesive limits may vary)

• Application: Ideal for securing flat ribbon cables in IT equipment, consumer electronics, and industrial control panels.
