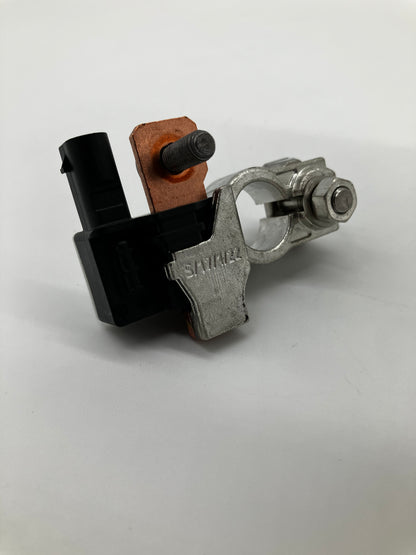

HELLA Intelligent Battery Sensor (IBS)

The HELLA Intelligent Battery Sensor (IBS) is a highly precise, automotive-grade mechatronic component designed for advanced vehicle energy management. Mounted directly to the negative battery terminal, this sensor continuously monitors the battery’s voltage, current, and temperature to calculate the State of Charge (SOC), State of Health (SOH), and State of Function (SOF). It is a critical component for modern vehicles, particularly those equipped with Auto Start-Stop systems or micro-hybrid powertrains.

Key Specifications:

• Category: Automotive Parts & Accessories / Electrical Components / Battery Sensors & Management

• Product Type: Intelligent Battery Sensor (IBS)

• Manufacturer: HELLA (HELLA KGaA Hueck & Co.)

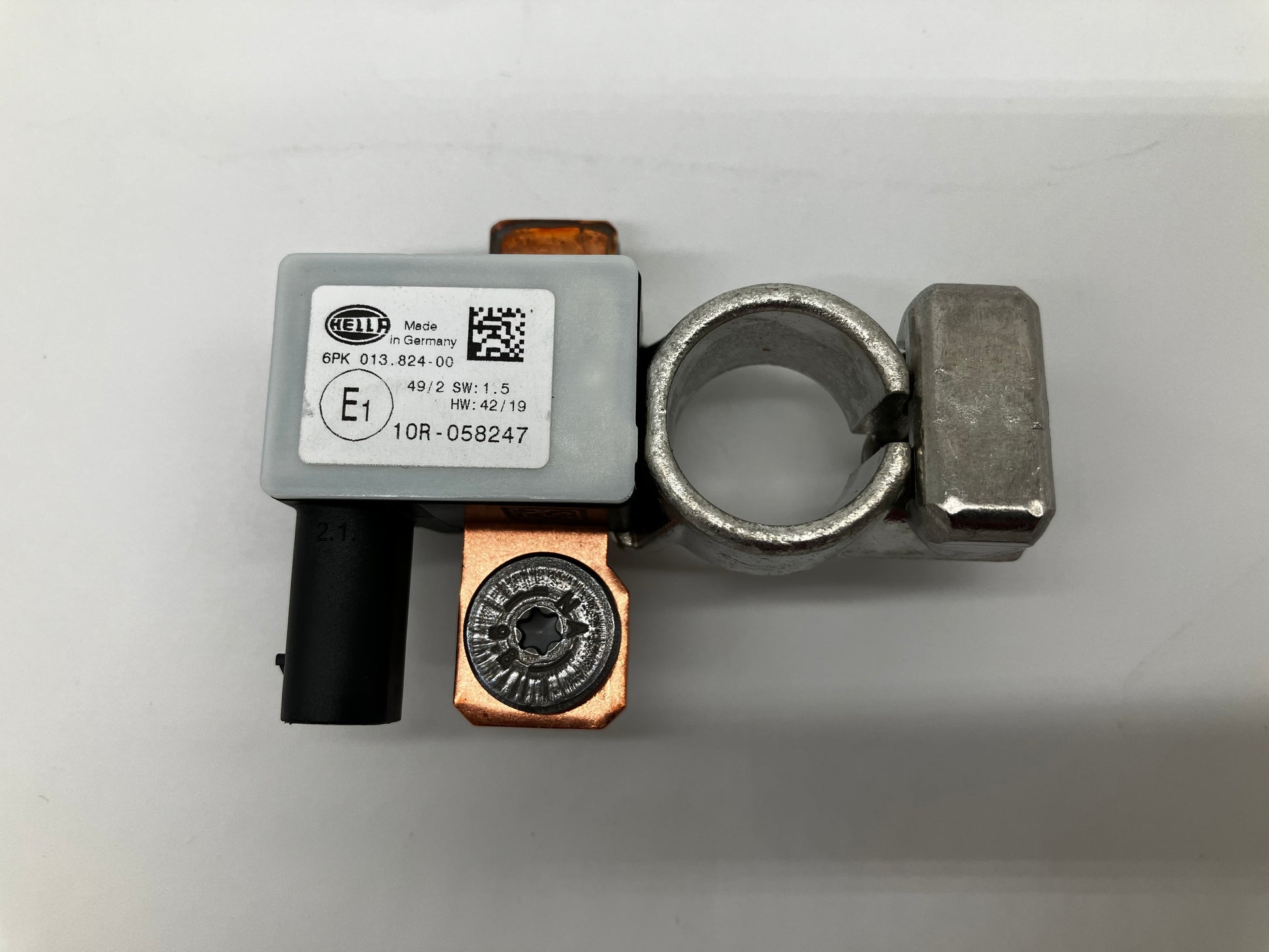

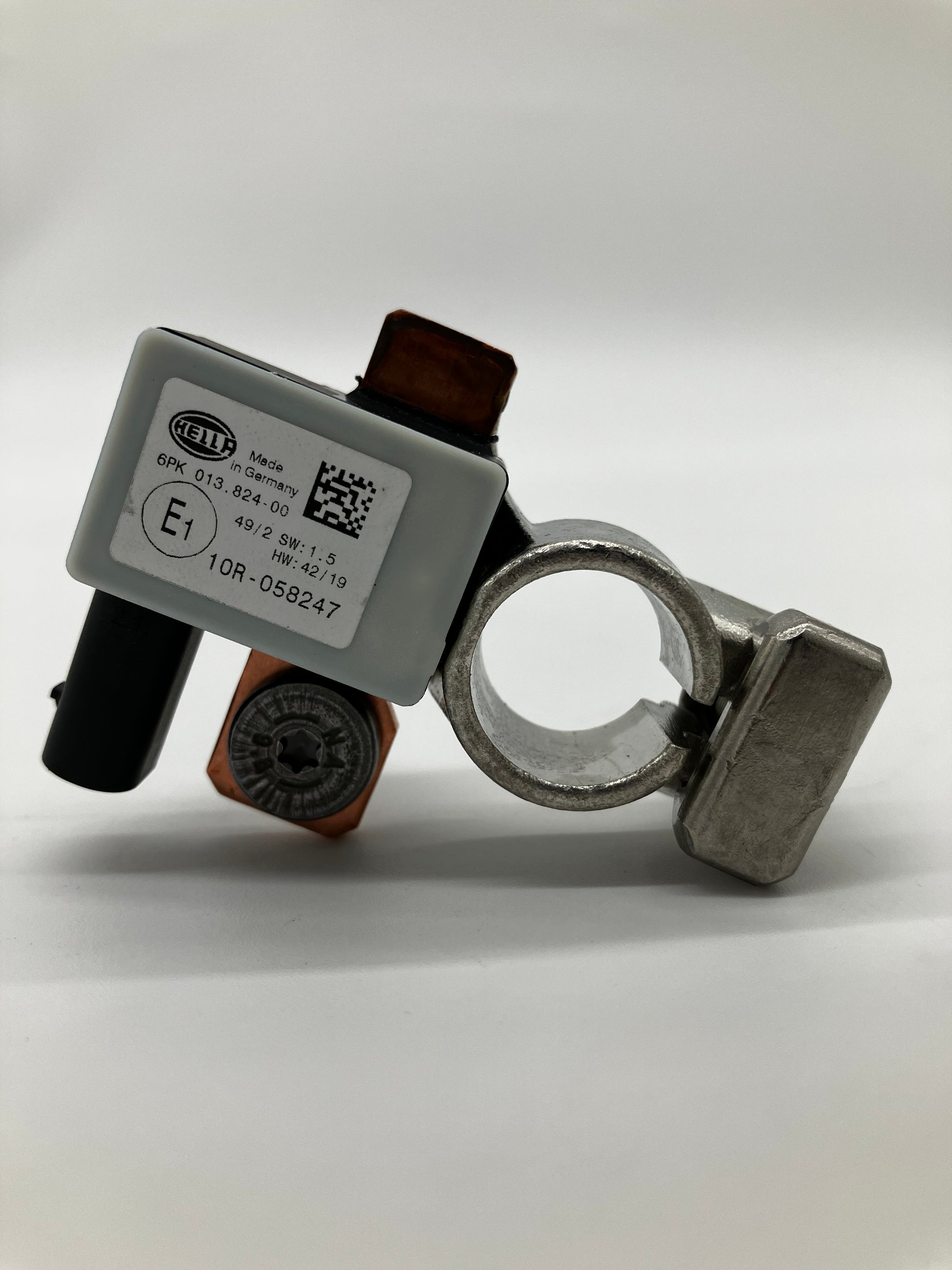

• Model / Part Number: 6PK 013.824-001 (Retail Box) / 6PK 013.824-00 (Sensor Body)

• Hardware / Software Versions: HW: 42/19 | SW: 1.5

• Communication Protocol: Typically LIN Bus (Standard for HELLA IBS units)

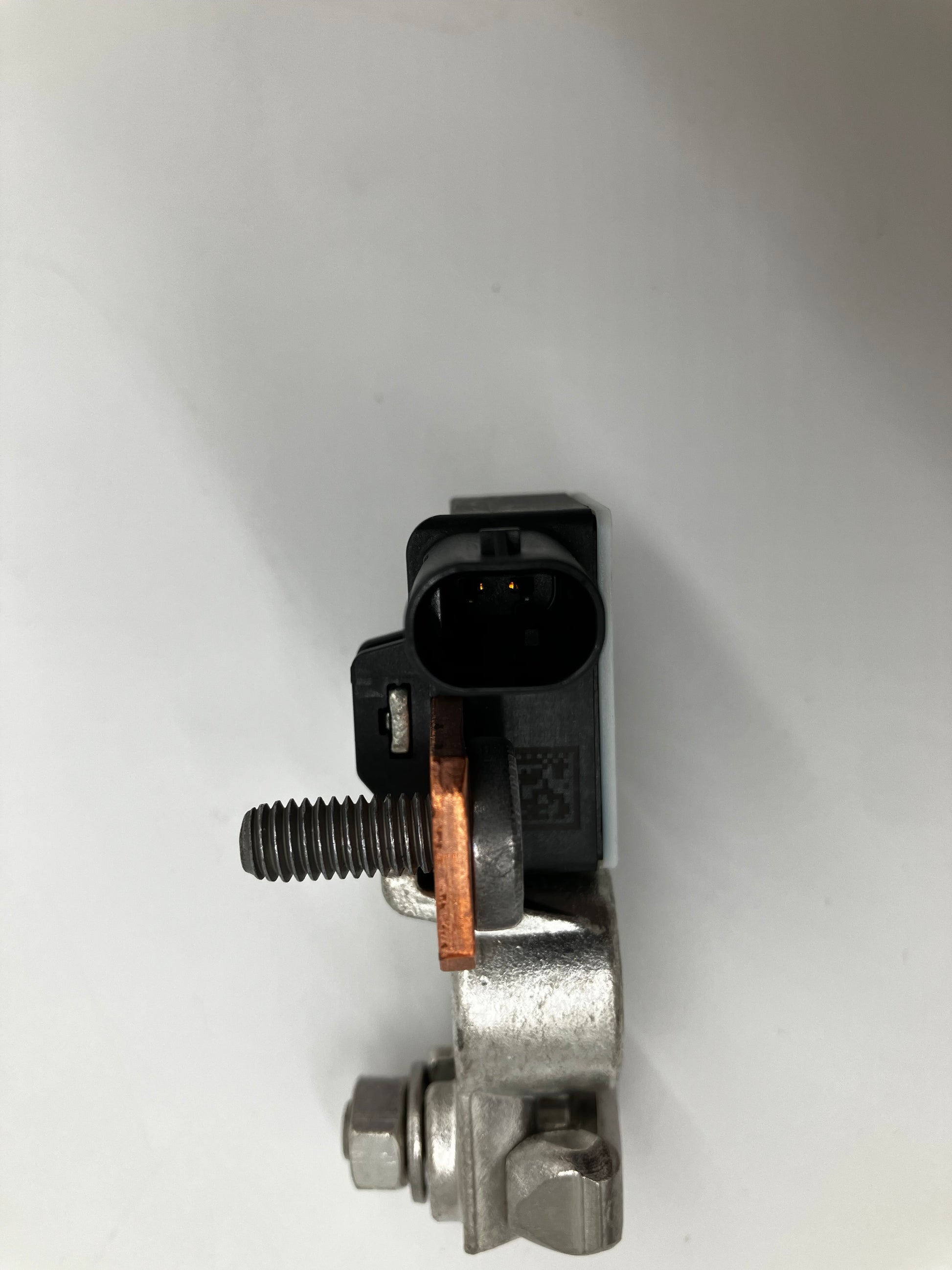

• Electrical Connection: 2-Pin recessed socket

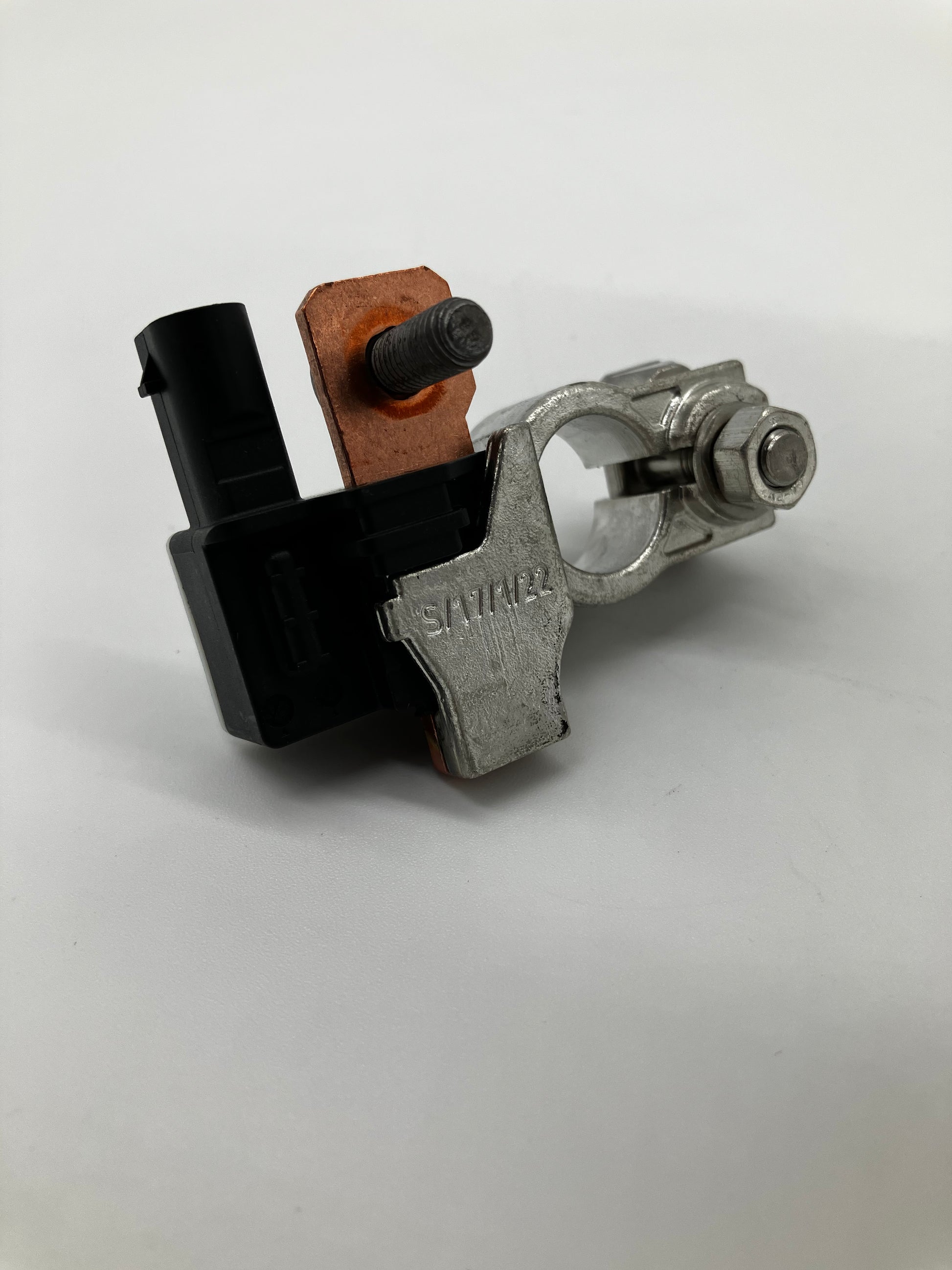

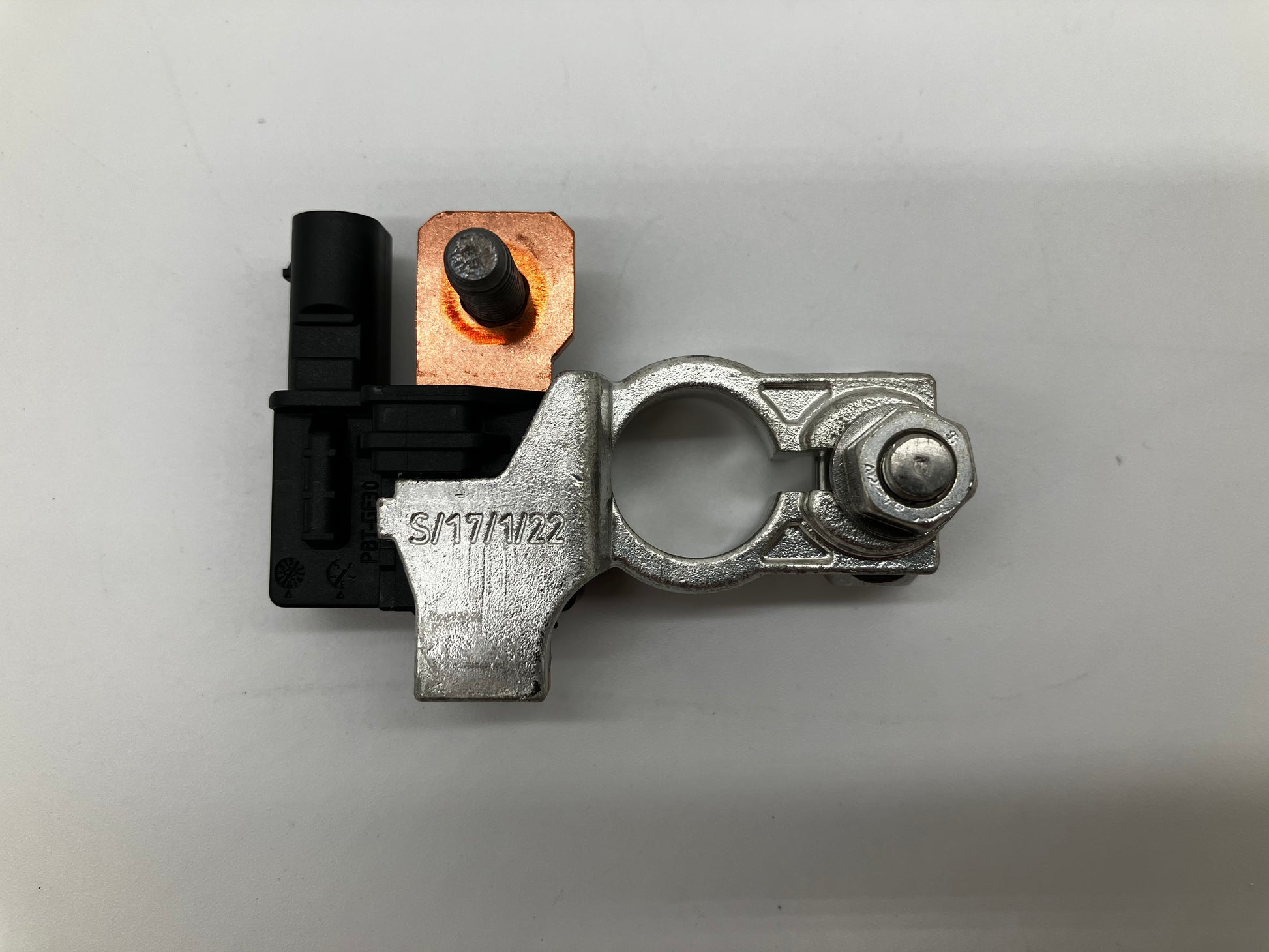

• Mounting Type: Integrated negative battery pole clamp with a threaded copper stud for the vehicle ground cable

• Certifications: E1 Mark (European automotive safety), 10R-058247 (EMC Compliance)

• Origin: Made in Germany

Key Features:

• High-Precision Measurement – Utilizes a heavy-duty measurement shunt integrated with an Application-Specific Integrated Circuit (ASIC) to detect even the smallest micro-amp current draws, as well as massive starter cranking currents.

• Vital for Start-Stop Systems – Continuously feeds real-time battery data to the Engine Control Unit (ECU). The vehicle relies on this data to determine if the battery has enough reserve power to reliably restart the engine at a stoplight.

• Thermal Monitoring – Includes an integrated temperature sensor to prevent overcharging during hot conditions and optimize the charging voltage during cold weather.

• Compact & Robust Design – Electronics are completely sealed within the gray and black plastic housing to protect against under-hood heat, moisture, battery acid, and heavy vibrations.

Ideal For:

• Direct OEM replacement for faulty battery sensors on compatible European vehicles (frequently utilized across brands like BMW, Mini, VW, Audi, and Mercedes-Benz).

• Resolving parasitic battery drain diagnostic codes or Auto Start-Stop system malfunctions.

• Integration into custom fleet power management systems requiring precise LIN-bus battery monitoring.
