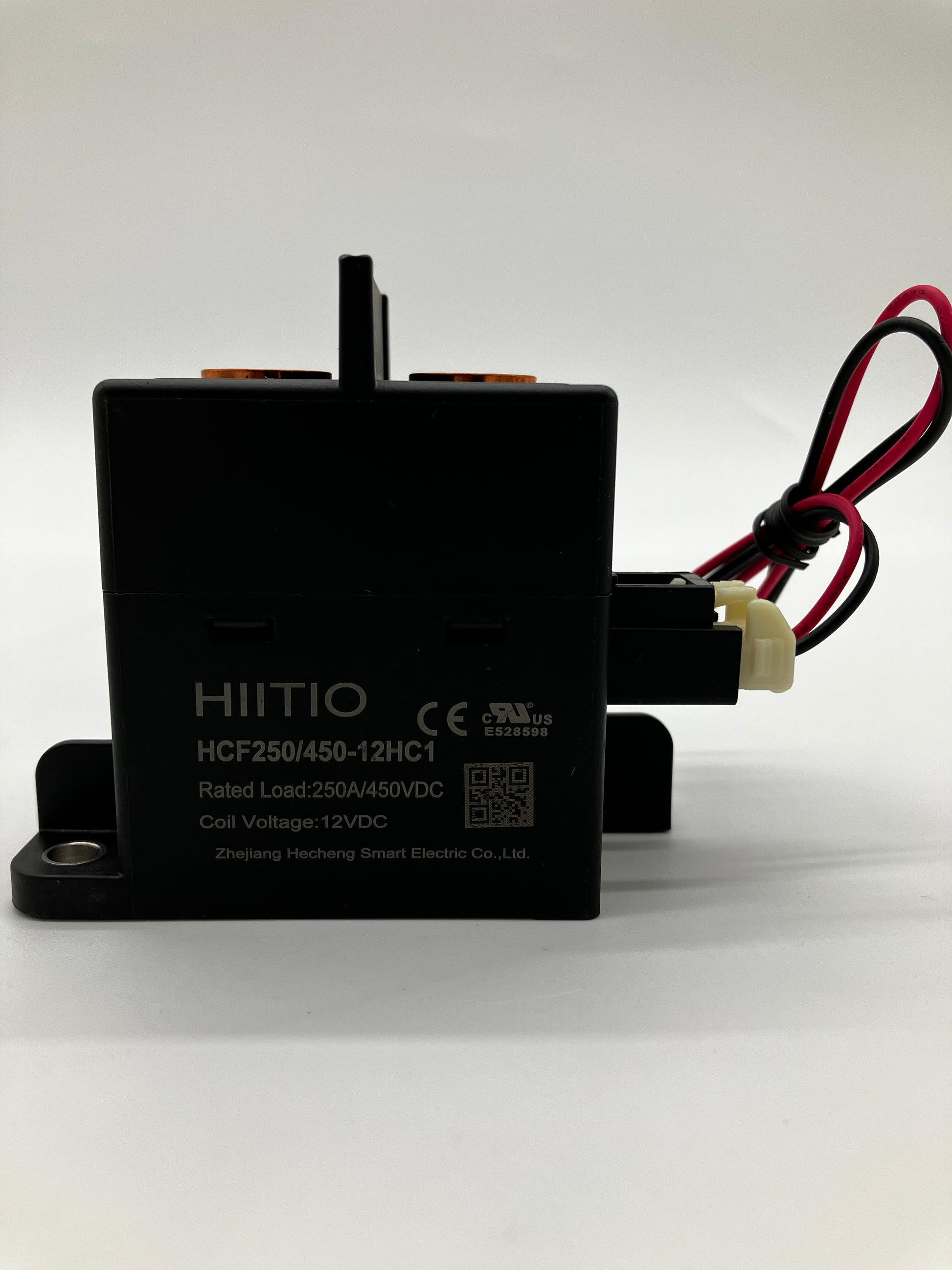

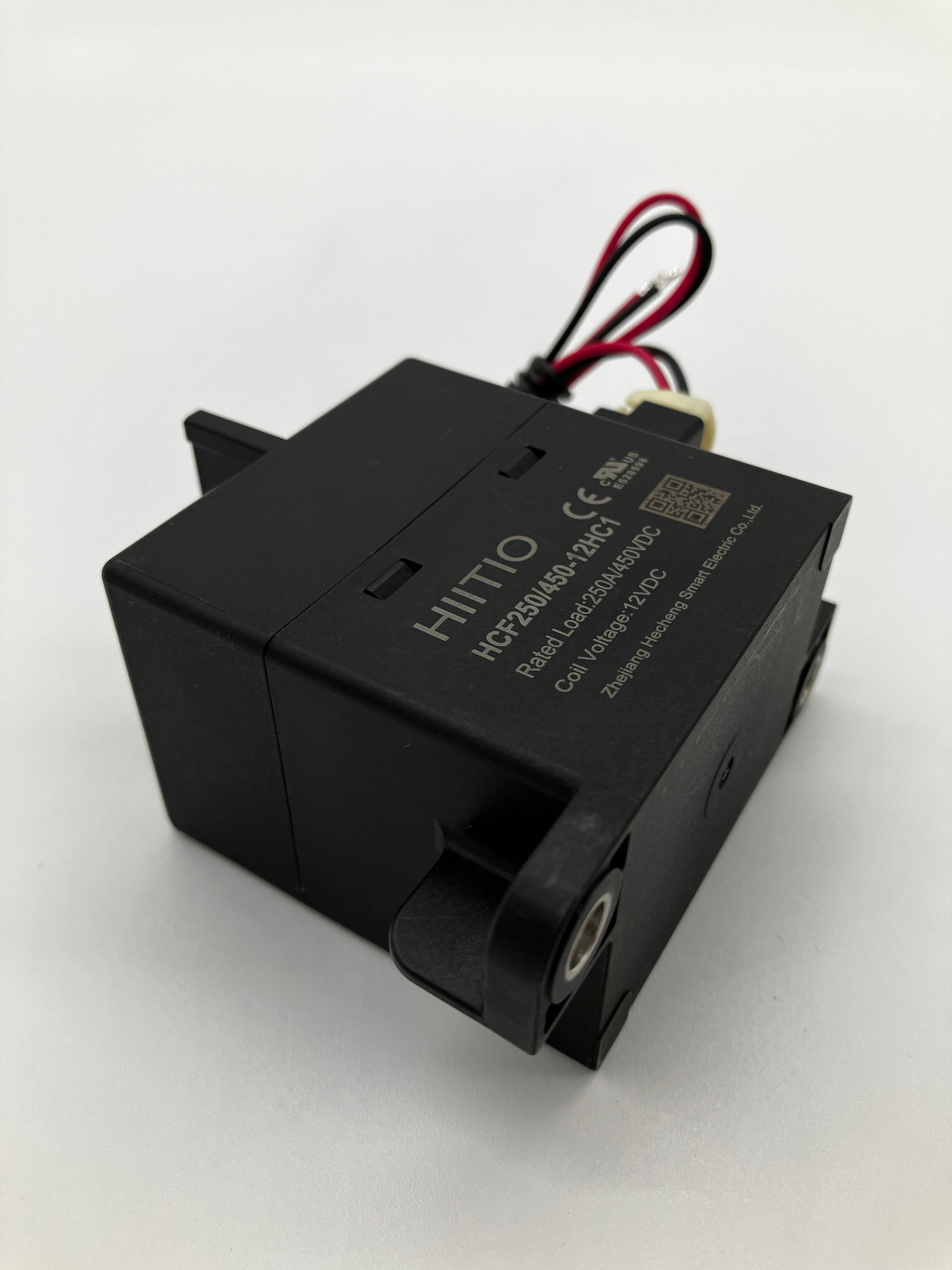

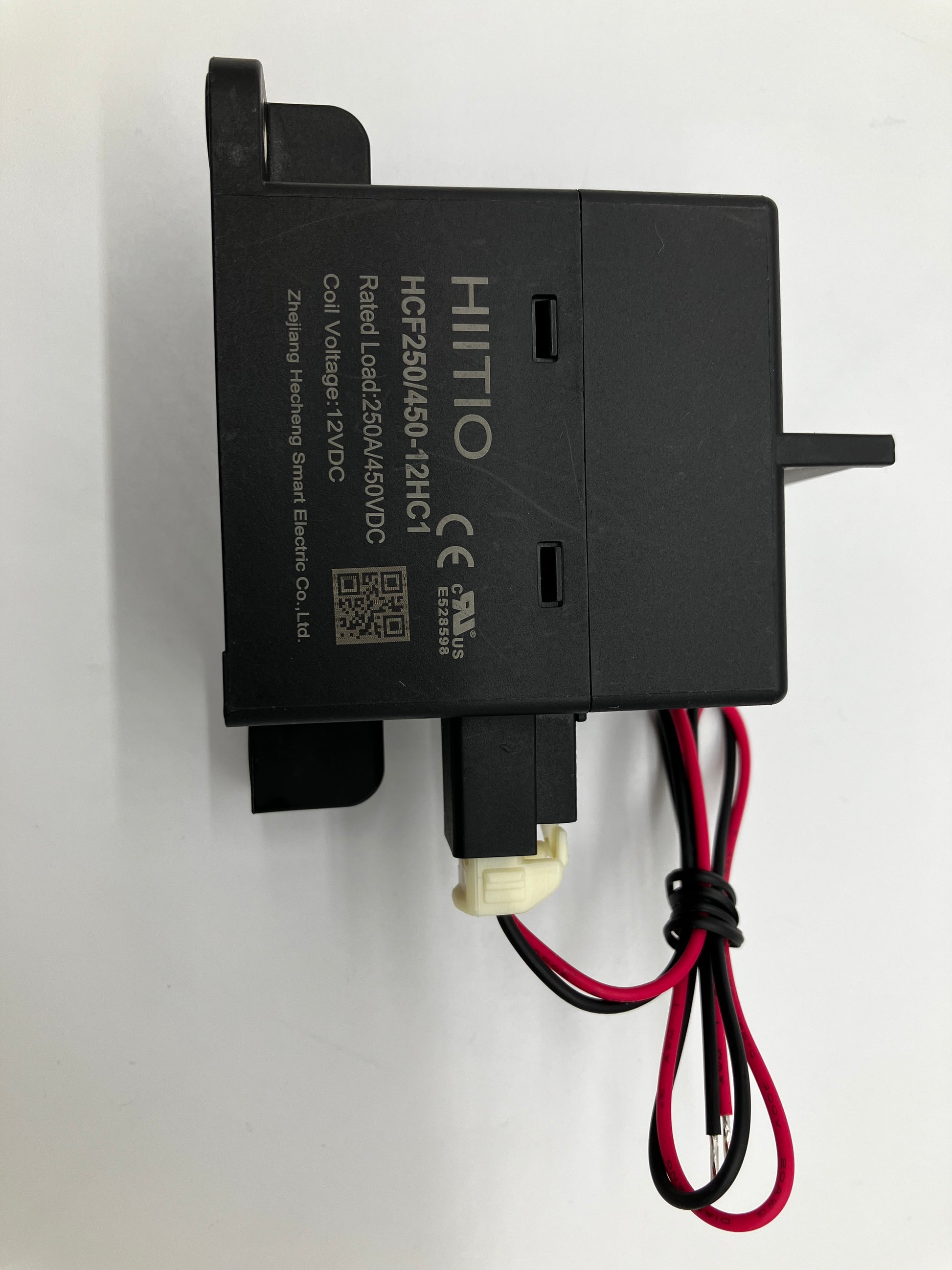

HIITIO 250A High-Voltage DC Contactor (Model HCF250/450-12HC1)

The HIITIO 250A High-Voltage DC Contactor (Model HCF250/450-12HC1) is a heavy-duty electrical switching relay engineered for high-power electric vehicle (EV) powertrains, solar inverters, and industrial energy storage systems. Manufactured by Zhejiang Hecheng Smart Electric Co., Ltd., this compact yet robust contactor is designed to safely switch and manage 250 Amps of continuous current at loads up to 450V DC under demanding operational conditions.

Key Specifications

• Category: Automotive Parts & Accessories / EV High Voltage Components / DC Contactors & Relays

• Product Type: High-Voltage DC Contactor / Relay

• Manufacturer: Zhejiang Hecheng Smart Electric Co., Ltd. (HIITIO)

• Model / Part Number: HCF250/450-12HC1

• Maximum Rated Voltage: 450V DC

• Rated Continuous Current: 250A

• Coil (Control) Voltage: 12V DC

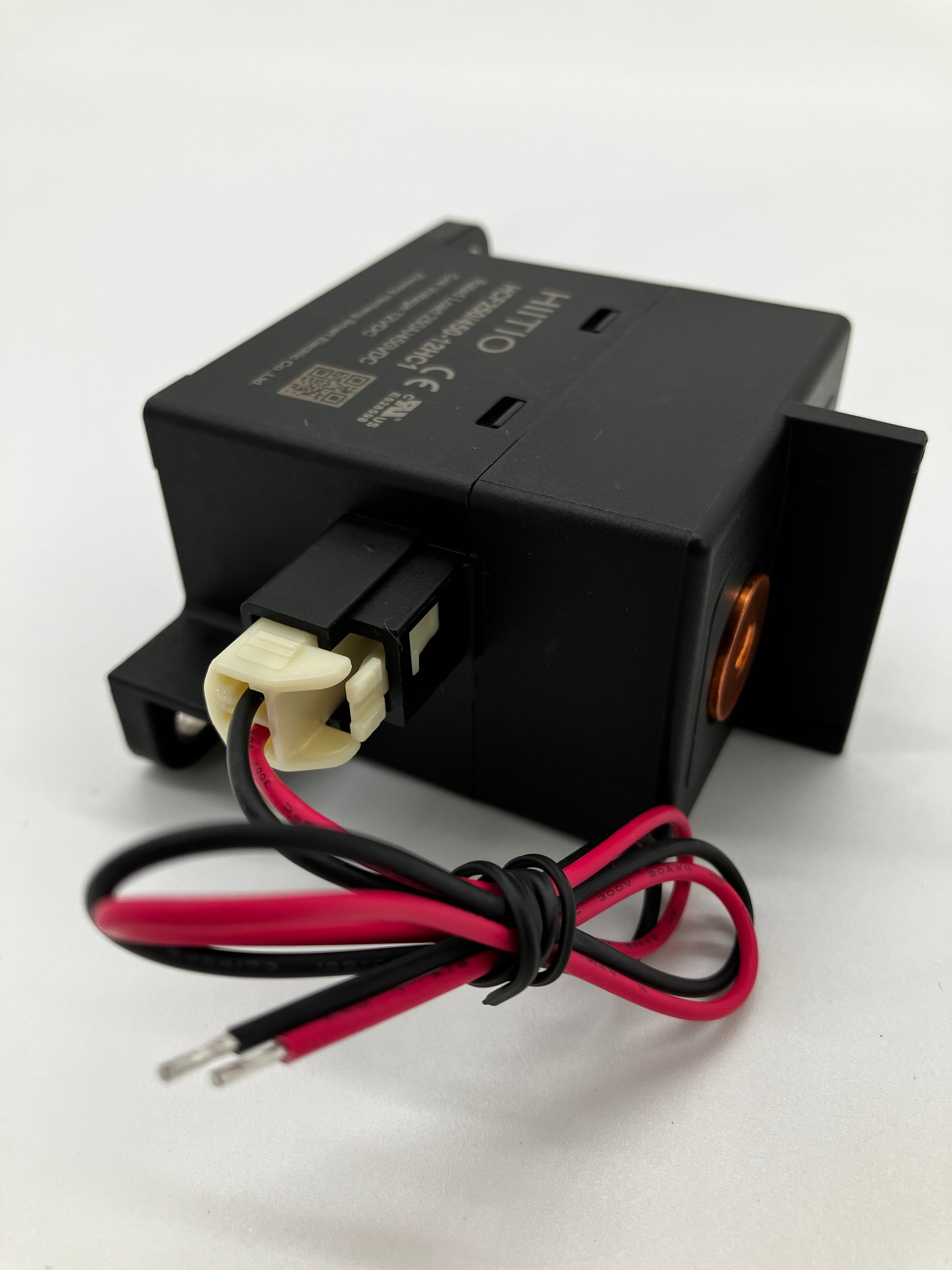

• Electrical Control Connection: 2-wire pigtail harness (Red/Black wires) with a secure, locking plug connector

• Certifications: CE certified, cURus recognized (File E528598)

Key Features

• High-Current DC Switching – Outfitted with solid internal copper contacts optimized to sustain a 250A continuous load safely with minimal electrical resistance.

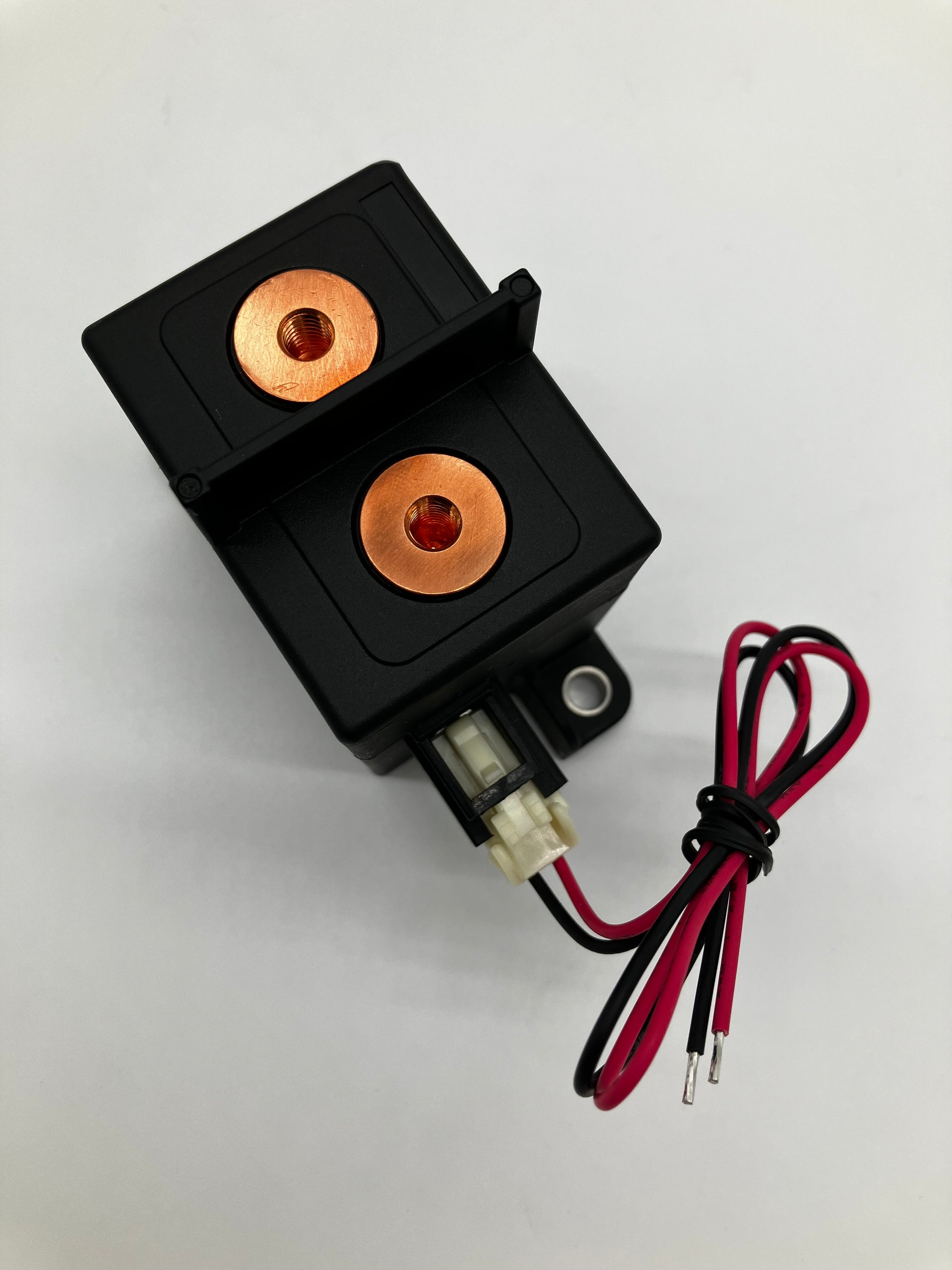

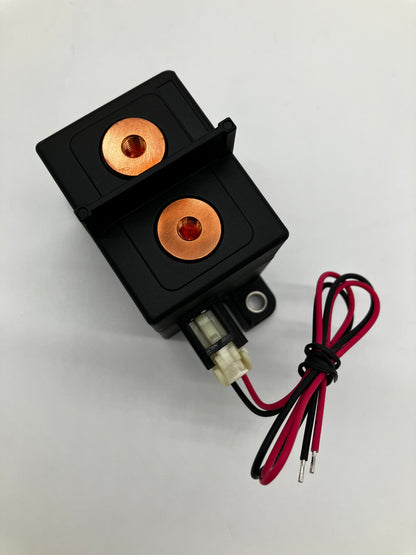

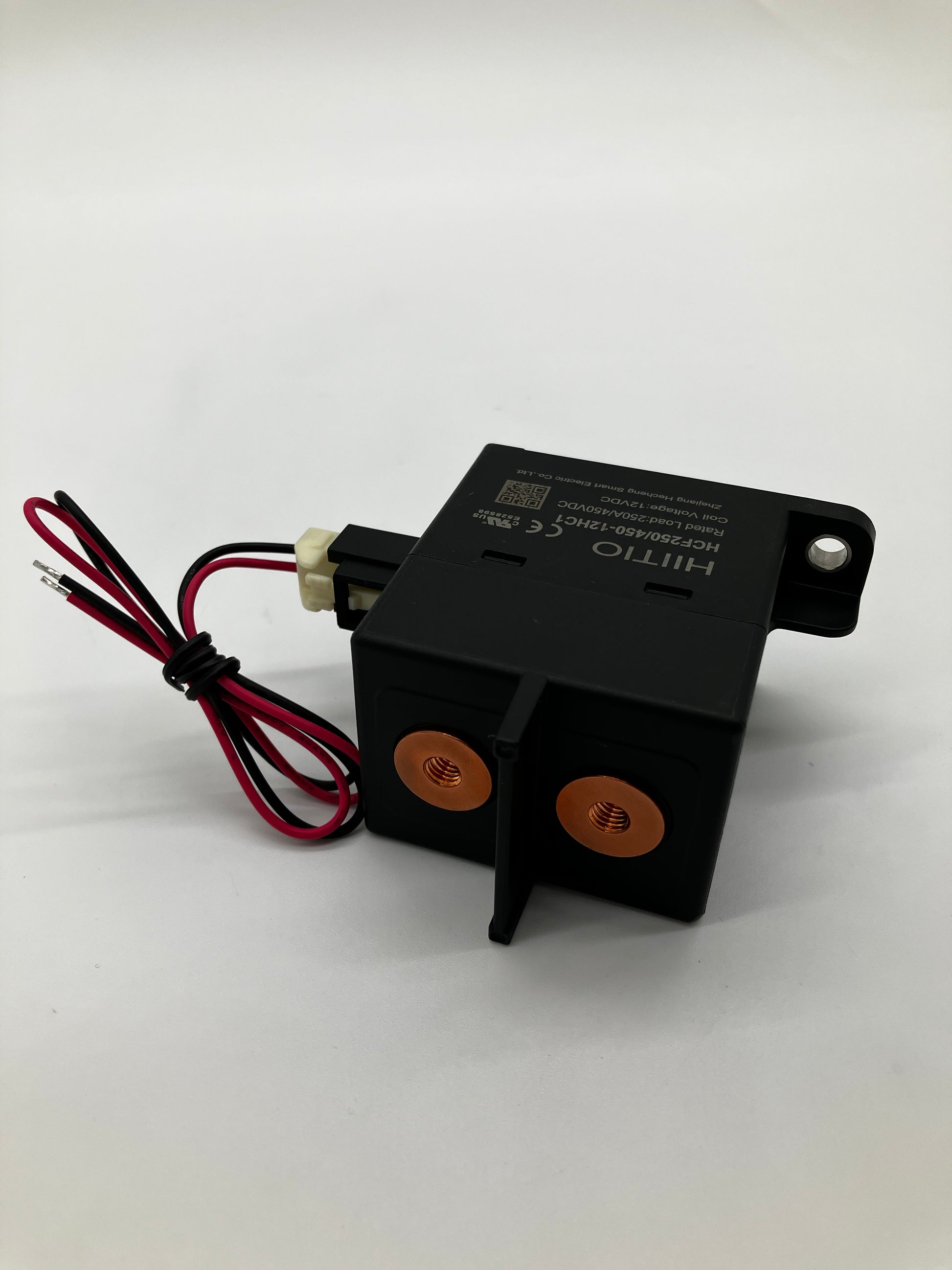

• Molded Arc Barrier – Features a prominent, integrated vertical plastic partition between the main female threaded copper terminals to eliminate the risk of external electrical arcing or flashover.

• Hermetically Sealed Design – The internal contact chamber is completely sealed to rapidly quench electrical arcs when breaking live high-voltage DC circuits, enhancing component longevity and safety.

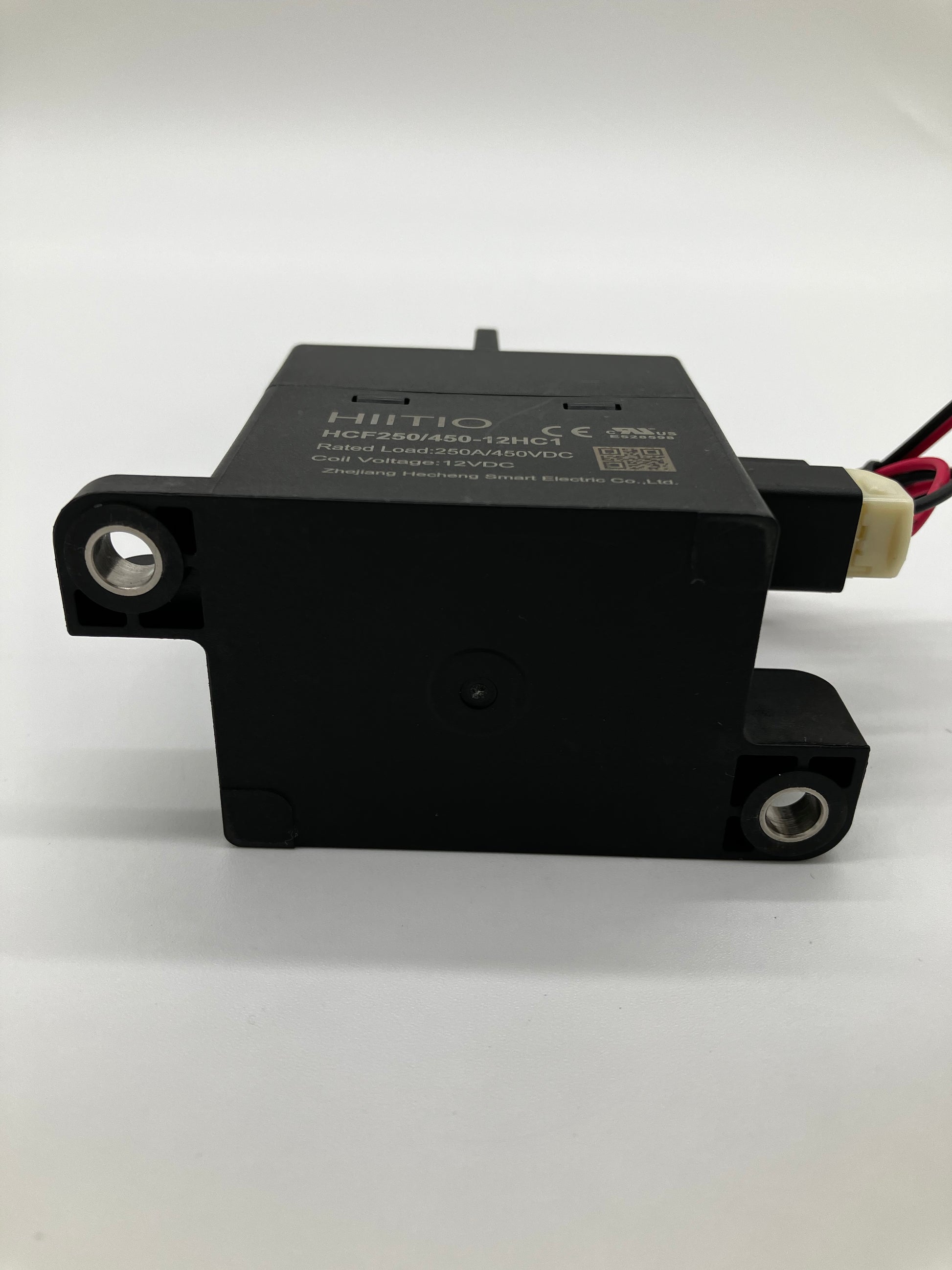

• Reinforced Mounting Flanges – The dual corner mounting holes feature integrated metal crush sleeves, allowing the contactor to be securely torqued down to a chassis or battery enclosure without stressing the plastic housing under heavy vibration.

Ideal For:

• Main circuit isolation and pre-charge paths in light-to-medium electric vehicles (EVs)

• High-performance custom EV conversions and battery pack builds

• Grid-tied solar photovoltaic (PV) inverters and residential Battery Energy Storage Systems (BESS)

• Industrial DC power distribution and heavy-duty automated machinery control lines
