Keystone Electronics 1042 Surface Mount 18650 Battery Holder

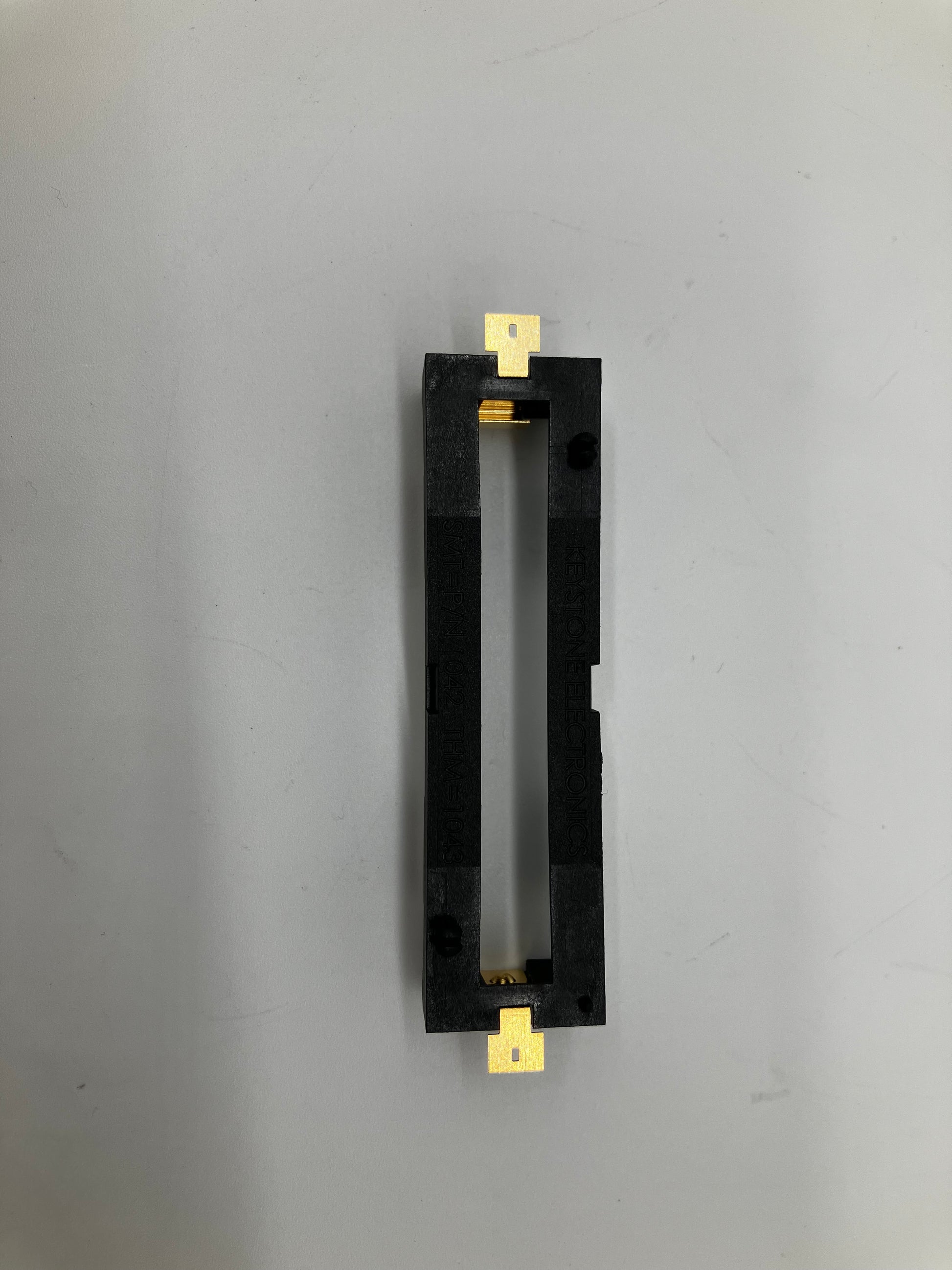

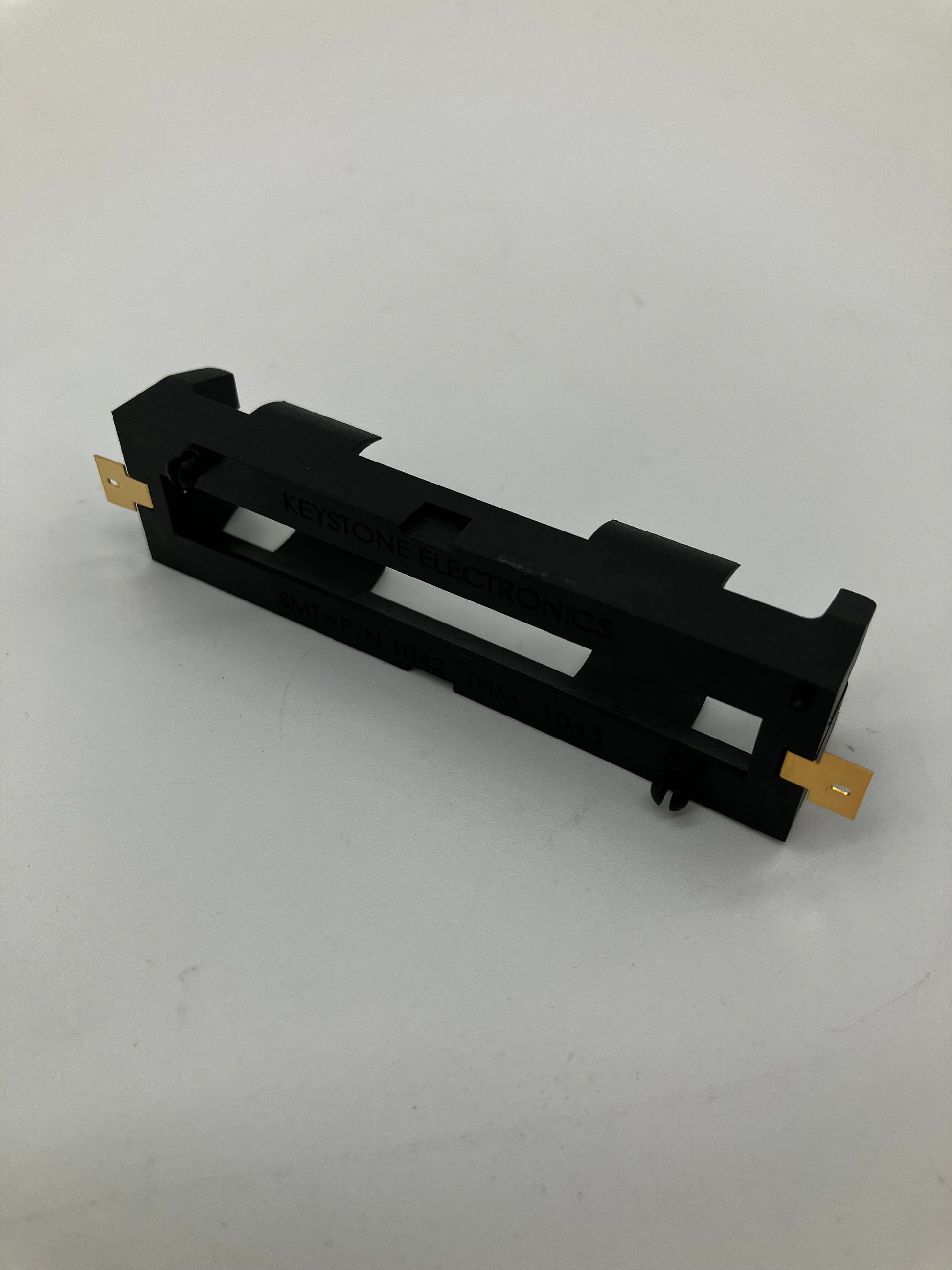

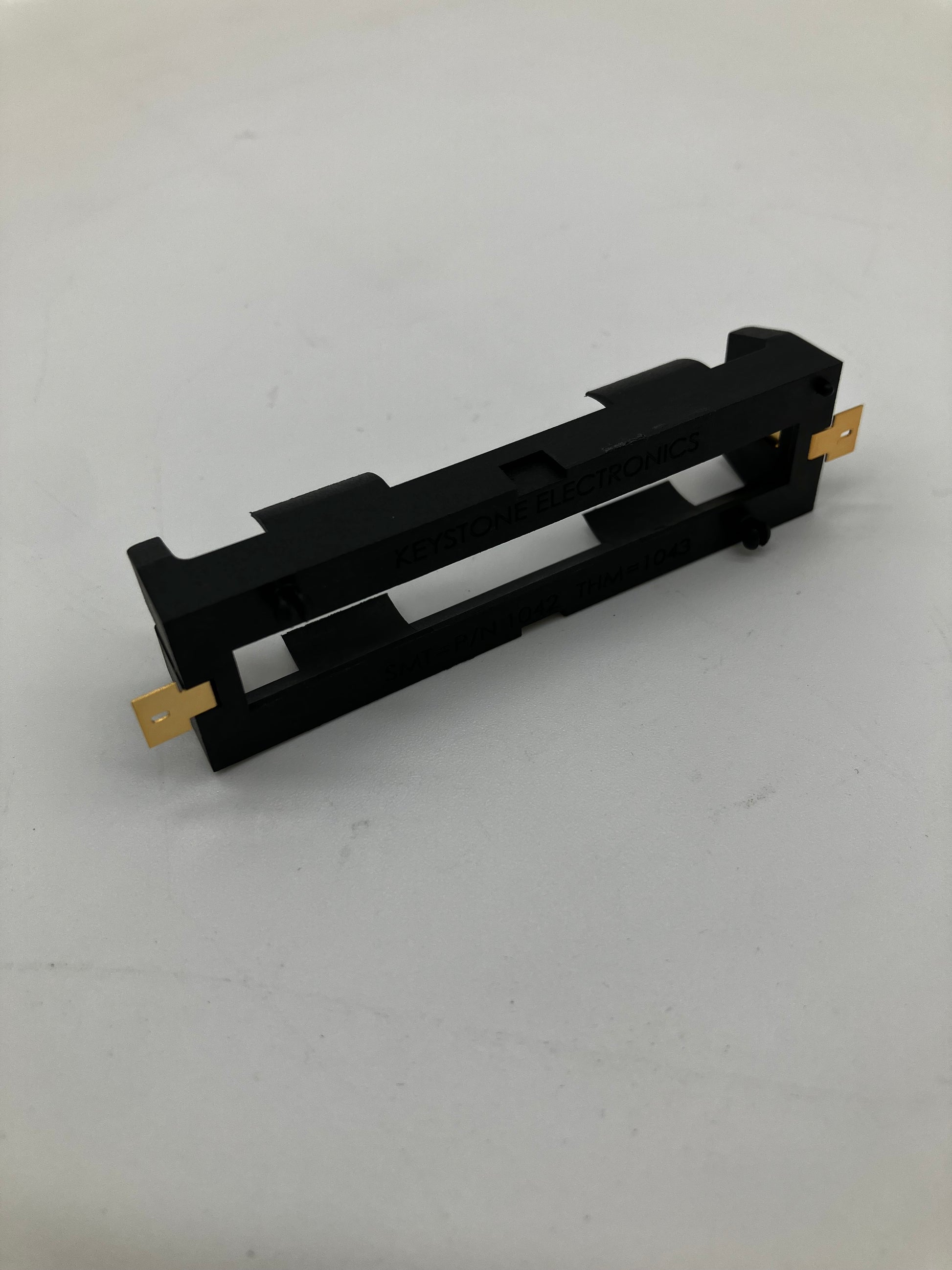

The Keystone Electronics 1042 Surface Mount 18650 Battery Holder is a premium, low-profile PCB-mount battery clip designed specifically for single high-capacity Lithium-Ion 18650 cells. As indicated by the molded text on the chassis ("SMT=P/N 1042 THM=1043"), this specific unit is the 1042 model, featuring flat, outward-facing gold-plated tabs intended for Surface Mount Technology (SMT) automated soldering processes.

Key Specifications:

• Category: Electronic Components / Power Management / Battery Holders, Clips & Contacts

• Product Type: Single Cell Lithium-Ion Battery Holder

• Manufacturer: Keystone Electronics Corp.

• Model / Part Number: 1042 (SMT Version)

• Compatible Cell Size: 18650 (18 mm x 65 mm)

• Mounting Type: Surface Mount Technology (SMT) / PCB Mount (with bottom alignment pins)

• Contact Material: Stainless Steel with Gold Flash Plating

• Body Material: High-Temperature Nylon 46 (UL 94V-0 Rated)

• Operating Temperature: Designed to withstand standard SMT reflow soldering temperatures.

Key Features:

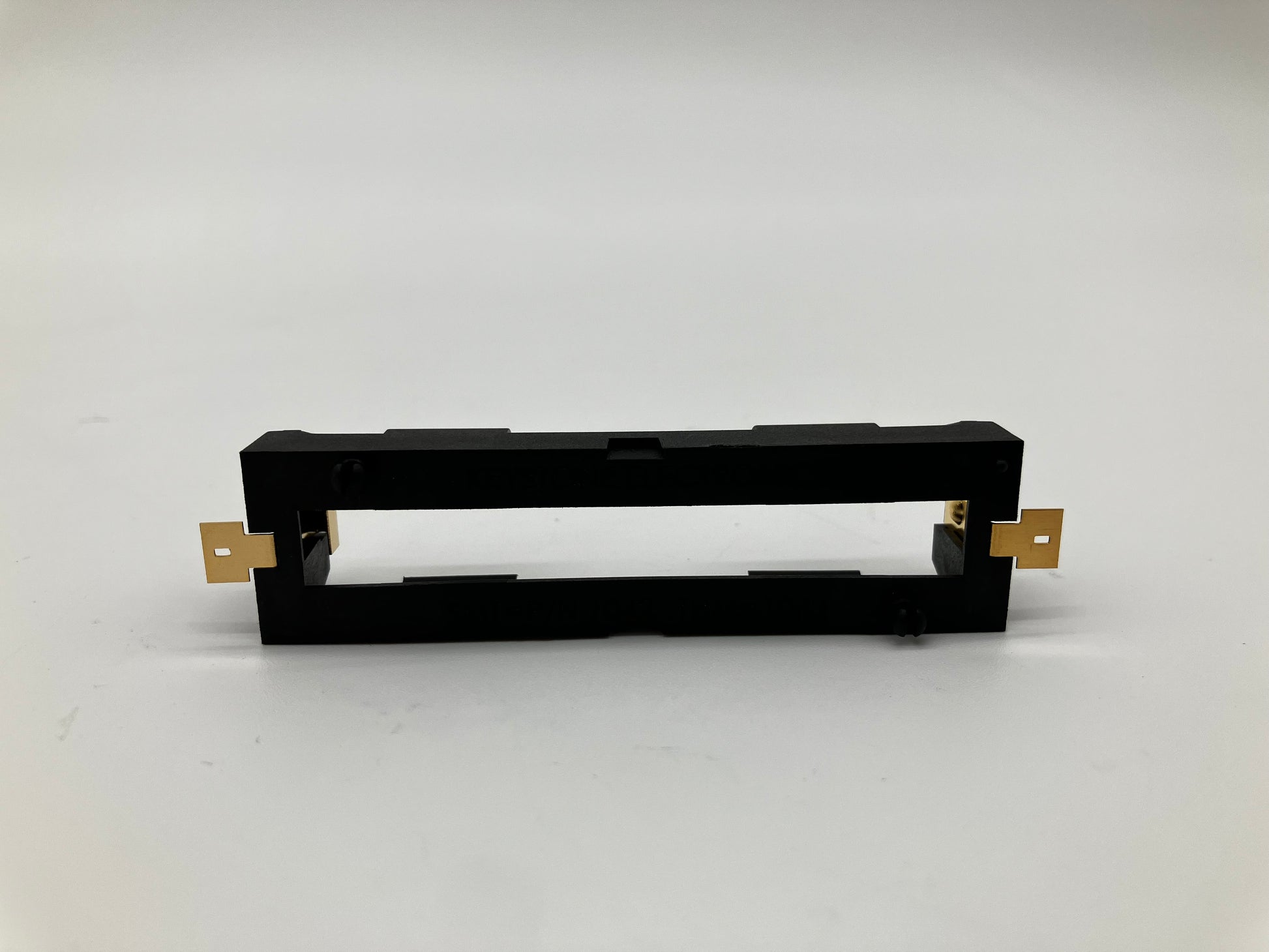

• SMT Ready Design – Features flat, outward-facing gold-plated contact tabs designed for direct surface mounting to printed circuit boards (PCBs), making it compatible with automated pick-and-place assembly lines.

• Gold-Plated Contacts – The stainless steel spring contacts are gold-plated to provide exceptionally low contact resistance, which is critical for handling the high current draws typical of 18650 lithium-ion cells.

• High-Temperature Housing – The black plastic chassis is molded from high-temp, UL 94V-0 rated Nylon, ensuring it will not warp or melt during standard infrared or convection reflow soldering.

• PCB Positioning Pins – The bottom of the holder features two molded plastic alignment pegs to ensure exact positioning and prevent shifting on the PCB prior to the soldering process.

Ideal For:

• Integrated power management on custom printed circuit boards (PCBs)

• Internet of Things (IoT) sensors and remote monitoring stations

• Portable medical devices and handheld test equipment

• Custom memory backup power supplies

• High-end consumer electronics requiring easily replaceable rechargeable power
