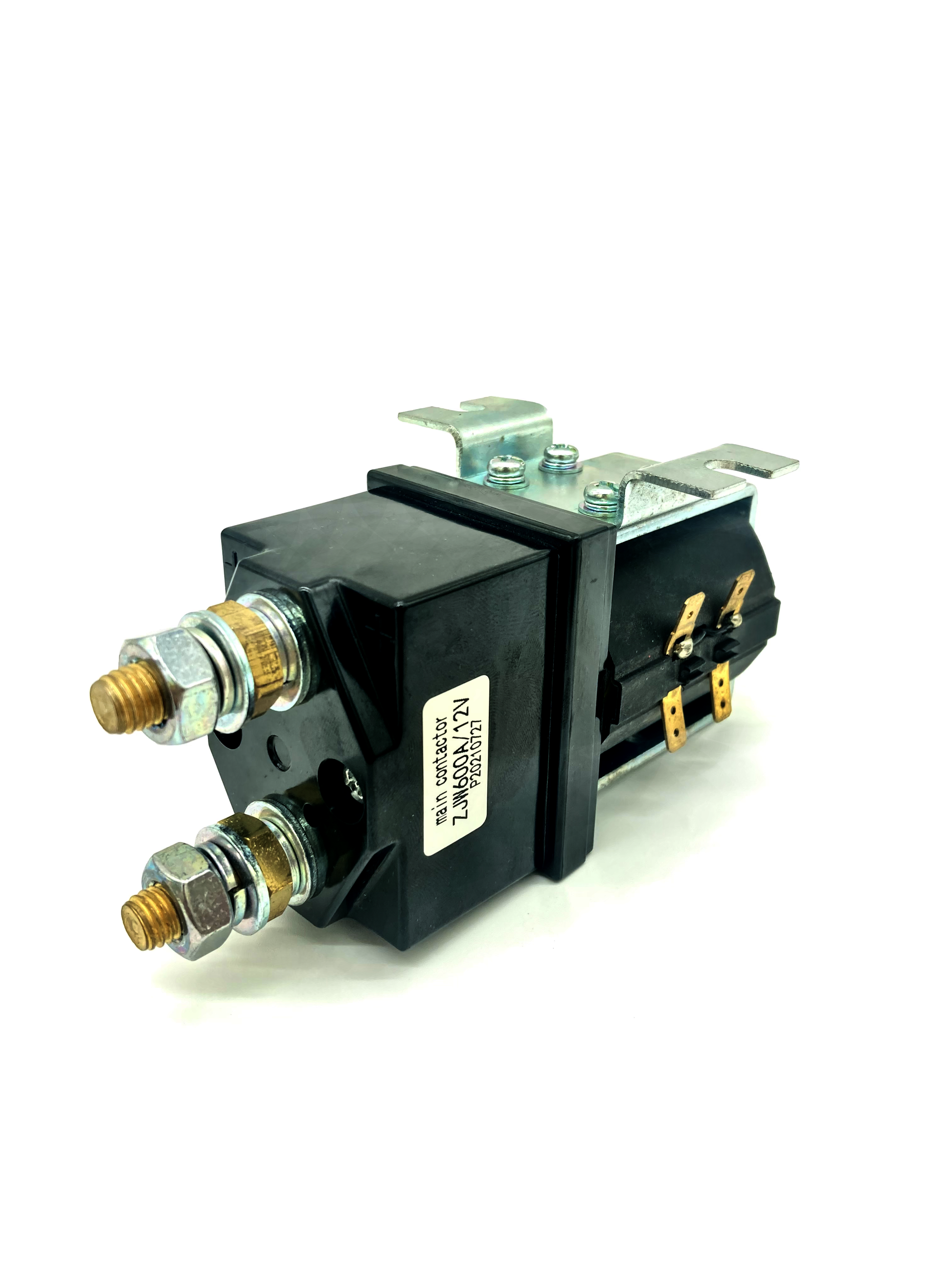

Main Contactor
Main Contactor
Couldn't load pickup availability
The Main Contactor is a heavy-duty, high-current contactor designed for reliable power switching in demanding industrial and commercial applications. With a robust 600A current rating and 12V DC coil operation, it ensures secure and efficient control of large electrical loads in motor control, power distribution, and automation systems.
Key Specifications:
-
Model: ZJW600A/12V P20210727
-
Type: Electromechanical main contactor
-
Rated Current: 600A (AC-3 category)
-
Coil Voltage: 12V DC (other voltages available)
-
Rated Voltage: Up to 690V AC
-
Poles: 3P (3-pole)
-
Mechanical Life: 1,000,000 operations
-
Electrical Life: 100,000 operations (at rated load)
-
Mounting: DIN rail or panel mount
-
Operating Temperature: -25°C to +60°C
-
Protection Degree: IP20 (standard enclosure)
Key Features:
-
High Current Capacity – Handles up to 600A for heavy-duty applications
-
Durable Construction – Silver alloy contacts for long service life and minimal arcing
-
Low Power Consumption – Energy-efficient 12V DC coil operation
-
Quick Connect Terminals – Facilitates easy and secure wiring
-
Arc Suppression – Built-in arc chutes for safer switching
-
Modular Design – Compatible with auxiliary contacts and accessories
-
Status Indicator – Mechanical flag for visual contact position confirmation
Ideal For:
-
Industrial motor control (pumps, compressors, conveyors)
-
Power distribution panels and switchgear
-
Heavy machinery and manufacturing equipment
-
Renewable energy systems (solar/wind power inverters)
-
Mining and marine electrical systems
