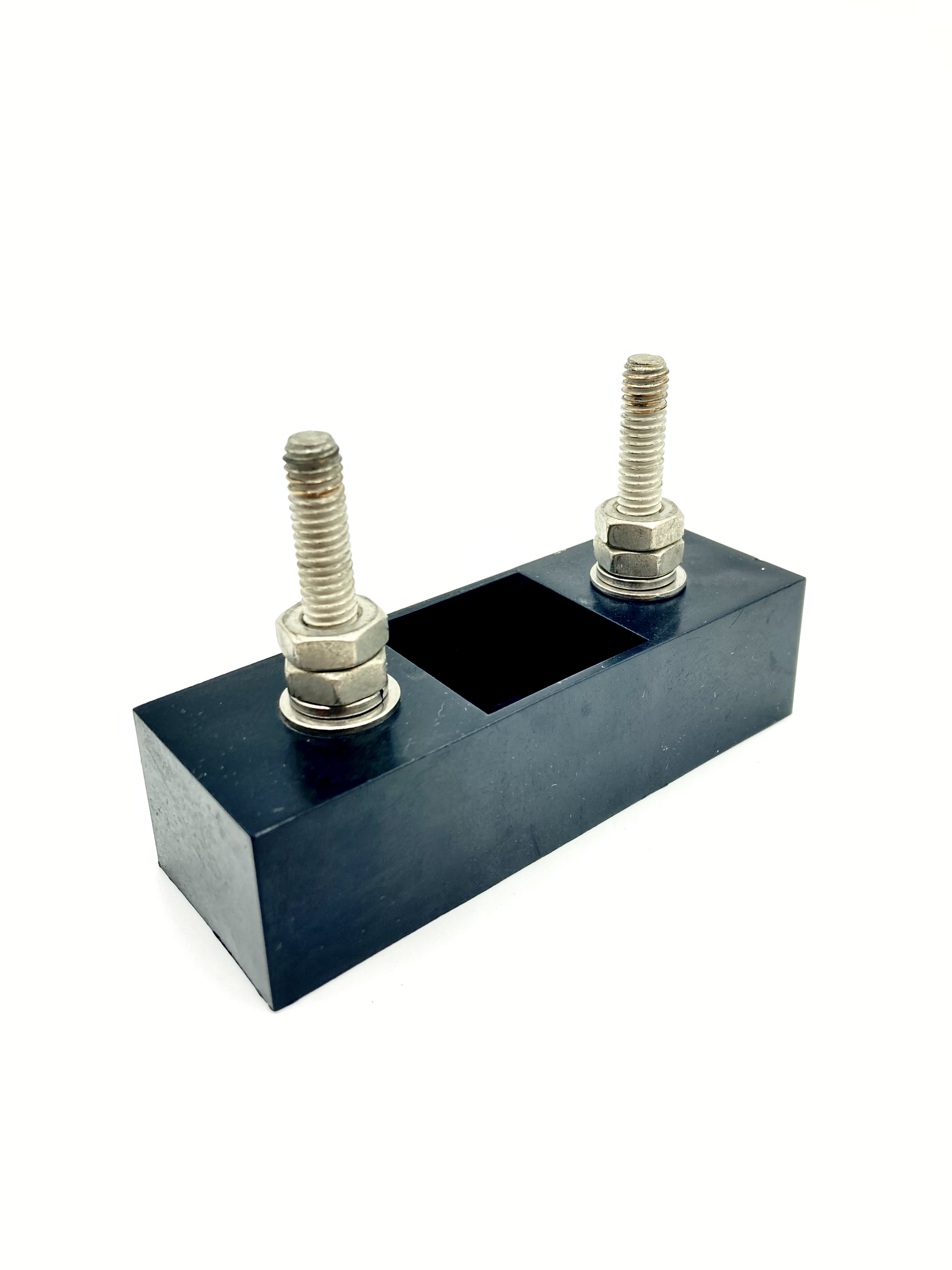

Mersen Fuse Block

Mersen Fuse Block

Dhs. 150.00 AED
Dhs. 150.00 AED
Sale Sold out
Shipping calculated at checkout.

Model: Mersen (formerly Ferraz Shawmut) NH00/NH1 DIN Fuse Block
Part Number: P243G

Key Features & Benefits

Industrial-Grade Durability – Thermoplastic housing (UL94 V-0) resists heat, chemicals, and impact.
Universal DIN Rail Mount – Tool-free installation on 35mm rails (TS35 compliant).
High Fault Current Rating – Up to 100kA interrupting capacity (depends on fuse).
Transparent Cover – Visual fuse inspection without disassembly.
Copper Alloy Contacts – Low resistance (<0.5mΩ) for minimal voltage drop.

Technical Specifications

  • Compatible Fuses: NH00, NH1, or Class R (specify when ordering)

  • Voltage Rating: 690V AC or 250V DC

  • Current Capacity: Up to 630A (dependent on fuse installed)

  • Terminals: Screw-type clamps accept cables up to 25mm²

  • Housing Material: Thermoplastic (UL94 V-0 flame-rated)

  • Environmental Rating: IP20 standard (IP65 optional with cover kit)

  • Temperature Range: -40°C to +70°C operation

Common Applications

  • Industrial control panels (UL 508A)

  • Solar PV combiner boxes

  • HVAC power distribution

  • Data center PDU backups
