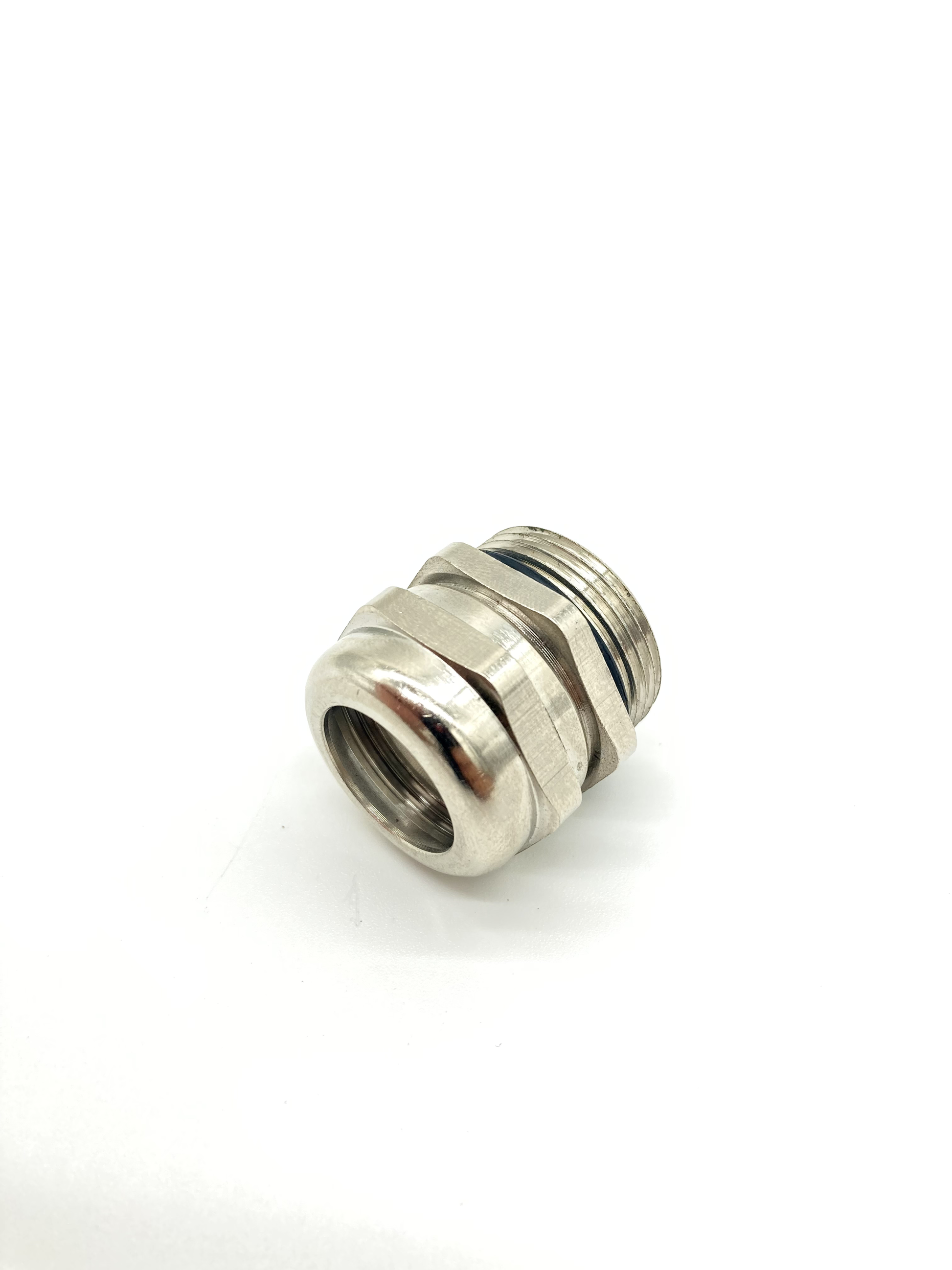

Giffex Cable Gland (Metal) - M25x1.5

This zinc-plated brass cable gland provides secure, EMI-shielded cable entry for industrial applications. The M25x1.5 metric thread ensures compatibility with standard enclosures while maintaining IP68 environmental protection.

Technical Specifications

Thread Size: M25x1.5 (metric)

Material: Zinc-plated brass (CuZn39Pb3)

IP Rating: IP68 (1m immersion, 24 hours)

Temperature Range: -40°C to +200°C

Cable Range: 8–18mm diameter

Standards: IEC 62444, UL 514B, RoHS compliant

Functional Features

• EMI/RFI shielding through metal body

• Double-sealing with EPDM washer and compression ring

• Corrosion-resistant plating (salt spray tested to 96h)

• Vibration-resistant locking teeth

Recommended Applications

• Oil and gas equipment

• Marine and offshore installations

• Industrial control panels

• Railway signaling systems
