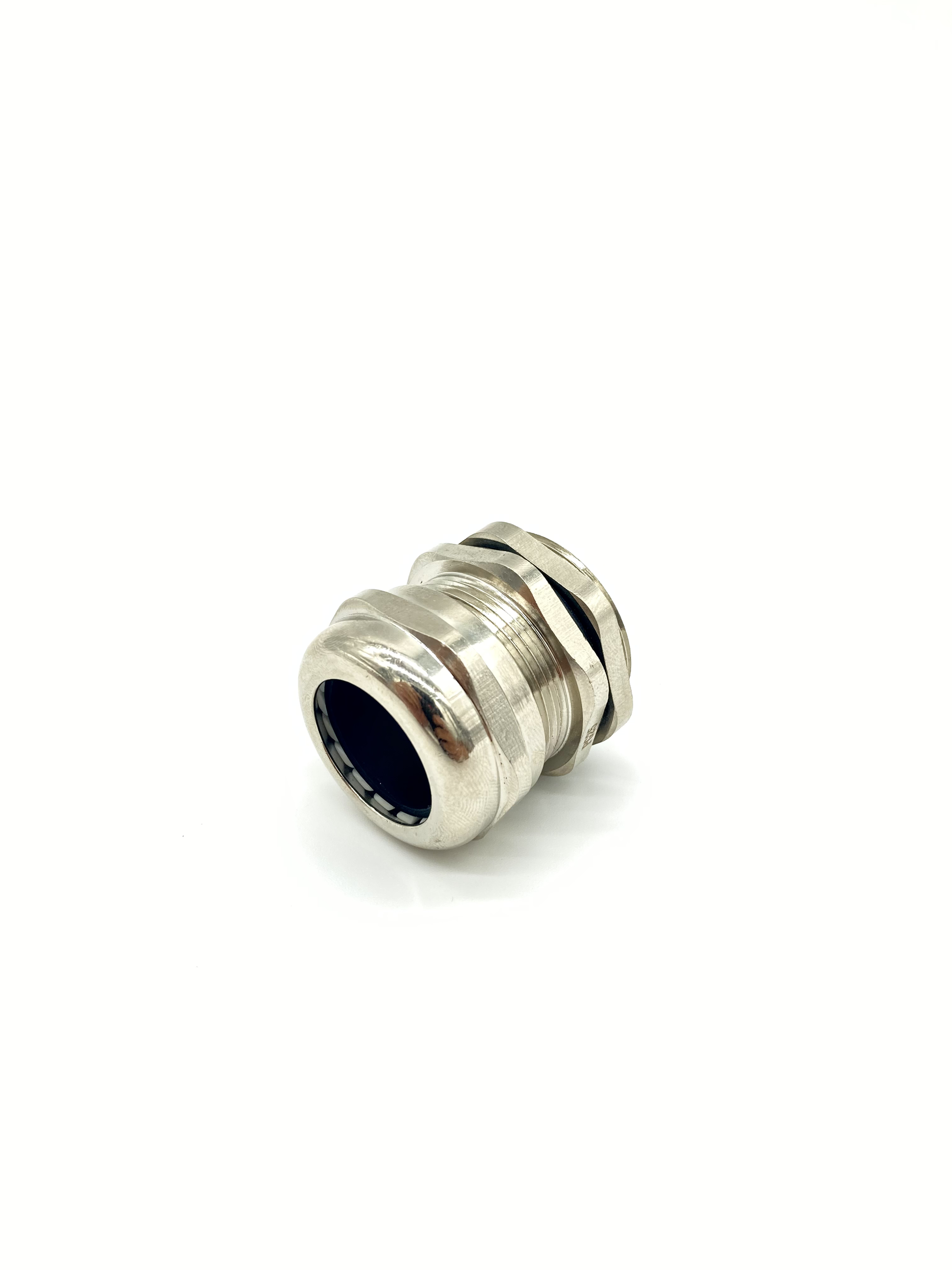

Giffex Cable Gland (Metal) - M30x1.5

This zinc-plated brass cable gland provides secure, EMI-shielded cable entry for industrial applications. The M30x1.5 metric thread ensures compatibility with standard enclosures while maintaining IP68 environmental protection.

Technical Specifications

• Thread Size: M30x1.5 (metric)

• Material: Nickel-plated brass (standard) / SS316 (optional)

• IP Rating: IP68 (1m immersion, 24 hours)

• Temperature Range: -40°C to +200°C (brass) / -60°C to +250°C (SS316)

• Cable Range: 12–20mm diameter

• Standards: IEC 62444, UL 514B, RoHS, ATEX (optional)

• Torque Specification: 30 Nm max

Functional Features

• EMI Shielding: Integrated grounding lug (M5 screw terminal)

• Double Seal: EPDM washer + compression ring

• Anti-Vibration: Serrated locking teeth

• Corrosion Resistance: Salt spray tested (500h for SS316)

Recommended Applications

• Offshore wind turbines

• Petrochemical plants (Zone 1/2)

• Railway signaling (EN 45545-2 compliant)

• Industrial robotics

Installation Notes

• Apply thread sealant for gas-tight installations

• Grounding mandatory for EMI protection

• Max cable fill: 80% of gland diameter
