Miniature Right-Angle PCB Mount Rocker Switch (300SP3)

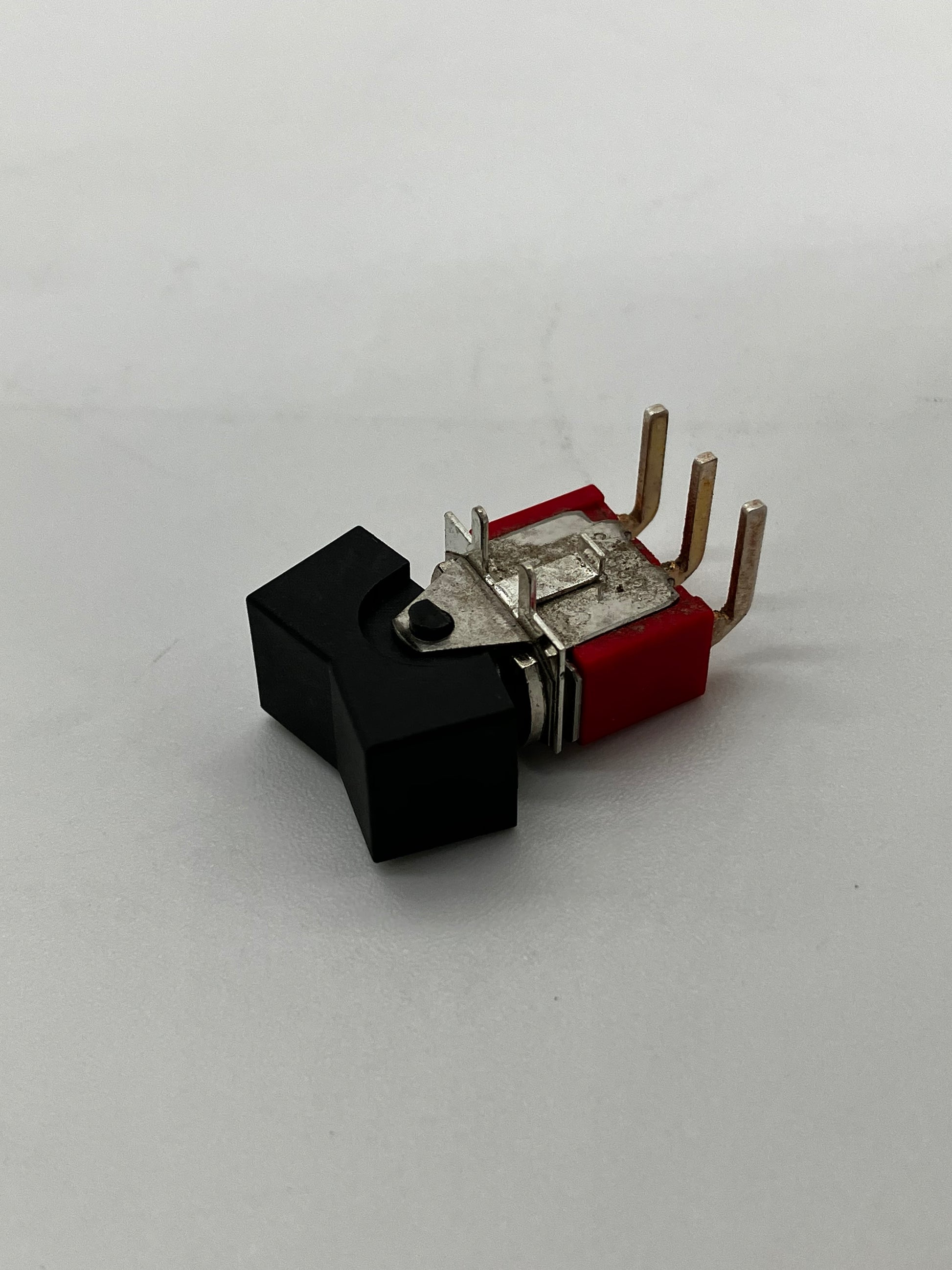

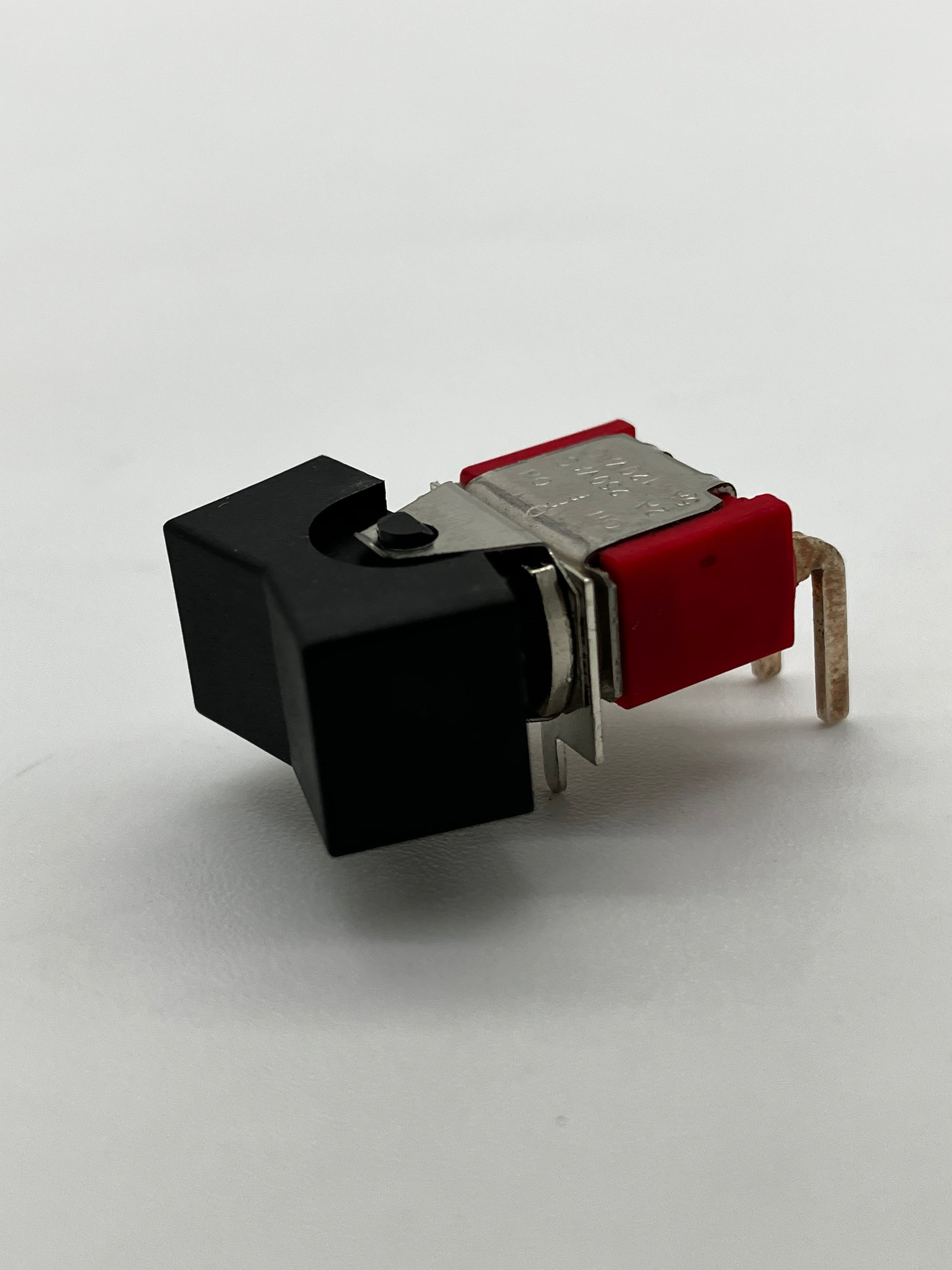

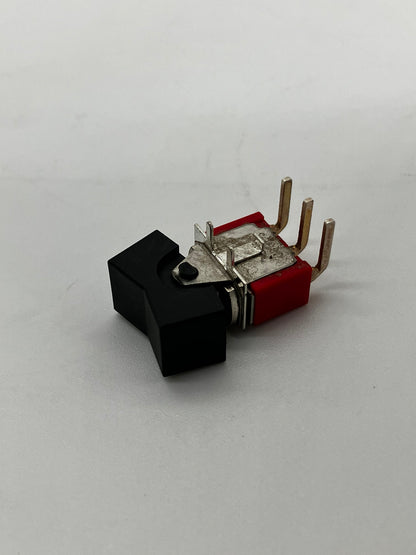

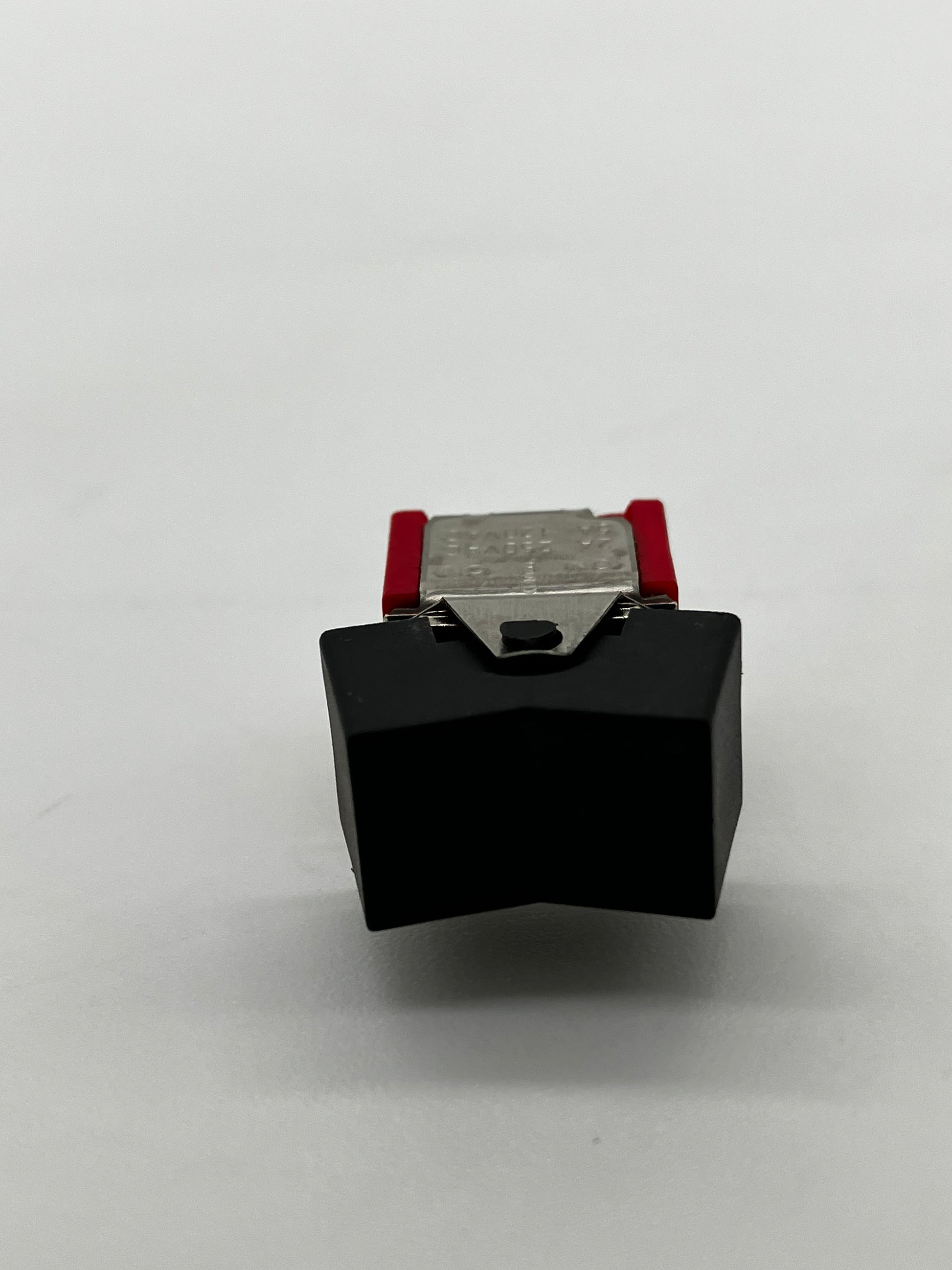

This is a miniature right-angle printed circuit board (PCB) mount rocker/paddle switch. It is a compact electrical component designed for direct soldering onto a circuit board, featuring a 90-degree terminal orientation. The switch utilizes a black plastic paddle actuator, supported by a metal mounting bracket and a distinctive red plastic base housing.

Key Specifications

• Category: Electronic Components / Switches / Rocker Switches

• Product Type: Miniature Rocker / Paddle Switch (Right-Angle PC Mount)

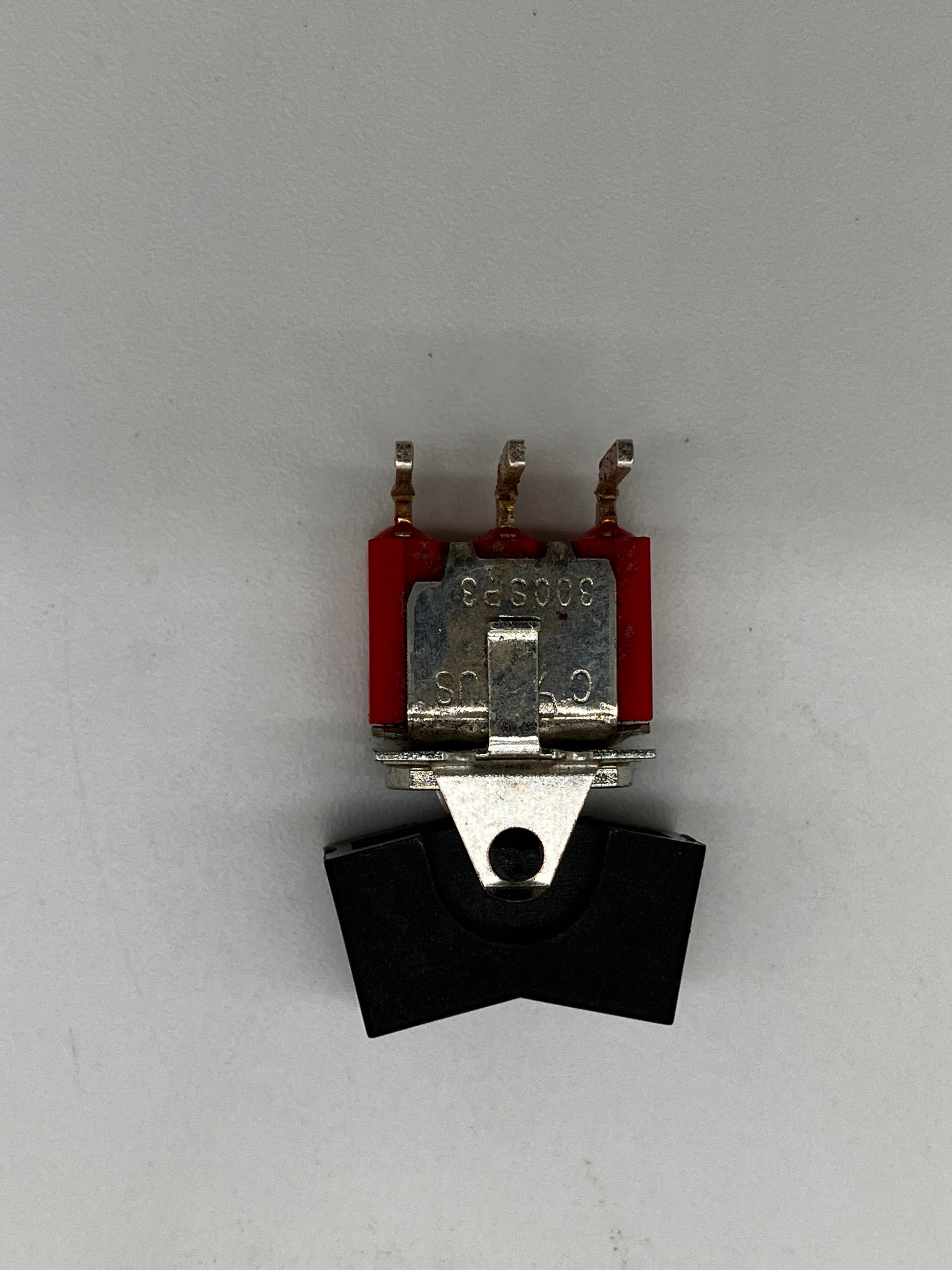

• Part Number Reference: Stamped "300SP3"

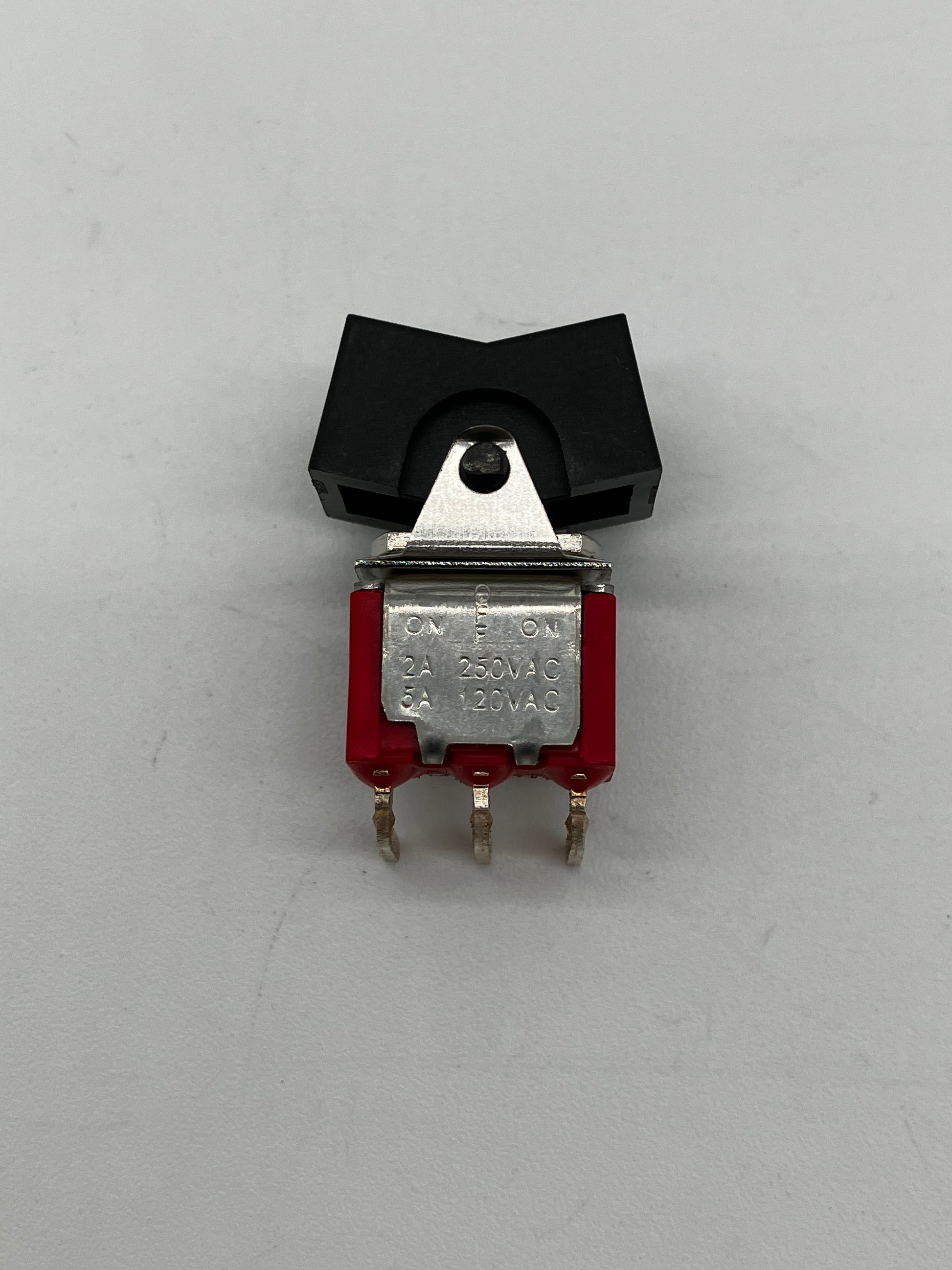

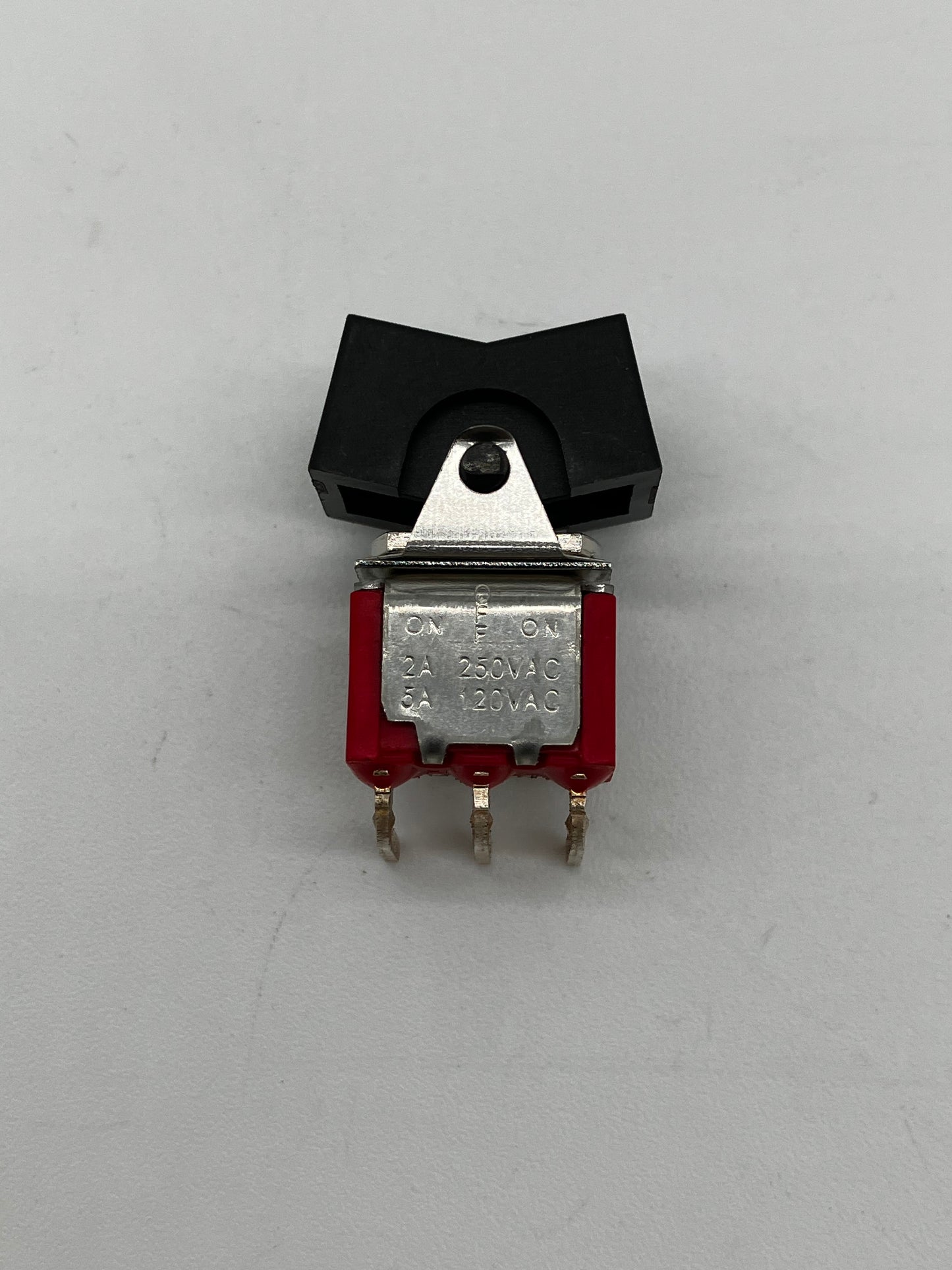

• Electrical Ratings: 5A @ 120VAC / 2A @ 250VAC

• Pin Configuration: 3-Pin Right-Angle Through-Hole Terminals

• Switch Function: Stamped "ON ON" (typically SPDT - Single Pole, Double Throw)

• Certifications: Stamped with cURus logo (UL Recognized Component for Canada and US)

• Material: Metal bracket/terminals, red plastic base, black plastic actuator

Key Features

• Right-Angle PCB Mounting – Features 90-degree bent through-hole pins, allowing the switch to be edge-mounted on a printed circuit board to protrude through a device panel.

• Compact Form Factor – The miniature footprint is ideal for tight enclosures, handheld devices, and densely packed control boards.

• Durable Construction – Built with a rugged metal support bracket that provides mechanical stability when the actuator is pressed, reducing stress on the solder joints.

• Tactile Actuation – The prominent black paddle offers a clear, mechanical snap-action feel when toggling between circuits.

deal For:

• Custom printed circuit board (PCB) assemblies

• Audio/visual equipment and mixing consoles

• Industrial control panels and instrumentation

• DIY electronics projects and electronic device repairs

Note: Shipping charges are not included and will be calculated separately based on the quantity, weight, and destination of the selected product(s).
