Original A/C Condenser & Cooling Fan Assembly - Mercedes-Benz W111 280 SE 3.5

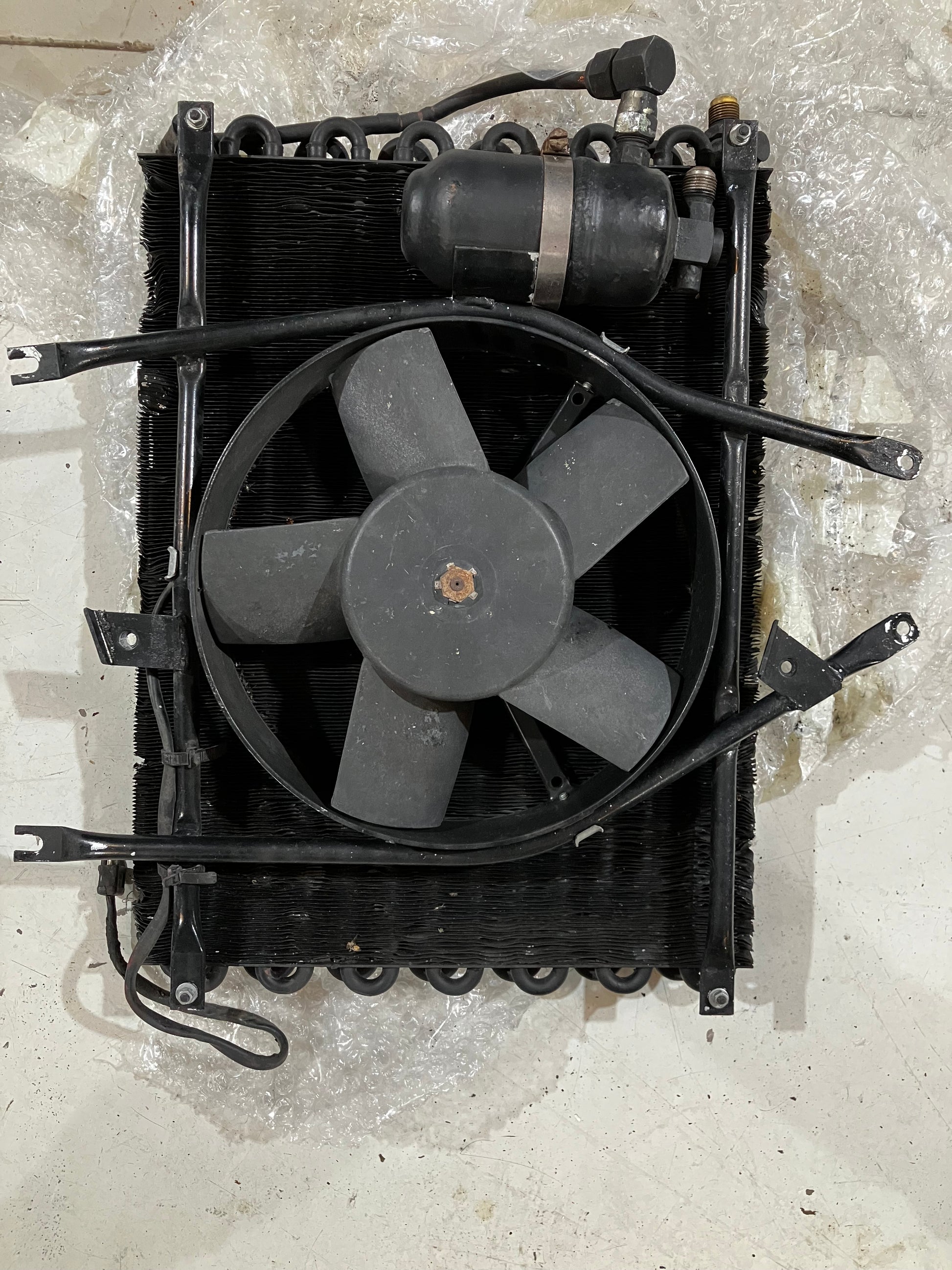

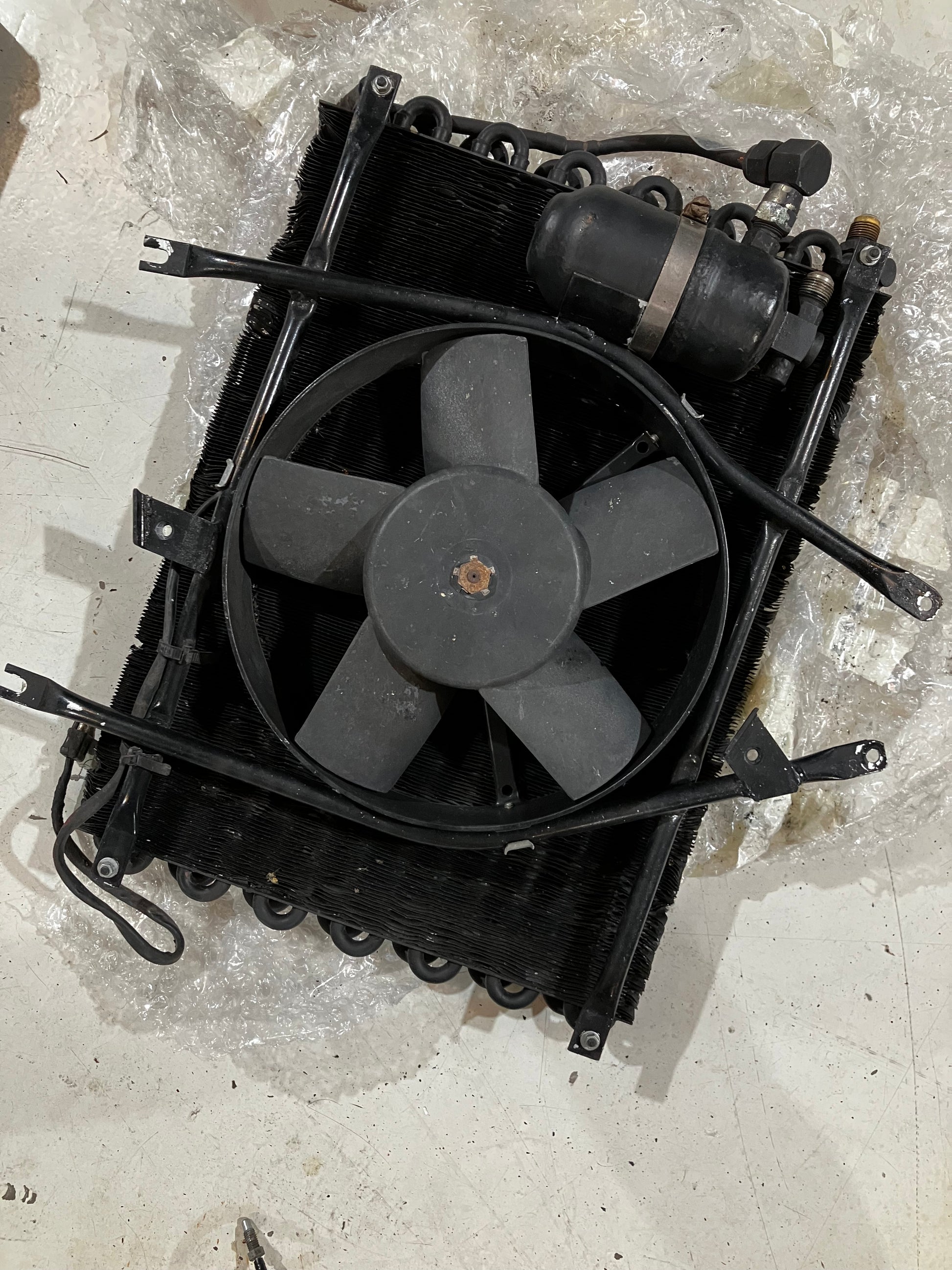

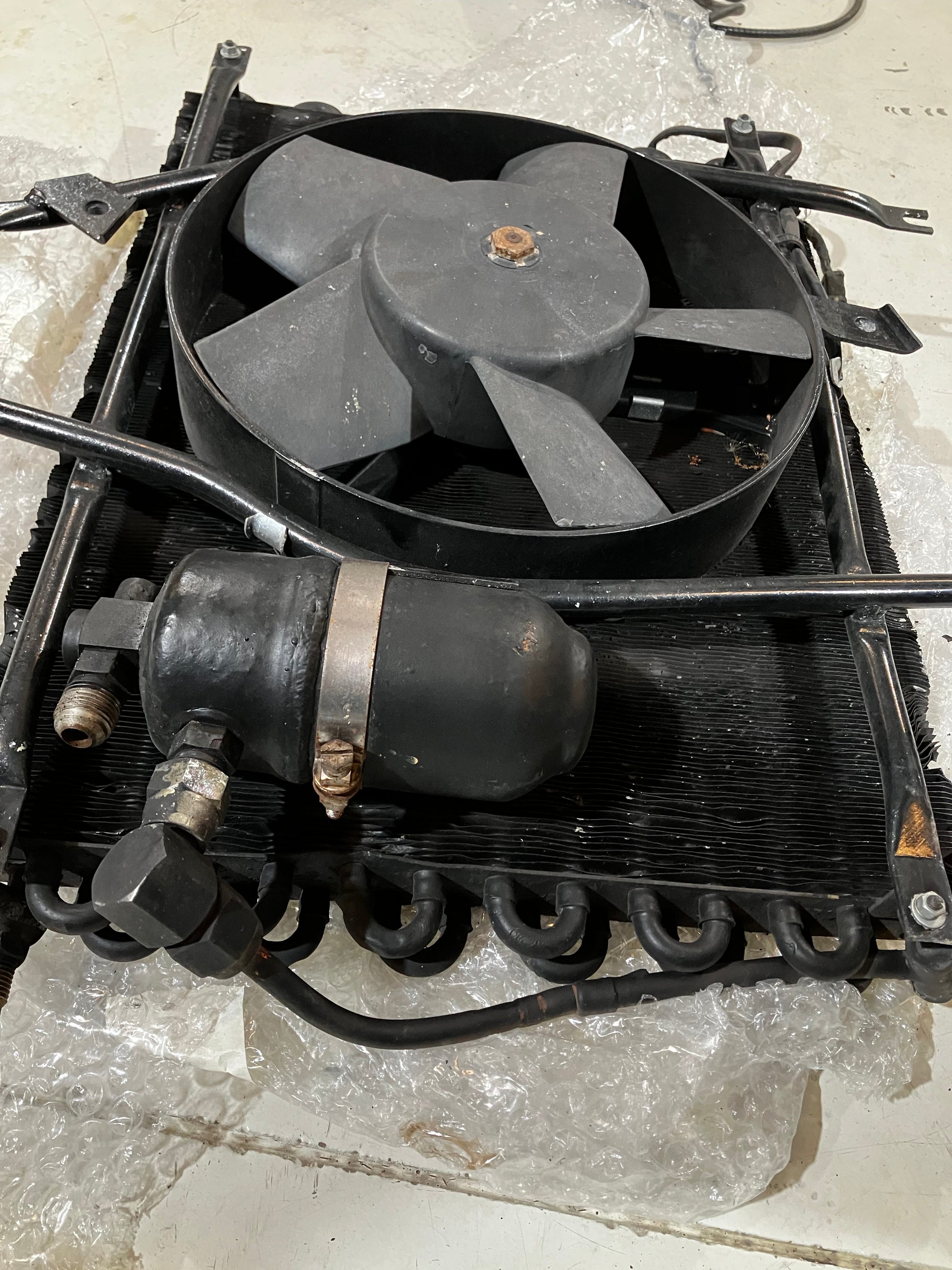

This is an original equipment Air Conditioning (A/C) Condenser Assembly, removed from a classic 1971 Mercedes-Benz W111 280 SE 3.5 Coupé. This comprehensive cooling unit features a traditional tube-and-fin condenser core, an integrated 5-blade auxiliary electric pusher fan, a mounted receiver/drier canister, and the factory steel mounting bracket frame. It is designed to mount ahead of the engine radiator to dissipate heat from the vehicle's HVAC refrigerant system.

Key Specifications

• Category: Automotive Parts & Accessories / Air Conditioning & Heat / A/C Condensers

• Product Type: A/C Condenser Assembly with Auxiliary Fan

• Manufacturer: Original Equipment Manufacturer (OEM)

• Material: Copper/Aluminum tube-and-fin core (painted black), steel mounting frame, plastic fan blades, and steel receiver/drier canister

• Hardware Included: Condenser core, 5-blade electric cooling fan with a 2-prong wiring pigtail, receiver/drier canister with mounting strap, hardline piping with threaded A/C fittings, and original tubular steel mounting brackets.

Key Features

• Complete Assembly – Retains the complex factory plumbing, cooling fan, and specific mounting configuration required for the M116 V8 chassis.

• Integrated Pusher Fan – Features the original 5-blade electric auxiliary cooling fan designed to force air through the condenser matrix during idle or low-speed driving to maintain cabin cooling performance.

• Period-Correct Construction – Utilizes the classic tube-and-fin design painted in standard factory black to blend discreetly behind the front grille area.

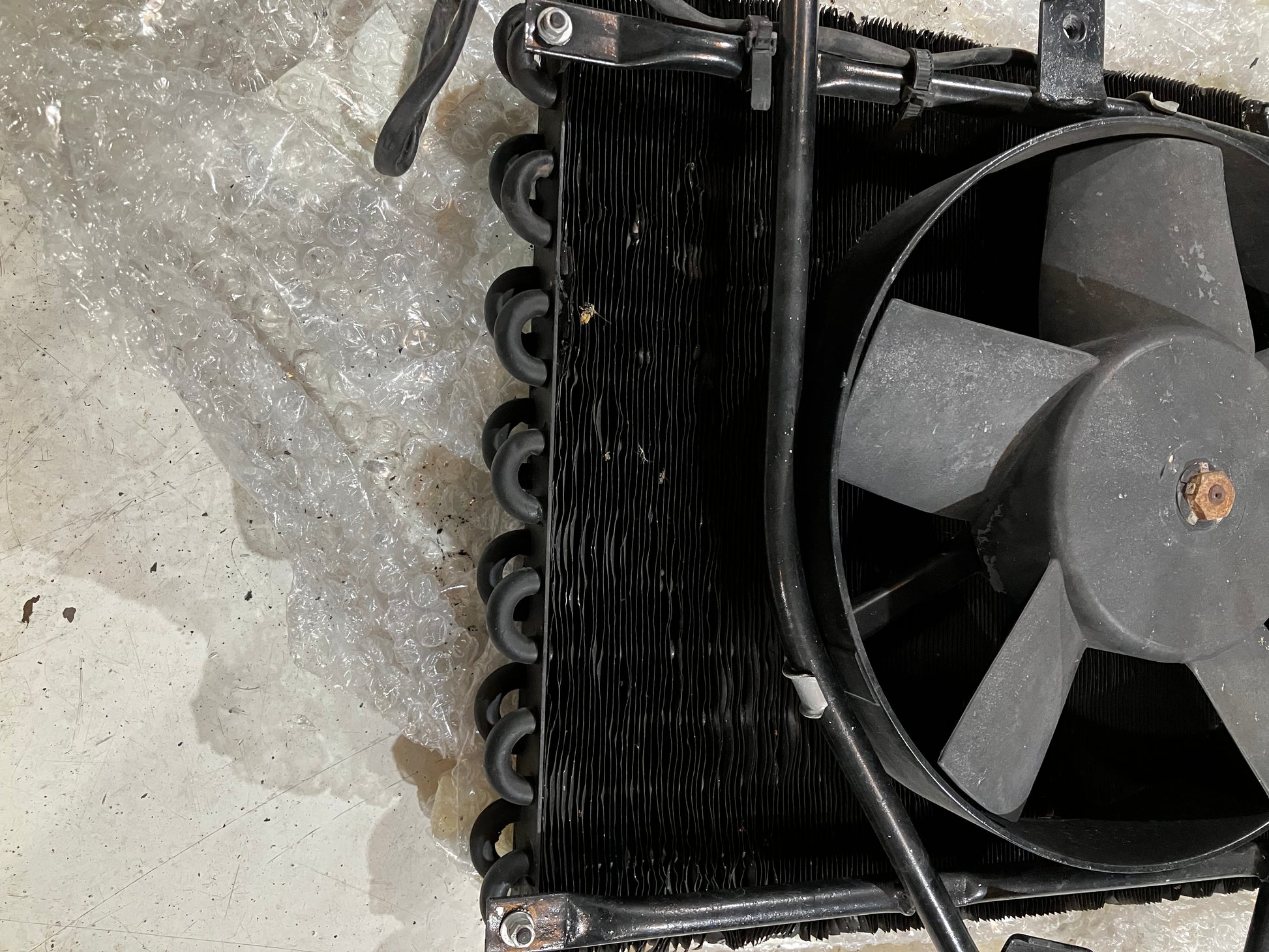

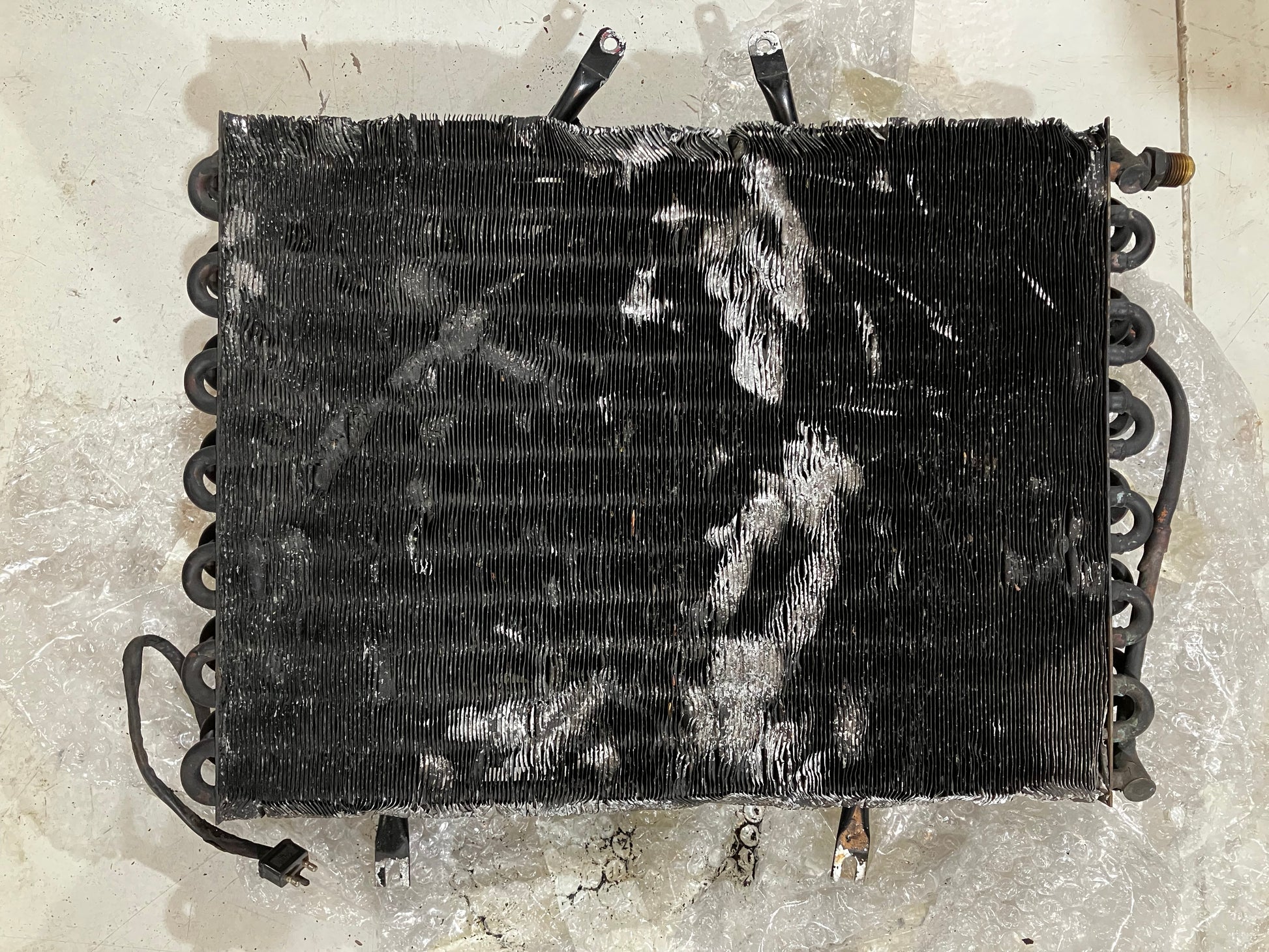

• Restoration Core (Used Condition) – Please note: As pictured, the rear face of the condenser shows significant wear, including large areas of flattened and bent cooling fins. This unit is an ideal candidate for professional fin-straightening and pressure testing, or for serving as a structural template/bracket donor for a modern parallel-flow condenser upgrade.

Ideal For:

• 1971 Mercedes-Benz W111 280 SE 3.5 Coupé restorations requiring authentic factory HVAC mounting hardware.

• Classic Mercedes-Benz W108/W109/W111 V8 models needing original A/C auxiliary fan and bracket replacements.

• Rebuilding or serving as an exact physical template for retrofitting a modernized air conditioning system while keeping the factory look.

Note: Shipping charges are not included and will be calculated separately based on the quantity, weight, and destination of the selected product(s).
