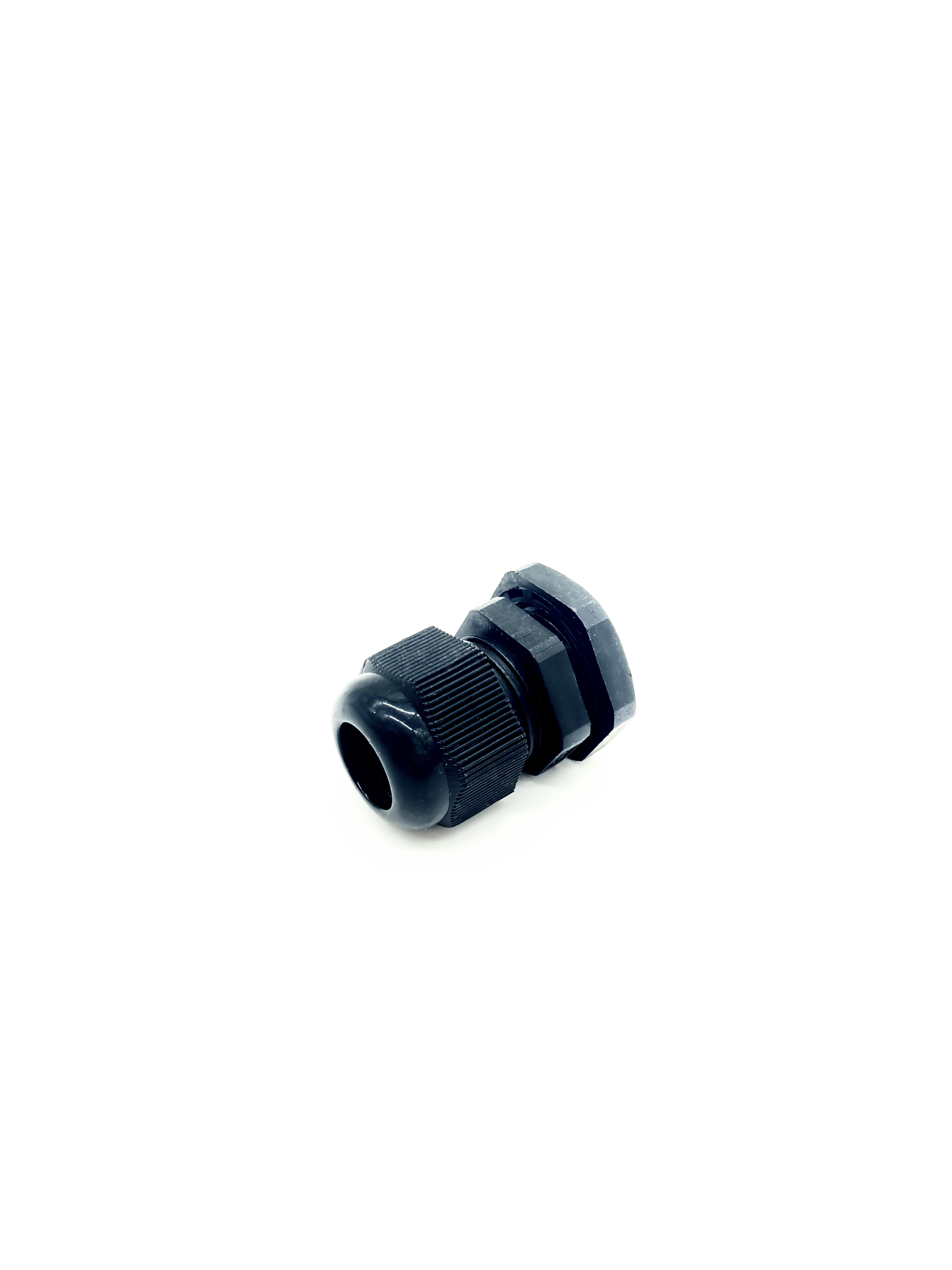

Giffex Cable Gland (Plastic) - M20x1.5

This black polyamide (PA66) cable gland provides secure cable entry for industrial and commercial applications. The M20x1.5 metric thread ensures compatibility with standard enclosures while maintaining IP68 protection against dust and water ingress.

Technical Specifications

Thread Size: M20x1.5

Material: Glass-reinforced polyamide (PA66)

IP Rating: IP68 (1m immersion, 30 minutes)

Temperature Range: -40°C to +120°C

Cable Diameter Range: 8-14mm

Standards: UL 94V-2, RoHS compliant

Functional Features

Integrated sealing ring for reliable environmental protection

Anti-rotation design prevents loosening from vibration

Smooth inner surface prevents cable damage

UV-resistant black finish

Recommended Applications

Industrial control cabinets

Electrical distribution boxes

Outdoor lighting fixtures

Machinery wiring systems
