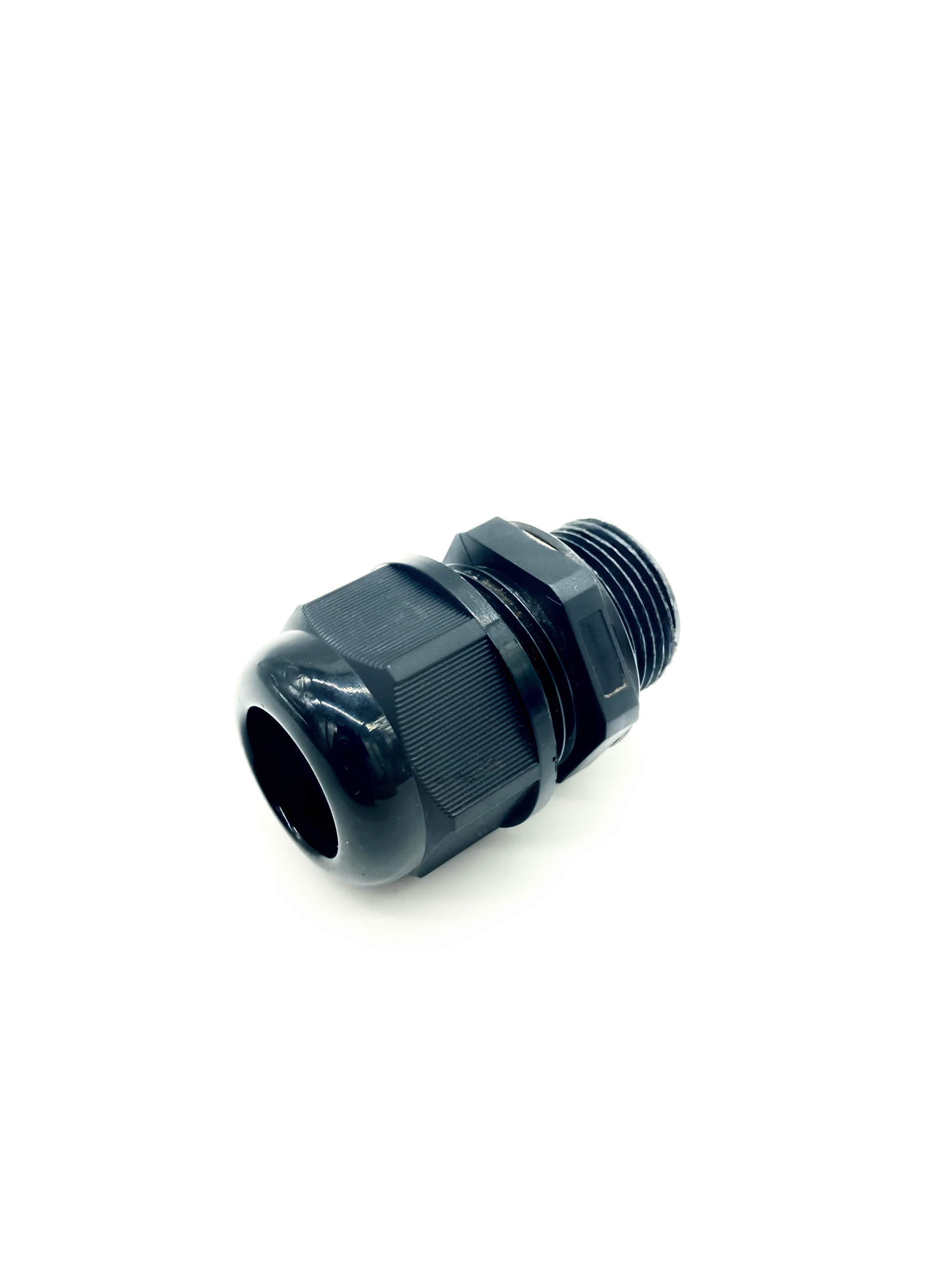

Giffex Cable Gland (Plastic) - NPT 3/4"

Black Plastic Cable Gland – 3/4" NPT – IP68 Rated

This black polyamide (PA66) cable gland provides secure conduit connection for North American electrical applications. The 3/4" NPT thread offers compatibility with standard threaded enclosures while maintaining IP68 environmental protection.

Technical Specifications

Thread Type: 3/4" NPT (National Pipe Taper)

Material: Glass-reinforced polyamide (PA66)

IP Rating: IP68 (1m immersion, 30 minutes)

Temperature Range: -40°C to +120°C

Cable Diameter Range: 10-18mm

Thread Engagement: Requires 6 full turns for proper seal

Standards: UL 94V-2, RoHS compliant, CSA certified

Functional Features

• Tapered thread creates mechanical seal without additional compounds

• Integral sealing washer for environmental protection

• Vibration-resistant locking mechanism

• Electrically insulating properties

• Corrosion-resistant construction

Recommended Applications

• Hazardous location enclosures (Class I Div 2)

• Water treatment facility controls

• Petrochemical equipment

• Industrial automation systems

• Outdoor HVAC controls

Installation Notes

• Hand-tighten plus 1/4 turn with strap wrench

• Maximum torque: 25 Nm

• Not recommended for constant immersion beyond 1m
