Standard VDA355 1P6S Lithium-Ion EV Battery Module

The Standard VDA355 1P6S Lithium-Ion EV Battery Module is a high-power, OEM-grade energy storage component designed for modern electric vehicles and advanced stationary power systems. Built to the strict dimensions of the German VDA 355 standard, this specific module features a 1P6S (1 Parallel, 6 Series) cell configuration, utilizing energy-dense NMC (Nickel Manganese Cobalt) chemistry to deliver approximately 2.5 kWh of power at a nominal 22.2 Volts.

Key Specifications:

• Category: Automotive Parts & Accessories / EV High Voltage Components / Battery Modules & Cells

• Product Type: Prismatic Lithium-Ion Battery Module

• Format: VDA355 Standard

• Internal Configuration: 1P6S (1 Parallel, 6 Series)

• Cell Chemistry: NMC (Lithium Nickel Manganese Cobalt Oxide)

• Nominal Voltage: ~21.9V - 22.2V DC

• Estimated Capacity: 114Ah - 117Ah (Approx. 2.5 kWh to 2.6 kWh)

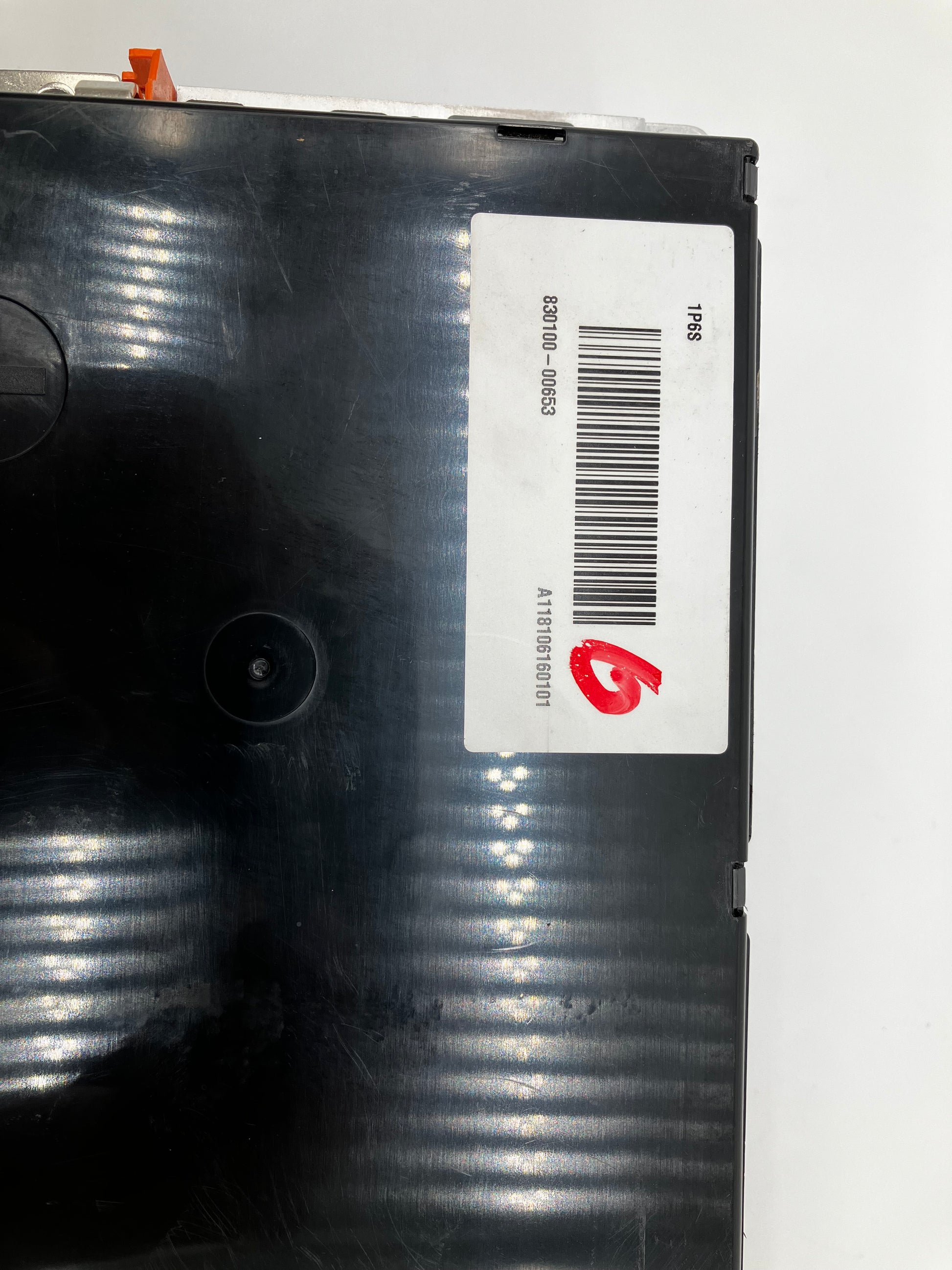

• Part / Reference Numbers: 830100-00653 (Label and Laser Etched)

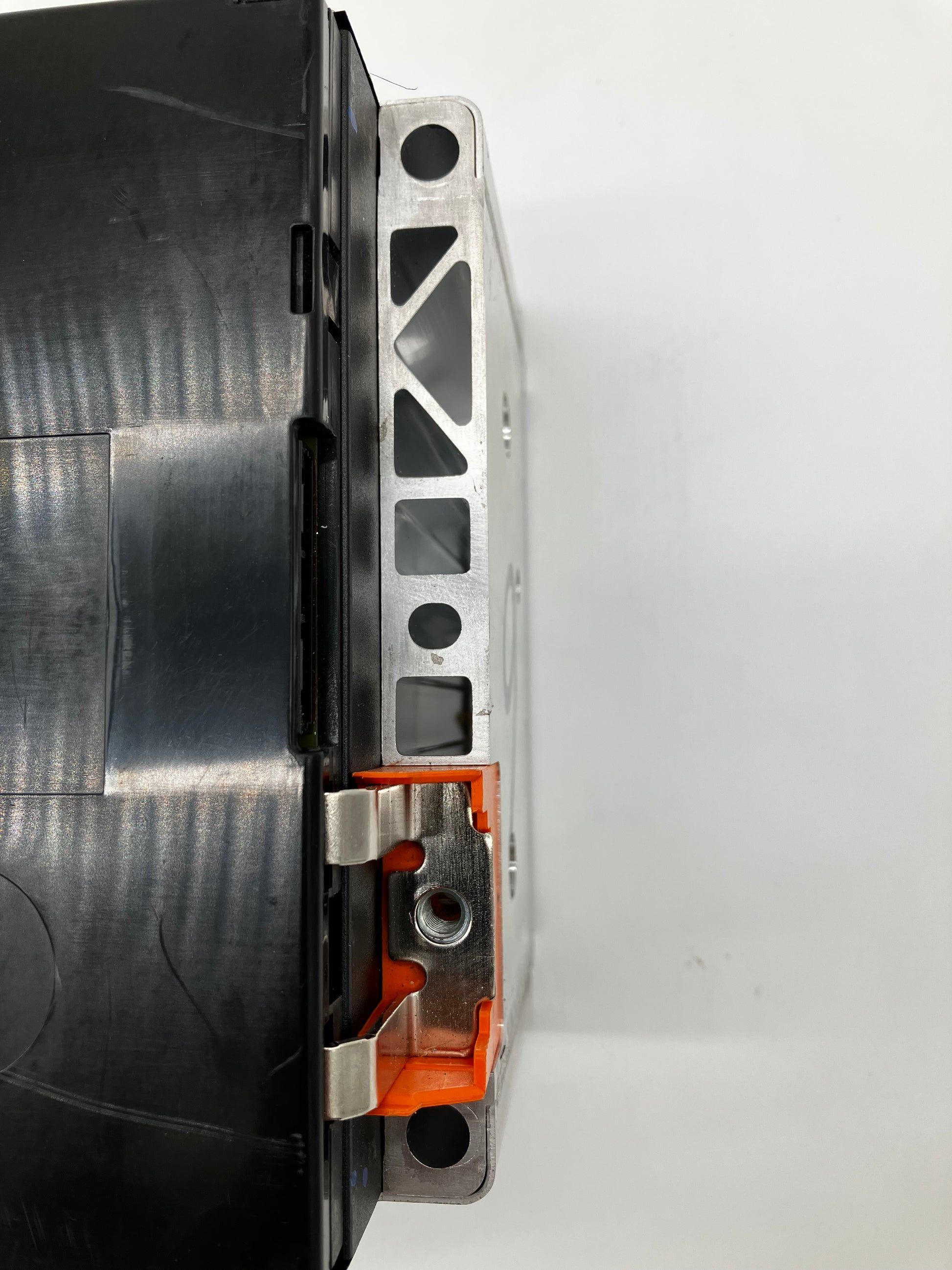

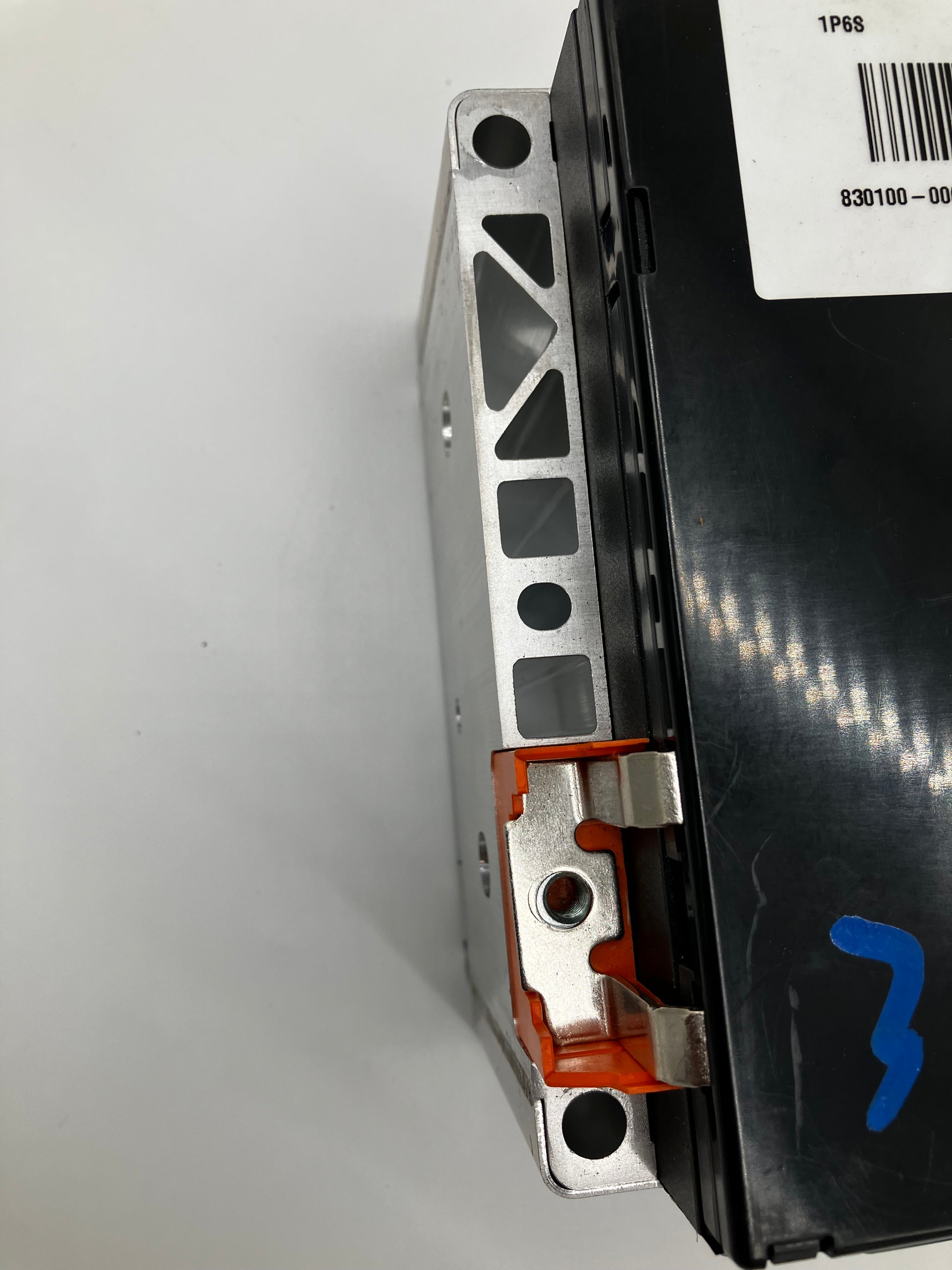

• Terminals: M6 female threaded inserts with orange safety isolation shrouds

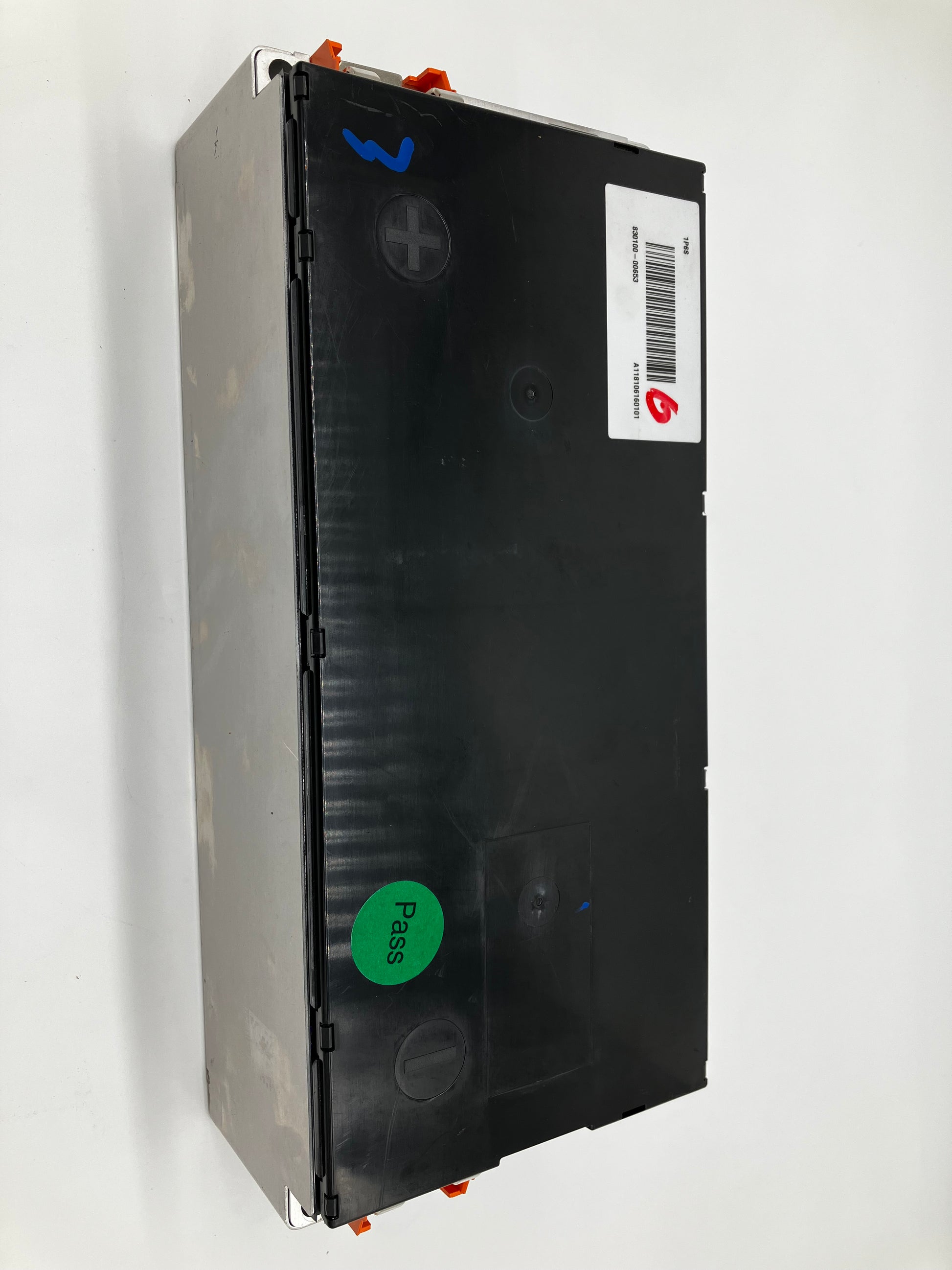

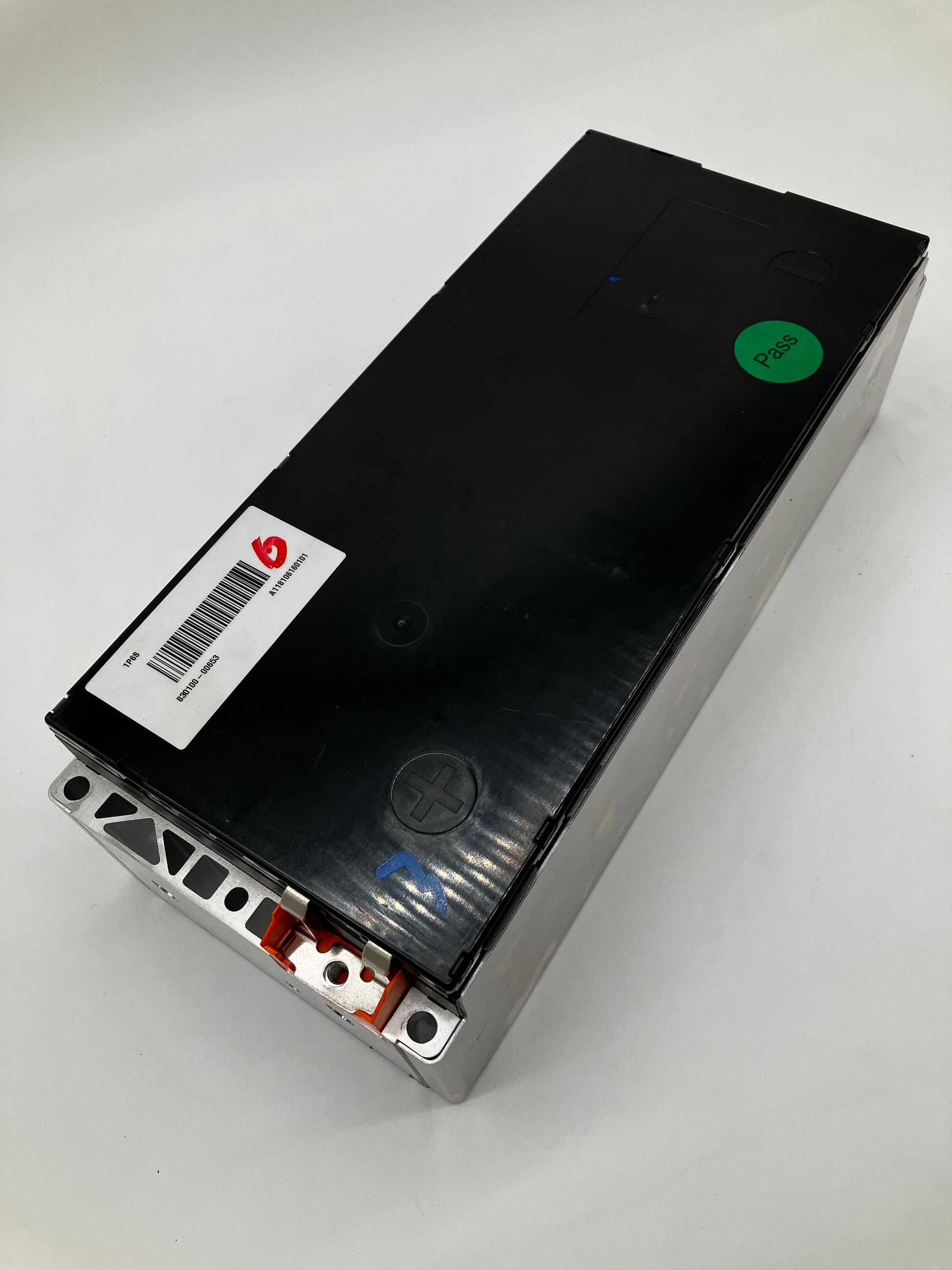

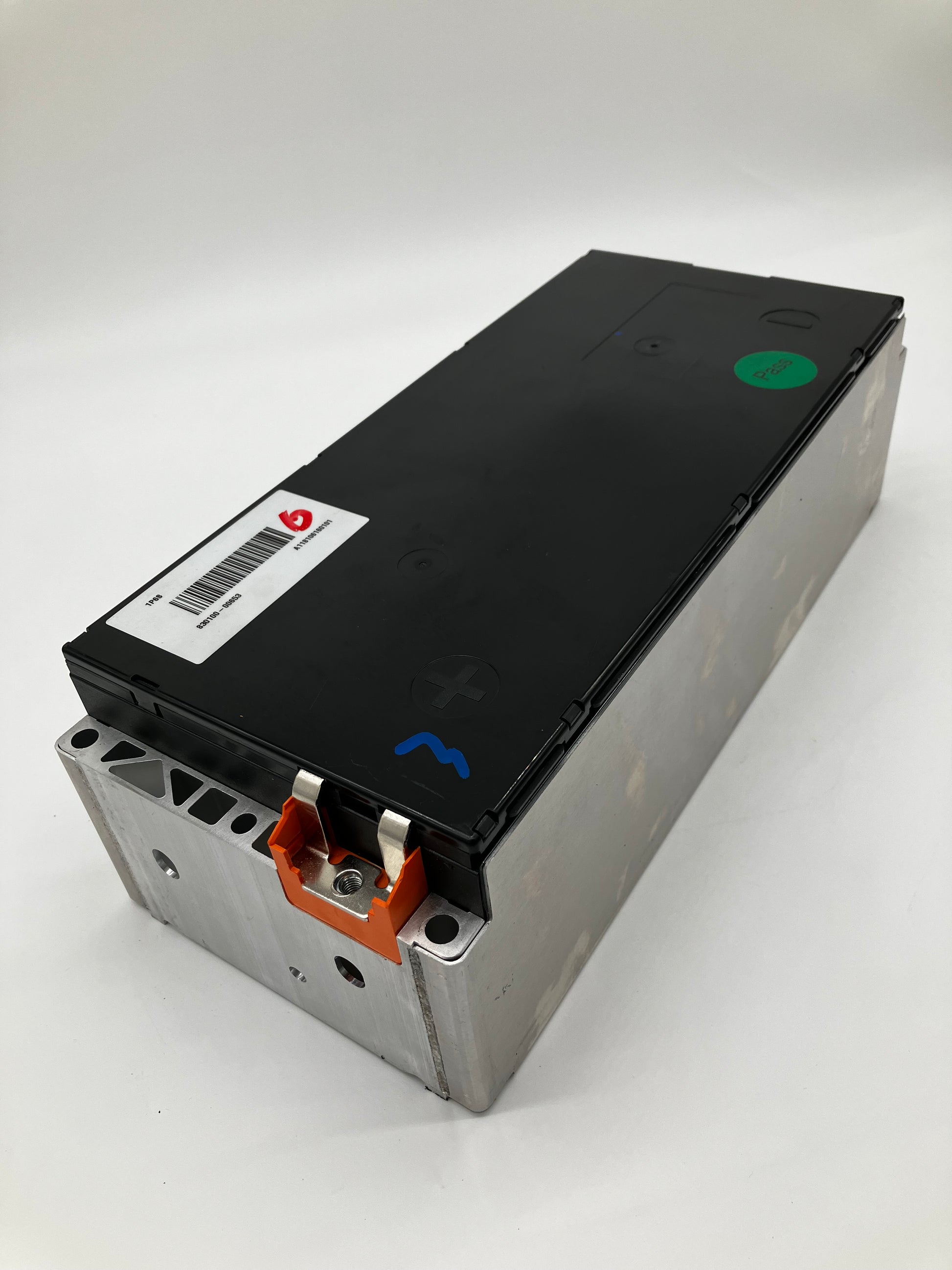

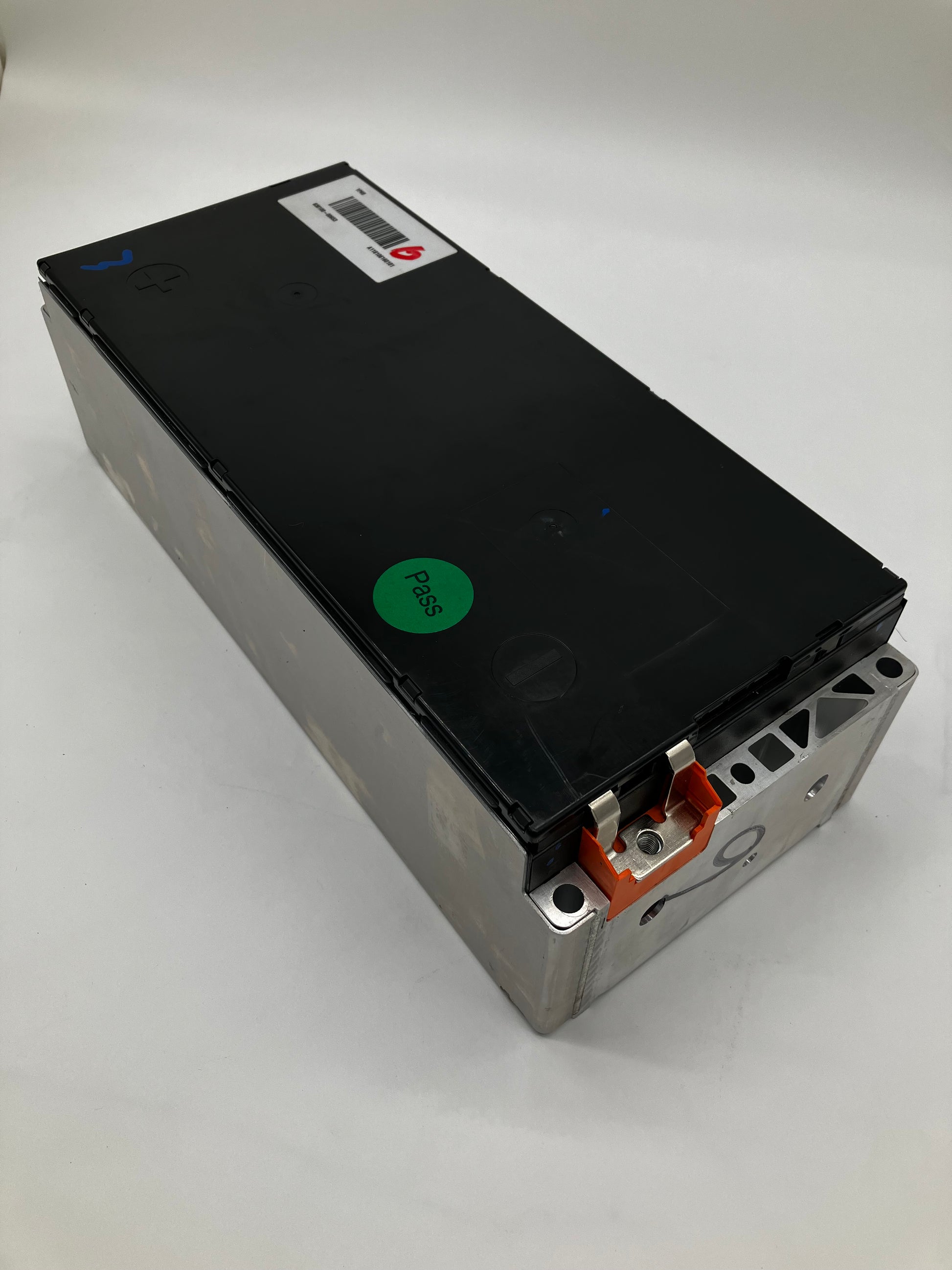

• Body Material: Extruded aluminum base/cooling block with a heavy-duty black plastic top cover

Key Features:

• VDA355 Standardized Footprint – Adheres strictly to the German Association of the Automotive Industry (VDA) dimensional guidelines. This modular "building block" approach makes it highly sought after for custom racking and scalable energy systems, as multiple units stack perfectly together.

• Integrated Aluminum Heatsink Base – The bottom and sides of the module are encased in a thick, structural aluminum extrusion featuring integrated mounting webbing. This acts as both a rigid physical structure and a highly efficient thermal transfer plate for mating with liquid cooling/heating loops.

• High Energy Density NMC – Provides the excellent continuous discharge rates and deep cycling capabilities required for heavy automotive traction and grid-storage applications.

• Laser-Etched Traceability – Features a permanent laser-etched Data Matrix code and serial number (118105168736) directly on the aluminum casing for factory cell-tracking and lifecycle management.

Ideal For:

• Custom EV (Electric Vehicle) and classic car powertrain conversions

• DIY residential Battery Energy Storage Systems (BESS) and Off-Grid Solar walls

• High-voltage marine electric propulsion systems

• Commercial heavy-duty robotics and automated guided vehicles (AGVs)
