Universal Heavy-Duty Dual-Post Vibration Isolator Bracket

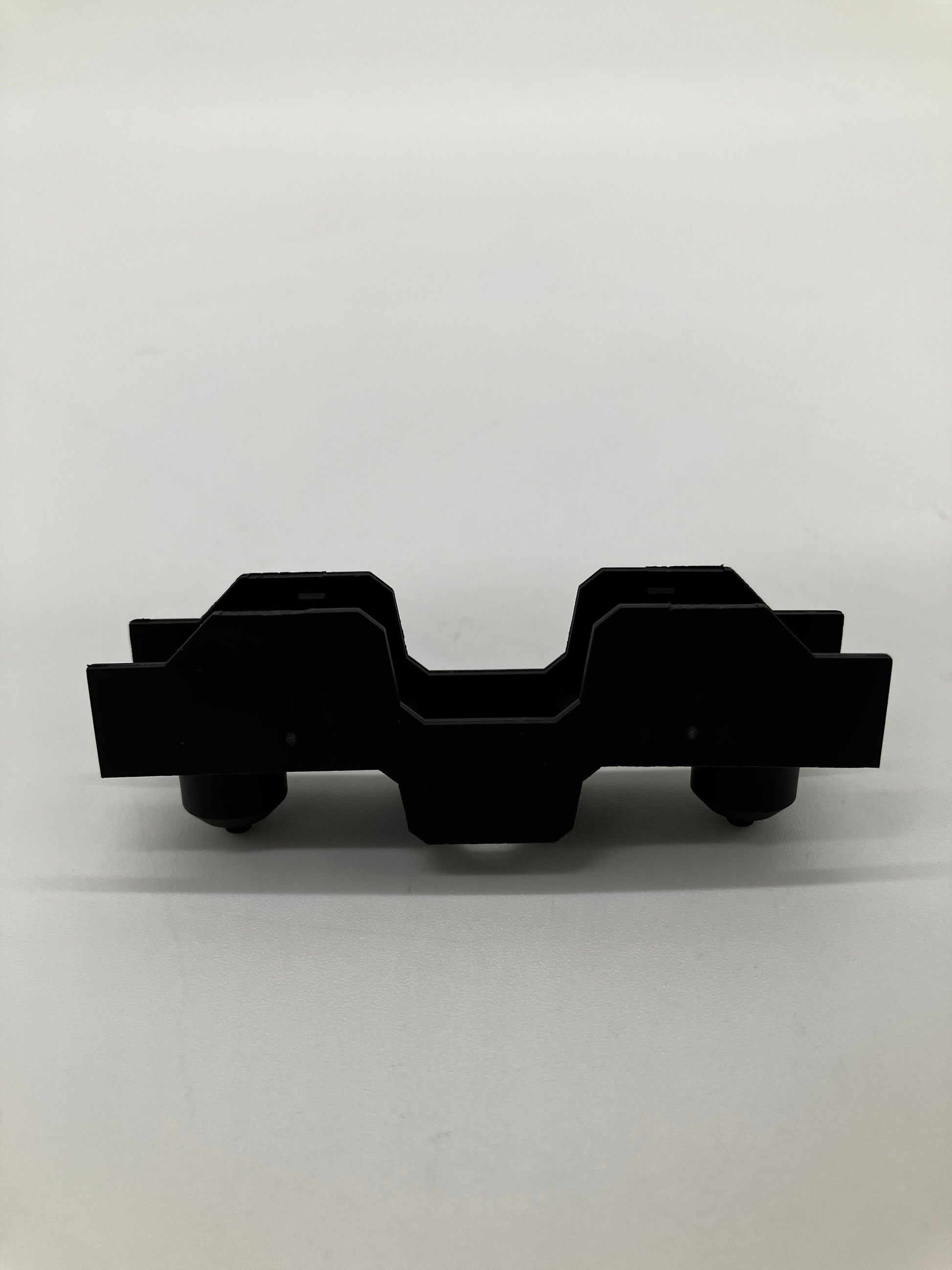

The Universal Heavy-Duty Dual-Post Vibration Isolator Bracket is a solid, molded rubber-and-metal mounting support designed to reduce NVH (Noise, Vibration, and Harshness). It acts as an acoustic bridge, suspending sensitive or vibrating electromechanical components—such as electric vacuum pumps, water pumps, or auxiliary compressors—away from the hard metal of the vehicle's chassis.

Key Specifications:

• Category: Automotive Parts & Accessories / Brackets, Flanges & Hardware / Vibration Isolators

• Product Type: Dual-Post Rubber Vibration Isolator / Mounting Bridge

• Manufacturer: Unbranded / Generic OEM Style

• Material: High-durometer EPDM or Natural Rubber (Overmolded on metal hardware)

• Top Mounting Interface: Two (2) integrated threaded metal inserts (typically M6 or M8 sizing)

• Bottom Mounting Interface: Two (2) molded rubber push-in isolation bobbins with bottom alignment pins

• Profile: Stepped "Bridge" or "Saddle" design

Key Features:

• Maximum NVH Reduction – The solid rubber construction effectively absorbs high-frequency vibrations and mechanical shocks, preventing resonant humming or rattling from transferring into the vehicle cabin.

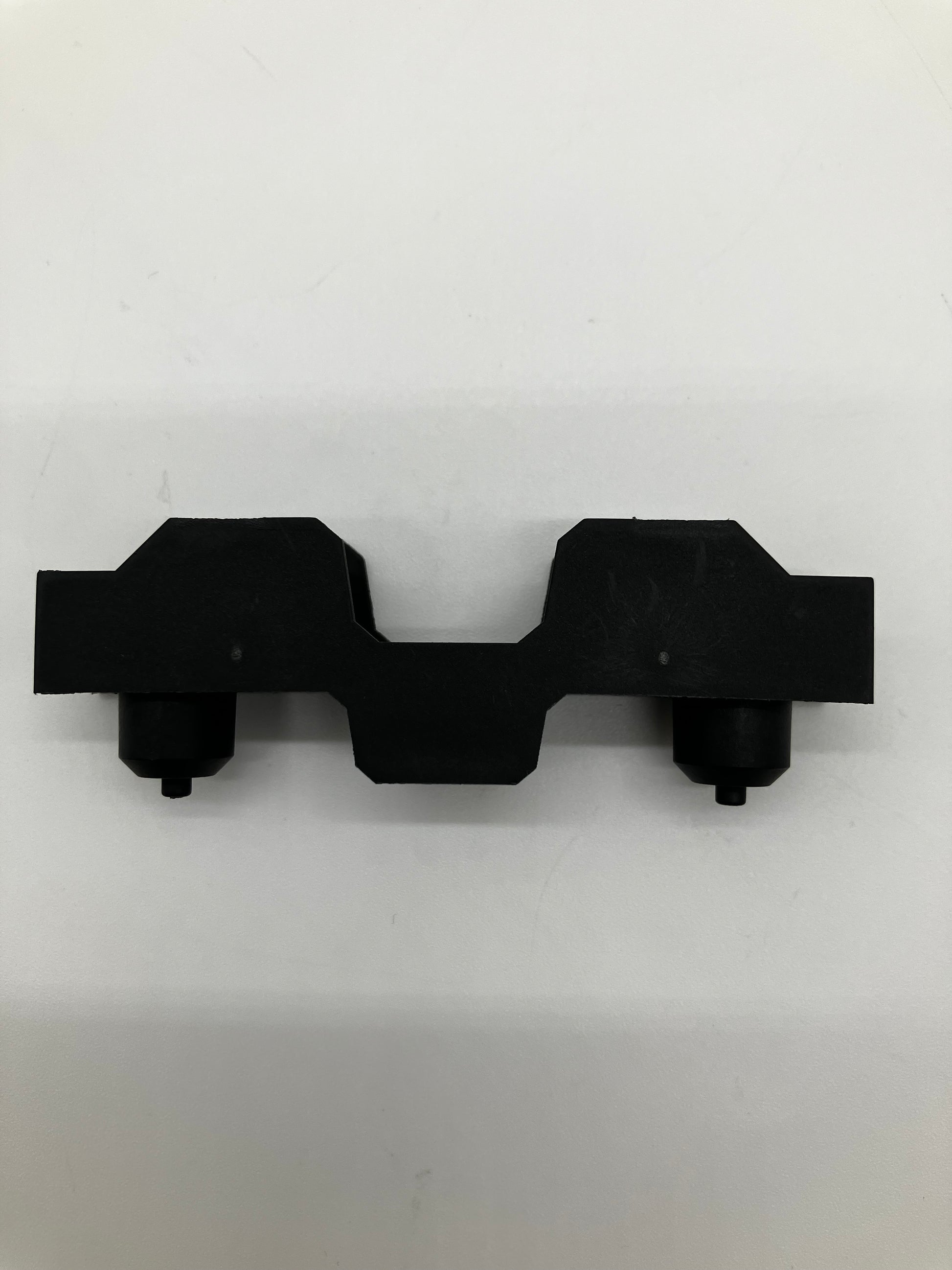

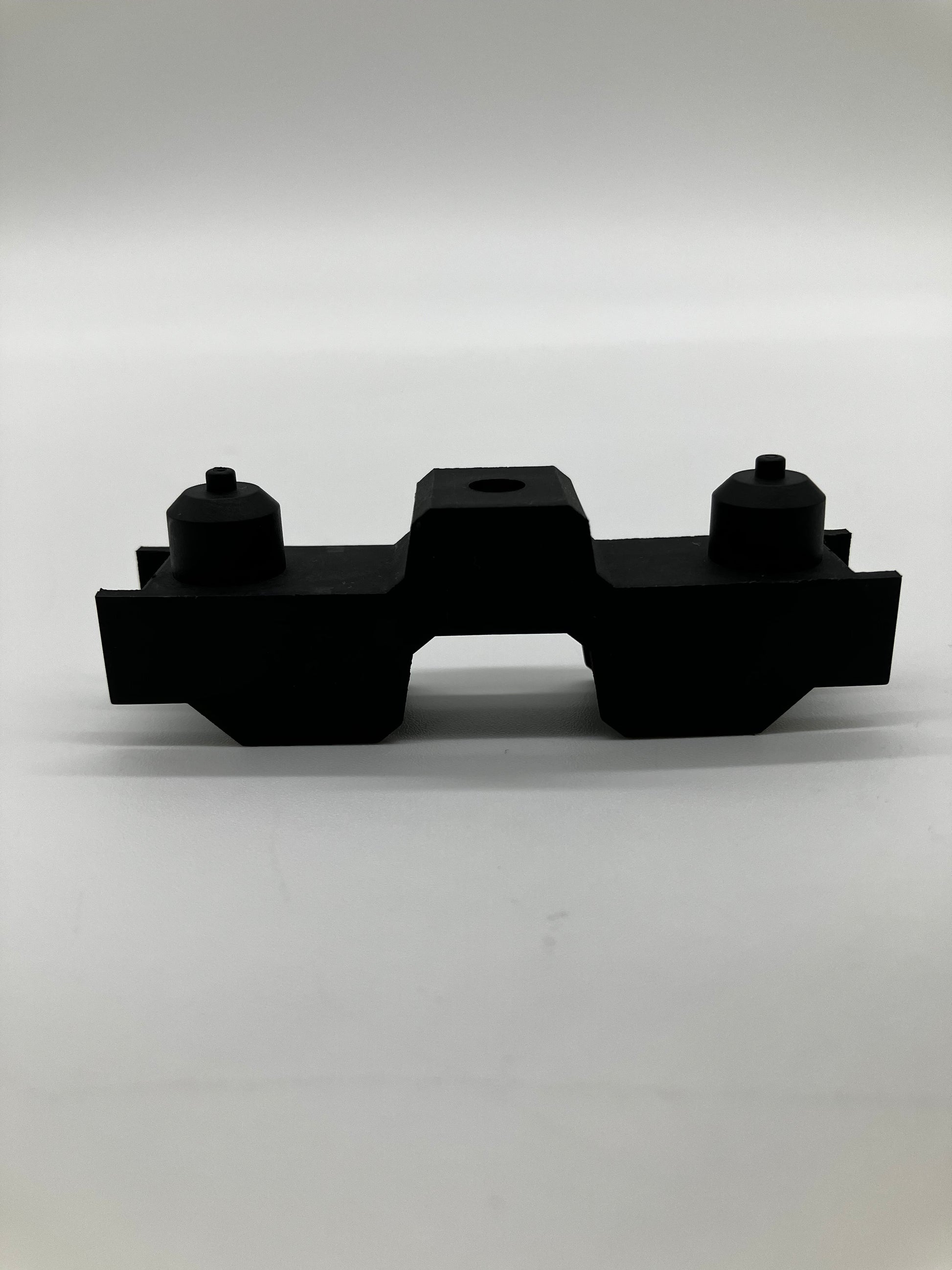

• Tool-Less Chassis Mounting – The bottom features two protruding rubber bobbins that are designed to be friction-pressed directly into pre-drilled chassis holes or a secondary steel sub-bracket.

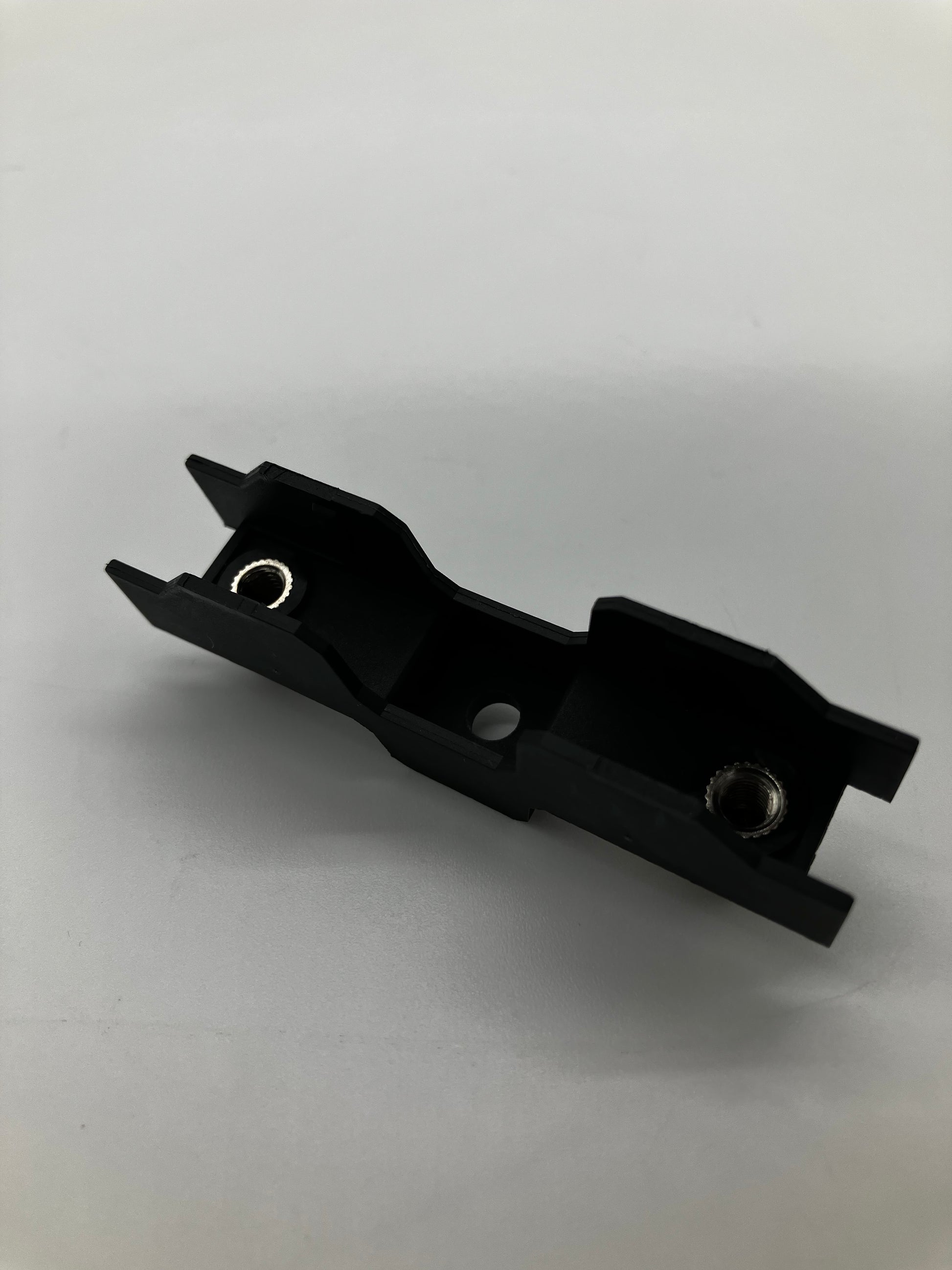

• Threaded Metal Inserts – As seen on the underside, heavy-duty metal knurled nut inserts are permanently molded into the rubber. This allows the mounted component to be bolted down tightly and securely without crushing or tearing the rubber base.

• Bridge Clearance – The stepped, cut-out center section allows the bracket to straddle existing wiring harnesses, cooling hoses, or chassis ribs without causing interference.

Ideal For:

• Mounting automotive electric brake vacuum pumps (such as the Hella UP28, UP30, or MES-DEA series)

• Suspending electric water pumps (like the Pierburg CWA series) in EV cooling loops

• Isolating custom air compressor setups for air suspension systems

• General-purpose vibration dampening for heavy relays, auxiliary fuse blocks, or secondary ECUs in custom vehicle builds
