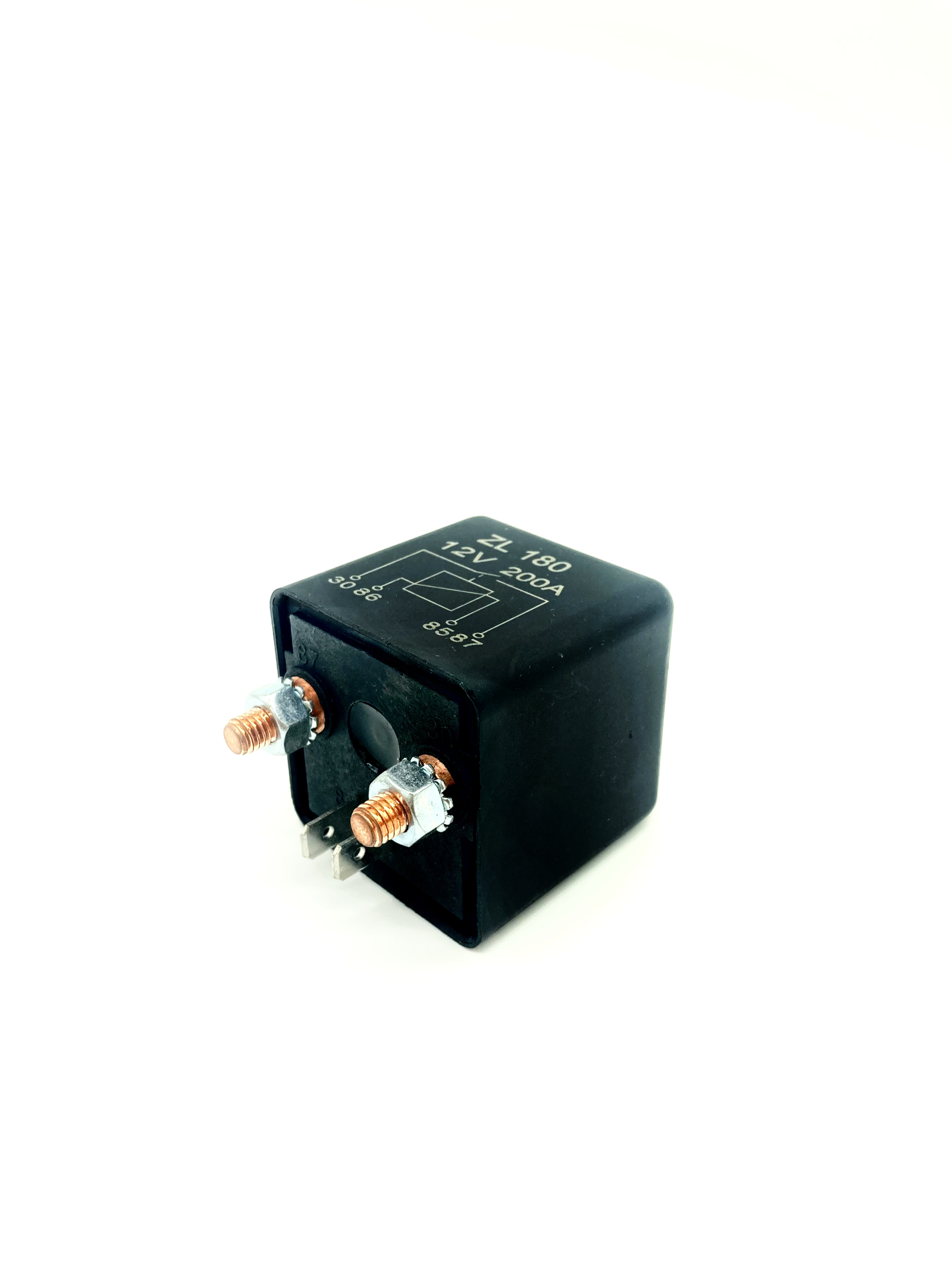

ZL 180 Relay

The ZL 180 Relay is a high-performance electromagnetic relay designed for reliable switching in automotive, industrial, and appliance applications. With its compact design and durable construction, this 12V DC relay provides efficient power control for medium-current circuits while offering long service life and stable performance.

Key Specifications:

• Model: ZL 180

• Type: SPST (Single Pole Single Throw) normally open

• Coil Voltage: 12V DC (other voltages available)

• Contact Rating: 30A @ 14V DC / 20A @ 28V DC

• Max Switching Current: 40A (resistive load)

• Contact Material: Silver alloy (anti-welding)

• Operate Time: ≤15ms

• Release Time: ≤10ms

• Insulation Resistance: 100MΩ min

• Dielectric Strength: 1000V AC (1min)

• Operating Temperature: -40°C to +85°C

• Vibration Resistance: 10-55Hz, 1.5mm amplitude

• Mounting: PCB or socket mounting options

Key Features:

• High Current Capacity - Handles up to 30A continuous load

• Durable Contacts - Silver alloy construction resists arcing and welding

• Compact Design - Space-saving footprint for easy integration

• Sealed Construction - Dust and moisture resistant (IP67 equivalent)

• Fast Switching - Quick response time for precise control

• Universal Compatibility - Works with 12V/24V automotive and industrial systems

• LED Indicator - Optional models with operation status light

Ideal For:

• Automotive electrical systems (lights, fans, horns)

• Truck and bus power distribution

• Industrial control panels

• Agricultural equipment

• Marine and RV applications

• Appliance control circuits
